nitryl fluoride Thermodynamic Properties vs Temperature (CAS 10022-50-1)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for nitryl fluoride

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for nitryl fluoride

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of nitryl fluoride at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.704532	3.16871	0.0119982	0.0147234	0.574125	20.5143	-35.6639	-0.130303	g
-18.048	0.711195	3.10533	0.0122643	0.0150833	0.57828	20.933	-32.0238	-0.11589	g
-12.9459	0.717858	3.04444	0.0125253	0.0154454	0.582138	21.3517	-28.3511	-0.101635	g
-7.84388	0.724521	2.9859	0.0127813	0.0158101	0.585722	21.7703	-24.6454	-0.0875313	g
-2.74184	0.731183	2.92956	0.0130327	0.0161775	0.589048	22.189	-20.9068	-0.0735738	g
2.3602	0.737846	2.87531	0.0132797	0.0165476	0.592134	22.6076	-17.1353	-0.0597563	g
7.46224	0.744509	2.82303	0.0135226	0.0169206	0.594996	23.0263	-13.3307	-0.0460735	g
12.5643	0.751172	2.77262	0.0137615	0.0172966	0.597647	23.445	-9.49299	-0.0325203	g
17.6663	0.757835	2.72397	0.0139967	0.0176757	0.600101	23.8636	-5.62213	-0.019092	g
22.7684	0.764498	2.67701	0.0142284	0.0180579	0.602371	24.2823	-1.71808	-0.00578413	g
27.8704	0.771134	2.63164	0.0144566	0.0184428	0.604463	24.7009	2.21919	0.00740756	g
32.9724	0.777636	2.58778	0.0146817	0.0188284	0.606373	25.1196	6.18928	0.0204857	g
38.0745	0.783999	2.54535	0.0149038	0.0192145	0.60811	25.5383	10.1915	0.0334517	g
43.1765	0.790228	2.5043	0.015123	0.0196012	0.609687	25.9569	14.2252	0.0463073	g
48.2786	0.796331	2.46455	0.0153394	0.0199884	0.611114	26.3756	18.2898	0.0590539	g
53.3806	0.802313	2.42604	0.0155531	0.0203763	0.612402	26.7942	22.3846	0.0716932	g
58.4827	0.808181	2.38872	0.0157644	0.0207648	0.61356	27.2129	26.5091	0.0842266	g
63.5847	0.81394	2.35252	0.0159733	0.0211541	0.614599	27.6316	30.6627	0.0966559	g
68.6867	0.819595	2.31741	0.0161799	0.021544	0.615527	28.0502	34.845	0.108983	g
73.7888	0.825151	2.28333	0.0163842	0.0219347	0.616352	28.4689	39.0553	0.121208	g
78.8908	0.830612	2.25024	0.0165865	0.0223261	0.617081	28.8875	43.2933	0.133335	g
83.9929	0.835983	2.21809	0.0167868	0.0227182	0.617722	29.3062	47.5585	0.145363	g
89.0949	0.841268	2.18685	0.0169852	0.023111	0.618282	29.7249	51.8505	0.157296	g
94.1969	0.846469	2.15648	0.0171817	0.0235045	0.618767	30.1435	56.1689	0.169134	g
99.299	0.851591	2.12694	0.0173765	0.0238987	0.619183	30.5622	60.5132	0.180878	g
104.401	0.856635	2.0982	0.0175696	0.0242935	0.619536	30.9808	64.883	0.192531	g
109.503	0.861606	2.07022	0.017761	0.024689	0.619831	31.3995	69.2781	0.204094	g
114.605	0.866504	2.04298	0.0179509	0.025085	0.620073	31.8182	73.698	0.215569	g
119.707	0.871333	2.01645	0.0181393	0.0254816	0.620266	32.2368	78.1424	0.226956	g
124.809	0.876095	1.9906	0.0183262	0.0258787	0.620415	32.6555	82.6109	0.238257	g
129.911	0.880791	1.9654	0.0185118	0.0262762	0.620524	33.0741	87.1033	0.249474	g
135.013	0.885423	1.94083	0.018696	0.0266741	0.620596	33.4928	91.6192	0.260607	g
140.115	0.889993	1.91687	0.0188789	0.0270723	0.620636	33.9115	96.1584	0.271659	g
145.217	0.894502	1.89349	0.0190605	0.0274709	0.620645	34.3301	100.72	0.28263	g
150.319	0.898951	1.87068	0.019241	0.0278697	0.620629	34.7488	105.305	0.293522	g
155.421	0.903342	1.84841	0.0194203	0.0282687	0.620588	35.1674	109.912	0.304336	g
160.523	0.907676	1.82667	0.0195985	0.0286678	0.620527	35.5861	114.541	0.315073	g
165.626	0.911954	1.80543	0.0197757	0.029067	0.620447	36.0048	119.192	0.325735	g
170.728	0.916176	1.78467	0.0199518	0.0294661	0.62035	36.4234	123.864	0.336321	g
175.83	0.920344	1.76439	0.0201269	0.0298653	0.62024	36.8421	128.557	0.346835	g
180.932	0.924458	1.74457	0.020301	0.0302643	0.620117	37.2607	133.271	0.357275	g
186.034	0.928519	1.72518	0.0204742	0.0306631	0.619984	37.6794	138.006	0.367645	g
191.136	0.932528	1.70623	0.0206464	0.0310617	0.619843	38.0981	142.762	0.377944	g
196.238	0.936486	1.68768	0.0208178	0.03146	0.619694	38.5167	147.537	0.388173	g
201.34	0.940393	1.66953	0.0209884	0.031858	0.61954	38.9354	152.332	0.398334	g
206.442	0.944249	1.65177	0.0211581	0.0322556	0.619382	39.354	157.147	0.408428	g
211.544	0.948056	1.63438	0.021327	0.0326527	0.61922	39.7727	161.982	0.418455	g
216.646	0.951813	1.61736	0.0214952	0.0330493	0.619057	40.1914	166.835	0.428416	g
221.748	0.955523	1.60069	0.0216626	0.0334454	0.618893	40.61	171.708	0.438312	g
226.85	0.959184	1.58435	0.0218293	0.0338408	0.61873	41.0287	176.599	0.448145	g

Property Profiles for nitryl fluoride

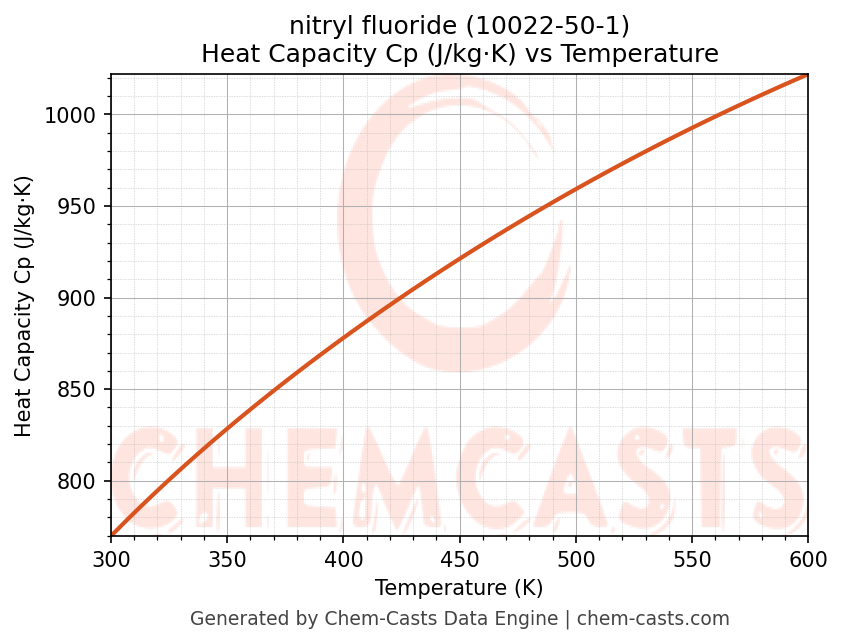

Heat Capacity (Cp) vs Temperature

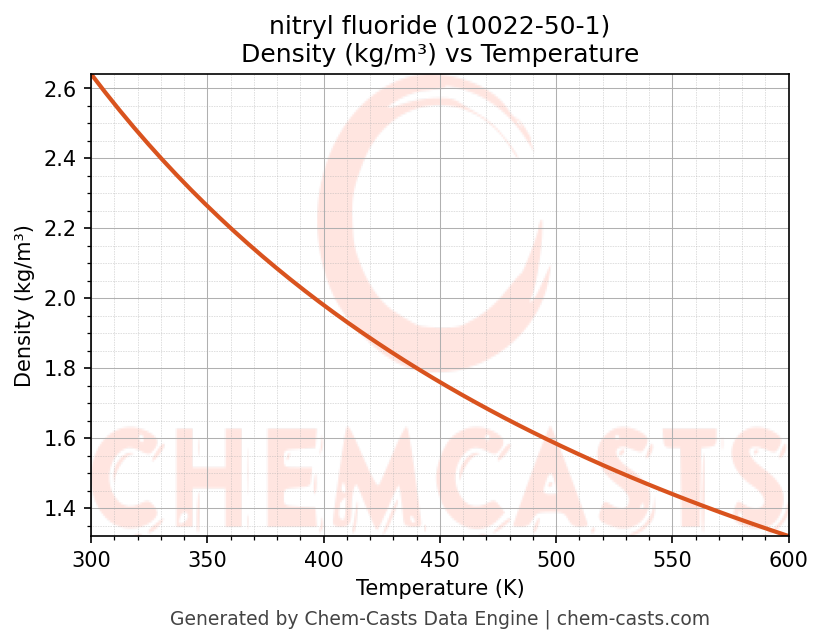

Density vs Temperature

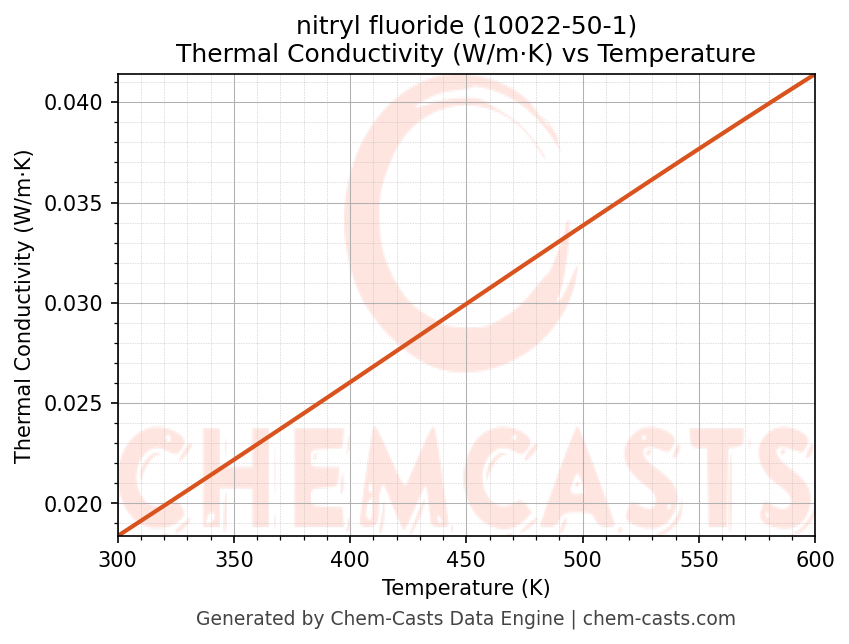

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of nitryl fluoride (CAS 10022-50-1) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of nitryl fluoride and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of nitryl fluoride at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
