chlorine dioxide Thermodynamic Properties vs Temperature (CAS 10049-04-4)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for chlorine dioxide

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for chlorine dioxide

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of chlorine dioxide at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.507772	1976.99	0.510423	0.13084	1.98088	0.0341184	-427.98	-1.60836	l
-18.048	0.51888	1963.64	0.495235	0.129841	1.9791	0.0343504	-425.361	-1.58337	l
-12.9459	0.529803	1950.08	0.480274	0.128841	1.97492	0.0345893	-422.685	-1.55836	l
-7.84388	0.540541	1936.28	0.465542	0.127841	1.96841	0.0348357	-419.955	-1.53331	l
-2.74184	0.551095	1922.26	0.451036	0.126842	1.95964	0.0350898	-417.17	-1.50821	l
2.3602	0.561465	1908.01	0.436756	0.125842	1.94866	0.035352	-414.332	-1.48301	l
7.46224	0.57165	1893.51	0.422701	0.124842	1.93554	0.0356227	-411.441	-1.45771	l
12.5643	0.614072	2.87703	0.0125855	0.01159	0.666819	23.445	-7.79137	-0.0266919	g
17.6663	0.617516	2.82655	0.0128725	0.011926	0.666525	23.8636	-4.60611	-0.0156419	g
22.7684	0.620928	2.77782	0.0131544	0.0122639	0.666011	24.2823	-1.40507	-0.00473035	g
27.8704	0.624308	2.73074	0.0134314	0.0126038	0.665301	24.7009	1.81166	0.00604726	g
32.9724	0.627653	2.68523	0.0137037	0.0129455	0.664416	25.1196	5.04401	0.0166952	g
38.0745	0.630962	2.64121	0.0139717	0.013289	0.663376	25.5383	8.29189	0.0272174	g
43.1765	0.634235	2.59861	0.0142355	0.0136344	0.662197	25.9569	11.5552	0.0376177	g
48.2786	0.63747	2.55736	0.0144953	0.0139816	0.660892	26.3756	14.8338	0.0478995	g
53.3806	0.640668	2.5174	0.0147513	0.0143306	0.659475	26.7942	18.1276	0.0580663	g
58.4827	0.643828	2.47867	0.0150036	0.0146814	0.657956	27.2129	21.4364	0.0681212	g
63.5847	0.64695	2.44111	0.0152525	0.0150341	0.656345	27.6316	24.7602	0.0780672	g
68.6867	0.650033	2.40468	0.015498	0.0153887	0.654651	28.0502	28.0987	0.0879072	g
73.7888	0.653078	2.36932	0.0157404	0.0157452	0.65288	28.4689	31.4518	0.0976439	g
78.8908	0.656084	2.33498	0.0159798	0.0161035	0.651042	28.8875	34.8195	0.10728	g
83.9929	0.659051	2.30162	0.0162162	0.0164638	0.649141	29.3062	38.2015	0.116818	g
89.0949	0.66198	2.2692	0.0164499	0.016826	0.647183	29.7249	41.5976	0.12626	g
94.1969	0.66487	2.23769	0.0166809	0.0171901	0.645174	30.1435	45.0078	0.135608	g
99.299	0.667721	2.20703	0.0169093	0.0175562	0.643118	30.5622	48.4318	0.144865	g
104.401	0.670535	2.17721	0.0171353	0.0179242	0.64102	30.9808	51.8695	0.154032	g
109.503	0.67331	2.14818	0.0173589	0.0182943	0.638884	31.3995	55.3207	0.163112	g
114.605	0.676047	2.11992	0.0175802	0.0186663	0.636714	31.8182	58.7854	0.172106	g
119.707	0.678746	2.09238	0.0177994	0.0190402	0.634514	32.2368	62.2632	0.181017	g
124.809	0.681408	2.06556	0.0180165	0.0194162	0.632286	32.6555	65.7541	0.189845	g
129.911	0.684032	2.03941	0.0182316	0.0197941	0.630034	33.0741	69.2578	0.198594	g
135.013	0.686619	2.01392	0.0184447	0.020174	0.627761	33.4928	72.7743	0.207263	g
140.115	0.689169	1.98906	0.018656	0.0205559	0.62547	33.9115	76.3033	0.215856	g
145.217	0.691682	1.9648	0.0188654	0.0209397	0.623163	34.3301	79.8447	0.224373	g
150.319	0.694159	1.94113	0.0190731	0.0213255	0.620843	34.7488	83.3983	0.232815	g
155.421	0.696599	1.91802	0.0192792	0.0217132	0.618512	35.1674	86.9639	0.241185	g
160.523	0.699004	1.89545	0.0194836	0.0221028	0.616173	35.5861	90.5415	0.249483	g
165.626	0.701373	1.87341	0.0196865	0.0224942	0.613828	36.0048	94.1307	0.257711	g
170.728	0.703707	1.85188	0.0198879	0.0228876	0.611478	36.4234	97.7315	0.26587	g
175.83	0.706006	1.83084	0.0200878	0.0232827	0.609125	36.8421	101.344	0.273962	g
180.932	0.708271	1.81026	0.0202863	0.0236797	0.606772	37.2607	104.967	0.281987	g
186.034	0.710501	1.79015	0.0204834	0.0240785	0.60442	37.6794	108.602	0.289946	g
191.136	0.712697	1.77048	0.0206793	0.024479	0.602071	38.0981	112.247	0.297841	g
196.238	0.71486	1.75123	0.0208738	0.0248812	0.599725	38.5167	115.903	0.305673	g
201.34	0.716989	1.7324	0.0210672	0.0252851	0.597386	38.9354	119.57	0.313443	g
206.442	0.719086	1.71397	0.0212593	0.0256906	0.595053	39.354	123.247	0.321151	g
211.544	0.72115	1.69593	0.0214503	0.0260977	0.592729	39.7727	126.935	0.328799	g
216.646	0.723182	1.67827	0.0216402	0.0265064	0.590415	40.1914	130.632	0.336388	g
221.748	0.725182	1.66096	0.021829	0.0269167	0.588111	40.61	134.34	0.343919	g
226.85	0.727151	1.64402	0.0220167	0.0273284	0.585818	41.0287	138.057	0.351392	g

Property Profiles for chlorine dioxide

Heat Capacity (Cp) vs Temperature

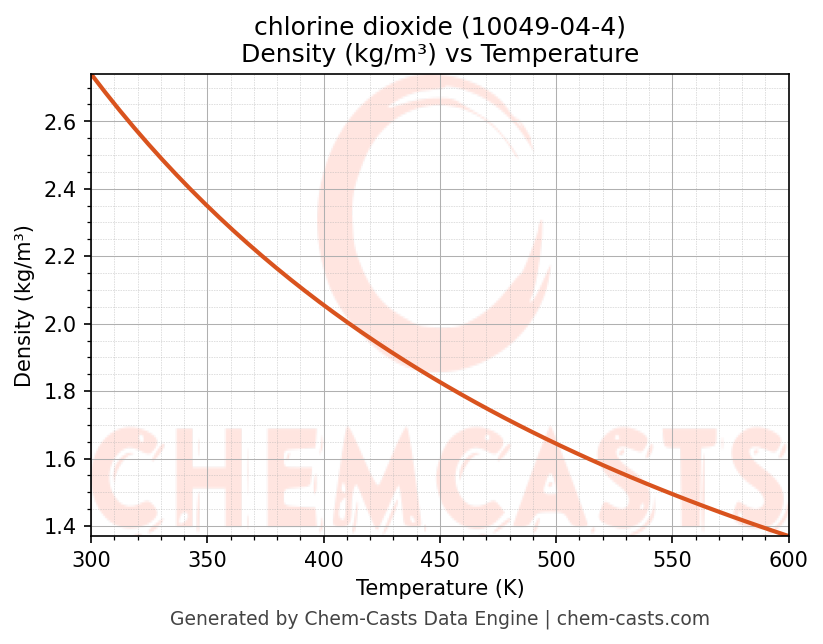

Density vs Temperature

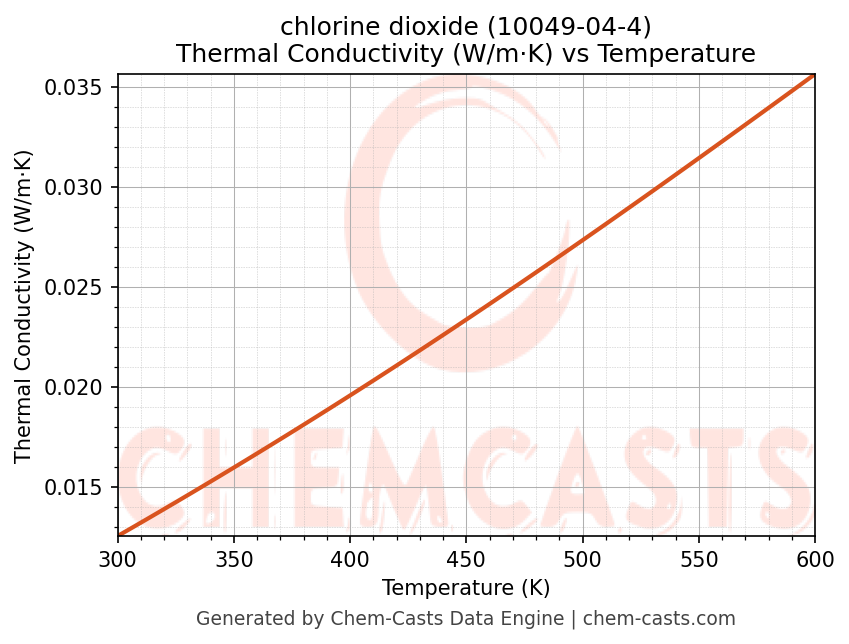

Thermal Conductivity vs Temperature

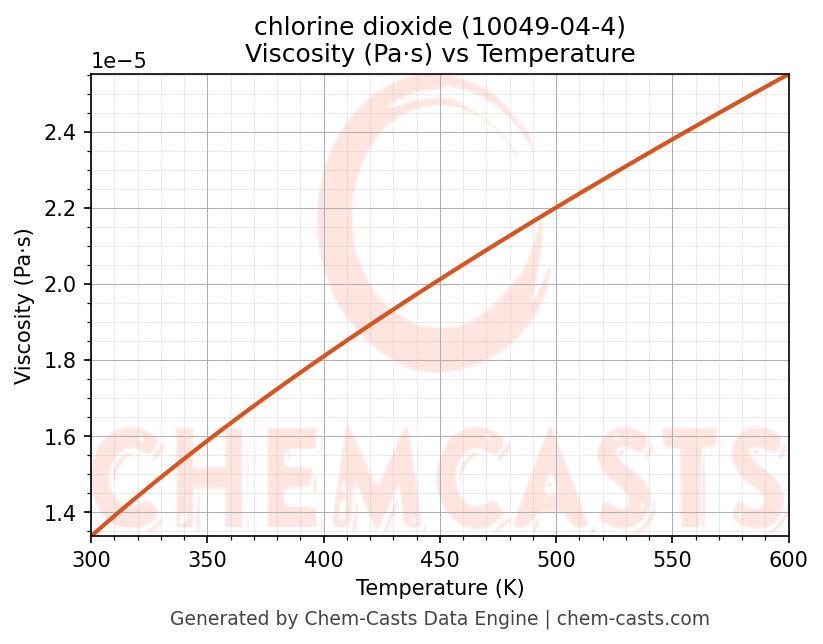

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of chlorine dioxide (CAS 10049-04-4) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of chlorine dioxide and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of chlorine dioxide at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
