dinitrogen trioxide Thermodynamic Properties vs Temperature (CAS 10544-73-7)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for dinitrogen trioxide

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for dinitrogen trioxide

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of dinitrogen trioxide at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.72973	1400.08	0.49053	0.133153	2.6883	0.054291	-358.424	-1.36249	l
-18.048	0.744898	1400.07	0.472453	0.132153	2.66304	0.0542912	-354.662	-1.33237	l
-12.9459	0.759823	1400.06	0.45471	0.131154	2.6343	0.0542915	-350.824	-1.30223	l
-7.84388	0.774507	1400.05	0.437299	0.130154	2.60223	0.054292	-346.909	-1.27203	l
-2.74184	0.788948	1400.03	0.420218	0.129155	2.56692	0.0542927	-342.921	-1.24174	l
2.3602	0.924921	3.36221	0.0121895	0.0114676	0.983147	22.6076	-21.3272	-0.0743862	g
7.46224	0.928504	3.30108	0.0124641	0.0117901	0.981586	23.0263	-16.5485	-0.0572002	g
12.5643	0.932058	3.24213	0.0127335	0.0121156	0.979594	23.445	-11.7538	-0.0402672	g
17.6663	0.935585	3.18525	0.0129979	0.0124442	0.977217	23.8636	-6.94308	-0.0235782	g
22.7684	0.939087	3.13033	0.0132577	0.012776	0.974497	24.2823	-2.11628	-0.00712474	g
27.8704	0.942568	3.07728	0.013513	0.013111	0.971471	24.7009	2.72655	0.00910114	g
32.9724	0.946028	3.02599	0.0137641	0.0134493	0.968171	25.1196	7.58541	0.0251071	g
38.0745	0.94947	2.97638	0.0140111	0.013791	0.964627	25.5383	12.4603	0.0409004	g
43.1765	0.952893	2.92837	0.0142543	0.0141361	0.960864	25.9569	17.3512	0.056488	g
48.2786	0.956301	2.88189	0.0144939	0.0144847	0.956906	26.3756	22.2581	0.0718763	g
53.3806	0.959692	2.83686	0.01473	0.0148369	0.952774	26.7942	27.181	0.0870717	g
58.4827	0.963068	2.79322	0.0149627	0.0151927	0.948486	27.2129	32.1199	0.10208	g
63.5847	0.966429	2.7509	0.0151922	0.0155522	0.944061	27.6316	37.0748	0.116907	g
68.6867	0.969775	2.70984	0.0154187	0.0159154	0.939513	28.0502	42.0457	0.131558	g
73.7888	0.973107	2.66999	0.0156423	0.0162823	0.934857	28.4689	47.0325	0.146039	g
78.8908	0.976424	2.63129	0.0158632	0.0166531	0.930106	28.8875	52.0353	0.160353	g
83.9929	0.979727	2.5937	0.0160813	0.0170277	0.925273	29.3062	57.0539	0.174507	g
89.0949	0.983016	2.55717	0.0162969	0.0174062	0.920369	29.7249	62.0884	0.188504	g
94.1969	0.986289	2.52166	0.0165101	0.0177886	0.915403	30.1435	67.1388	0.202348	g
99.299	0.989548	2.48711	0.0167209	0.0181748	0.910386	30.5622	72.205	0.216045	g
104.401	0.992791	2.4535	0.0169294	0.018565	0.905325	30.9808	77.2869	0.229597	g
109.503	0.996019	2.42079	0.0171358	0.0189591	0.90023	31.3995	82.3846	0.243008	g
114.605	0.999231	2.38894	0.0173401	0.0193572	0.895108	31.8182	87.498	0.256283	g
119.707	1.00243	2.35791	0.0175424	0.0197592	0.889966	32.2368	92.627	0.269424	g
124.809	1.00561	2.32768	0.0177428	0.0201651	0.88481	32.6555	97.7716	0.282435	g
129.911	1.00877	2.29822	0.0179414	0.0205749	0.879647	33.0741	102.932	0.295319	g
135.013	1.01191	2.26949	0.0181381	0.0209887	0.874481	33.4928	108.107	0.308079	g
140.115	1.01504	2.24147	0.0183332	0.0214063	0.86932	33.9115	113.298	0.320718	g
145.217	1.01815	2.21414	0.0185265	0.0218278	0.864166	34.3301	118.505	0.333239	g
150.319	1.02124	2.18746	0.0187183	0.0222531	0.859025	34.7488	123.726	0.345644	g
155.421	1.02431	2.16142	0.0189086	0.0226822	0.853901	35.1674	128.963	0.357936	g
160.523	1.02737	2.13599	0.0190974	0.023115	0.848798	35.5861	134.215	0.370118	g
165.626	1.0304	2.11115	0.0192847	0.0235516	0.843719	36.0048	139.482	0.382192	g
170.728	1.03341	2.08689	0.0194707	0.0239919	0.838667	36.4234	144.764	0.394161	g
175.83	1.03641	2.06317	0.0196553	0.0244359	0.833646	36.8421	150.06	0.406026	g
180.932	1.03938	2.03999	0.0198386	0.0248834	0.828659	37.2607	155.372	0.417789	g
186.034	1.04233	2.01732	0.0200207	0.0253345	0.823707	37.6794	160.698	0.429453	g
191.136	1.04526	1.99516	0.0202016	0.0257892	0.818794	38.0981	166.039	0.44102	g
196.238	1.04817	1.97347	0.0203813	0.0262472	0.81392	38.5167	171.394	0.452492	g
201.34	1.05106	1.95225	0.0205599	0.0267087	0.809089	38.9354	176.764	0.46387	g
206.442	1.05393	1.93148	0.0207374	0.0271735	0.804302	39.354	182.148	0.475156	g
211.544	1.05677	1.91115	0.0209138	0.0276417	0.799561	39.7727	187.546	0.486353	g
216.646	1.0596	1.89124	0.0210892	0.028113	0.794866	40.1914	192.959	0.497461	g
221.748	1.0624	1.87174	0.0212636	0.0285876	0.790219	40.61	198.385	0.508483	g
226.85	1.06518	1.85265	0.0214371	0.0290652	0.785622	41.0287	203.825	0.519419	g

Property Profiles for dinitrogen trioxide

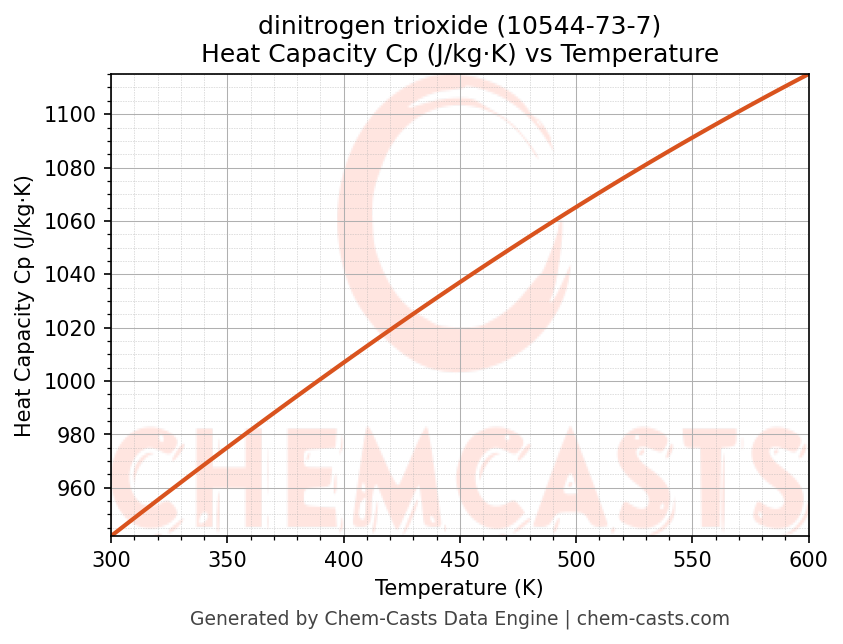

Heat Capacity (Cp) vs Temperature

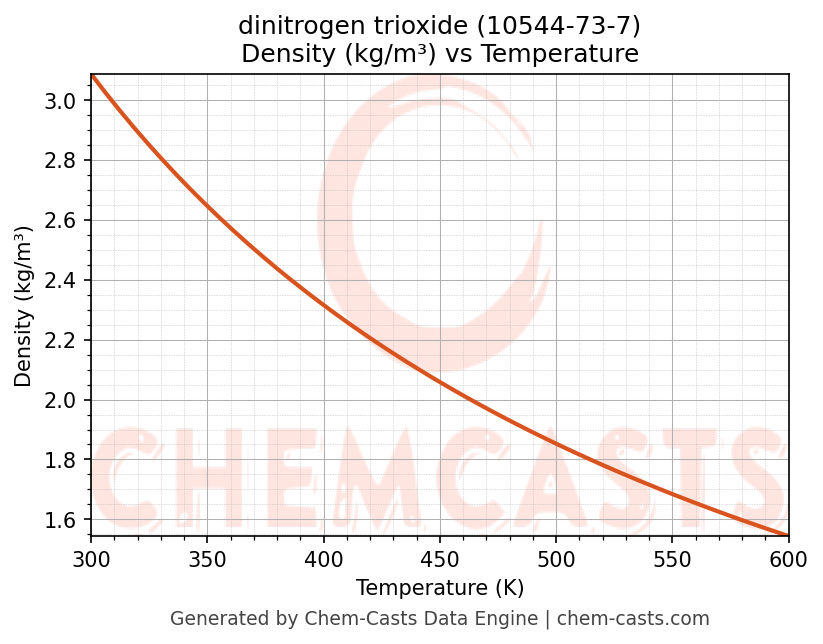

Density vs Temperature

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of dinitrogen trioxide (CAS 10544-73-7) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of dinitrogen trioxide and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of dinitrogen trioxide at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
