butane Thermodynamic Properties vs Temperature (CAS 106-97-8)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for butane

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for butane

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of butane at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	2.2131	625.018	0.259427	0.125867	4.56146	0.0929928	-478.71	-1.82772	l
-18.048	2.23324	619.779	0.245133	0.123513	4.43225	0.0937789	-467.367	-1.76742	l
-12.9459	2.2543	614.48	0.231917	0.12118	4.31433	0.0945876	-455.92	-1.70733	l
-7.84388	2.27627	609.116	0.219663	0.118868	4.20646	0.0954206	-444.363	-1.64738	l
-2.74184	2.29916	603.681	0.208273	0.11658	4.1075	0.0962797	-432.691	-1.5875	l
2.3602	1.59757	2.57091	0.00680289	0.014405	0.754465	22.6076	-37.6563	-0.131304	g
7.46224	1.61903	2.52417	0.00693031	0.0148775	0.754187	23.0263	-29.3539	-0.101446	g
12.5643	1.64071	2.47909	0.00705916	0.0153581	0.754135	23.445	-20.9457	-0.0717517	g
17.6663	1.6626	2.4356	0.00718886	0.0158468	0.754229	23.8636	-12.4303	-0.0422112	g
22.7684	1.68466	2.39361	0.00731876	0.0163438	0.75439	24.2823	-3.80645	-0.0128149	g
27.8704	1.70688	2.35304	0.00744831	0.0168489	0.75455	24.7009	4.92694	0.0164459	g
32.9724	1.72924	2.31382	0.00757711	0.0173622	0.754664	25.1196	13.7708	0.0455789	g
38.0745	1.75173	2.27589	0.00770498	0.0178837	0.754709	25.5383	22.7261	0.0745912	g
43.1765	1.77432	2.23918	0.00783192	0.0184135	0.754683	25.9569	31.7935	0.103489	g
48.2786	1.797	2.20364	0.00795811	0.0189514	0.7546	26.3756	40.9737	0.132278	g
53.3806	1.81975	2.1692	0.00808376	0.0194975	0.754476	26.7942	50.2672	0.160964	g
58.4827	1.84255	2.13583	0.00820912	0.0200519	0.75433	27.2129	59.6745	0.189551	g
63.5847	1.8654	2.10347	0.00833435	0.0206145	0.754171	27.6316	69.196	0.218042	g
68.6867	1.88826	2.07208	0.00845951	0.0211853	0.754002	28.0502	78.8319	0.246443	g
73.7888	1.91114	2.0416	0.00858457	0.0217644	0.753814	28.4689	88.5825	0.274756	g
78.8908	1.93401	2.01202	0.00870945	0.0223517	0.753596	28.8875	98.4477	0.302984	g
83.9929	1.95687	1.98327	0.008834	0.0229473	0.753333	29.3062	108.428	0.331129	g
89.0949	1.97969	1.95534	0.00895813	0.0235511	0.753014	29.7249	118.523	0.359194	g
94.1969	2.00247	1.92818	0.00908176	0.0241632	0.752633	30.1435	128.732	0.387181	g
99.299	2.02521	1.90177	0.00920493	0.0247835	0.752189	30.5622	139.056	0.415092	g
104.401	2.04788	1.87607	0.00932769	0.0254121	0.751688	30.9808	149.494	0.442927	g
109.503	2.07048	1.85105	0.00945017	0.026049	0.751138	31.3995	160.047	0.470689	g
114.605	2.093	1.8267	0.00957248	0.0266941	0.750547	31.8182	170.713	0.498378	g
119.707	2.11543	1.80298	0.00969469	0.0273475	0.74992	32.2368	181.492	0.525996	g
124.809	2.13777	1.77986	0.00981683	0.0280092	0.749258	32.6555	192.384	0.553543	g
129.911	2.16	1.75733	0.00993887	0.0286791	0.748559	33.0741	203.389	0.58102	g
135.013	2.18213	1.73536	0.0100607	0.0293573	0.747815	33.4928	214.506	0.608427	g
140.115	2.20414	1.71394	0.0101823	0.0300439	0.74702	33.9115	225.734	0.635765	g
145.217	2.22604	1.69304	0.0103036	0.0307387	0.746169	34.3301	237.073	0.663035	g
150.319	2.24781	1.67264	0.0104245	0.0314418	0.74526	34.7488	248.522	0.690236	g
155.421	2.26945	1.65273	0.0105451	0.0321531	0.744298	35.1674	260.082	0.717369	g
160.523	2.29096	1.63328	0.0106653	0.0328728	0.743286	35.5861	271.75	0.744434	g
165.626	2.31234	1.61429	0.0107855	0.0336008	0.742235	36.0048	283.527	0.771432	g
170.728	2.33358	1.59574	0.0109055	0.034337	0.741149	36.4234	295.412	0.798361	g
175.83	2.35468	1.5776	0.0110255	0.0350816	0.740032	36.8421	307.403	0.825223	g
180.932	2.37563	1.55988	0.0111455	0.0358345	0.738884	37.2607	319.502	0.852017	g
186.034	2.39644	1.54255	0.0112653	0.0365956	0.7377	37.6794	331.706	0.878743	g
191.136	2.41711	1.52559	0.0113849	0.0373651	0.736475	38.0981	344.015	0.905402	g
196.238	2.43762	1.50901	0.0115042	0.0381429	0.735205	38.5167	356.428	0.931992	g
201.34	2.45799	1.49279	0.0116231	0.0389289	0.733888	38.9354	368.945	0.958515	g
206.442	2.47821	1.47691	0.0117417	0.0397233	0.73253	39.354	381.565	0.984969	g
211.544	2.49828	1.46136	0.0118602	0.040526	0.731138	39.7727	394.287	1.01136	g
216.646	2.5182	1.44614	0.0119786	0.041337	0.72972	40.1914	407.11	1.03767	g
221.748	2.53797	1.43123	0.012097	0.0421563	0.728283	40.61	420.034	1.06392	g
226.85	2.55758	1.41662	0.0122154	0.0429839	0.726827	41.0287	433.058	1.0901	g

Property Profiles for butane

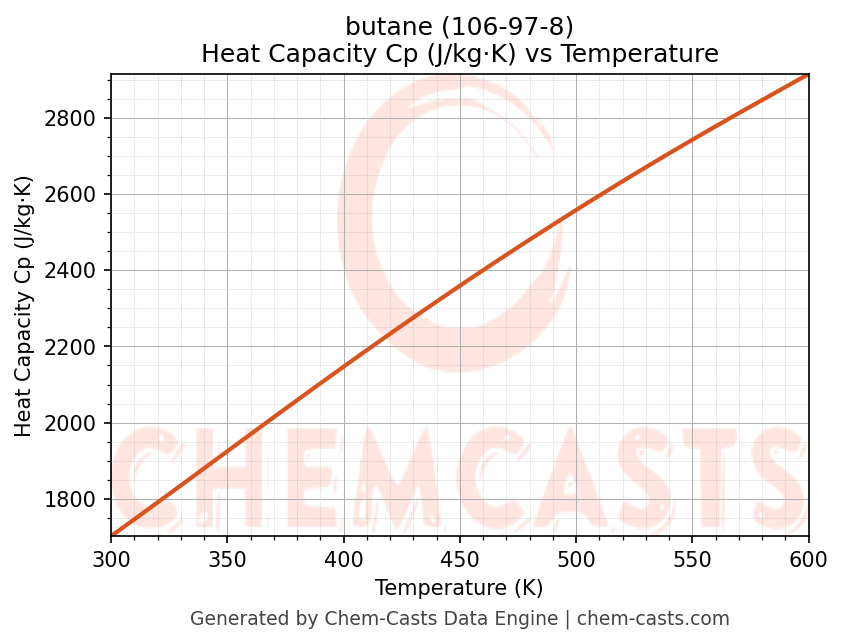

Heat Capacity (Cp) vs Temperature

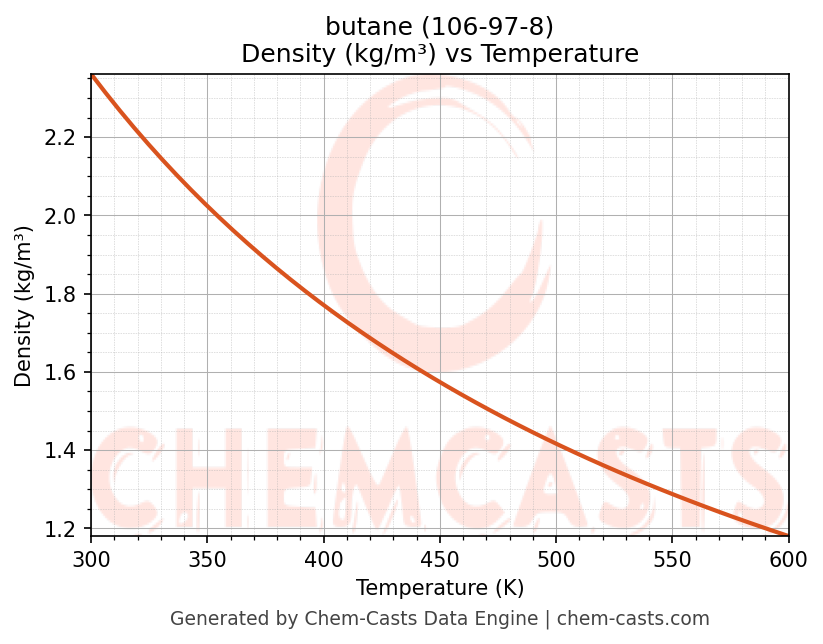

Density vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of butane (CAS 106-97-8) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of butane and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of butane at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
