hexane Thermodynamic Properties vs Temperature (CAS 110-54-3)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for hexane

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for hexane

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of hexane at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	2.09842	697.305	0.51063	0.136157	7.86971	0.123583	-105.005	-0.383665	l
-18.048	2.11406	692.909	0.478579	0.134299	7.53357	0.124368	-94.2594	-0.341115	l
-12.9459	2.13044	688.493	0.449552	0.132476	7.2296	0.125165	-83.4319	-0.29909	l
-7.84388	2.14753	684.057	0.423153	0.130687	6.9535	0.125977	-72.519	-0.257557	l
-2.74184	2.16529	679.597	0.399052	0.128932	6.70167	0.126804	-61.5172	-0.216483	l
2.3602	2.1837	675.113	0.376971	0.127211	6.47107	0.127646	-50.4231	-0.175839	l
7.46224	2.20273	670.601	0.356675	0.125532	6.25862	0.128505	-39.2335	-0.135596	l
12.5643	2.22236	666.06	0.337962	0.123884	6.0627	0.129381	-27.9453	-0.0957315	l
17.6663	2.24255	661.487	0.320659	0.122266	5.8814	0.130275	-16.5554	-0.0562194	l
22.7684	2.2633	656.88	0.304616	0.120678	5.71302	0.131189	-5.06113	-0.0170381	l
27.8704	2.28456	652.237	0.289705	0.119121	5.5561	0.132123	6.54032	0.0218316	l
32.9724	2.30632	647.554	0.275812	0.117593	5.4094	0.133078	18.2515	0.0604102	l
38.0745	2.32856	642.828	0.262839	0.116095	5.27183	0.134057	30.075	0.098714	l
43.1765	2.35127	638.058	0.250697	0.114626	5.14244	0.135059	42.0131	0.136761	l
48.2786	2.37444	633.238	0.239311	0.113184	5.02039	0.136087	54.0683	0.174567	l
53.3806	2.39806	628.366	0.228611	0.11177	4.90493	0.137142	66.2428	0.212146	l
58.4827	2.42212	623.438	0.218538	0.110382	4.79539	0.138226	78.539	0.249511	l
63.5847	2.44661	618.449	0.209037	0.109021	4.69115	0.139341	90.9591	0.286677	l
68.6867	2.47152	613.395	0.200059	0.107684	4.59166	0.140489	103.505	0.323655	l
73.7888	1.88182	3.027	0.00723233	0.0180156	0.755451	28.4689	448.289	1.33199	g
78.8908	1.90553	2.98313	0.00734203	0.0185153	0.755617	28.8875	458.035	1.35987	g
83.9929	1.92921	2.94052	0.007453	0.0190217	0.755893	29.3062	467.897	1.38769	g
89.0949	1.95282	2.8991	0.0075646	0.0195347	0.756207	29.7249	477.878	1.41543	g
94.1969	1.97636	2.85884	0.00767622	0.0200543	0.756497	30.1435	487.977	1.44312	g
99.299	1.99982	2.81967	0.00778738	0.0205802	0.756715	30.5622	498.192	1.47073	g
104.401	2.02318	2.78157	0.00789778	0.0211124	0.756835	30.9808	508.525	1.49829	g
109.503	2.04643	2.74448	0.00800735	0.0216508	0.756853	31.3995	518.975	1.52578	g
114.605	2.06956	2.70837	0.00811618	0.0221953	0.75678	31.8182	529.54	1.55321	g
119.707	2.09257	2.6732	0.00822445	0.0227457	0.756638	32.2368	540.221	1.58057	g
124.809	2.11545	2.63892	0.0083324	0.023302	0.756448	32.6555	551.017	1.60788	g
129.911	2.13818	2.60552	0.00844018	0.023864	0.756229	33.0741	561.928	1.63512	g
135.013	2.16076	2.57295	0.00854791	0.0244316	0.755989	33.4928	572.953	1.6623	g
140.115	2.18319	2.54119	0.00865557	0.0250047	0.755728	33.9115	584.09	1.68942	g
145.217	2.20546	2.5102	0.00876307	0.0255832	0.755441	34.3301	595.34	1.71647	g
150.319	2.22757	2.47995	0.00887031	0.026167	0.755119	34.7488	606.702	1.74346	g
155.421	2.24951	2.45043	0.00897717	0.0267561	0.754754	35.1674	618.174	1.77039	g
160.523	2.27128	2.4216	0.0090836	0.0273501	0.754344	35.5861	629.757	1.79726	g
165.626	2.29288	2.39344	0.00918961	0.0279492	0.753893	36.0048	641.449	1.82406	g
170.728	2.31431	2.36593	0.00929526	0.0285531	0.753407	36.4234	653.249	1.8508	g
175.83	2.33555	2.33905	0.00940067	0.0291617	0.752897	36.8421	665.157	1.87747	g
180.932	2.35662	2.31277	0.00950593	0.029775	0.752372	37.2607	677.171	1.90408	g
186.034	2.37751	2.28707	0.00961109	0.0303928	0.751839	37.6794	689.291	1.93063	g
191.136	2.39822	2.26194	0.00971616	0.031015	0.751297	38.0981	701.517	1.9571	g
196.238	2.41875	2.23735	0.00982108	0.0316416	0.750746	38.5167	713.846	1.98351	g
201.34	2.4391	2.21329	0.00992578	0.0322723	0.75018	38.9354	726.279	2.00986	g
206.442	2.45927	2.18975	0.0100302	0.0329071	0.749595	39.354	738.814	2.03613	g
211.544	2.47926	2.1667	0.0101343	0.0335459	0.748991	39.7727	751.451	2.06234	g
216.646	2.49907	2.14413	0.010238	0.0341885	0.74837	40.1914	764.188	2.08848	g
221.748	2.51871	2.12202	0.0103416	0.0348349	0.747739	40.61	777.024	2.11456	g
226.85	2.53816	2.10037	0.010445	0.0354849	0.747105	41.0287	789.96	2.14056	g

Property Profiles for hexane

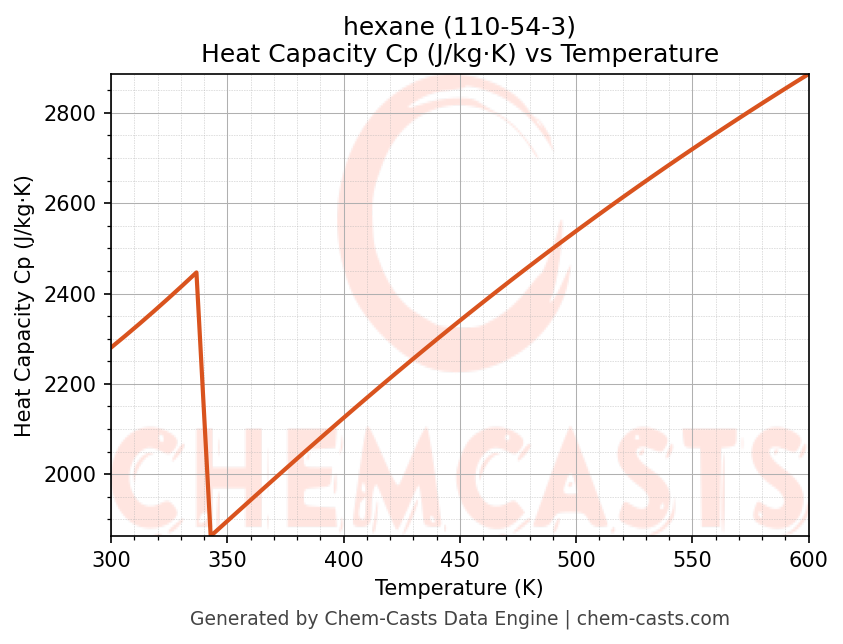

Heat Capacity (Cp) vs Temperature

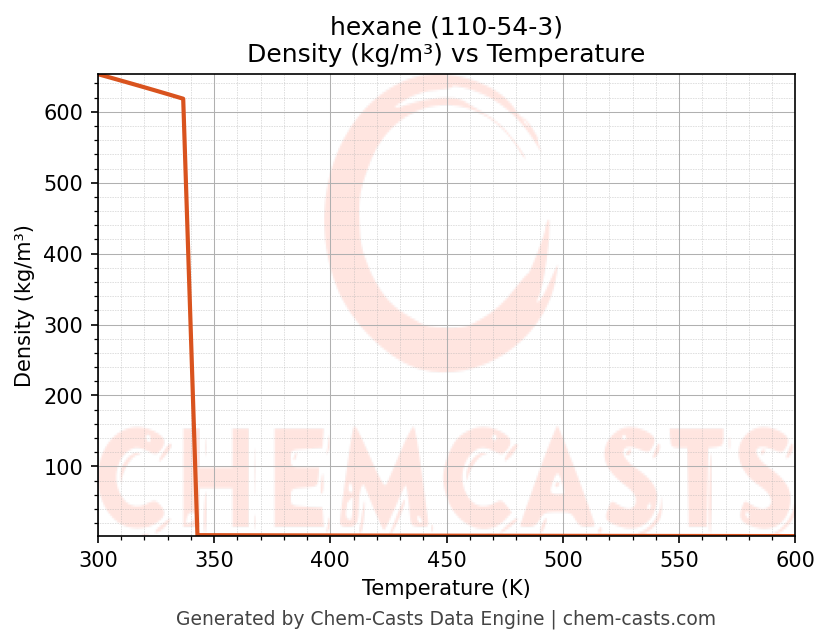

Density vs Temperature

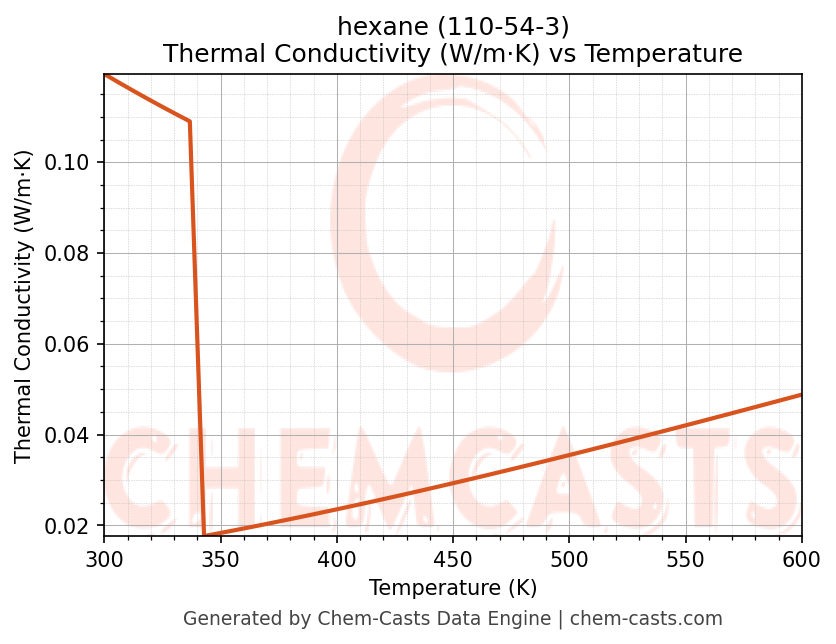

Thermal Conductivity vs Temperature

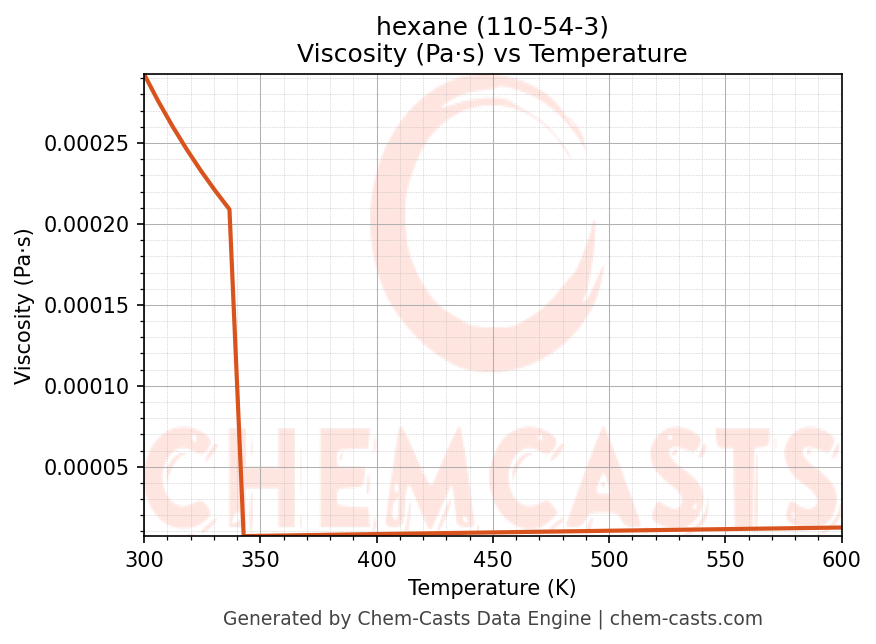

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of hexane (CAS 110-54-3) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of hexane and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of hexane at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
