3-methyl-1-butanol Thermodynamic Properties vs Temperature (CAS 123-51-3)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 3-methyl-1-butanol

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 3-methyl-1-butanol

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 3-methyl-1-butanol at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	2.00317	842.135	24.0668	0.139062	346.679	0.104672	-104.082	-0.379848	l
-18.048	2.03176	838.553	18.9914	0.138359	278.884	0.105119	-93.7899	-0.339094	l
-12.9459	2.0621	834.943	15.1356	0.13765	226.742	0.105574	-83.3471	-0.298563	l
-7.84388	2.09427	831.304	12.1756	0.136936	186.21	0.106036	-72.7449	-0.258213	l
-2.74184	2.12833	827.635	9.88089	0.136217	154.384	0.106506	-61.9738	-0.218001	l
2.3602	2.16439	823.937	8.0854	0.135493	129.157	0.106984	-51.0239	-0.177885	l
7.46224	2.20251	820.206	6.66815	0.134764	108.981	0.107471	-39.8847	-0.137825	l
12.5643	2.24278	816.444	5.54014	0.134029	92.7063	0.107966	-28.5457	-0.0977803	l
17.6663	2.28528	812.649	4.63528	0.133289	79.4735	0.10847	-16.9955	-0.0577124	l
22.7684	2.33009	808.819	3.904	0.132543	68.6319	0.108984	-5.22254	-0.0175823	l
27.8704	2.3773	804.955	3.30881	0.131792	59.6851	0.109507	6.7851	0.0226483	l
32.9724	2.42699	801.055	2.82112	0.131036	52.2514	0.11004	19.0399	0.0630168	l
38.0745	2.47924	797.117	2.41897	0.130275	46.0348	0.110584	31.5547	0.10356	l
43.1765	2.53412	793.141	2.08533	0.129509	40.804	0.111138	44.3427	0.144315	l
48.2786	2.59173	789.125	1.80693	0.128737	36.377	0.111704	57.4177	0.185318	l
53.3806	2.65214	785.069	1.57334	0.12796	32.6095	0.112281	70.7937	0.226604	l
58.4827	2.71543	780.97	1.37631	0.127177	29.3864	0.11287	84.4852	0.268209	l
63.5847	2.78169	776.827	1.20929	0.126389	26.6152	0.113472	98.5072	0.310167	l
68.6867	2.851	772.639	1.06703	0.125596	24.2213	0.114087	112.875	0.352514	l
73.7888	2.92344	768.404	0.945302	0.124798	22.1441	0.114716	127.604	0.395283	l
78.8908	2.9991	764.119	0.840684	0.123995	20.3339	0.115359	142.712	0.438509	l
83.9929	3.07804	759.785	0.750394	0.123186	18.7501	0.116017	158.213	0.482225	l
89.0949	3.15883	755.397	0.672156	0.122372	17.3506	0.116691	174.123	0.526457	l
94.1969	3.23962	750.954	0.604099	0.121552	16.1005	0.117382	190.446	0.571201	l
99.299	3.32041	746.454	0.544679	0.120727	14.9805	0.118089	207.181	0.616442	l
104.401	3.4012	741.895	0.492615	0.119897	13.9743	0.118815	224.328	0.662167	l
109.503	3.48199	737.272	0.44684	0.119062	13.0679	0.11956	241.887	0.708362	l
114.605	3.56278	732.585	0.406462	0.118221	12.2494	0.120325	259.858	0.755016	l
119.707	3.64357	727.829	0.37073	0.117375	11.5082	0.121111	278.242	0.802116	l
124.809	3.72436	723	0.339013	0.116524	10.8356	0.12192	297.038	0.849651	l
129.911	3.80515	718.097	0.310774	0.115668	10.2236	0.122753	316.245	0.897609	l
135.013	1.93597	2.63185	0.00931451	0.0197658	0.912313	33.4928	834.45	2.18036	g
140.115	1.95428	2.59936	0.00942635	0.0202794	0.908397	33.9115	844.45	2.2047	g
145.217	1.97247	2.56766	0.00953795	0.0207993	0.904517	34.3301	854.541	2.22897	g
150.319	1.99054	2.53673	0.0096493	0.0213255	0.900671	34.7488	864.722	2.25316	g
155.421	2.00848	2.50653	0.00976041	0.0218581	0.896858	35.1674	874.993	2.27727	g
160.523	2.0263	2.47704	0.00987128	0.022397	0.893074	35.5861	885.353	2.3013	g
165.626	2.044	2.44824	0.00998192	0.0229423	0.889319	36.0048	895.802	2.32525	g
170.728	2.06158	2.4201	0.0100923	0.0234941	0.88559	36.4234	906.339	2.34913	g
175.83	2.07903	2.39259	0.0102025	0.0240522	0.881886	36.8421	916.964	2.37293	g
180.932	2.09637	2.36571	0.0103124	0.0246169	0.878205	37.2607	927.675	2.39665	g
186.034	2.11358	2.33943	0.0104222	0.025188	0.874546	37.6794	938.473	2.4203	g
191.136	2.13068	2.31372	0.0105317	0.0257657	0.870908	38.0981	949.357	2.44387	g
196.238	2.14765	2.28857	0.0106409	0.0263499	0.86729	38.5167	960.326	2.46737	g
201.34	2.16451	2.26396	0.01075	0.0269407	0.863691	38.9354	971.38	2.49079	g
206.442	2.18125	2.23988	0.0108588	0.0275381	0.860111	39.354	982.519	2.51414	g
211.544	2.19787	2.2163	0.0109675	0.0281421	0.856548	39.7727	993.741	2.53741	g
216.646	2.21437	2.19321	0.0110759	0.0287527	0.853002	40.1914	1005.05	2.56062	g
221.748	2.23076	2.1706	0.0111841	0.02937	0.849474	40.61	1016.43	2.58375	g
226.85	2.24703	2.14845	0.0112921	0.0299939	0.845961	41.0287	1027.9	2.60681	g

Property Profiles for 3-methyl-1-butanol

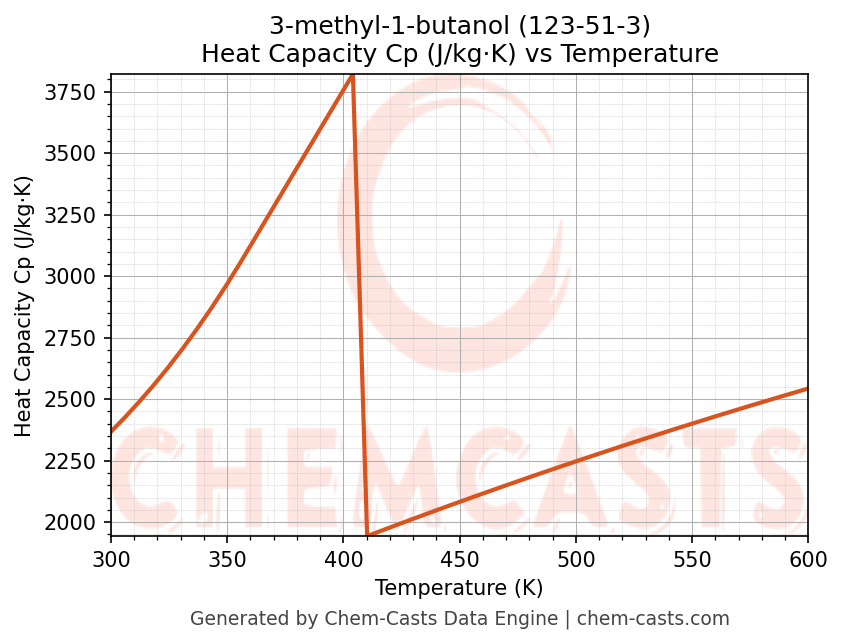

Heat Capacity (Cp) vs Temperature

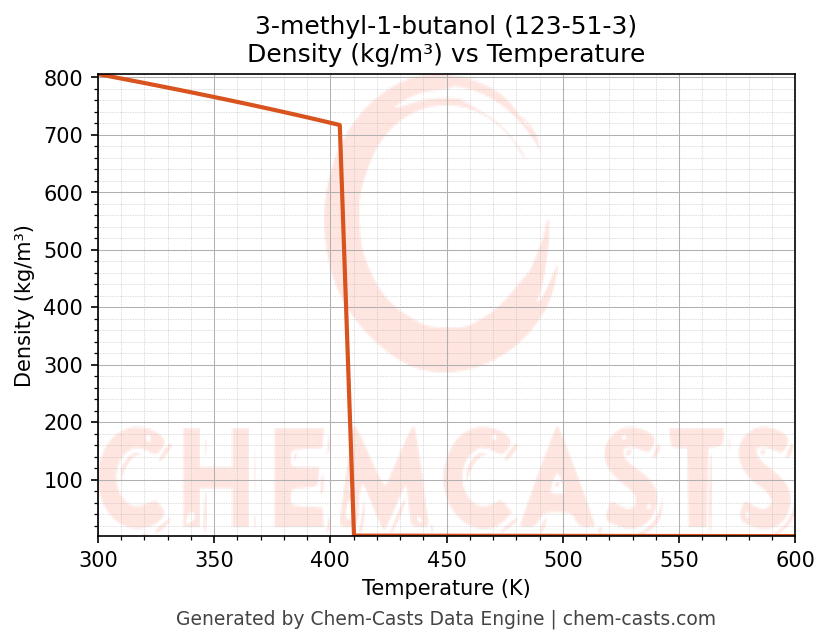

Density vs Temperature

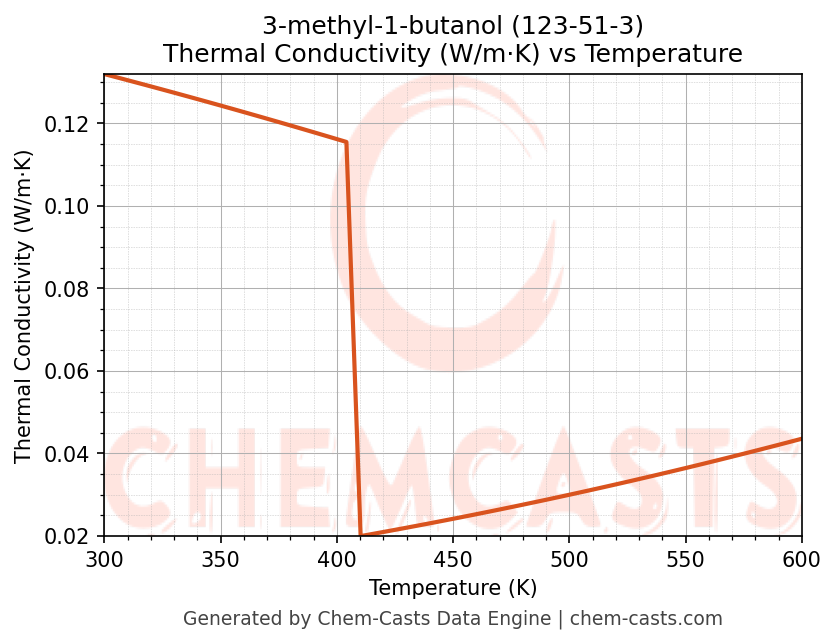

Thermal Conductivity vs Temperature

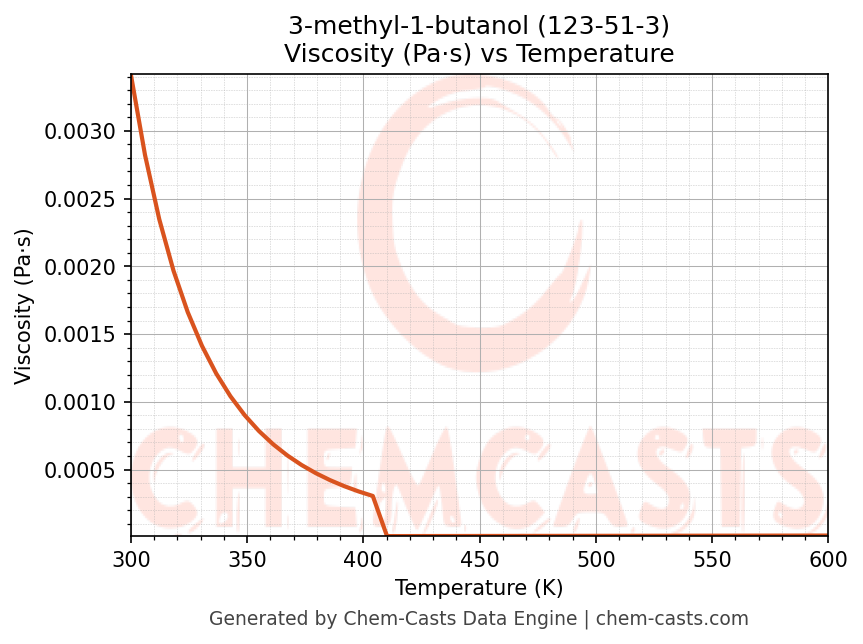

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 3-methyl-1-butanol (CAS 123-51-3) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 3-methyl-1-butanol and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 3-methyl-1-butanol at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
