nitrogen fluoride (N2F2), (Z)- Thermodynamic Properties vs Temperature (CAS 13812-43-6)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for nitrogen fluoride (N2F2), (Z)-

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for nitrogen fluoride (N2F2), (Z)-

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of nitrogen fluoride (N2F2), (Z)- at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.684334	3.21776	0.0191984	0.014806	0.887348	20.5143	-34.853	-0.127312	g
-18.048	0.691969	3.1534	0.0195332	0.0153454	0.880809	20.933	-31.3208	-0.113326	g
-12.9459	0.699604	3.09157	0.0198619	0.0158947	0.874219	21.3517	-27.7506	-0.0994689	g
-7.84388	0.707239	3.03212	0.0201846	0.0164538	0.867601	21.7703	-24.1424	-0.0857363	g
-2.74184	0.714874	2.97491	0.0205019	0.0170229	0.860974	22.189	-20.496	-0.072123	g
2.3602	0.722509	2.91982	0.0208139	0.0176019	0.854354	22.6076	-16.8114	-0.0586243	g
7.46224	0.730144	2.86673	0.021121	0.0181908	0.847758	23.0263	-13.0887	-0.0452358	g
12.5643	0.737779	2.81554	0.0214234	0.0187896	0.841198	23.445	-9.32764	-0.0319535	g
17.6663	0.745414	2.76614	0.0217214	0.0193982	0.834687	23.8636	-5.52832	-0.0187734	g
22.7684	0.753049	2.71845	0.0220151	0.0200166	0.828235	24.2823	-1.69065	-0.00569179	g
27.8704	0.760653	2.67238	0.0223049	0.020644	0.82185	24.7009	2.18535	0.0072946	g
32.9724	0.768101	2.62784	0.0225909	0.0212768	0.815539	25.1196	6.09922	0.0201875	g
38.0745	0.775385	2.58476	0.0228732	0.0219145	0.809307	25.5383	10.0501	0.0329873	g
43.1765	0.782512	2.54307	0.0231521	0.0225569	0.803161	25.9569	14.0373	0.0456946	g
48.2786	0.78949	2.5027	0.0234278	0.0232039	0.797105	26.3756	18.06	0.0583099	g
53.3806	0.796323	2.4636	0.0237003	0.0238555	0.791143	26.7942	22.1175	0.0708339	g
58.4827	0.803019	2.4257	0.0239698	0.0245113	0.785279	27.2129	26.2091	0.0832673	g
63.5847	0.809582	2.38894	0.0242365	0.0251713	0.779515	27.6316	30.3341	0.0956109	g
68.6867	0.816017	2.35329	0.0245005	0.0258354	0.773854	28.0502	34.4918	0.107865	g
73.7888	0.822329	2.31868	0.0247619	0.0265033	0.768298	28.4689	38.6818	0.120032	g
78.8908	0.828523	2.28508	0.0250208	0.0271749	0.762847	28.8875	42.9032	0.132111	g
83.9929	0.834602	2.25243	0.0252773	0.02785	0.757503	29.3062	47.1557	0.144103	g
89.0949	0.840569	2.22071	0.0255315	0.0285285	0.752266	29.7249	51.4385	0.156011	g
94.1969	0.84643	2.18986	0.0257836	0.0292102	0.747136	30.1435	55.7512	0.167833	g
99.299	0.852186	2.15987	0.0260335	0.0298949	0.742112	30.5622	60.0933	0.179572	g
104.401	0.857841	2.13068	0.0262815	0.0305826	0.737195	30.9808	64.4642	0.191227	g
109.503	0.863399	2.10227	0.0265275	0.0312729	0.732383	31.3995	68.8634	0.202801	g
114.605	0.868861	2.07461	0.0267716	0.0319659	0.727677	31.8182	73.2905	0.214294	g
119.707	0.87423	2.04766	0.027014	0.0326612	0.723073	32.2368	77.745	0.225707	g
124.809	0.879509	2.02141	0.0272547	0.0333589	0.718572	32.6555	82.2264	0.237041	g
129.911	0.884701	1.99583	0.0274937	0.0340586	0.714172	33.0741	86.7343	0.248296	g
135.013	0.889806	1.97088	0.0277311	0.0347603	0.709871	33.4928	91.2683	0.259474	g
140.115	0.894829	1.94655	0.0279671	0.0354639	0.705668	33.9115	95.8279	0.270576	g
145.217	0.899769	1.92281	0.0282015	0.0361691	0.701561	34.3301	100.413	0.281602	g
150.319	0.904631	1.89964	0.0284345	0.0368759	0.697548	34.7488	105.022	0.292554	g
155.421	0.909414	1.87703	0.0286662	0.0375842	0.693627	35.1674	109.656	0.303431	g
160.523	0.914121	1.85494	0.0288965	0.0382938	0.689797	35.5861	114.314	0.314236	g
165.626	0.918754	1.83337	0.0291256	0.0390045	0.686055	36.0048	118.996	0.324968	g
170.728	0.923314	1.8123	0.0293534	0.0397163	0.682399	36.4234	123.701	0.335629	g
175.83	0.927802	1.79171	0.02958	0.0404291	0.678828	36.8421	128.429	0.34622	g
180.932	0.932221	1.77158	0.0298055	0.0411428	0.675339	37.2607	133.18	0.356741	g
186.034	0.93657	1.75189	0.0300299	0.0418572	0.671931	37.6794	137.952	0.367193	g
191.136	0.940853	1.73264	0.0302532	0.0425722	0.668601	38.0981	142.747	0.377577	g
196.238	0.94507	1.71381	0.0304755	0.0432879	0.665347	38.5167	147.563	0.387894	g
201.34	0.949221	1.69538	0.0306968	0.044004	0.662168	38.9354	152.4	0.398144	g
206.442	0.95331	1.67734	0.0309171	0.0447205	0.659062	39.354	157.259	0.408328	g
211.544	0.957335	1.65969	0.0311364	0.0454372	0.656026	39.7727	162.138	0.418447	g
216.646	0.9613	1.6424	0.0313549	0.0461543	0.653058	40.1914	167.037	0.428502	g
221.748	0.965204	1.62547	0.0315724	0.0468715	0.650157	40.61	171.956	0.438493	g
226.85	0.969048	1.60888	0.0317891	0.0475888	0.647321	41.0287	176.894	0.448421	g

Property Profiles for nitrogen fluoride (N2F2), (Z)-

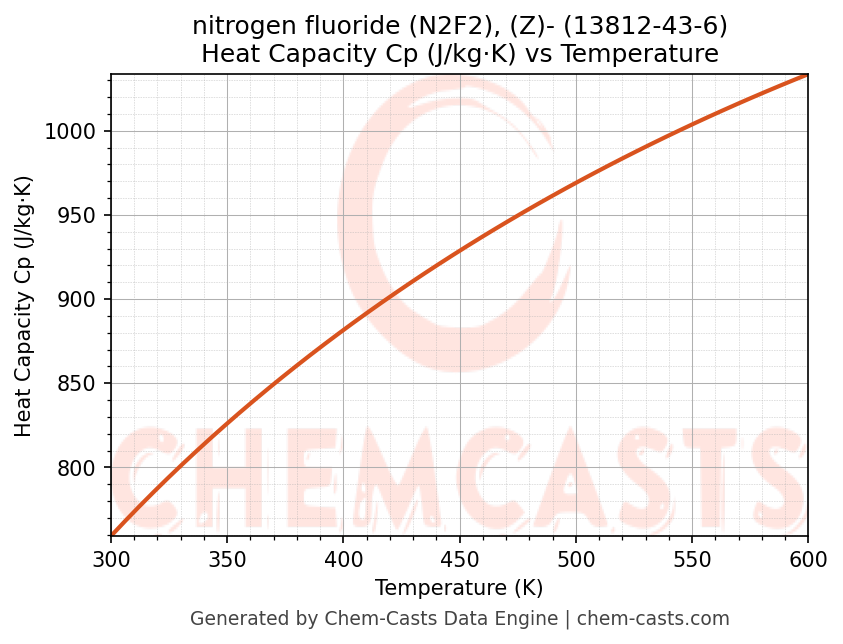

Heat Capacity (Cp) vs Temperature

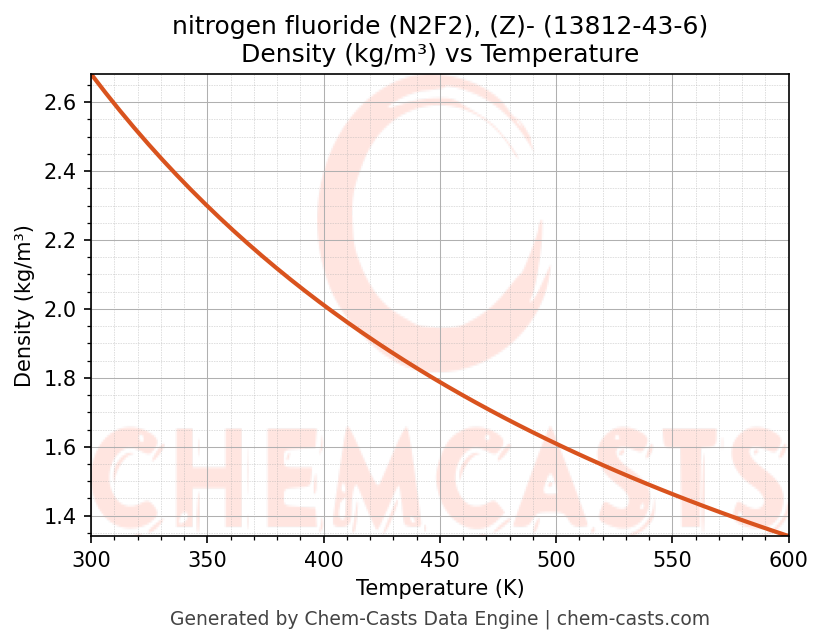

Density vs Temperature

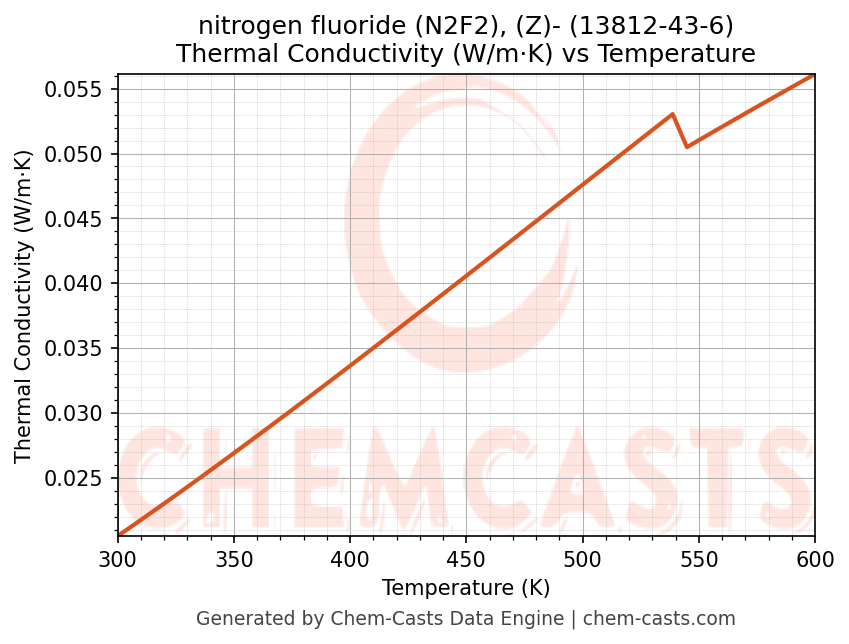

Thermal Conductivity vs Temperature

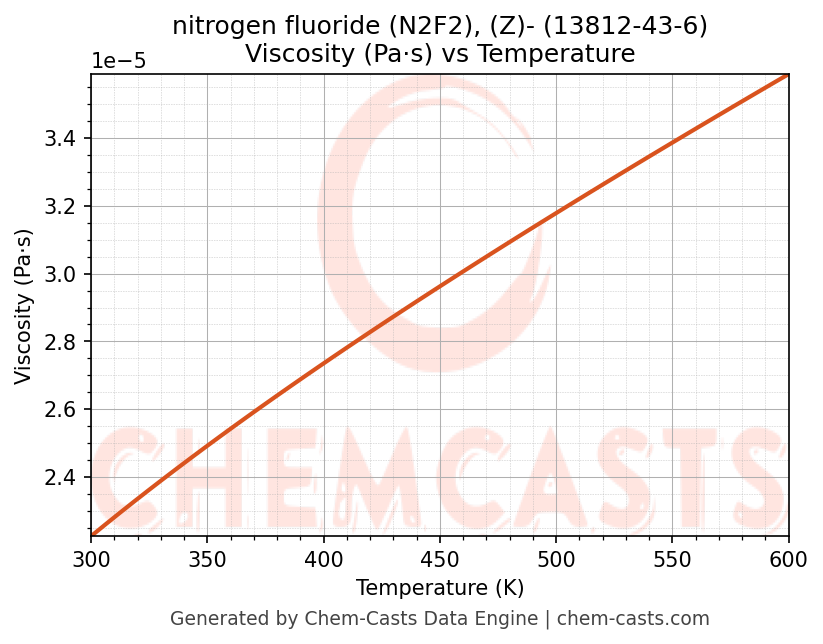

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of nitrogen fluoride (N2F2), (Z)- (CAS 13812-43-6) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of nitrogen fluoride (N2F2), (Z)- and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of nitrogen fluoride (N2F2), (Z)- at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
