hypochlorite Thermodynamic Properties vs Temperature (CAS 14380-61-1)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for hypochlorite

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for hypochlorite

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of hypochlorite at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.484781	2.50812	0.0119806	0.00766093	0.75813	20.5143	-24.8726	-0.0908768	g
-18.048	0.490098	2.45796	0.0122602	0.00794442	0.75634	20.933	-22.3355	-0.0808308	g
-12.9459	0.495291	2.40976	0.0125345	0.0082298	0.75436	21.3517	-19.7739	-0.0708884	g
-7.84388	0.50036	2.36342	0.012804	0.00851702	0.752212	21.7703	-17.1881	-0.0610474	g
-2.74184	0.505307	2.31883	0.0130688	0.00880605	0.749914	22.189	-14.5788	-0.0513058	g
2.3602	0.510134	2.27589	0.0133294	0.00909685	0.747484	22.6076	-11.9464	-0.0416618	g
7.46224	0.51484	2.23451	0.0135858	0.0093894	0.744935	23.0263	-9.29146	-0.0321135	g
12.5643	0.519429	2.1946	0.0138383	0.00968366	0.742281	23.445	-6.61441	-0.0226593	g
17.6663	0.523901	2.1561	0.0140871	0.0099796	0.739531	23.8636	-3.91578	-0.0132975	g
22.7684	0.528257	2.11893	0.0143324	0.0102772	0.736697	24.2823	-1.19609	-0.00402678	g
27.8704	0.5325	2.08301	0.0145744	0.0105764	0.733788	24.7009	1.54417	0.00515439	g
32.9724	0.53663	2.0483	0.0148132	0.0108772	0.730811	25.1196	4.3045	0.0142473	g
38.0745	0.540648	2.01472	0.015049	0.0111796	0.727774	25.5383	7.08439	0.0232534	g
43.1765	0.544557	1.98222	0.0152819	0.0114835	0.724685	25.9569	9.88334	0.0321737	g
48.2786	0.548358	1.95076	0.0155122	0.0117888	0.72155	26.3756	12.7009	0.0410096	g
53.3806	0.552051	1.92028	0.0157398	0.0120956	0.718376	26.7942	15.5364	0.0497621	g
58.4827	0.555638	1.89074	0.015965	0.0124037	0.715167	27.2129	18.3896	0.0584323	g
63.5847	0.559121	1.86209	0.0161877	0.0127132	0.71193	27.6316	21.2599	0.0670213	g
68.6867	0.562502	1.8343	0.0164083	0.013024	0.708669	28.0502	24.1468	0.0755301	g
73.7888	0.56578	1.80732	0.0166266	0.0133359	0.705389	28.4689	27.0498	0.0839597	g
78.8908	0.568958	1.78113	0.0168429	0.013649	0.702095	28.8875	29.9685	0.092311	g
83.9929	0.572038	1.75568	0.0170572	0.0139632	0.698791	29.3062	32.9023	0.100585	g
89.0949	0.57502	1.73096	0.0172696	0.0142784	0.695481	29.7249	35.8509	0.108783	g
94.1969	0.577905	1.70691	0.0174802	0.0145946	0.692168	30.1435	38.8138	0.116905	g
99.299	0.580696	1.68353	0.0176891	0.0149117	0.688857	30.5622	41.7904	0.124952	g
104.401	0.583394	1.66078	0.0178963	0.0152295	0.685549	30.9808	44.7804	0.132925	g
109.503	0.585999	1.63864	0.0181019	0.0155481	0.682249	31.3995	47.7833	0.140826	g
114.605	0.588514	1.61708	0.0183059	0.0158673	0.67896	31.8182	50.7987	0.148654	g
119.707	0.59094	1.59608	0.0185084	0.0161871	0.675683	32.2368	53.8262	0.15641	g
124.809	0.593277	1.57561	0.0187096	0.0165075	0.672421	32.6555	56.8652	0.164096	g
129.911	0.595528	1.55567	0.0189093	0.0168282	0.669177	33.0741	59.9154	0.171712	g
135.013	0.597694	1.53622	0.0191077	0.0171493	0.665952	33.4928	62.9764	0.179259	g
140.115	0.599777	1.51726	0.0193049	0.0174706	0.662749	33.9115	66.0478	0.186737	g
145.217	0.601776	1.49875	0.0195008	0.0177921	0.659569	34.3301	69.1291	0.194147	g
150.319	0.603695	1.4807	0.0196956	0.0181138	0.656415	34.7488	72.2199	0.201491	g
155.421	0.605534	1.46307	0.0198892	0.0184354	0.653286	35.1674	75.3199	0.208767	g
160.523	0.607295	1.44586	0.0200817	0.018757	0.650186	35.5861	78.4287	0.215978	g
165.626	0.608979	1.42904	0.0202732	0.0190784	0.647114	36.0048	81.5459	0.223124	g
170.728	0.610587	1.41262	0.0204636	0.0193997	0.644072	36.4234	84.6711	0.230206	g
175.83	0.612121	1.39657	0.020653	0.0197207	0.641062	36.8421	87.804	0.237223	g
180.932	0.613582	1.38087	0.0208415	0.0200413	0.638083	37.2607	90.9441	0.244178	g
186.034	0.614972	1.36553	0.0210291	0.0203614	0.635137	37.6794	94.0912	0.25107	g
191.136	0.616292	1.35053	0.0212158	0.0206811	0.632224	38.0981	97.2448	0.2579	g
196.238	0.617543	1.33585	0.0214016	0.0210002	0.629345	38.5167	100.405	0.264669	g
201.34	0.618726	1.32148	0.0215865	0.0213187	0.6265	38.9354	103.571	0.271377	g
206.442	0.619844	1.30742	0.0217707	0.0216364	0.62369	39.354	106.742	0.278025	g
211.544	0.620897	1.29366	0.021954	0.0219534	0.620914	39.7727	109.919	0.284614	g
216.646	0.621887	1.28019	0.0221367	0.0222696	0.618174	40.1914	113.1	0.291143	g
221.748	0.622816	1.26699	0.0223185	0.0225849	0.61547	40.61	116.286	0.297615	g
226.85	0.623683	1.25406	0.0224997	0.0228993	0.6128	41.0287	119.477	0.304029	g

Property Profiles for hypochlorite

Heat Capacity (Cp) vs Temperature

Density vs Temperature

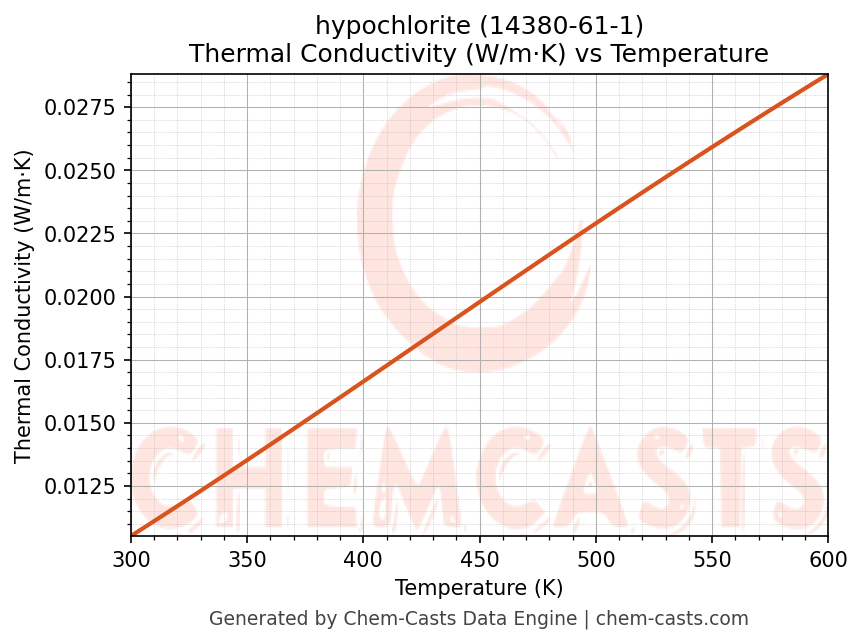

Thermal Conductivity vs Temperature

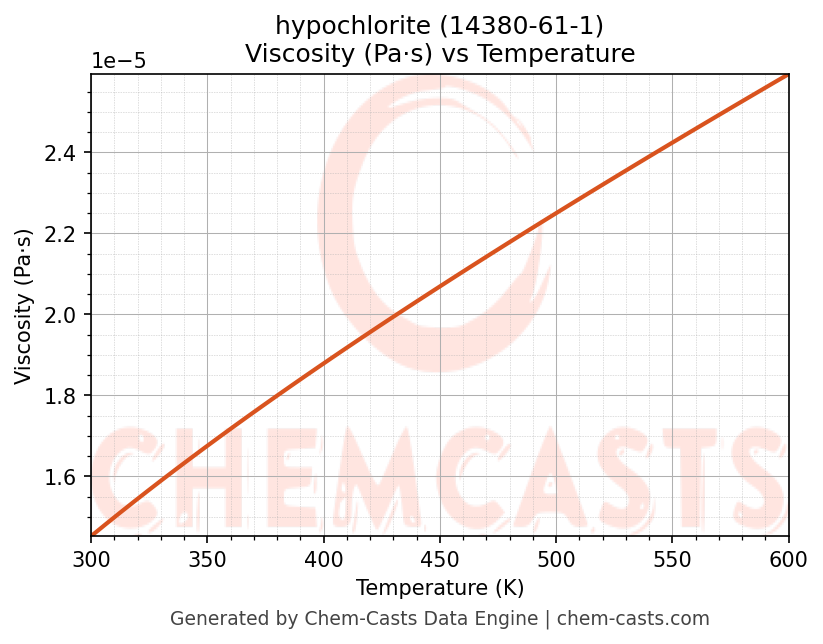

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of hypochlorite (CAS 14380-61-1) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of hypochlorite and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of hypochlorite at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
