nitrite Thermodynamic Properties vs Temperature (CAS 14797-65-0)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for nitrite

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for nitrite

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of nitrite at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.723972	1042.7	0.358035	0.14574	1.77855	0.0441216	-593.572	-2.35597	l
-18.048	0.785593	2.19775	0.0110112	0.00932303	0.927848	20.933	-35.0457	-0.126889	g
-12.9459	0.789549	2.15466	0.0112718	0.00964933	0.922308	21.3517	-30.955	-0.111012	g
-7.84388	0.793433	2.11322	0.0115279	0.00997827	0.916653	21.7703	-26.8477	-0.0953796	g
-2.74184	0.797275	2.07335	0.0117797	0.0103102	0.91091	22.189	-22.7236	-0.0799829	g
2.3602	0.801103	2.03495	0.0120275	0.0106455	0.9051	22.6076	-18.5829	-0.0648129	g
7.46224	0.804946	1.99795	0.0122715	0.0109847	0.899243	23.0263	-14.4254	-0.0498605	g
12.5643	0.808832	1.96228	0.0125119	0.0113281	0.893356	23.445	-10.2506	-0.0351169	g
17.6663	0.81279	1.92785	0.0127489	0.0116763	0.887453	23.8636	-6.05821	-0.0205731	g
22.7684	0.816849	1.89461	0.0129826	0.0120298	0.881549	24.2823	-1.84762	-0.00622023	g
27.8704	0.821026	1.8625	0.0132133	0.0123889	0.875655	24.7009	2.38189	0.00795068	g
32.9724	0.82524	1.83146	0.013441	0.0127529	0.869772	25.1196	6.63086	0.0219475	g
38.0745	0.829464	1.80143	0.013666	0.0131212	0.863906	25.5383	10.8995	0.0357767	g
43.1765	0.833697	1.77238	0.0138883	0.013494	0.858062	25.9569	15.1879	0.049444	g
48.2786	0.837936	1.74425	0.0141082	0.0138713	0.852244	26.3756	19.4962	0.0629552	g
53.3806	0.842182	1.71699	0.0143256	0.0142532	0.846457	26.7942	23.8246	0.0763155	g
58.4827	0.846432	1.69058	0.0145407	0.0146398	0.840704	27.2129	28.1732	0.0895299	g
63.5847	0.850684	1.66496	0.0147537	0.015031	0.834989	27.6316	32.542	0.102603	g
68.6867	0.854939	1.64011	0.0149645	0.0154269	0.829315	28.0502	36.9312	0.11554	g
73.7888	0.859193	1.61599	0.0151734	0.0158275	0.823684	28.4689	41.3407	0.128344	g
78.8908	0.863446	1.59257	0.0153803	0.0162328	0.818099	28.8875	45.7707	0.14102	g
83.9929	0.867695	1.56982	0.0155854	0.0166429	0.812561	29.3062	50.2213	0.153571	g
89.0949	0.871939	1.54771	0.0157888	0.0170578	0.807074	29.7249	54.6924	0.166002	g
94.1969	0.876174	1.52622	0.0159905	0.0174773	0.801637	30.1435	59.184	0.178314	g
99.299	0.880397	1.50531	0.0161906	0.0179015	0.796253	30.5622	63.6962	0.190513	g
104.401	0.884606	1.48497	0.0163891	0.0183304	0.790924	30.9808	68.2289	0.2026	g
109.503	0.888799	1.46517	0.0165862	0.0187638	0.78565	31.3995	72.7822	0.21458	g
114.605	0.892972	1.44589	0.0167818	0.0192018	0.780433	31.8182	77.3559	0.226453	g
119.707	0.897123	1.42711	0.0169761	0.0196442	0.775273	32.2368	81.9499	0.238224	g
124.809	0.901249	1.40881	0.017169	0.0200911	0.770172	32.6555	86.5643	0.249894	g
129.911	0.905348	1.39098	0.0173607	0.0205422	0.765129	33.0741	91.1988	0.261465	g
135.013	0.909417	1.37359	0.0175512	0.0209977	0.760147	33.4928	95.8535	0.272941	g
140.115	0.913456	1.35664	0.0177404	0.0214573	0.755225	33.9115	100.528	0.284323	g
145.217	0.917464	1.34009	0.0179286	0.0219211	0.750365	34.3301	105.223	0.295612	g
150.319	0.92144	1.32395	0.0181157	0.022389	0.745566	34.7488	109.937	0.306812	g
155.421	0.925383	1.30818	0.0183017	0.0228609	0.74083	35.1674	114.67	0.317924	g
160.523	0.929292	1.29279	0.0184867	0.0233368	0.736156	35.5861	119.423	0.328949	g
165.626	0.933166	1.27776	0.0186707	0.0238165	0.731544	36.0048	124.196	0.339889	g
170.728	0.937004	1.26307	0.0188538	0.0243001	0.726996	36.4234	128.987	0.350746	g
175.83	0.940806	1.24872	0.0190359	0.0247873	0.72251	36.8421	133.798	0.361522	g
180.932	0.944569	1.23469	0.0192172	0.0252782	0.718088	37.2607	138.627	0.372217	g
186.034	0.948294	1.22097	0.0193976	0.0257726	0.713728	37.6794	143.475	0.382833	g
191.136	0.951981	1.20755	0.0195772	0.0262705	0.709432	38.0981	148.341	0.393372	g
196.238	0.955629	1.19443	0.019756	0.0267718	0.705198	38.5167	153.225	0.403835	g
201.34	0.959238	1.18159	0.019934	0.0272764	0.701026	38.9354	158.128	0.414223	g
206.442	0.962808	1.16902	0.0201113	0.0277843	0.696917	39.354	163.048	0.424538	g
211.544	0.966338	1.15671	0.0202879	0.0282953	0.692869	39.7727	167.986	0.43478	g
216.646	0.969828	1.14466	0.0204637	0.0288094	0.688883	40.1914	172.942	0.44495	g
221.748	0.973278	1.13286	0.0206389	0.0293265	0.684959	40.61	177.915	0.455051	g
226.85	0.976688	1.1213	0.0208134	0.0298464	0.681094	41.0287	182.905	0.465082	g

Property Profiles for nitrite

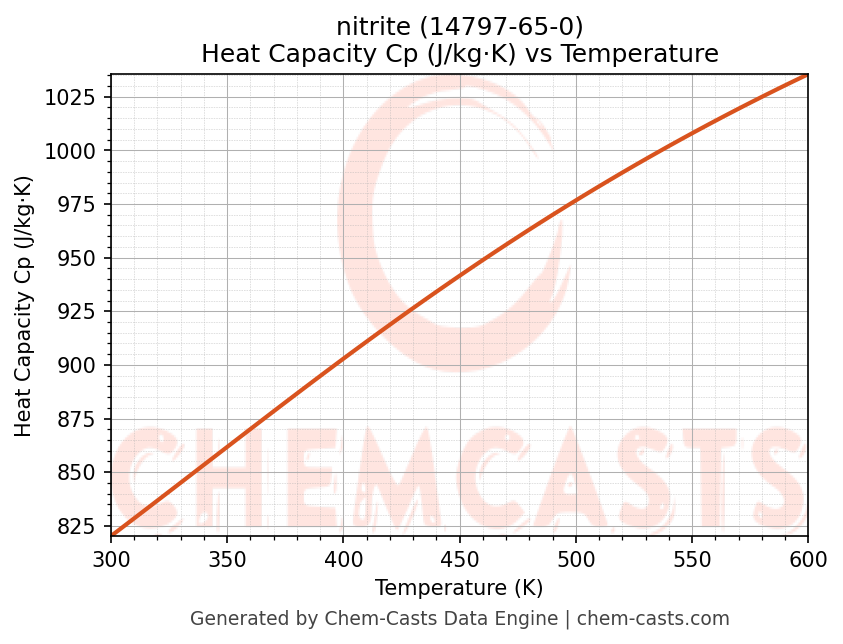

Heat Capacity (Cp) vs Temperature

Density vs Temperature

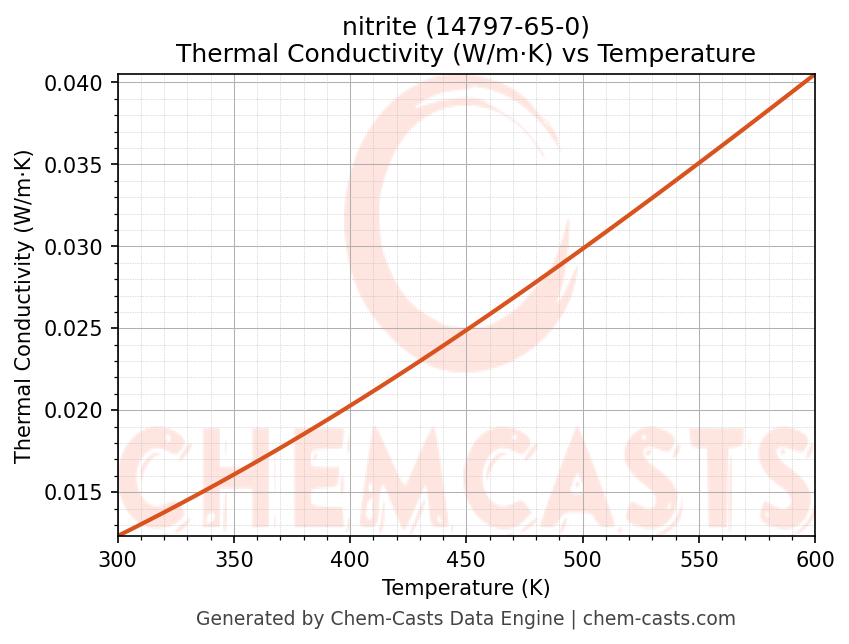

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of nitrite (CAS 14797-65-0) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of nitrite and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of nitrite at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
