chlorite Thermodynamic Properties vs Temperature (CAS 14998-27-7)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for chlorite

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for chlorite

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of chlorite at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.55119	3.28803	0.0166339	0.00766648	1.19591	20.5143	-28.0498	-0.102483	g
-18.048	0.556956	3.22227	0.0170018	0.00797344	1.1876	20.933	-25.1904	-0.0911601	g
-12.9459	0.562627	3.15909	0.017362	0.00828455	1.1791	21.3517	-22.3032	-0.0799542	g
-7.84388	0.568202	3.09834	0.017715	0.00859978	1.17046	21.7703	-19.3887	-0.068862	g
-2.74184	0.573683	3.03988	0.0180611	0.00891911	1.16171	22.189	-16.4473	-0.0578805	g
2.3602	0.579071	2.98358	0.0184008	0.00924252	1.15286	22.6076	-13.4793	-0.0470072	g
7.46224	0.584365	2.92934	0.0187344	0.00956999	1.14396	23.0263	-10.4853	-0.0362395	g
12.5643	0.589568	2.87703	0.0190621	0.00990149	1.13502	23.445	-7.46555	-0.025575	g
17.6663	0.59468	2.82655	0.0193844	0.010237	1.12606	23.8636	-4.42049	-0.0150114	g
22.7684	0.599702	2.77782	0.0197014	0.0105765	1.1171	24.2823	-1.35053	-0.00454671	g
27.8704	0.604634	2.73074	0.0200135	0.0109199	1.10814	24.7009	1.74393	0.00582118	g
32.9724	0.609478	2.68523	0.0203209	0.0112673	1.09921	25.1196	4.86248	0.0160942	g
38.0745	0.614234	2.64121	0.0206238	0.0116184	1.09032	25.5383	8.00472	0.0262741	g
43.1765	0.618904	2.59861	0.0209224	0.0119734	1.08148	25.9569	11.1702	0.0363627	g
48.2786	0.623487	2.55736	0.021217	0.0123322	1.07269	26.3756	14.3587	0.0463617	g
53.3806	0.627985	2.5174	0.0215077	0.0126946	1.06396	26.7942	17.5695	0.0562726	g
58.4827	0.632399	2.47867	0.0217948	0.0130606	1.05531	27.2129	20.8025	0.0660969	g
63.5847	0.63673	2.44111	0.0220783	0.0134302	1.04674	27.6316	24.0572	0.0758362	g
68.6867	0.640977	2.40468	0.0223584	0.0138033	1.03825	28.0502	27.3331	0.0854918	g
73.7888	0.645143	2.36932	0.0226353	0.0141797	1.02985	28.4689	30.63	0.095065	g
78.8908	0.649228	2.33498	0.0229092	0.0145595	1.02155	28.8875	33.9474	0.104557	g
83.9929	0.653233	2.30162	0.02318	0.0149425	1.01335	29.3062	37.2849	0.11397	g
89.0949	0.657159	2.2692	0.0234481	0.0153286	1.00525	29.7249	40.6422	0.123303	g
94.1969	0.661006	2.23769	0.0237134	0.0157178	0.997263	30.1435	44.0188	0.13256	g
99.299	0.664775	2.20703	0.0239762	0.0161098	0.989381	30.5622	47.4144	0.14174	g
104.401	0.668468	2.17721	0.0242365	0.0165048	0.981612	30.9808	50.8287	0.150844	g
109.503	0.672085	2.14818	0.0244943	0.0169025	0.973957	31.3995	54.2611	0.159875	g
114.605	0.675626	2.11992	0.0247499	0.0173028	0.966417	31.8182	57.7115	0.168832	g
119.707	0.679094	2.09238	0.0250033	0.0177056	0.958994	32.2368	61.1793	0.177717	g
124.809	0.682487	2.06556	0.0252545	0.0181108	0.951688	32.6555	64.6643	0.186531	g
129.911	0.685809	2.03941	0.0255037	0.0185184	0.944501	33.0741	68.1661	0.195274	g
135.013	0.689058	2.01392	0.0257509	0.0189281	0.937433	33.4928	71.6844	0.203948	g
140.115	0.692237	1.98906	0.0259962	0.01934	0.930484	33.9115	75.2187	0.212554	g
145.217	0.695345	1.9648	0.0262397	0.0197538	0.923654	34.3301	78.7687	0.221091	g
150.319	0.698384	1.94113	0.0264815	0.0201695	0.916943	34.7488	82.3342	0.229562	g
155.421	0.701355	1.91802	0.0267215	0.0205869	0.910349	35.1674	85.9147	0.237966	g
160.523	0.704258	1.89545	0.0269599	0.0210059	0.903874	35.5861	89.5099	0.246306	g
165.626	0.707095	1.87341	0.0271967	0.0214265	0.897515	36.0048	93.1195	0.25458	g
170.728	0.709865	1.85188	0.027432	0.0218486	0.891273	36.4234	96.7432	0.262791	g
175.83	0.712571	1.83084	0.0276658	0.0222719	0.885145	36.8421	100.381	0.270939	g
180.932	0.715212	1.81026	0.0278982	0.0226964	0.879131	37.2607	104.031	0.279025	g
186.034	0.71779	1.79015	0.0281292	0.0231221	0.873229	37.6794	107.695	0.287048	g
191.136	0.720305	1.77048	0.0283589	0.0235487	0.867439	38.0981	111.372	0.295011	g
196.238	0.722758	1.75123	0.0285873	0.0239763	0.861758	38.5167	115.061	0.302914	g
201.34	0.725151	1.7324	0.0288145	0.0244046	0.856185	38.9354	118.762	0.310756	g
206.442	0.727483	1.71397	0.0290404	0.0248336	0.850719	39.354	122.476	0.31854	g
211.544	0.729757	1.69593	0.0292652	0.0252632	0.845358	39.7727	126.2	0.326266	g
216.646	0.731971	1.67827	0.0294888	0.0256933	0.8401	40.1914	129.936	0.333933	g
221.748	0.734129	1.66096	0.0297114	0.0261239	0.834944	40.61	133.683	0.341544	g
226.85	0.736229	1.64402	0.0299329	0.0265547	0.829888	41.0287	137.441	0.349098	g

Property Profiles for chlorite

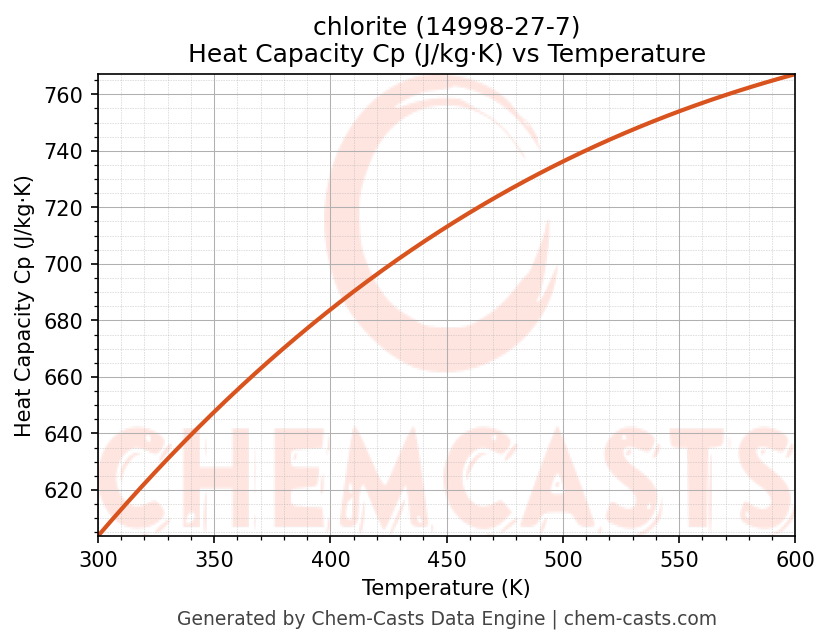

Heat Capacity (Cp) vs Temperature

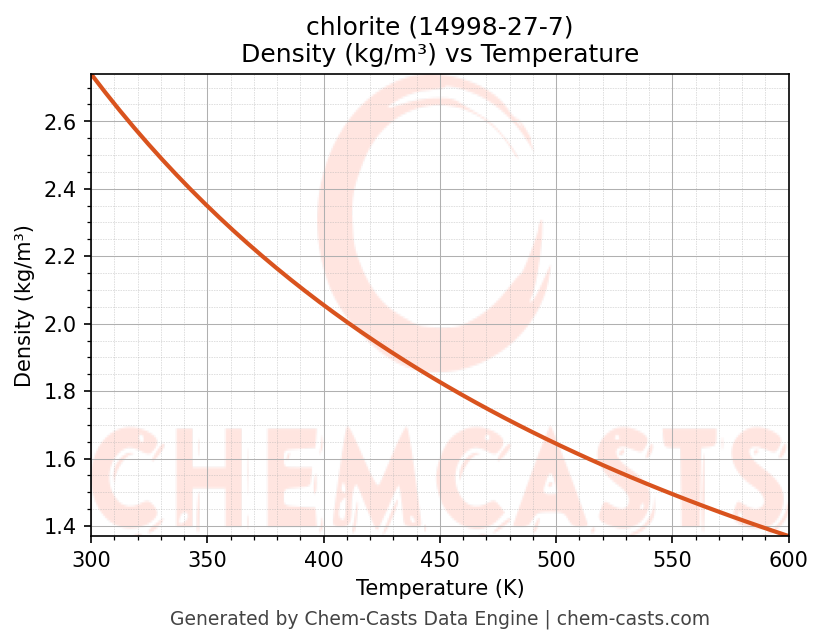

Density vs Temperature

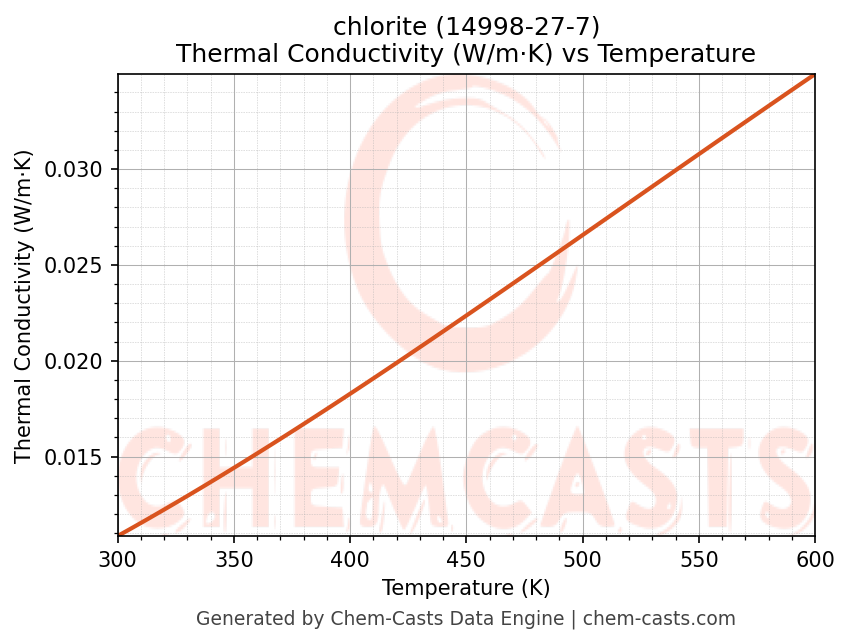

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of chlorite (CAS 14998-27-7) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of chlorite and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of chlorite at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
