periodate Thermodynamic Properties vs Temperature (CAS 15056-35-6)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for periodate

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for periodate

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of periodate at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.306285	2052.12	1.07985	0.0865588	3.82102	0.0930267	-169.521	-0.672102	l
-18.048	0.344822	9.11967	0.0342665	0.00770162	1.5342	20.933	-15.5371	-0.0562267	g
-12.9459	0.348218	8.94085	0.0352039	0.00799558	1.53318	21.3517	-13.756	-0.0493135	g
-7.84388	0.351571	8.76891	0.0361142	0.00829471	1.5307	21.7703	-11.9582	-0.0424714	g
-2.74184	0.354879	8.60346	0.0369989	0.00859902	1.52693	22.189	-10.144	-0.0356982	g
2.3602	0.358143	8.44414	0.0378591	0.00890851	1.52203	22.6076	-8.31351	-0.0289921	g
7.46224	0.361364	8.29061	0.0386963	0.00922318	1.51612	23.0263	-6.46699	-0.0223513	g
12.5643	0.364541	8.14256	0.0395115	0.00954306	1.50932	23.445	-4.60461	-0.0157742	g
17.6663	0.367676	7.99971	0.0403058	0.00986815	1.50175	23.8636	-2.72656	-0.00925907	g
22.7684	0.370768	7.86178	0.0410802	0.0101985	1.49348	24.2823	-0.833042	-0.00280454	g
27.8704	0.373817	7.72853	0.0418357	0.010534	1.48461	24.7009	1.07576	0.00359085	g
32.9724	0.376825	7.59973	0.0425731	0.0108748	1.47521	25.1196	2.99965	0.00992845	g
38.0745	0.37979	7.47514	0.0432934	0.0112209	1.46534	25.5383	4.93844	0.0162095	g
43.1765	0.382714	7.35457	0.0439973	0.0115722	1.45507	25.9569	6.89192	0.0224354	g
48.2786	0.385597	7.23783	0.0446855	0.0119289	1.44444	26.3756	8.8599	0.028607	g
53.3806	0.388438	7.12474	0.0453588	0.0122908	1.43352	26.7942	10.8422	0.0347257	g
58.4827	0.391239	7.01513	0.0460178	0.012658	1.42234	27.2129	12.8386	0.0407923	g
63.5847	0.393999	6.90884	0.0466631	0.0130305	1.41094	27.6316	14.8489	0.0468081	g
68.6867	0.396719	6.80572	0.0472953	0.0134082	1.39936	28.0502	16.873	0.0527738	g
73.7888	0.399399	6.70564	0.047915	0.0137912	1.38764	28.4689	18.9106	0.0586904	g
78.8908	0.40204	6.60846	0.0485227	0.0141795	1.37579	28.8875	20.9616	0.0645589	g
83.9929	0.404641	6.51405	0.0491189	0.014573	1.36386	29.3062	23.0257	0.07038	g
89.0949	0.407203	6.4223	0.049704	0.0149717	1.35186	29.7249	25.1027	0.0761546	g
94.1969	0.409726	6.3331	0.0502786	0.0153756	1.33982	30.1435	27.1926	0.0818835	g
99.299	0.412211	6.24635	0.050843	0.0157846	1.32775	30.5622	29.295	0.0875673	g
104.401	0.414657	6.16194	0.0513977	0.0161987	1.31569	30.9808	31.4098	0.0932069	g
109.503	0.417066	6.07978	0.051943	0.0166179	1.30363	31.3995	33.5369	0.0988029	g
114.605	0.419437	5.99978	0.0524792	0.0170421	1.29161	31.8182	35.6759	0.104356	g
119.707	0.42177	5.92186	0.0530068	0.0174712	1.27963	32.2368	37.8268	0.109867	g
124.809	0.424066	5.84594	0.053526	0.0179053	1.2677	32.6555	39.9894	0.115336	g
129.911	0.426325	5.77194	0.0540372	0.0183442	1.25584	33.0741	42.1635	0.120764	g
135.013	0.428548	5.69979	0.0545407	0.0187878	1.24406	33.4928	44.3488	0.126152	g
140.115	0.430734	5.62943	0.0550366	0.0192362	1.23237	33.9115	46.5452	0.1315	g
145.217	0.432884	5.56077	0.0555254	0.0196892	1.22077	34.3301	48.7526	0.136809	g
150.319	0.434998	5.49378	0.0560073	0.0201468	1.20928	34.7488	50.9708	0.142079	g
155.421	0.437077	5.42838	0.0564824	0.0206088	1.19789	35.1674	53.1995	0.14731	g
160.523	0.439121	5.36451	0.0569511	0.0210753	1.18662	35.5861	55.4386	0.152504	g
165.626	0.441129	5.30213	0.0574135	0.0215461	1.17547	36.0048	57.688	0.15766	g
170.728	0.443103	5.24119	0.05787	0.0220211	1.16444	36.4234	59.9474	0.16278	g
175.83	0.445043	5.18163	0.0583205	0.0225003	1.15355	36.8421	62.2167	0.167863	g
180.932	0.446948	5.12341	0.0587655	0.0229835	1.14278	37.2607	64.4957	0.17291	g
186.034	0.44882	5.06648	0.059205	0.0234707	1.13215	37.6794	66.7842	0.177922	g
191.136	0.450658	5.01081	0.0596393	0.0239618	1.12166	38.0981	69.0821	0.182899	g
196.238	0.452462	4.95634	0.0600684	0.0244567	1.1113	38.5167	71.3893	0.187841	g
201.34	0.454234	4.90305	0.0604926	0.0249552	1.10108	38.9354	73.7054	0.192749	g
206.442	0.455973	4.85089	0.060912	0.0254574	1.09101	39.354	76.0305	0.197623	g
211.544	0.457679	4.79983	0.0613268	0.025963	1.08108	39.7727	78.3642	0.202463	g
216.646	0.459353	4.74983	0.0617371	0.0264721	1.07129	40.1914	80.7065	0.20727	g
221.748	0.460996	4.70086	0.0621431	0.0269844	1.06164	40.61	83.0572	0.212045	g
226.85	0.462606	4.65289	0.0625449	0.0275	1.05213	41.0287	85.4161	0.216787	g

Property Profiles for periodate

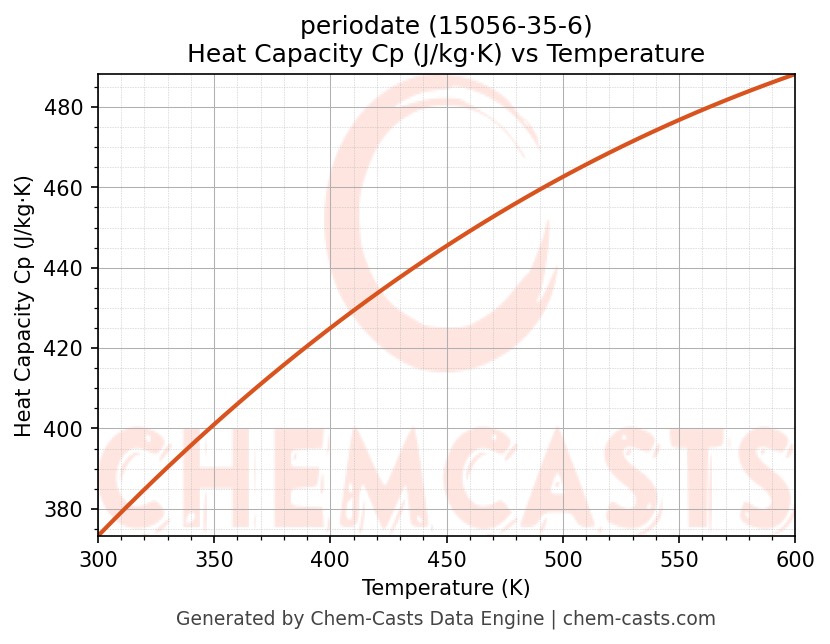

Heat Capacity (Cp) vs Temperature

Density vs Temperature

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of periodate (CAS 15056-35-6) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of periodate and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of periodate at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
