5-ethylbicyclo[2.2.1]hept-2-ene Thermodynamic Properties vs Temperature (CAS 15403-89-1)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 5-ethylbicyclo[2.2.1]hept-2-ene

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 5-ethylbicyclo[2.2.1]hept-2-ene

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 5-ethylbicyclo[2.2.1]hept-2-ene at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.73836	862.157	0.458726	0.132263	6.02916	0.141746	-88.7422	-0.324091	l
-18.048	1.76105	858.873	0.450171	0.131263	6.03957	0.142288	-79.815	-0.288742	l
-12.9459	1.78355	855.549	0.441697	0.130264	6.04762	0.142841	-70.7726	-0.253646	l
-7.84388	1.80586	852.183	0.433304	0.129265	6.05335	0.143405	-61.6158	-0.218797	l
-2.74184	1.82797	848.777	0.424993	0.128266	6.05677	0.143981	-52.3458	-0.184189	l
2.3602	1.84989	845.329	0.416763	0.127266	6.05791	0.144568	-42.9634	-0.149815	l
7.46224	1.87163	841.839	0.408615	0.126267	6.0568	0.145167	-33.4697	-0.115672	l
12.5643	1.89317	838.306	0.400548	0.125268	6.05347	0.145779	-23.8655	-0.0817548	l
17.6663	1.91451	834.731	0.392562	0.124268	6.04793	0.146403	-14.152	-0.0480579	l
22.7684	1.93567	831.113	0.384657	0.123269	6.04021	0.147041	-4.32998	-0.0145774	l
27.8704	1.95664	827.451	0.376834	0.12227	6.03035	0.147691	5.59947	0.0186908	l
32.9724	1.97741	823.746	0.369091	0.12127	6.01835	0.148356	15.6354	0.0517506	l
38.0745	1.998	819.996	0.36143	0.120271	6.00425	0.149034	25.7768	0.0846058	l
43.1765	2.01839	816.201	0.353849	0.119271	5.98807	0.149727	36.0228	0.11726	l
48.2786	2.03859	812.36	0.346349	0.118272	5.96984	0.150435	46.3723	0.149716	l
53.3806	2.0586	808.473	0.338929	0.117272	5.94957	0.151158	56.8245	0.181978	l
58.4827	2.07842	804.54	0.33159	0.116273	5.9273	0.151897	67.3782	0.214049	l
63.5847	2.09805	800.559	0.324332	0.115274	5.90304	0.152653	78.0325	0.245931	l
68.6867	2.11748	796.53	0.317153	0.114274	5.87681	0.153425	88.7865	0.277627	l
73.7888	2.13673	792.452	0.310055	0.113275	5.84865	0.154214	99.6392	0.30914	l
78.8908	2.15578	788.325	0.303036	0.112275	5.81857	0.155022	110.59	0.340473	l
83.9929	2.17465	784.148	0.296097	0.111276	5.78659	0.155847	121.637	0.371627	l
89.0949	2.19332	779.919	0.289237	0.110276	5.75274	0.156692	132.779	0.402606	l
94.1969	2.2118	775.638	0.282457	0.109277	5.71703	0.157557	144.017	0.433412	l
99.299	2.23008	771.304	0.275755	0.108277	5.67949	0.158443	155.349	0.464046	l
104.401	2.24818	766.915	0.269132	0.107277	5.64013	0.159349	166.773	0.49451	l
109.503	2.26609	762.471	0.262587	0.106278	5.59897	0.160278	178.289	0.524808	l
114.605	2.2838	757.971	0.256121	0.105278	5.55603	0.16123	189.896	0.55494	l
119.707	2.30133	753.412	0.249732	0.104279	5.51133	0.162205	201.593	0.584909	l
124.809	2.31866	748.793	0.24342	0.103279	5.46488	0.163206	213.378	0.614715	l
129.911	2.3358	744.113	0.237185	0.102279	5.4167	0.164232	225.252	0.644362	l
135.013	2.35275	739.371	0.231027	0.10128	5.36679	0.165286	237.213	0.67385	l
140.115	2.3695	734.563	0.224943	0.10028	5.31516	0.166368	249.259	0.703181	l
145.217	1.87308	3.55977	0.00832465	0.0198831	0.784223	34.3301	538.982	1.39845	g
150.319	1.89521	3.51688	0.00843968	0.0203892	0.78448	34.7488	548.655	1.42143	g
155.421	1.91712	3.47502	0.00855365	0.0208995	0.78463	35.1674	558.438	1.44439	g
160.523	1.93884	3.43413	0.0086666	0.021414	0.784678	35.5861	568.331	1.46734	g
165.626	1.96034	3.3942	0.00877856	0.0219326	0.784632	36.0048	578.332	1.49026	g
170.728	1.98165	3.35519	0.00888956	0.0224552	0.784495	36.4234	588.441	1.51317	g
175.83	2.00275	3.31706	0.00899965	0.0229819	0.784273	36.8421	598.657	1.53605	g
180.932	2.02366	3.27979	0.00910884	0.0235126	0.78397	37.2607	608.978	1.55891	g
186.034	2.04437	3.24335	0.00921716	0.0240473	0.783591	37.6794	619.404	1.58174	g
191.136	2.06488	3.20771	0.00932464	0.024586	0.78314	38.0981	629.934	1.60455	g
196.238	2.0852	3.17284	0.00943132	0.0251286	0.782621	38.5167	640.567	1.62733	g
201.34	2.10532	3.13873	0.00953721	0.0256751	0.782037	38.9354	651.302	1.65007	g
206.442	2.12526	3.10533	0.00964233	0.0262256	0.781391	39.354	662.138	1.67279	g
211.544	2.145	3.07265	0.00974672	0.0267799	0.780687	39.7727	673.074	1.69547	g
216.646	2.16455	3.04064	0.00985039	0.0273381	0.779927	40.1914	684.11	1.71812	g
221.748	2.18392	3.00929	0.00995336	0.0279001	0.779115	40.61	695.243	1.74073	g
226.85	2.20311	2.97859	0.0100557	0.0284659	0.778253	41.0287	706.474	1.76331	g

Property Profiles for 5-ethylbicyclo[2.2.1]hept-2-ene

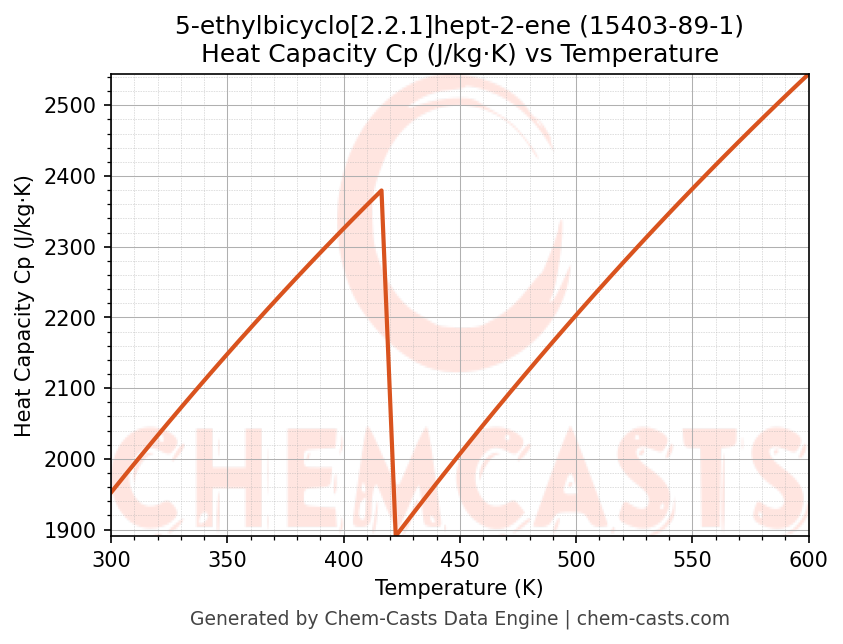

Heat Capacity (Cp) vs Temperature

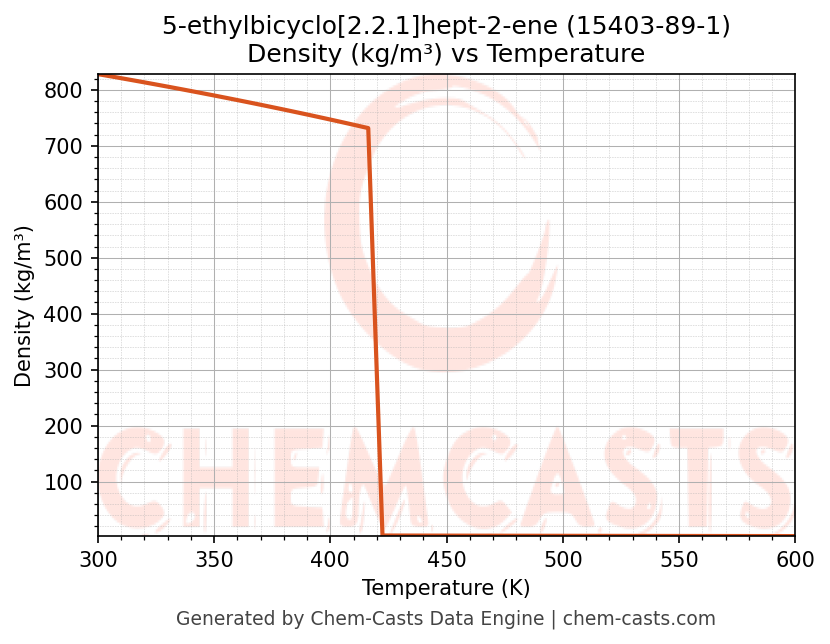

Density vs Temperature

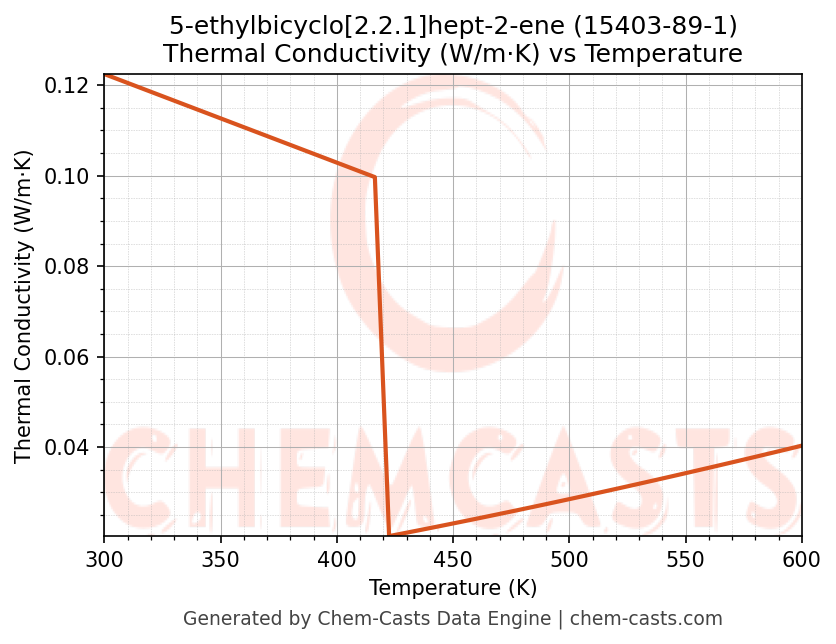

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 5-ethylbicyclo[2.2.1]hept-2-ene (CAS 15403-89-1) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 5-ethylbicyclo[2.2.1]hept-2-ene and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 5-ethylbicyclo[2.2.1]hept-2-ene at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
