2-(Methylthio)oxazolo[5,4-c]pyridine Thermodynamic Properties vs Temperature (CAS 169205-96-3)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2-(Methylthio)oxazolo[5,4-c]pyridine

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2-(Methylthio)oxazolo[5,4-c]pyridine

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2-(Methylthio)oxazolo[5,4-c]pyridine at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.788199	1167.51	N/A	N/A	N/A	0.142355	-41.6009	-0.151785	s
-18.048	0.8041	1165.2	N/A	N/A	N/A	0.142637	-37.5389	-0.135701	s
-12.9459	0.820061	1162.89	N/A	N/A	N/A	0.14292	-33.3957	-0.11962	s
-7.84388	0.836082	1160.58	N/A	N/A	N/A	0.143204	-29.1708	-0.103541	s
-2.74184	0.852163	1158.27	N/A	N/A	N/A	0.14349	-24.8641	-0.0874629	s
2.3602	0.868305	1155.96	N/A	N/A	N/A	0.143777	-20.4752	-0.0713839	s
7.46224	0.884508	1153.65	N/A	N/A	N/A	0.144064	-16.0038	-0.0553031	s
12.5643	0.900773	1151.34	N/A	N/A	N/A	0.144353	-11.4495	-0.0392196	s
17.6663	0.9171	1149.03	N/A	N/A	N/A	0.144644	-6.81209	-0.0231323	s
22.7684	0.933489	1146.72	N/A	N/A	N/A	0.144935	-2.09122	-0.00704034	s
27.8704	0.94994	1144.41	N/A	N/A	N/A	0.145227	2.71342	0.00905725	s
32.9724	0.966454	1142.11	N/A	N/A	N/A	0.145521	7.60215	0.0251613	s
38.0745	0.983031	1139.8	N/A	N/A	N/A	0.145816	12.5753	0.0412727	s
43.1765	0.999671	1137.49	N/A	N/A	N/A	0.146112	17.6332	0.0573921	s
48.2786	1.01637	1135.18	N/A	N/A	N/A	0.146409	22.7761	0.0735204	s
53.3806	1.03314	1132.87	N/A	N/A	N/A	0.146708	28.0045	0.0896582	s
58.4827	1.04997	1130.56	N/A	N/A	N/A	0.147007	33.3185	0.105806	s
63.5847	1.06687	1128.25	N/A	N/A	N/A	0.147308	38.7186	0.121965	s
68.6867	1.08382	1125.94	N/A	N/A	N/A	0.14761	44.205	0.138136	s
73.7888	1.10085	1123.63	N/A	N/A	N/A	0.147914	49.7781	0.154318	s
78.8908	1.11793	1121.32	N/A	N/A	N/A	0.148219	55.4382	0.170514	s
83.9929	1.44089	999.878	N/A	0.115602	N/A	0.166221	229.646	0.663054	l
89.0949	1.45492	998.9	N/A	0.114856	N/A	0.166383	237.033	0.683592	l
94.1969	1.46865	997.887	N/A	0.11411	N/A	0.166552	244.491	0.704037	l
99.299	1.48209	996.839	N/A	0.113364	N/A	0.166727	252.019	0.724388	l
104.401	1.49523	995.755	N/A	0.112618	N/A	0.166909	259.614	0.744642	l
109.503	1.50808	994.635	N/A	0.111872	N/A	0.167097	267.276	0.764799	l
114.605	1.52063	993.479	N/A	0.111125	N/A	0.167291	275.002	0.784857	l
119.707	1.53288	992.286	N/A	0.110379	N/A	0.167492	282.792	0.804815	l
124.809	1.54484	991.055	N/A	0.109633	N/A	0.1677	290.643	0.824672	l
129.911	1.55651	989.787	N/A	0.108887	N/A	0.167915	298.555	0.844426	l
135.013	1.56788	988.481	N/A	0.108141	N/A	0.168137	306.526	0.864076	l
140.115	1.57896	987.136	N/A	0.107395	N/A	0.168366	314.553	0.883622	l
145.217	1.58974	985.753	N/A	0.106649	N/A	0.168602	322.637	0.903063	l
150.319	1.60022	984.329	N/A	0.105903	N/A	0.168846	330.775	0.922396	l
155.421	1.61041	982.866	N/A	0.105157	N/A	0.169098	338.965	0.941622	l
160.523	1.6203	981.363	N/A	0.104411	N/A	0.169357	347.207	0.960739	l
165.626	1.6299	979.818	N/A	0.103664	N/A	0.169624	355.498	0.979746	l
170.728	1.63921	978.232	N/A	0.102918	N/A	0.169899	363.838	0.998643	l
175.83	1.64821	976.604	N/A	0.102172	N/A	0.170182	372.224	1.01743	l
180.932	1.65693	974.934	N/A	0.101426	N/A	0.170474	380.656	1.0361	l
186.034	1.66534	973.22	N/A	0.10068	N/A	0.170774	389.131	1.05466	l
191.136	1.67347	971.462	N/A	0.0999337	N/A	0.171083	397.649	1.07311	l
196.238	1.68129	969.661	N/A	0.0991876	N/A	0.1714	406.207	1.09144	l
201.34	1.68882	967.814	N/A	0.0984414	N/A	0.171728	414.804	1.10966	l
206.442	1.69606	965.922	N/A	0.0976953	N/A	0.172064	423.439	1.12776	l
211.544	1.703	963.984	N/A	0.0969491	N/A	0.17241	432.111	1.14575	l
216.646	1.70965	961.999	N/A	0.0962029	N/A	0.172766	440.816	1.16361	l
221.748	1.716	959.966	N/A	0.0954568	N/A	0.173131	449.555	1.18136	l
226.85	1.72205	957.886	N/A	0.0947106	N/A	0.173508	458.326	1.19899	l

Property Profiles for 2-(Methylthio)oxazolo[5,4-c]pyridine

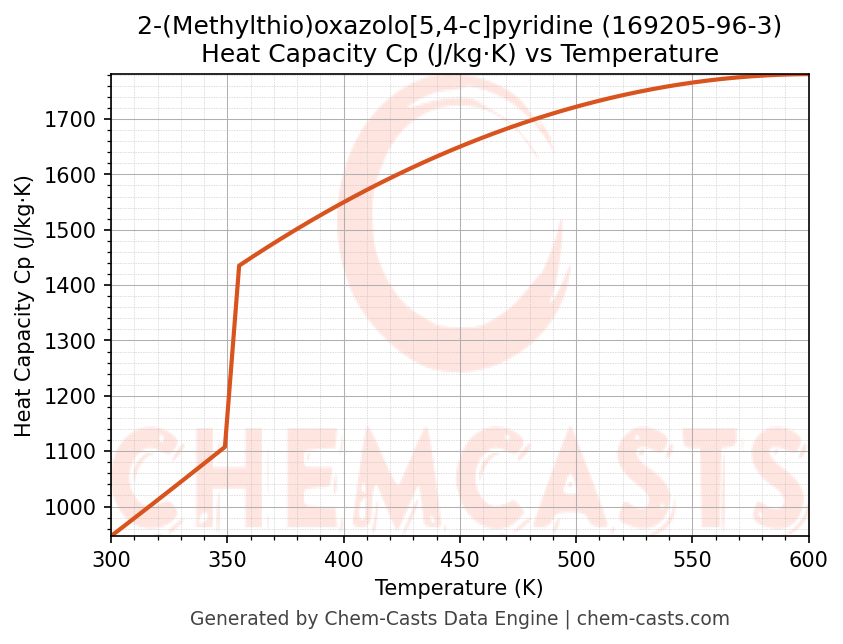

Heat Capacity (Cp) vs Temperature

Density vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2-(Methylthio)oxazolo[5,4-c]pyridine (CAS 169205-96-3) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2-(Methylthio)oxazolo[5,4-c]pyridine and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2-(Methylthio)oxazolo[5,4-c]pyridine at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
