2-[2-(4-Morpholinyl)ethoxy]ethanamine Thermodynamic Properties vs Temperature (CAS 20207-13-0)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2-[2-(4-Morpholinyl)ethoxy]ethanamine

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2-[2-(4-Morpholinyl)ethoxy]ethanamine

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2-[2-(4-Morpholinyl)ethoxy]ethanamine at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.23181	1118.34	N/A	N/A	N/A	0.155803	-64.2104	-0.234359	s
-18.048	1.25332	1116.17	N/A	N/A	N/A	0.156107	-57.8708	-0.209257	s
-12.9459	1.27484	1113.99	N/A	N/A	N/A	0.156411	-51.4214	-0.184225	s
-7.84388	1.29639	1111.82	N/A	N/A	N/A	0.156716	-44.8622	-0.159262	s
-2.74184	1.31795	1109.65	N/A	N/A	N/A	0.157023	-38.1929	-0.134363	s
2.3602	1.33954	1107.48	N/A	N/A	N/A	0.157331	-31.4136	-0.109527	s
7.46224	1.36115	1105.3	N/A	N/A	N/A	0.15764	-24.5241	-0.0847498	s
12.5643	1.38279	1103.13	N/A	N/A	N/A	0.157951	-17.5243	-0.0600296	s
17.6663	1.40444	1100.96	N/A	N/A	N/A	0.158263	-10.414	-0.0353639	s
22.7684	1.42612	1098.79	N/A	N/A	N/A	0.158575	-3.19318	-0.0107502	s
27.8704	1.44783	1096.62	N/A	N/A	N/A	0.158889	4.13833	0.0138136	s
32.9724	1.46956	1094.44	N/A	N/A	N/A	0.159205	11.5807	0.0383295	s
38.0745	1.49132	1092.27	N/A	N/A	N/A	0.159521	19.1339	0.0627997	s
43.1765	1.51311	1090.1	N/A	N/A	N/A	0.159839	26.7983	0.087226	s
48.2786	1.53492	1087.93	N/A	N/A	N/A	0.160158	34.5739	0.11161	s
53.3806	1.55676	1085.75	N/A	N/A	N/A	0.160479	42.4608	0.135954	s
58.4827	1.57863	1083.58	N/A	N/A	N/A	0.160801	50.4592	0.16026	s
63.5847	1.60053	1081.41	N/A	N/A	N/A	0.161124	58.5693	0.184528	s
68.6867	1.62246	1079.24	N/A	N/A	N/A	0.161448	66.7912	0.208761	s
73.7888	1.64441	1077.07	N/A	N/A	N/A	0.161774	75.1251	0.23296	s
78.8908	1.6664	1074.89	N/A	N/A	N/A	0.1621	83.571	0.257127	s
83.9929	1.68841	1072.72	N/A	N/A	N/A	0.162429	92.1292	0.281262	s
89.0949	2.08907	955.239	0.732229	0.128053	11.9456	0.182405	255.187	0.7347	l
94.1969	2.10713	952.031	0.71639	0.127054	11.881	0.18302	265.892	0.764045	l
99.299	2.12496	948.766	0.700723	0.126054	11.8125	0.18365	276.688	0.793232	l
104.401	2.14256	945.442	0.685227	0.125055	11.74	0.184295	287.575	0.822264	l
109.503	2.15992	942.06	0.669903	0.124055	11.6636	0.184957	298.551	0.85114	l
114.605	2.17704	938.617	0.65475	0.123056	11.5835	0.185636	309.615	0.879862	l
119.707	2.19393	935.113	0.639768	0.122056	11.4997	0.186331	320.765	0.908431	l
124.809	2.21058	931.547	0.624958	0.121057	11.4122	0.187044	332.001	0.936847	l
129.911	2.227	927.918	0.61032	0.120057	11.3211	0.187776	343.322	0.965112	l
135.013	2.24319	924.224	0.595852	0.119058	11.2265	0.188526	354.725	0.993227	l
140.115	2.25914	920.464	0.581556	0.118058	11.1285	0.189297	366.211	1.02119	l
145.217	2.27485	916.638	0.567432	0.117059	11.0271	0.190087	377.777	1.04901	l
150.319	2.29033	912.743	0.553478	0.116059	10.9224	0.190898	389.423	1.07668	l
155.421	2.30557	908.778	0.539696	0.11506	10.8145	0.191731	401.148	1.1042	l
160.523	2.32058	904.742	0.526085	0.11406	10.7033	0.192586	412.949	1.13157	l
165.626	2.33535	900.634	0.512645	0.11306	10.5891	0.193465	424.827	1.1588	l
170.728	2.34989	896.452	0.499375	0.112061	10.4718	0.194367	436.779	1.18588	l
175.83	2.36419	892.194	0.486277	0.111061	10.3515	0.195295	448.805	1.21282	l
180.932	2.37826	887.86	0.473349	0.110061	10.2284	0.196248	460.903	1.23961	l
186.034	2.39209	883.447	0.460591	0.109062	10.1023	0.197228	473.072	1.26626	l
191.136	2.40569	878.953	0.448003	0.108062	9.97351	0.198237	485.312	1.29277	l
196.238	2.41905	874.377	0.435585	0.107062	9.84198	0.199274	497.62	1.31914	l
201.34	2.43218	869.717	0.423337	0.106063	9.70778	0.200342	509.995	1.34536	l
206.442	2.44507	864.97	0.411258	0.105063	9.57099	0.201441	522.437	1.37144	l
211.544	2.45773	860.136	0.399347	0.104063	9.43166	0.202574	534.945	1.39738	l
216.646	2.47015	855.211	0.387605	0.103063	9.28985	0.20374	547.516	1.42318	l
221.748	2.48234	850.193	0.37603	0.102064	9.14562	0.204943	560.15	1.44884	l
226.85	2.49429	845.08	0.364622	0.101064	8.99901	0.206182	572.846	1.47437	l

Property Profiles for 2-[2-(4-Morpholinyl)ethoxy]ethanamine

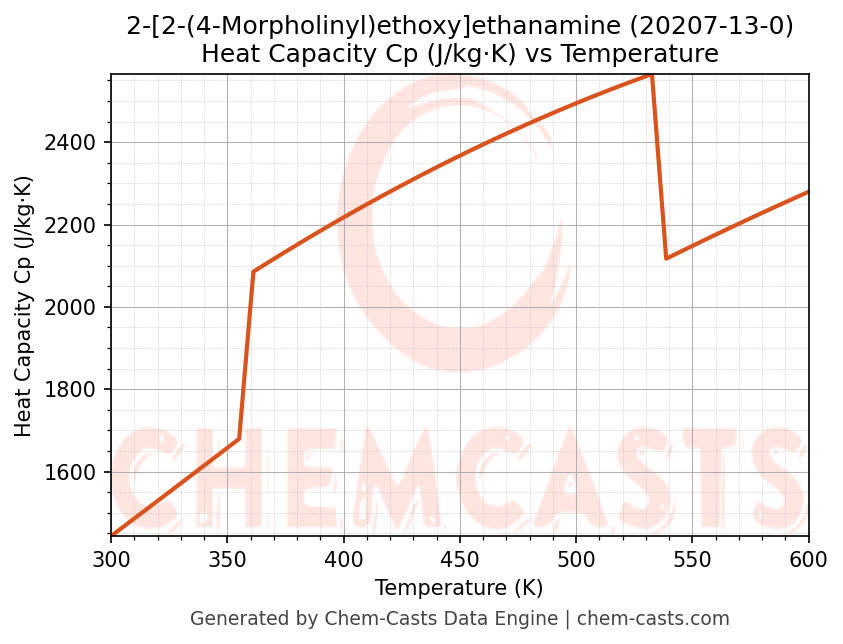

Heat Capacity (Cp) vs Temperature

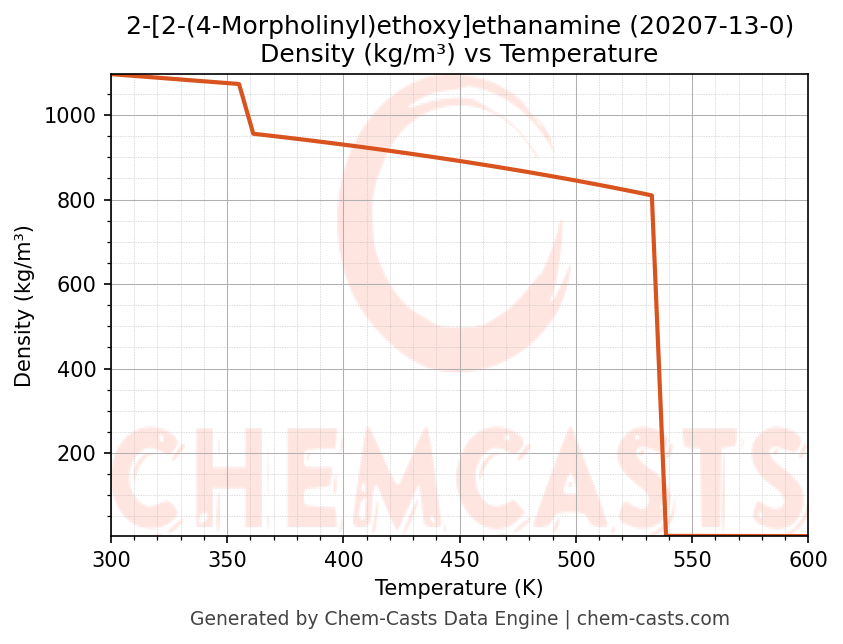

Density vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2-[2-(4-Morpholinyl)ethoxy]ethanamine (CAS 20207-13-0) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2-[2-(4-Morpholinyl)ethoxy]ethanamine and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2-[2-(4-Morpholinyl)ethoxy]ethanamine at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
