nitrosyl chloride Thermodynamic Properties vs Temperature (CAS 2696-92-6)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for nitrosyl chloride

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for nitrosyl chloride

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of nitrosyl chloride at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.522289	1332.06	0.508096	0.126441	2.0988	0.0491414	-438.889	-1.69721	l
-18.048	0.533678	1322.02	0.49116	0.125441	2.0896	0.0495146	-436.195	-1.6692	l
-12.9459	0.544879	1311.79	0.474507	0.124441	2.07768	0.0499007	-433.443	-1.64113	l
-7.84388	0.555892	1301.37	0.458135	0.123442	2.06311	0.0503002	-430.635	-1.61295	l
-2.74184	0.66936	2.95007	0.0131877	0.00899415	0.981448	22.189	-18.9729	-0.0667843	g
2.3602	0.671799	2.89544	0.0135077	0.00925259	0.980747	22.6076	-15.5073	-0.0540877	g
7.46224	0.674239	2.8428	0.0138215	0.00951309	0.979598	23.0263	-12.0312	-0.041586	g
12.5643	0.676678	2.79203	0.0141295	0.00977566	0.978052	23.445	-8.54432	-0.0292718	g
17.6663	0.679118	2.74305	0.0144319	0.0100403	0.976156	23.8636	-5.04666	-0.0171381	g
22.7684	0.681557	2.69576	0.014729	0.0103071	0.973951	24.2823	-1.53809	-0.00517819	g
27.8704	0.683987	2.65006	0.0150211	0.0105759	0.971473	24.7009	1.98145	0.00661401	g
32.9724	0.686367	2.6059	0.0153084	0.0108461	0.968756	25.1196	5.51189	0.0182439	g
38.0745	0.688696	2.56318	0.0155912	0.0111175	0.965827	25.5383	9.05304	0.0297163	g
43.1765	0.690975	2.52184	0.0158697	0.0113903	0.962709	25.9569	12.6047	0.0410357	g
48.2786	0.693206	2.48181	0.0161441	0.0116645	0.959421	26.3756	16.1667	0.0522063	g
53.3806	0.695391	2.44303	0.0164146	0.0119401	0.955984	26.7942	19.7389	0.0632324	g
58.4827	0.697533	2.40544	0.0166813	0.0122171	0.952412	27.2129	23.3211	0.0741179	g
63.5847	0.699633	2.369	0.0169444	0.0124957	0.94872	27.6316	26.913	0.0848666	g
68.6867	0.701693	2.33364	0.0172042	0.0127757	0.944921	28.0502	30.5147	0.0954822	g
73.7888	0.703716	2.29932	0.0174606	0.0130574	0.941028	28.4689	34.1259	0.105968	g
78.8908	0.705703	2.266	0.017714	0.0133406	0.93705	28.8875	37.7464	0.116328	g
83.9929	0.707656	2.23363	0.0179644	0.0136255	0.932999	29.3062	41.3762	0.126564	g
89.0949	0.709577	2.20217	0.0182119	0.0139121	0.928883	29.7249	45.015	0.136681	g
94.1969	0.711467	2.17158	0.0184566	0.0142004	0.924711	30.1435	48.6629	0.146681	g
99.299	0.713328	2.14183	0.0186988	0.0144905	0.92049	30.5622	52.3196	0.156567	g
104.401	0.715161	2.11289	0.0189384	0.0147823	0.916228	30.9808	55.985	0.166341	g
109.503	0.716969	2.08472	0.0191755	0.015076	0.911931	31.3995	59.6591	0.176007	g
114.605	0.718751	2.05729	0.0194104	0.0153715	0.907606	31.8182	63.3417	0.185568	g
119.707	0.720511	2.03057	0.019643	0.0156688	0.903258	32.2368	67.0328	0.195025	g
124.809	0.722248	2.00454	0.0198734	0.015968	0.898893	32.6555	70.7322	0.204381	g
129.911	0.723964	1.97916	0.0201018	0.0162691	0.894515	33.0741	74.4399	0.213638	g
135.013	0.72566	1.95442	0.0203282	0.0165721	0.890131	33.4928	78.1557	0.222799	g
140.115	0.727336	1.93029	0.0205526	0.016877	0.885743	33.9115	81.8797	0.231867	g
145.217	0.728995	1.90675	0.0207753	0.0171838	0.881356	34.3301	85.6116	0.240842	g
150.319	0.730636	1.88378	0.0209961	0.0174925	0.876974	34.7488	89.3516	0.249727	g
155.421	0.732261	1.86136	0.0212152	0.0178032	0.872601	35.1674	93.0994	0.258524	g
160.523	0.73387	1.83946	0.0214326	0.0181157	0.868239	35.5861	96.855	0.267236	g
165.626	0.735464	1.81807	0.0216485	0.0184301	0.863893	36.0048	100.618	0.275863	g
170.728	0.737042	1.79717	0.0218628	0.0187465	0.859564	36.4234	104.389	0.284408	g
175.83	0.738607	1.77675	0.0220756	0.0190646	0.855257	36.8421	108.168	0.292872	g
180.932	0.740159	1.75678	0.0222869	0.0193847	0.850972	37.2607	111.955	0.301258	g
186.034	0.741697	1.73726	0.0224969	0.0197066	0.846713	37.6794	115.748	0.309566	g
191.136	0.743222	1.71817	0.0227055	0.0200303	0.842482	38.0981	119.55	0.317799	g
196.238	0.744735	1.6995	0.0229128	0.0203559	0.83828	38.5167	123.358	0.325958	g
201.34	0.746235	1.68122	0.0231188	0.0206832	0.83411	38.9354	127.174	0.334044	g
206.442	0.747724	1.66334	0.0233236	0.0210123	0.829973	39.354	130.998	0.342059	g
211.544	0.749201	1.64583	0.0235272	0.0213431	0.82587	39.7727	134.829	0.350004	g
216.646	0.750667	1.62869	0.0237297	0.0216756	0.821804	40.1914	138.666	0.35788	g
221.748	0.752121	1.6119	0.0239311	0.0220098	0.817776	40.61	142.511	0.36569	g
226.85	0.753565	1.59545	0.0241313	0.0223456	0.813786	41.0287	146.364	0.373434	g

Property Profiles for nitrosyl chloride

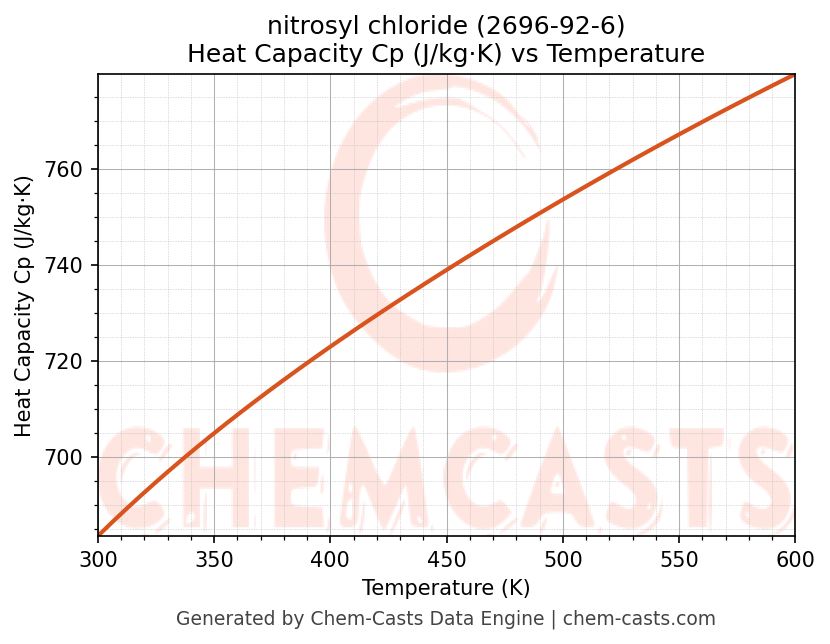

Heat Capacity (Cp) vs Temperature

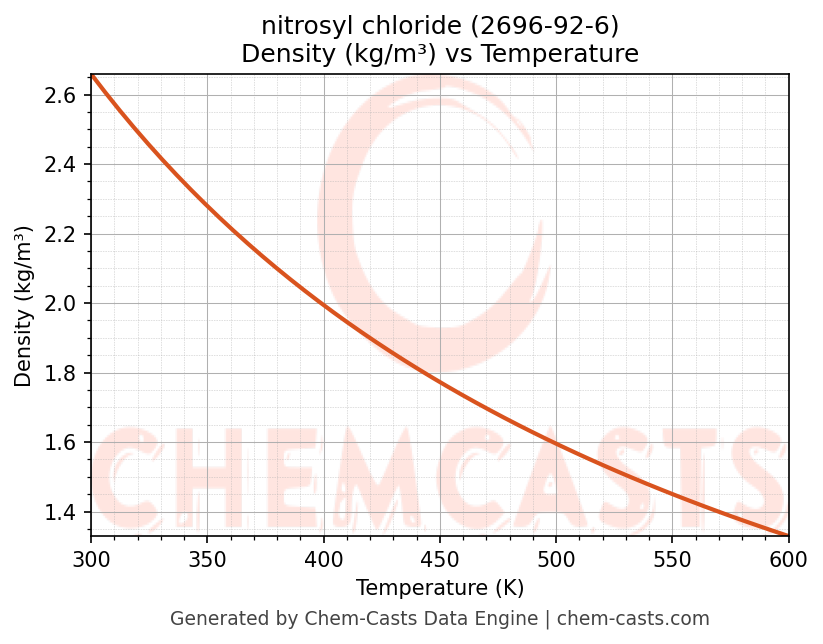

Density vs Temperature

Thermal Conductivity vs Temperature

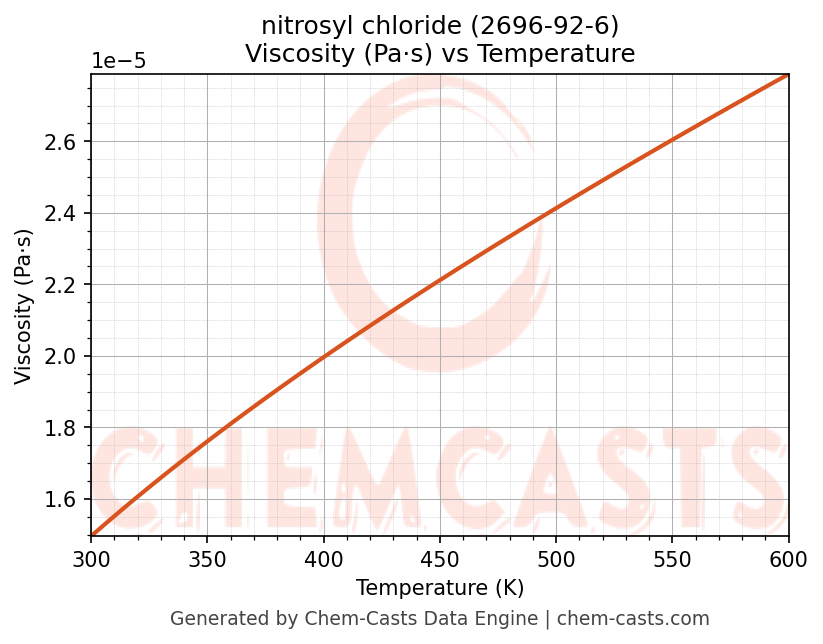

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of nitrosyl chloride (CAS 2696-92-6) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of nitrosyl chloride and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of nitrosyl chloride at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
