carbonyl fluoride Thermodynamic Properties vs Temperature (CAS 353-50-4)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for carbonyl fluoride

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for carbonyl fluoride

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of carbonyl fluoride at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.656155	3.2176	0.0142738	0.0109412	0.856018	20.5143	-33.2895	-0.121627	g
-18.048	0.662482	3.15325	0.0145447	0.0113262	0.850735	20.933	-29.8929	-0.108177	g
-12.9459	0.668808	3.09142	0.0148105	0.0117178	0.845331	21.3517	-26.4655	-0.0948746	g
-7.84388	0.675134	3.03197	0.0150716	0.012116	0.83983	21.7703	-23.0072	-0.0817127	g
-2.74184	0.681461	2.97476	0.0153283	0.0125209	0.834255	22.189	-19.518	-0.0686859	g
2.3602	0.687787	2.91967	0.0155806	0.0129325	0.828623	22.6076	-15.9976	-0.0557887	g
7.46224	0.694113	2.86659	0.015829	0.0133509	0.822953	23.0263	-12.4462	-0.0430163	g
12.5643	0.700439	2.8154	0.0160736	0.013776	0.81726	23.445	-8.86349	-0.0303638	g
17.6663	0.706766	2.76601	0.0163146	0.014208	0.811558	23.8636	-5.24955	-0.0178268	g
22.7684	0.713092	2.71832	0.0165522	0.0146467	0.80586	24.2823	-1.60429	-0.00540106	g
27.8704	0.719409	2.67224	0.0167865	0.0150921	0.800176	24.7009	2.07233	0.00691735	g
32.9724	0.725679	2.62771	0.0170178	0.0155433	0.794517	25.1196	5.78021	0.0191317	g
38.0745	0.731894	2.58463	0.0172461	0.0160001	0.788891	25.5383	9.51914	0.0312447	g
43.1765	0.738051	2.54294	0.0174716	0.0164623	0.783305	25.9569	13.2889	0.043259	g
48.2786	0.74415	2.50258	0.0176945	0.0169297	0.777767	26.3756	17.0891	0.0551767	g
53.3806	0.750187	2.46347	0.0179149	0.0174023	0.772284	26.7942	20.9197	0.0670002	g
58.4827	0.756161	2.42557	0.0181328	0.0178798	0.766859	27.2129	24.7802	0.0787316	g
63.5847	0.762071	2.38882	0.0183484	0.0183622	0.761499	27.6316	28.6704	0.0903726	g
68.6867	0.767916	2.35317	0.0185618	0.0188492	0.756208	28.0502	32.59	0.101925	g
73.7888	0.773695	2.31856	0.0187731	0.0193407	0.750988	28.4689	36.5388	0.113391	g
78.8908	0.779407	2.28496	0.0189824	0.0198366	0.745844	28.8875	40.5162	0.124772	g
83.9929	0.785051	2.25232	0.0191898	0.0203367	0.740777	29.3062	44.5222	0.13607	g
89.0949	0.790628	2.2206	0.0193953	0.0208408	0.73579	29.7249	48.5563	0.147285	g
94.1969	0.796137	2.18975	0.019599	0.0213488	0.730885	30.1435	52.6182	0.15842	g
99.299	0.801578	2.15976	0.019801	0.0218605	0.726063	30.5622	56.7076	0.169476	g
104.401	0.806951	2.13057	0.0200014	0.0223758	0.721324	30.9808	60.8241	0.180453	g
109.503	0.812256	2.10216	0.0202003	0.0228945	0.71667	31.3995	64.9675	0.191354	g
114.605	0.817494	2.0745	0.0203976	0.0234164	0.712102	31.8182	69.1374	0.202179	g
119.707	0.822663	2.04756	0.0205935	0.0239415	0.707619	32.2368	73.3335	0.21293	g
124.809	0.827766	2.02131	0.0207879	0.0244696	0.703221	32.6555	77.5554	0.223607	g
129.911	0.832802	1.99573	0.0209811	0.0250006	0.698908	33.0741	81.8028	0.234213	g
135.013	0.837772	1.97078	0.0211729	0.0255342	0.69468	33.4928	86.0755	0.244746	g
140.115	0.842676	1.94645	0.0213636	0.0260704	0.690537	33.9115	90.373	0.25521	g
145.217	0.847515	1.92271	0.021553	0.026609	0.686477	34.3301	94.695	0.265604	g
150.319	0.85229	1.89955	0.0217413	0.02715	0.6825	34.7488	99.0413	0.27593	g
155.421	0.857	1.87693	0.0219284	0.0276931	0.678605	35.1674	103.412	0.286188	g
160.523	0.861648	1.85485	0.0221145	0.0282383	0.67479	35.5861	107.805	0.29638	g
165.626	0.866232	1.83328	0.0222995	0.0287854	0.671056	36.0048	112.222	0.306506	g
170.728	0.870755	1.81221	0.0224836	0.0293343	0.6674	36.4234	116.663	0.316567	g
175.83	0.875217	1.79162	0.0226667	0.029885	0.663821	36.8421	121.125	0.326563	g
180.932	0.879618	1.77149	0.0228488	0.0304372	0.660318	37.2607	125.61	0.336497	g
186.034	0.883959	1.7518	0.0230301	0.030991	0.65689	37.6794	130.118	0.346367	g
191.136	0.888241	1.73255	0.0232105	0.0315461	0.653536	38.0981	134.647	0.356176	g
196.238	0.892466	1.71372	0.02339	0.0321026	0.650253	38.5167	139.197	0.365923	g
201.34	0.896632	1.69529	0.0235687	0.0326602	0.64704	38.9354	143.769	0.375611	g
206.442	0.900742	1.67726	0.0237467	0.033219	0.643897	39.354	148.362	0.385238	g
211.544	0.904796	1.6596	0.0239238	0.0337788	0.640821	39.7727	152.975	0.394806	g
216.646	0.908794	1.64232	0.0241002	0.0343396	0.637811	40.1914	157.608	0.404316	g
221.748	0.912738	1.62538	0.024276	0.0349012	0.634866	40.61	162.262	0.413768	g
226.85	0.916629	1.6088	0.024451	0.0354637	0.631984	41.0287	166.936	0.423163	g

Property Profiles for carbonyl fluoride

Heat Capacity (Cp) vs Temperature

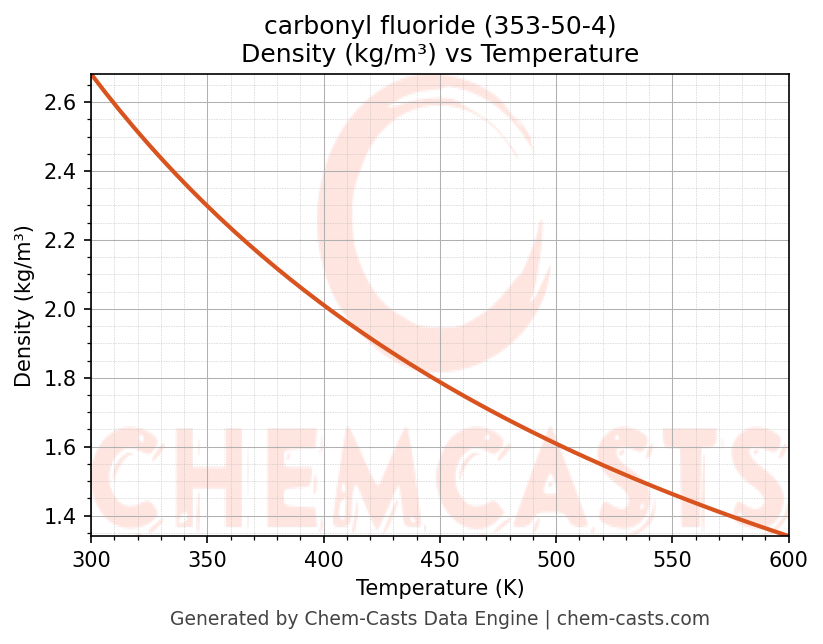

Density vs Temperature

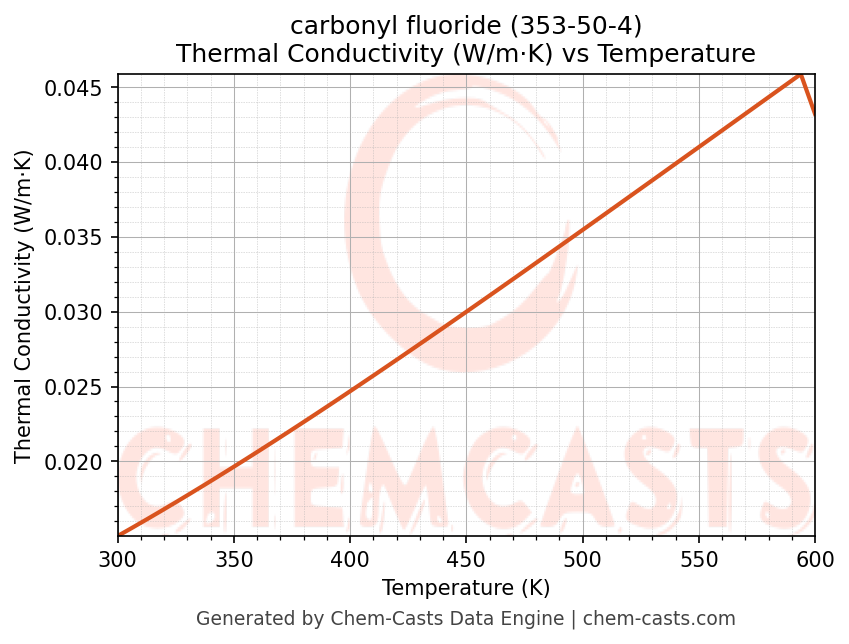

Thermal Conductivity vs Temperature

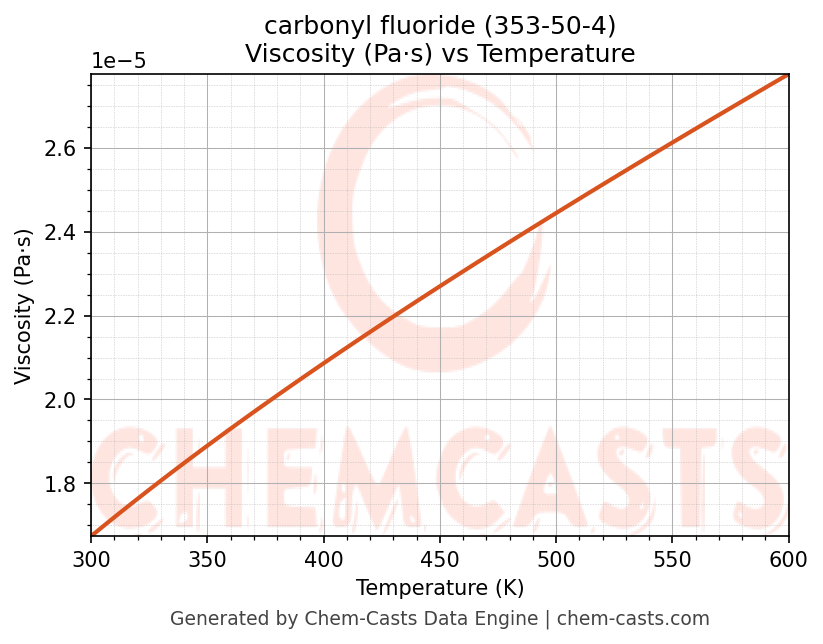

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of carbonyl fluoride (CAS 353-50-4) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of carbonyl fluoride and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of carbonyl fluoride at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
