carbonyl sulfide Thermodynamic Properties vs Temperature (CAS 463-58-1)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for carbonyl sulfide

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for carbonyl sulfide

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of carbonyl sulfide at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.645152	2.92844	0.0102749	0.0100056	0.662518	20.5143	-32.5411	-0.118927	g
-18.048	0.65034	2.86988	0.0104982	0.0102921	0.663359	20.933	-29.1918	-0.105665	g
-12.9459	0.65544	2.8136	0.0107208	0.0105797	0.664179	21.3517	-25.8183	-0.0925717	g
-7.84388	0.660451	2.7595	0.0109426	0.0108683	0.66497	21.7703	-22.4207	-0.0796411	g
-2.74184	0.665371	2.70743	0.0111639	0.0111578	0.665731	22.189	-18.9996	-0.0668687	g
2.3602	0.670202	2.65729	0.0113846	0.0114484	0.66647	22.6076	-15.5552	-0.0542498	g
7.46224	0.674943	2.60898	0.0116051	0.0117399	0.667192	23.0263	-12.088	-0.0417801	g
12.5643	0.679595	2.56239	0.0118254	0.0120324	0.667903	23.445	-8.59815	-0.0294555	g
17.6663	0.684158	2.51743	0.0120456	0.0123259	0.668602	23.8636	-5.08618	-0.0172721	g
22.7684	0.688634	2.47403	0.0122658	0.0126204	0.669287	24.2823	-1.55242	-0.00522642	g
27.8704	0.693023	2.4321	0.0124859	0.0129158	0.669951	24.7009	2.00275	0.00668512	g
32.9724	0.697327	2.39156	0.0127057	0.0132123	0.670586	25.1196	5.57897	0.0184658	g
38.0745	0.701546	2.35236	0.0129251	0.0135098	0.671184	25.5383	9.17586	0.0301187	g
43.1765	0.705684	2.31442	0.0131441	0.0138083	0.671739	25.9569	12.793	0.0416468	g
48.2786	0.709741	2.27768	0.0133626	0.0141079	0.672246	26.3756	16.4302	0.053053	g
53.3806	0.713718	2.24209	0.0135804	0.0144084	0.672705	26.7942	20.0869	0.06434	g
58.4827	0.717618	2.2076	0.0137977	0.01471	0.673114	27.2129	23.7628	0.0755104	g
63.5847	0.721442	2.17415	0.0140144	0.0150125	0.673478	27.6316	27.4576	0.0865668	g
68.6867	0.725193	2.1417	0.0142306	0.0153161	0.673798	28.0502	31.171	0.0975116	g
73.7888	0.728871	2.1102	0.0144463	0.0156206	0.674077	28.4689	34.9025	0.108347	g
78.8908	0.732479	2.07962	0.0146616	0.0159262	0.674317	28.8875	38.652	0.119075	g
83.9929	0.736019	2.04991	0.0148763	0.0162326	0.674521	29.3062	42.4189	0.129699	g
89.0949	0.739492	2.02104	0.0150906	0.0165401	0.674689	29.7249	46.2032	0.14022	g
94.1969	0.7429	1.99297	0.0153044	0.0168484	0.674819	30.1435	50.0043	0.15064	g
99.299	0.746246	1.96567	0.0155175	0.0171576	0.674913	30.5622	53.8221	0.160961	g
104.401	0.74953	1.9391	0.0157301	0.0174677	0.674969	30.9808	57.6562	0.171186	g
109.503	0.752755	1.91325	0.0159419	0.0177787	0.674987	31.3995	61.5064	0.181315	g
114.605	0.755922	1.88808	0.0161531	0.0180904	0.674969	31.8182	65.3724	0.191351	g
119.707	0.759033	1.86356	0.0163635	0.018403	0.674914	32.2368	69.2539	0.201296	g
124.809	0.762089	1.83966	0.0165731	0.0187163	0.674826	32.6555	73.1507	0.211151	g
129.911	0.765093	1.81638	0.0167821	0.0190303	0.674706	33.0741	77.0624	0.220918	g
135.013	0.768046	1.79367	0.0169903	0.019345	0.674559	33.4928	80.9889	0.230599	g
140.115	0.770949	1.77153	0.0171979	0.0196604	0.674386	33.9115	84.9299	0.240195	g
145.217	0.773803	1.74992	0.0174048	0.0199764	0.674189	34.3301	88.8853	0.249707	g
150.319	0.776611	1.72884	0.017611	0.020293	0.673972	34.7488	92.8546	0.259137	g
155.421	0.779373	1.70826	0.0178166	0.0206102	0.673734	35.1674	96.8378	0.268487	g
160.523	0.782091	1.68816	0.0180215	0.0209278	0.673477	35.5861	100.835	0.277758	g
165.626	0.784767	1.66853	0.0182256	0.021246	0.673202	36.0048	104.845	0.286951	g
170.728	0.787401	1.64935	0.018429	0.0215646	0.672909	36.4234	108.868	0.296068	g
175.83	0.789994	1.63061	0.0186316	0.0218837	0.672597	36.8421	112.905	0.305109	g
180.932	0.792549	1.61229	0.0188335	0.0222031	0.67227	37.2607	116.954	0.314077	g
186.034	0.795065	1.59438	0.0190345	0.0225228	0.671926	37.6794	121.016	0.322973	g
191.136	0.797545	1.57685	0.0192348	0.0228429	0.671569	38.0981	125.09	0.331797	g
196.238	0.799988	1.55971	0.0194342	0.0231632	0.6712	38.5167	129.177	0.340551	g
201.34	0.802397	1.54294	0.019633	0.0234838	0.670821	38.9354	133.276	0.349236	g
206.442	0.804772	1.52653	0.019831	0.0238046	0.670434	39.354	137.386	0.357853	g
211.544	0.807114	1.51046	0.0200282	0.0241255	0.67004	39.7727	141.509	0.366403	g
216.646	0.809423	1.49473	0.0202248	0.0244466	0.669641	40.1914	145.643	0.374888	g
221.748	0.811702	1.47932	0.0204207	0.0247678	0.669237	40.61	149.788	0.383308	g
226.85	0.813949	1.46422	0.0206158	0.025089	0.668828	41.0287	153.945	0.391664	g

Property Profiles for carbonyl sulfide

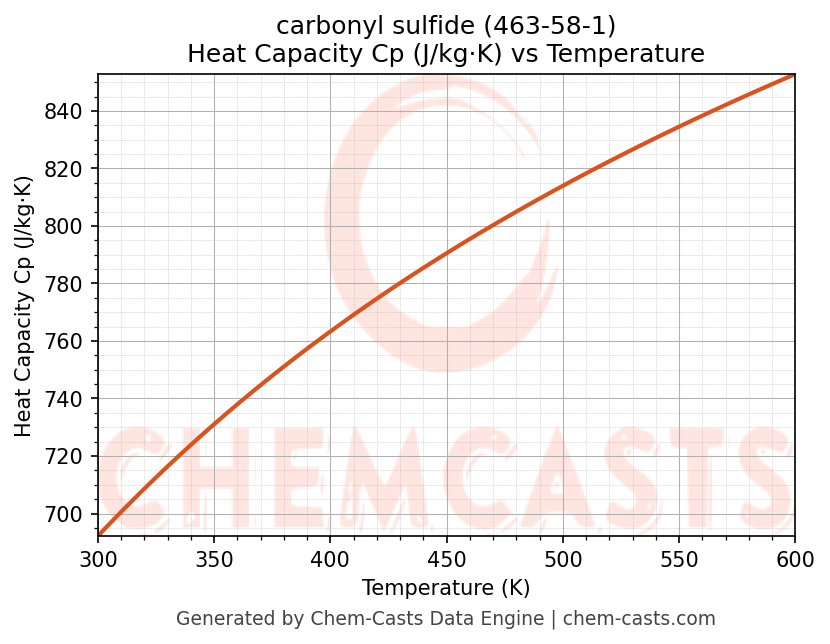

Heat Capacity (Cp) vs Temperature

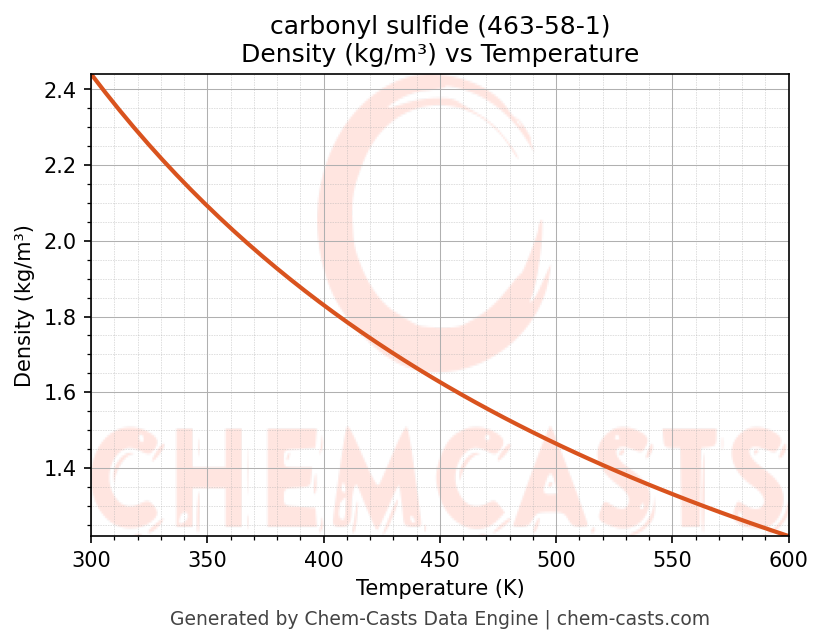

Density vs Temperature

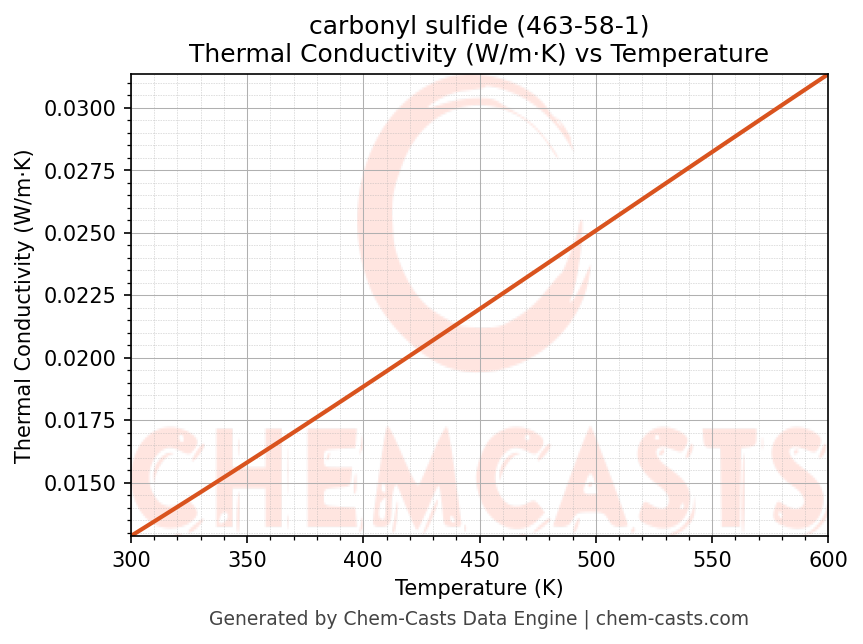

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of carbonyl sulfide (CAS 463-58-1) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of carbonyl sulfide and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of carbonyl sulfide at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
