carbamic chloride Thermodynamic Properties vs Temperature (CAS 463-72-9)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for carbamic chloride

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for carbamic chloride

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of carbamic chloride at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.597639	1328.42	N/A	N/A	N/A	0.0598347	N/A	N/A	s
-18.048	0.610258	1324.73	N/A	N/A	N/A	0.0600016	N/A	N/A	s
-12.9459	0.622934	1321.03	N/A	N/A	N/A	0.0601694	N/A	N/A	s
-7.84388	0.875746	1173.46	0.63641	0.135561	4.1113	0.0677361	-30.4047	-0.107933	l
-2.74184	0.891707	1167.07	0.619042	0.134562	4.10224	0.0681071	-25.8958	-0.0910998	l
2.3602	0.907407	1160.57	0.601915	0.133562	4.08935	0.0684888	-21.3061	-0.0742852	l
7.46224	0.922844	1153.95	0.585029	0.132562	4.07272	0.0688815	-16.6369	-0.0574934	l
12.5643	0.93802	1147.21	0.568383	0.131563	4.05247	0.0692858	-11.8897	-0.0407284	l
17.6663	0.952934	1140.36	0.551976	0.130563	4.02867	0.069702	-7.06576	-0.0239939	l
22.7684	0.967585	1133.39	0.535809	0.129564	4.00144	0.0701308	-2.16636	-0.00729332	l
27.8704	0.981975	1126.3	0.519881	0.128564	3.97086	0.0705725	2.80712	0.00937002	l
32.9724	0.996103	1119.08	0.504191	0.127564	3.93704	0.0710278	7.85334	0.0259929	l
38.0745	1.00997	1111.73	0.488738	0.126565	3.90006	0.0714973	12.971	0.0425725	l
43.1765	1.02357	1104.25	0.473522	0.125565	3.86002	0.0719816	18.1587	0.0591057	l
48.2786	1.03691	1096.64	0.458541	0.124565	3.81702	0.0724813	23.4152	0.07559	l
53.3806	1.04999	1088.88	0.443796	0.123566	3.77113	0.0729974	28.739	0.0920228	l
58.4827	1.06281	1080.99	0.429283	0.122566	3.72246	0.0735304	34.1289	0.108402	l
63.5847	0.774492	2.87663	0.0125482	0.0101283	0.959542	27.6316	466.97	1.40184	g
68.6867	0.782949	2.83369	0.0127737	0.0104545	0.956631	28.0502	470.989	1.41369	g
73.7888	0.791315	2.79202	0.0129959	0.0107846	0.953572	28.4689	475.049	1.42548	g
78.8908	0.799592	2.75156	0.0132151	0.0111184	0.950383	28.8875	479.151	1.43721	g
83.9929	0.807778	2.71225	0.0134314	0.0114559	0.947075	29.3062	483.292	1.4489	g
89.0949	0.815876	2.67405	0.0136449	0.0117972	0.943663	29.7249	487.474	1.46052	g
94.1969	0.823886	2.63691	0.0138557	0.0121422	0.940156	30.1435	491.696	1.4721	g
99.299	0.831808	2.60079	0.0140639	0.0124909	0.936564	30.5622	495.957	1.48361	g
104.401	0.839643	2.56564	0.0142697	0.0128433	0.932896	30.9808	500.258	1.49508	g
109.503	0.847392	2.53143	0.0144731	0.0131994	0.92916	31.3995	504.596	1.5065	g
114.605	0.855056	2.49812	0.0146742	0.0135592	0.925363	31.8182	508.973	1.51786	g
119.707	0.862634	2.46568	0.0148731	0.0139228	0.921512	32.2368	513.388	1.52917	g
124.809	0.870129	2.43407	0.0150698	0.01429	0.917613	32.6555	517.841	1.54043	g
129.911	0.87754	2.40326	0.0152646	0.014661	0.91367	33.0741	522.33	1.55164	g
135.013	0.884868	2.37322	0.0154574	0.0150356	0.90969	33.4928	526.856	1.5628	g
140.115	0.892113	2.34392	0.0156483	0.015414	0.905677	33.9115	531.419	1.57391	g
145.217	0.899277	2.31533	0.0158374	0.015796	0.901635	34.3301	536.017	1.58497	g
150.319	0.90636	2.28744	0.0160248	0.0161817	0.897568	34.7488	540.651	1.59598	g
155.421	0.913363	2.26021	0.0162104	0.0165711	0.893481	35.1674	545.32	1.60694	g
160.523	0.920285	2.23362	0.0163945	0.0169642	0.889376	35.5861	550.024	1.61785	g
165.626	0.927129	2.20764	0.0165769	0.017361	0.885258	36.0048	554.762	1.62871	g
170.728	0.933895	2.18227	0.0167579	0.0177614	0.881128	36.4234	559.534	1.63952	g
175.83	0.940582	2.15747	0.0169373	0.0181655	0.876991	36.8421	564.34	1.65029	g
180.932	0.947193	2.13323	0.0171154	0.0185732	0.872849	37.2607	569.179	1.661	g
186.034	0.953727	2.10953	0.0172921	0.0189845	0.868704	37.6794	574.051	1.67167	g
191.136	0.960185	2.08634	0.0174674	0.0193995	0.864559	38.0981	578.956	1.6823	g
196.238	0.966568	2.06367	0.0176415	0.019818	0.860417	38.5167	583.893	1.69287	g
201.34	0.972877	2.04148	0.0178143	0.0202401	0.85628	38.9354	588.862	1.7034	g
206.442	0.979112	2.01976	0.017986	0.0206657	0.852149	39.354	593.862	1.71388	g
211.544	0.985273	1.9985	0.0181564	0.0210949	0.848028	39.7727	598.893	1.72432	g
216.646	0.991362	1.97768	0.0183258	0.0215276	0.843917	40.1914	603.955	1.73471	g
221.748	0.99738	1.95729	0.018494	0.0219637	0.839819	40.61	609.048	1.74505	g
226.85	1.00333	1.93732	0.0186612	0.0224033	0.835735	41.0287	614.17	1.75535	g

Property Profiles for carbamic chloride

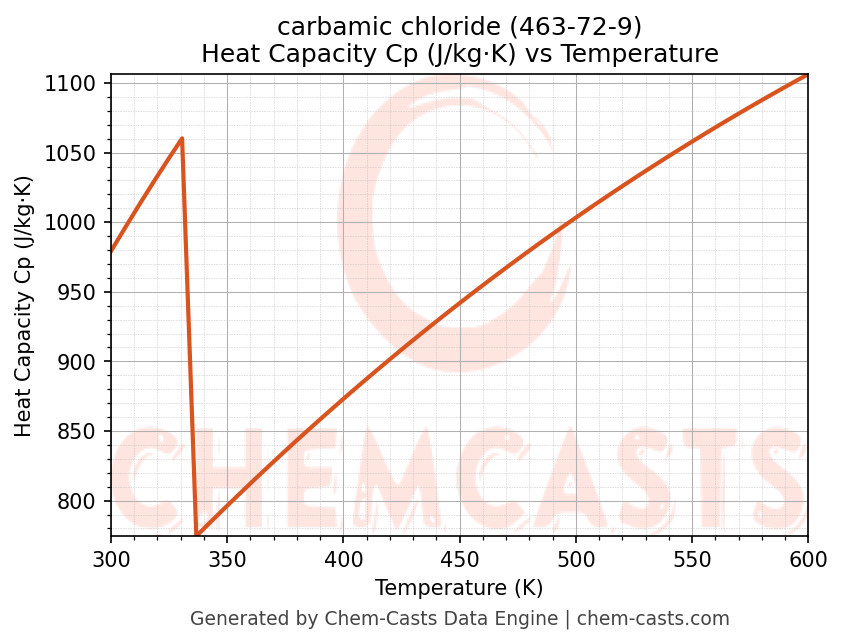

Heat Capacity (Cp) vs Temperature

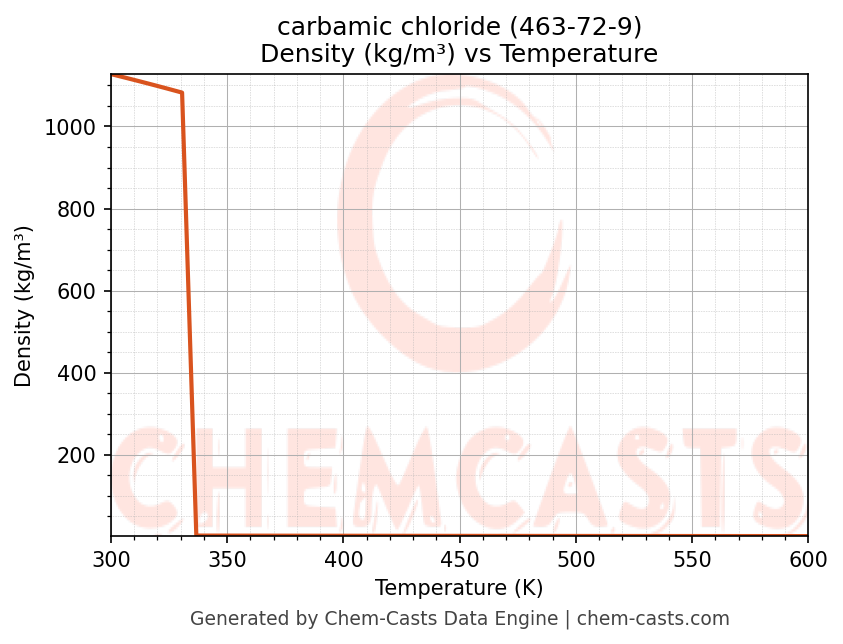

Density vs Temperature

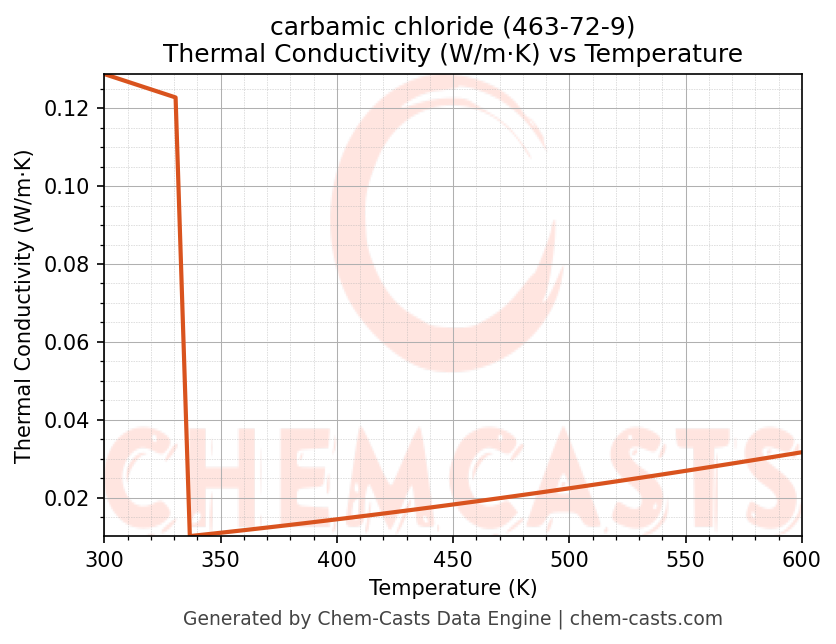

Thermal Conductivity vs Temperature

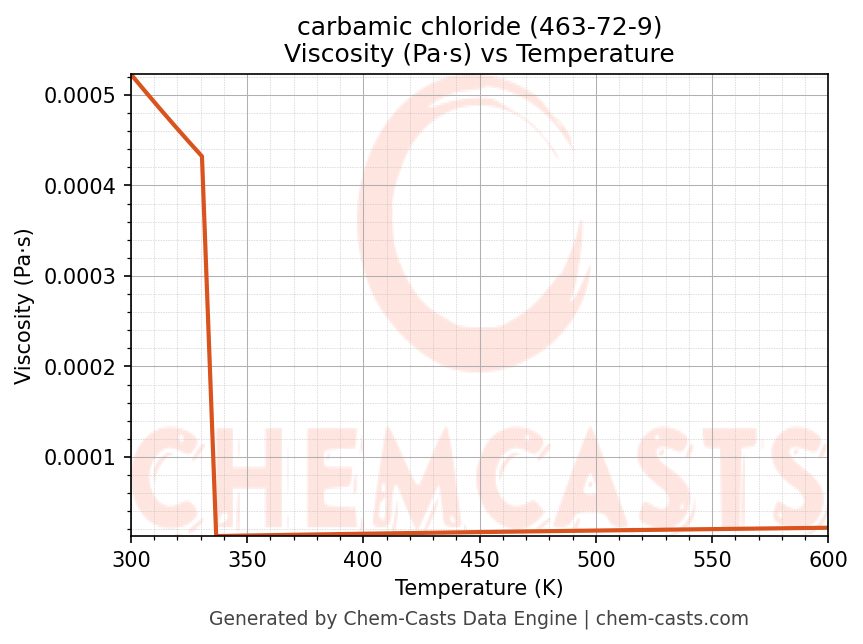

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of carbamic chloride (CAS 463-72-9) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of carbamic chloride and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of carbamic chloride at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
