cyanogen chloride Thermodynamic Properties vs Temperature (CAS 506-77-4)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for cyanogen chloride

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for cyanogen chloride

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of cyanogen chloride at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.39667	1394.77	N/A	N/A	N/A	0.0440719	-528.291	-1.86651	s
-18.048	0.405397	1390.99	N/A	N/A	N/A	0.0441917	-526.245	-1.85841	s
-12.9459	0.414171	1387.22	N/A	N/A	N/A	0.0443121	-524.154	-1.8503	s
-7.84388	0.422991	1383.44	N/A	N/A	N/A	0.0444331	-522.018	-1.84217	s
-2.74184	0.600784	1227.18	0.816572	0.172944	2.83666	0.0500908	-453.329	-1.6323	l
2.3602	0.611992	1217.34	0.759833	0.170372	2.72938	0.0504958	-450.235	-1.60582	l
7.46224	0.623001	1207.33	0.70895	0.167755	2.63286	0.0509142	-447.084	-1.57904	l
12.5643	0.633813	1197.16	0.663157	0.165092	2.54597	0.0513469	-443.878	-1.55195	l
17.6663	0.722451	2.5759	0.008154	0.00921289	0.639415	23.8636	-5.41143	-0.0183767	g
22.7684	0.726313	2.53149	0.00829889	0.00947578	0.636105	24.2823	-1.65043	-0.00555637	g
27.8704	0.730153	2.48859	0.00844341	0.00974072	0.632908	24.7009	2.12765	0.00710201	g
32.9724	0.733875	2.44711	0.00858757	0.0100066	0.629805	25.1196	5.92257	0.0196031	g
38.0745	0.737474	2.40699	0.00873135	0.0102733	0.626786	25.5383	9.73384	0.0319506	g
43.1765	0.740955	2.36817	0.00887476	0.0105408	0.623844	25.9569	13.561	0.0441479	g
48.2786	0.744325	2.33058	0.00901781	0.0108092	0.620971	26.3756	17.4035	0.0561984	g
53.3806	0.747588	2.29416	0.00916048	0.0110785	0.61816	26.7942	21.2611	0.0681052	g
58.4827	0.750749	2.25887	0.00930278	0.0113487	0.615406	27.2129	25.1331	0.0798716	g
63.5847	0.753814	2.22464	0.00944471	0.0116199	0.612704	27.6316	29.0193	0.0915006	g
68.6867	0.756786	2.19144	0.00958628	0.0118921	0.610048	28.0502	32.9192	0.102995	g
73.7888	0.759672	2.15921	0.00972747	0.0121654	0.607434	28.4689	36.8324	0.114358	g
78.8908	0.762474	2.12792	0.0098683	0.0124398	0.604859	28.8875	40.7587	0.125593	g
83.9929	0.765198	2.09752	0.0100087	0.0127153	0.602319	29.3062	44.6976	0.136701	g
89.0949	0.767847	2.06798	0.0101488	0.012992	0.59981	29.7249	48.6489	0.147686	g
94.1969	0.770425	2.03926	0.0102885	0.01327	0.597331	30.1435	52.6121	0.158551	g
99.299	0.772936	2.01132	0.0104279	0.0135491	0.594879	30.5622	56.5872	0.169297	g
104.401	0.775383	1.98414	0.0105669	0.0138296	0.592452	30.9808	60.5737	0.179928	g
109.503	0.77777	1.95769	0.0107055	0.0141114	0.590048	31.3995	64.5713	0.190446	g
114.605	0.780099	1.93193	0.0108437	0.0143945	0.587666	31.8182	68.58	0.200852	g
119.707	0.782375	1.90684	0.0109816	0.014679	0.585304	32.2368	72.5993	0.21115	g
124.809	0.784599	1.88239	0.0111191	0.0149649	0.582963	32.6555	76.6292	0.221342	g
129.911	0.786774	1.85856	0.0112562	0.0152523	0.58064	33.0741	80.6693	0.23143	g
135.013	0.788903	1.83533	0.0113929	0.0155411	0.578335	33.4928	84.7194	0.241415	g
140.115	0.790988	1.81267	0.0115293	0.0158313	0.576047	33.9115	88.7795	0.2513	g
145.217	0.793032	1.79057	0.0116653	0.016123	0.573777	34.3301	92.8492	0.261088	g
150.319	0.795036	1.76899	0.011801	0.0164162	0.571523	34.7488	96.9285	0.270779	g
155.421	0.797003	1.74793	0.0119363	0.0167108	0.569286	35.1674	101.017	0.280377	g
160.523	0.798934	1.72737	0.0120712	0.017007	0.567065	35.5861	105.115	0.289882	g
165.626	0.800832	1.70729	0.0122057	0.0173046	0.564861	36.0048	109.222	0.299296	g
170.728	0.802697	1.68766	0.0123399	0.0176038	0.562673	36.4234	113.338	0.308622	g
175.83	0.804532	1.66848	0.0124737	0.0179045	0.560501	36.8421	117.462	0.317862	g
180.932	0.806337	1.64974	0.0126071	0.0182066	0.558346	37.2607	121.595	0.327015	g
186.034	0.808115	1.63141	0.0127402	0.0185102	0.556207	37.6794	125.737	0.336086	g
191.136	0.809867	1.61348	0.0128728	0.0188153	0.554085	38.0981	129.887	0.345074	g
196.238	0.811593	1.59594	0.0130052	0.0191219	0.551979	38.5167	134.046	0.353982	g
201.34	0.813296	1.57878	0.0131371	0.01943	0.549891	38.9354	138.212	0.362811	g
206.442	0.814975	1.56198	0.0132687	0.0197394	0.54782	39.354	142.387	0.371562	g
211.544	0.816632	1.54554	0.0133999	0.0200503	0.545765	39.7727	146.57	0.380237	g
216.646	0.818268	1.52944	0.0135307	0.0203627	0.543729	40.1914	150.761	0.388838	g
221.748	0.819883	1.51368	0.0136612	0.0206764	0.54171	40.61	154.959	0.397366	g
226.85	0.82148	1.49823	0.0137913	0.0209914	0.539709	41.0287	159.165	0.405821	g

Property Profiles for cyanogen chloride

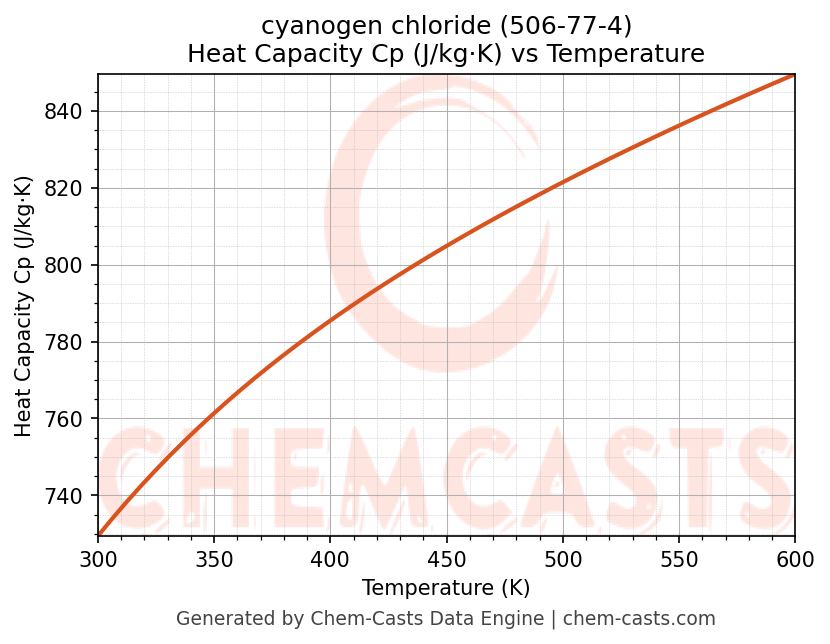

Heat Capacity (Cp) vs Temperature

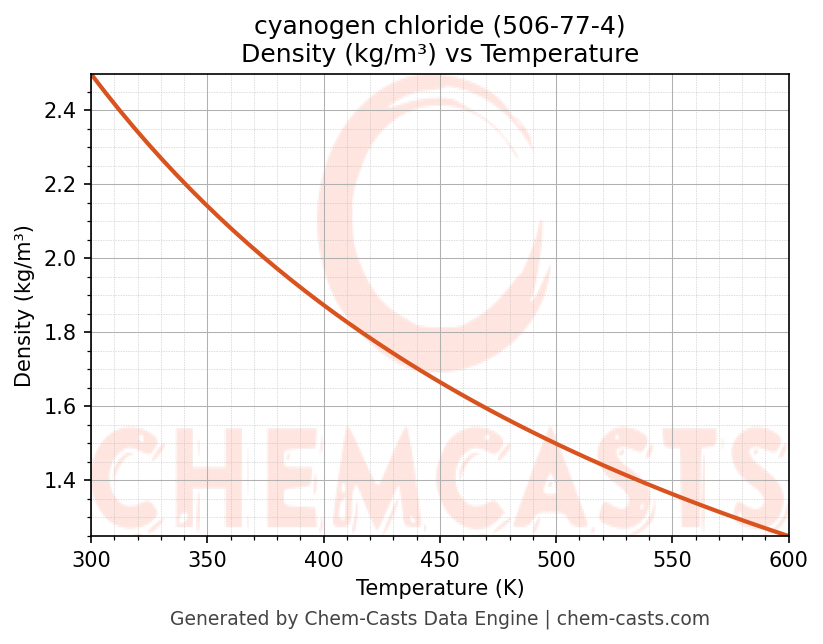

Density vs Temperature

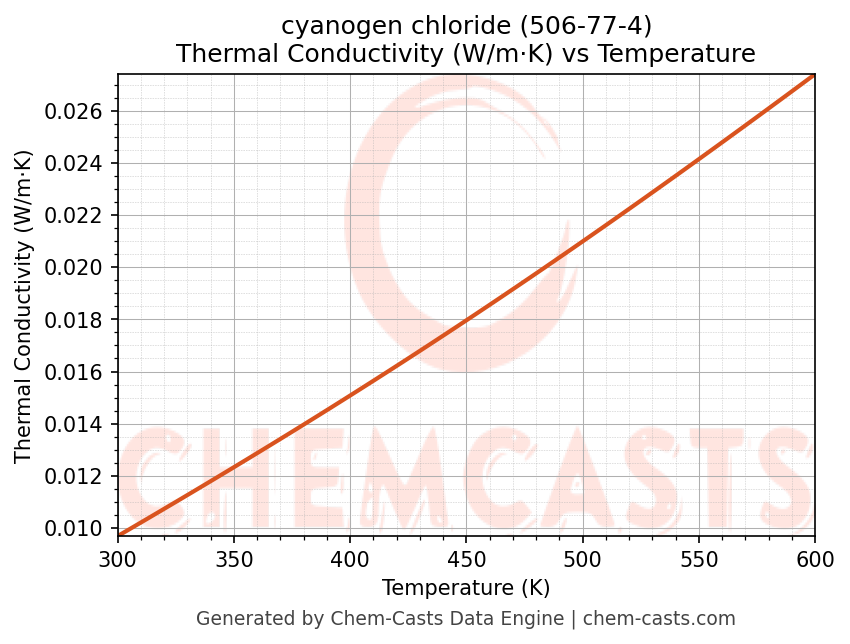

Thermal Conductivity vs Temperature

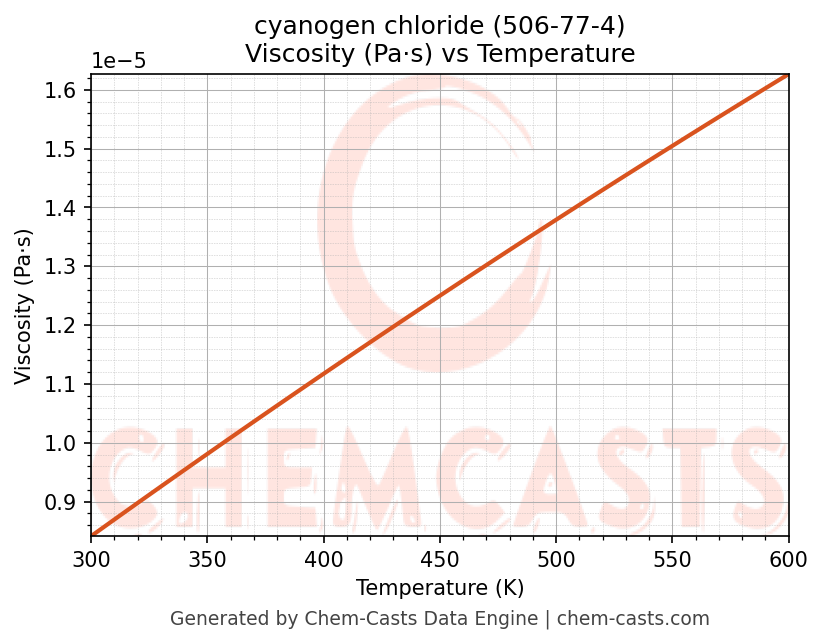

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of cyanogen chloride (CAS 506-77-4) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of cyanogen chloride and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of cyanogen chloride at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
