2-[(4,5-Dihydro-5-thioxo-1,3,4-thiadiazol-2-yl)thio]acetic acid Thermodynamic Properties vs Temperature (CAS 53723-88-9)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2-[(4,5-Dihydro-5-thioxo-1,3,4-thiadiazol-2-yl)thio]acetic acid

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2-[(4,5-Dihydro-5-thioxo-1,3,4-thiadiazol-2-yl)thio]acetic acid

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2-[(4,5-Dihydro-5-thioxo-1,3,4-thiadiazol-2-yl)thio]acetic acid at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.572157	665.8	N/A	N/A	N/A	0.312829	-30.3439	-0.110698	s
-18.048	0.584305	664.765	N/A	N/A	N/A	0.313316	-27.3937	-0.0990164	s
-12.9459	0.59651	663.731	N/A	N/A	N/A	0.313805	-24.3815	-0.0873253	s
-7.84388	0.608772	662.696	N/A	N/A	N/A	0.314295	-21.3068	-0.0756236	s
-2.74184	0.621091	661.661	N/A	N/A	N/A	0.314786	-18.1694	-0.0639108	s
2.3602	0.633468	660.627	N/A	N/A	N/A	0.315279	-14.969	-0.052186	s
7.46224	0.645902	659.592	N/A	N/A	N/A	0.315774	-11.7054	-0.0404488	s
12.5643	0.658395	658.558	N/A	N/A	N/A	0.31627	-8.3781	-0.0286985	s
17.6663	0.670946	657.523	N/A	N/A	N/A	0.316767	-4.98695	-0.0169345	s
22.7684	0.683555	656.488	N/A	N/A	N/A	0.317267	-1.53162	-0.00515636	s
27.8704	0.696222	655.454	N/A	N/A	N/A	0.317767	1.9882	0.0066365	s
32.9724	0.708948	654.419	N/A	N/A	N/A	0.31827	5.57279	0.0184445	s
38.0745	0.721733	653.384	N/A	N/A	N/A	0.318774	9.22246	0.0302682	s
43.1765	0.734576	652.35	N/A	N/A	N/A	0.319279	12.9375	0.0421081	s
48.2786	0.747478	651.315	N/A	N/A	N/A	0.319787	16.7182	0.0539644	s
53.3806	0.76044	650.28	N/A	N/A	N/A	0.320295	20.5649	0.0658377	s
58.4827	0.77346	649.246	N/A	N/A	N/A	0.320806	24.4779	0.0777282	s
63.5847	0.78654	648.211	N/A	N/A	N/A	0.321318	28.4575	0.0896365	s
68.6867	0.799678	647.176	N/A	N/A	N/A	0.321831	32.5039	0.101563	s
73.7888	0.812877	646.142	N/A	N/A	N/A	0.322347	36.6176	0.113508	s
78.8908	0.826134	645.107	N/A	N/A	N/A	0.322864	40.7987	0.125471	s
83.9929	0.839451	644.073	N/A	N/A	N/A	0.323382	45.0476	0.137454	s
89.0949	0.852828	643.038	N/A	N/A	N/A	0.323903	49.3646	0.149456	s
94.1969	0.866264	642.003	N/A	N/A	N/A	0.324425	53.75	0.161477	s
99.299	0.87976	640.969	N/A	N/A	N/A	0.324948	58.2042	0.173519	s
104.401	0.893315	639.934	N/A	N/A	N/A	0.325474	62.7273	0.18558	s
109.503	0.90693	638.899	N/A	N/A	N/A	0.326001	67.3197	0.197662	s
114.605	0.920605	637.865	N/A	N/A	N/A	0.32653	71.9818	0.209765	s
119.707	0.93434	636.83	N/A	N/A	N/A	0.32706	76.7138	0.221889	s
124.809	0.948135	635.795	N/A	N/A	N/A	0.327592	81.516	0.234034	s
129.911	0.961989	634.761	N/A	N/A	N/A	0.328126	86.3887	0.2462	s
135.013	0.975903	633.726	N/A	N/A	N/A	0.328662	91.3323	0.258388	s
140.115	0.989878	632.691	N/A	N/A	N/A	0.3292	96.347	0.270598	s
145.217	1.00391	631.657	N/A	N/A	N/A	0.329739	101.433	0.282829	s
150.319	1.01801	630.622	N/A	N/A	N/A	0.33028	106.591	0.295083	s
155.421	1.03216	629.588	N/A	N/A	N/A	0.330823	111.821	0.30736	s
160.523	1.04637	628.553	N/A	N/A	N/A	0.331367	117.123	0.319659	s
165.626	1.06065	627.518	N/A	N/A	N/A	0.331913	122.498	0.33198	s
170.728	1.22829	563.976	N/A	0.103132	N/A	0.369309	286.222	0.702696	l
175.83	1.23479	573.541	N/A	0.102467	N/A	0.363151	292.505	0.716771	l
180.932	1.24103	582.988	N/A	0.101802	N/A	0.357266	298.821	0.730759	l
186.034	1.24702	592.317	N/A	0.101138	N/A	0.351639	305.169	0.744659	l
191.136	1.25275	601.527	N/A	0.100473	N/A	0.346255	311.546	0.75847	l
196.238	1.25822	610.617	N/A	0.0998083	N/A	0.341101	317.951	0.772192	l
201.34	1.26345	619.585	N/A	0.0991437	N/A	0.336163	324.384	0.785823	l
206.442	1.26841	628.433	N/A	0.098479	N/A	0.331431	330.843	0.799363	l
211.544	1.27312	637.157	N/A	0.0978144	N/A	0.326892	337.327	0.81281	l
216.646	1.27758	645.758	N/A	0.0971497	N/A	0.322539	343.834	0.826165	l
221.748	1.28178	654.234	N/A	0.096485	N/A	0.31836	350.363	0.839426	l
226.85	1.28572	662.585	N/A	0.0958204	N/A	0.314347	356.913	0.852593	l

Property Profiles for 2-[(4,5-Dihydro-5-thioxo-1,3,4-thiadiazol-2-yl)thio]acetic acid

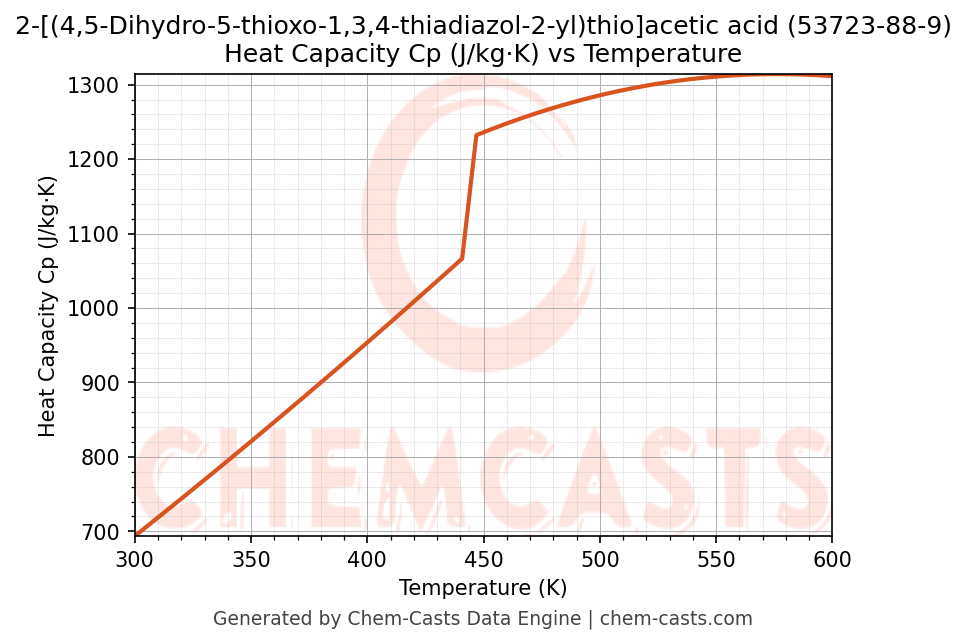

Heat Capacity (Cp) vs Temperature

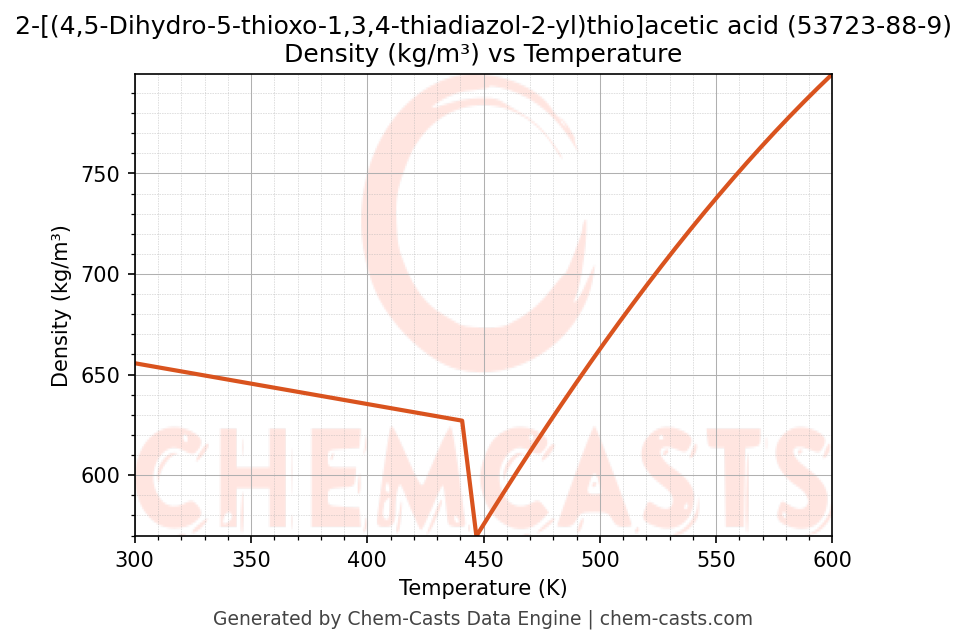

Density vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2-[(4,5-Dihydro-5-thioxo-1,3,4-thiadiazol-2-yl)thio]acetic acid (CAS 53723-88-9) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2-[(4,5-Dihydro-5-thioxo-1,3,4-thiadiazol-2-yl)thio]acetic acid and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2-[(4,5-Dihydro-5-thioxo-1,3,4-thiadiazol-2-yl)thio]acetic acid at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
