2-Methoxy-N-[2-(4-pyridinyl)ethyl]-3-pyridinecarboxamide Thermodynamic Properties vs Temperature (CAS 58804-11-8)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2-Methoxy-N-[2-(4-pyridinyl)ethyl]-3-pyridinecarboxamide

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2-Methoxy-N-[2-(4-pyridinyl)ethyl]-3-pyridinecarboxamide

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2-Methoxy-N-[2-(4-pyridinyl)ethyl]-3-pyridinecarboxamide at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.98717	1310.82	N/A	N/A	N/A	0.19628	-51.8388	-0.189166	s
-18.048	1.00599	1308.27	N/A	N/A	N/A	0.196663	-46.7543	-0.169033	s
-12.9459	1.02486	1305.72	N/A	N/A	N/A	0.197047	-41.5736	-0.148925	s
-7.84388	1.04378	1303.16	N/A	N/A	N/A	0.197433	-36.2964	-0.128842	s
-2.74184	1.06275	1300.61	N/A	N/A	N/A	0.197821	-30.9227	-0.108779	s
2.3602	1.08177	1298.06	N/A	N/A	N/A	0.19821	-25.452	-0.0887373	s
7.46224	1.10085	1295.5	N/A	N/A	N/A	0.198601	-19.8841	-0.0687133	s
12.5643	1.11998	1292.95	N/A	N/A	N/A	0.198993	-14.2187	-0.0487058	s
17.6663	1.13916	1290.4	N/A	N/A	N/A	0.199387	-8.45563	-0.0287135	s
22.7684	1.1584	1287.84	N/A	N/A	N/A	0.199782	-2.59453	-0.00873478	s
27.8704	1.17769	1285.29	N/A	N/A	N/A	0.200179	3.36486	0.0112317	s
32.9724	1.19704	1282.74	N/A	N/A	N/A	0.200577	9.42282	0.0311874	s
38.0745	1.21644	1280.18	N/A	N/A	N/A	0.200978	15.5796	0.0511334	s
43.1765	1.2359	1277.63	N/A	N/A	N/A	0.201379	21.8355	0.071071	s
48.2786	1.25541	1275.07	N/A	N/A	N/A	0.201782	28.1909	0.0910013	s
53.3806	1.27498	1272.52	N/A	N/A	N/A	0.202187	34.6459	0.110926	s
58.4827	1.2946	1269.97	N/A	N/A	N/A	0.202594	41.2009	0.130845	s
63.5847	1.31428	1267.41	N/A	N/A	N/A	0.203002	47.8562	0.15076	s
68.6867	1.33402	1264.86	N/A	N/A	N/A	0.203412	54.6121	0.170672	s
73.7888	1.35382	1262.31	N/A	N/A	N/A	0.203823	61.4688	0.190582	s
78.8908	1.37367	1259.75	N/A	N/A	N/A	0.204236	68.4266	0.21049	s
83.9929	1.39358	1257.2	N/A	N/A	N/A	0.204651	75.4859	0.230398	s
89.0949	1.76162	1120.03	N/A	0.101086	N/A	0.229714	231.096	0.6642	l
94.1969	1.77771	1117.48	N/A	0.100434	N/A	0.230239	240.125	0.688952	l
99.299	1.7935	1114.92	N/A	0.0997818	N/A	0.230768	249.235	0.713581	l
104.401	1.80899	1112.35	N/A	0.0991295	N/A	0.231302	258.426	0.738088	l
109.503	1.82419	1109.77	N/A	0.0984771	N/A	0.231839	267.694	0.762473	l
114.605	1.8391	1107.18	N/A	0.0978248	N/A	0.232382	277.039	0.786733	l
119.707	1.8537	1104.58	N/A	0.0971725	N/A	0.232928	286.46	0.81087	l
124.809	1.86802	1101.97	N/A	0.0965201	N/A	0.233479	295.954	0.834881	l
129.911	1.88203	1099.36	N/A	0.0958677	N/A	0.234035	305.521	0.858767	l
135.013	1.89575	1096.73	N/A	0.0952154	N/A	0.234595	315.158	0.882527	l
140.115	1.90918	1094.09	N/A	0.094563	N/A	0.235161	324.865	0.906161	l
145.217	1.92231	1091.45	N/A	0.0939106	N/A	0.235731	334.639	0.929667	l
150.319	1.93514	1088.79	N/A	0.0932583	N/A	0.236305	344.48	0.953046	l
155.421	1.94768	1086.13	N/A	0.0926059	N/A	0.236885	354.385	0.976297	l
160.523	1.95992	1083.45	N/A	0.0919535	N/A	0.23747	364.353	0.999419	l
165.626	1.97187	1080.77	N/A	0.0913011	N/A	0.23806	374.383	1.02241	l
170.728	1.98352	1078.07	N/A	0.0906487	N/A	0.238656	384.474	1.04528	l
175.83	1.99487	1075.36	N/A	0.0899963	N/A	0.239256	394.623	1.06801	l
180.932	2.00594	1072.65	N/A	0.0893439	N/A	0.239862	404.829	1.09061	l
186.034	2.0167	1069.92	N/A	0.0886915	N/A	0.240474	415.091	1.11309	l
191.136	2.02717	1067.18	N/A	0.088039	N/A	0.241091	425.407	1.13543	l
196.238	2.03734	1064.43	N/A	0.0873866	N/A	0.241714	435.776	1.15764	l
201.34	2.04722	1061.67	N/A	0.0867342	N/A	0.242343	446.196	1.17972	l
206.442	2.0568	1058.9	N/A	0.0860818	N/A	0.242977	456.666	1.20167	l
211.544	2.06609	1056.11	N/A	0.0854293	N/A	0.243618	467.183	1.22348	l
216.646	2.07508	1053.32	N/A	0.0847769	N/A	0.244264	477.748	1.24516	l
221.748	2.08377	1050.51	N/A	0.0841244	N/A	0.244917	488.357	1.26671	l
226.85	2.09217	1047.69	N/A	0.083472	N/A	0.245576	499.01	1.28813	l

Property Profiles for 2-Methoxy-N-[2-(4-pyridinyl)ethyl]-3-pyridinecarboxamide

Heat Capacity (Cp) vs Temperature

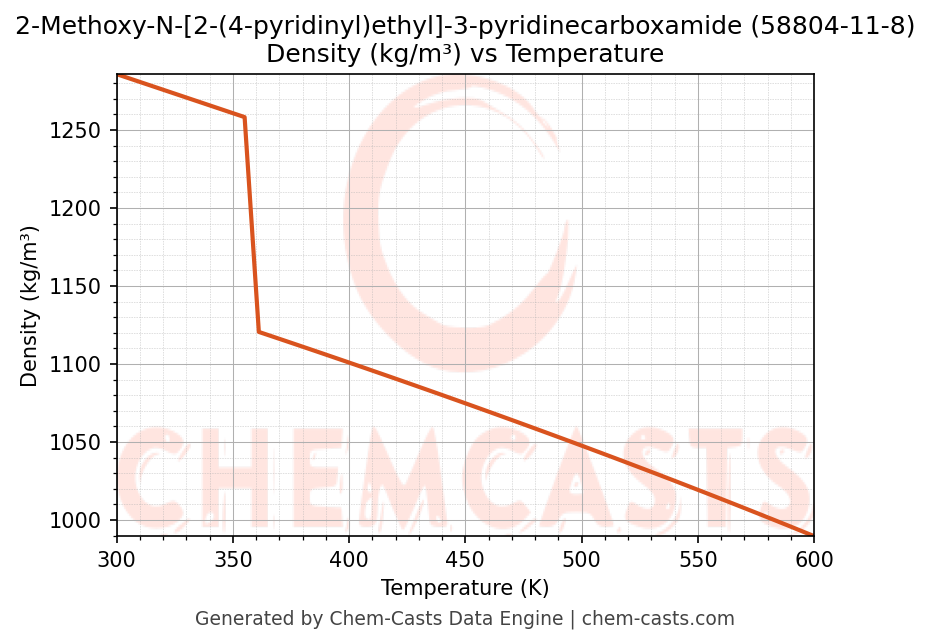

Density vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2-Methoxy-N-[2-(4-pyridinyl)ethyl]-3-pyridinecarboxamide (CAS 58804-11-8) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2-Methoxy-N-[2-(4-pyridinyl)ethyl]-3-pyridinecarboxamide and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2-Methoxy-N-[2-(4-pyridinyl)ethyl]-3-pyridinecarboxamide at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
