3-methylhexane Thermodynamic Properties vs Temperature (CAS 589-34-4)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 3-methylhexane

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 3-methylhexane

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 3-methylhexane at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.97622	723.898	0.414972	0.123065	6.66375	0.13842	-99.4886	-0.363472	l
-18.048	1.99537	719.67	0.401195	0.121505	6.58846	0.139233	-89.357	-0.323354	l
-12.9459	2.01448	715.418	0.388389	0.119948	6.52285	0.140061	-79.1278	-0.283652	l
-7.84388	2.03357	711.141	0.376462	0.118405	6.46565	0.140903	-68.8011	-0.244349	l
-2.74184	2.05264	706.839	0.36533	0.116875	6.41617	0.141761	-58.3771	-0.205432	l
2.3602	2.07167	702.51	0.354922	0.11536	6.37382	0.142634	-47.8559	-0.166887	l
7.46224	2.09068	698.153	0.345172	0.113858	6.33811	0.143524	-37.2376	-0.1287	l
12.5643	2.10967	693.768	0.336023	0.11237	6.30856	0.144432	-26.5224	-0.090858	l
17.6663	2.12862	689.352	0.327423	0.110897	6.28477	0.145357	-15.7104	-0.0533504	l
22.7684	2.14755	684.904	0.319328	0.109437	6.26636	0.146301	-4.80178	-0.0161658	l
27.8704	2.16646	680.424	0.311695	0.107992	6.25302	0.147264	6.20336	0.0207066	l
32.9724	2.18533	675.909	0.304487	0.10656	6.24443	0.148248	17.3049	0.0572767	l
38.0745	2.20418	671.358	0.297671	0.105142	6.24033	0.149253	28.5026	0.0935541	l
43.1765	2.223	666.769	0.291217	0.103738	6.24047	0.15028	39.7965	0.129548	l
48.2786	2.2418	662.141	0.285097	0.102349	6.24464	0.15133	51.1863	0.165267	l
53.3806	2.26057	657.471	0.279285	0.100973	6.25261	0.152405	62.672	0.200719	l
58.4827	2.27931	652.757	0.27376	0.0996112	6.2642	0.153506	74.2533	0.235912	l
63.5847	2.29803	647.996	0.268499	0.0982634	6.27923	0.154634	85.9302	0.270854	l
68.6867	2.31672	643.187	0.263484	0.0969296	6.29753	0.15579	97.7025	0.305552	l
73.7888	2.33538	638.327	0.258696	0.0956079	6.31907	0.156976	109.57	0.340012	l
78.8908	2.35401	633.412	0.254119	0.0942878	6.34441	0.158194	121.533	0.374241	l
83.9929	2.37262	628.439	0.249737	0.0929677	6.37354	0.159446	133.591	0.408246	l
89.0949	2.39121	623.405	0.245535	0.0916475	6.40634	0.160733	145.743	0.442033	l
94.1969	1.96431	3.32416	0.00749387	0.0185506	0.793523	30.1435	458.915	1.302	g
99.299	1.988	3.27863	0.00760918	0.0190715	0.793173	30.5622	469.077	1.32947	g
104.401	2.01155	3.23432	0.00772333	0.0195987	0.792699	30.9808	479.358	1.35688	g
109.503	2.03496	3.1912	0.00783634	0.020132	0.792107	31.3995	489.755	1.38424	g
114.605	2.05824	3.14921	0.00794827	0.0206714	0.791406	31.8182	500.269	1.41153	g
119.707	2.08138	3.10831	0.00805915	0.0212169	0.790603	32.2368	510.899	1.43877	g
124.809	2.10438	3.06846	0.00816902	0.0217686	0.789704	32.6555	521.644	1.46594	g
129.911	2.12723	3.02962	0.00827792	0.0223263	0.788714	33.0741	532.505	1.49306	g
135.013	2.14993	2.99175	0.00838589	0.02289	0.787641	33.4928	543.479	1.52012	g
140.115	2.17249	2.95481	0.00849295	0.0234597	0.786489	33.9115	554.567	1.54711	g
145.217	2.19489	2.91878	0.00859915	0.0240355	0.785263	34.3301	565.768	1.57405	g
150.319	2.21714	2.88361	0.00870451	0.0246172	0.783967	34.7488	577.081	1.60093	g
155.421	2.23923	2.84928	0.00880905	0.0252049	0.782606	35.1674	588.506	1.62775	g
160.523	2.26117	2.81576	0.00891281	0.0257984	0.781185	35.5861	600.041	1.6545	g
165.626	2.28295	2.78302	0.00901582	0.0263979	0.779706	36.0048	611.686	1.6812	g
170.728	2.30457	2.75103	0.00911809	0.0270033	0.778174	36.4234	623.44	1.70783	g
175.83	2.32603	2.71977	0.00921966	0.0276145	0.776591	36.8421	635.303	1.7344	g
180.932	2.34733	2.68921	0.00932054	0.0282315	0.774963	37.2607	647.273	1.76091	g
186.034	2.36847	2.65933	0.00942076	0.0288544	0.77329	37.6794	659.351	1.78736	g
191.136	2.38945	2.63011	0.00952035	0.0294829	0.771578	38.0981	671.535	1.81375	g
196.238	2.41027	2.60152	0.00961931	0.0301172	0.769828	38.5167	683.824	1.84007	g
201.34	2.43092	2.57354	0.00971767	0.0307572	0.768044	38.9354	696.217	1.86634	g
206.442	2.45142	2.54617	0.00981545	0.0314029	0.766227	39.354	708.715	1.89253	g
211.544	2.47175	2.51936	0.00991267	0.0320542	0.764382	39.7727	721.316	1.91867	g
216.646	2.49192	2.49312	0.0100093	0.0327111	0.762509	40.1914	734.019	1.94474	g
221.748	2.51193	2.46742	0.0101055	0.0333735	0.760612	40.61	746.823	1.97075	g
226.85	2.53178	2.44224	0.0102011	0.0340414	0.758692	41.0287	759.728	1.99669	g

Property Profiles for 3-methylhexane

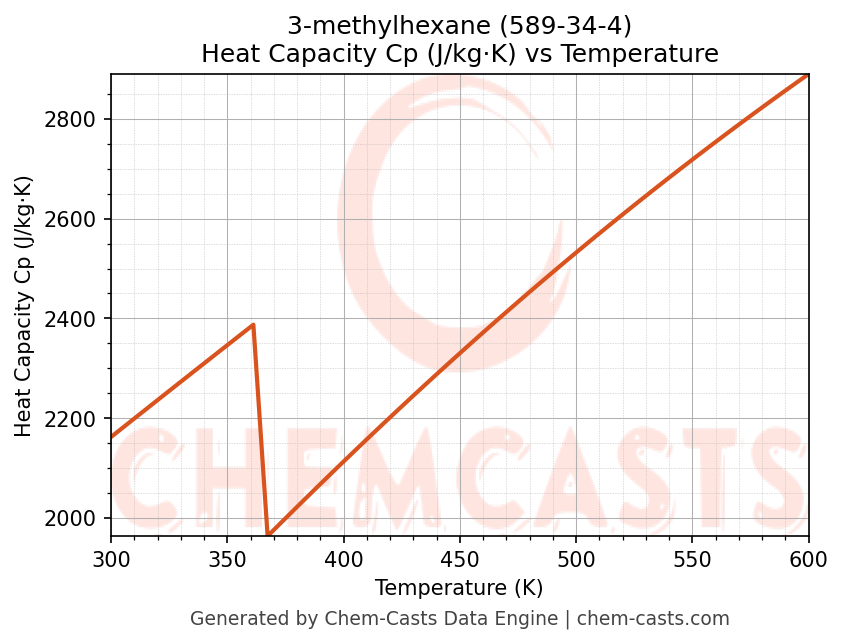

Heat Capacity (Cp) vs Temperature

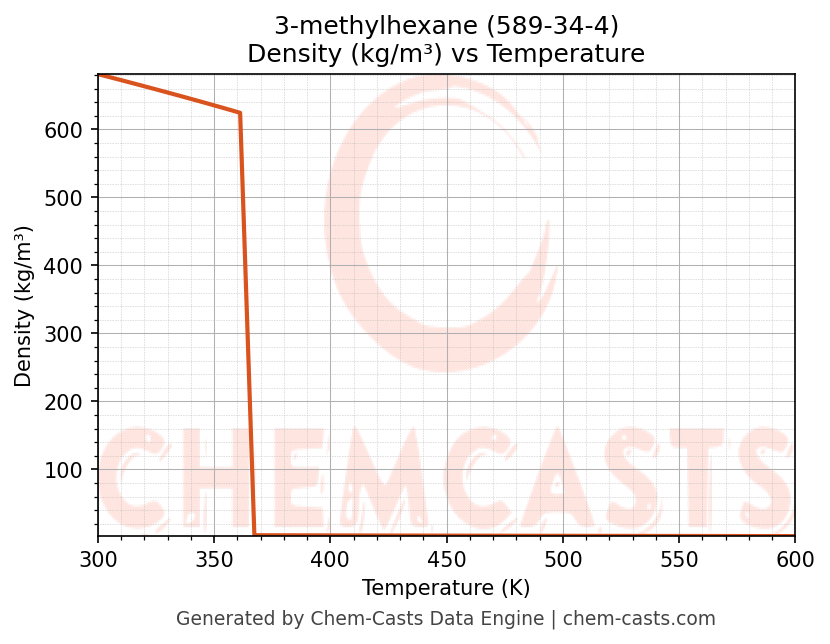

Density vs Temperature

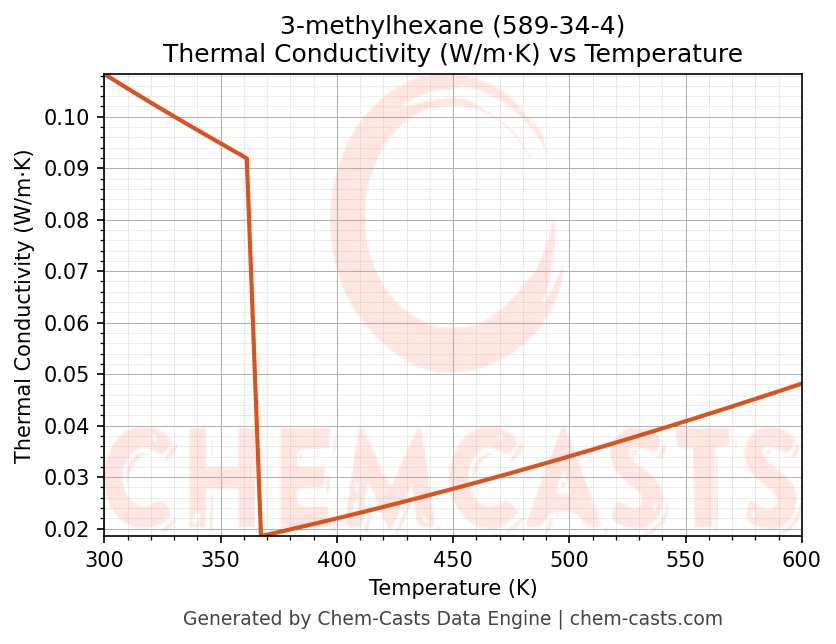

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 3-methylhexane (CAS 589-34-4) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 3-methylhexane and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 3-methylhexane at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
