2-methylhexane Thermodynamic Properties vs Temperature (CAS 591-76-4)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2-methylhexane

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2-methylhexane

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2-methylhexane at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.97622	716.027	0.640503	0.122101	10.3667	0.139942	-99.4886	-0.363472	l
-18.048	1.99537	711.778	0.597232	0.120618	9.87991	0.140777	-89.357	-0.323354	l
-12.9459	2.01448	707.504	0.558414	0.119133	9.44252	0.141627	-79.1278	-0.283652	l
-7.84388	2.03357	703.206	0.523471	0.117641	9.04883	0.142493	-68.8011	-0.244349	l
-2.74184	2.05264	698.881	0.49191	0.116145	8.69355	0.143375	-58.3771	-0.205432	l
2.3602	2.07167	694.529	0.463123	0.114647	8.36868	0.144273	-47.8559	-0.166887	l
7.46224	2.09068	690.148	0.436673	0.113148	8.06862	0.145189	-37.2376	-0.1287	l
12.5643	2.10967	685.737	0.412326	0.111651	7.79101	0.146123	-26.5224	-0.090858	l
17.6663	2.12862	681.295	0.389877	0.110157	7.53378	0.147076	-15.7104	-0.0533504	l
22.7684	2.14755	676.821	0.369142	0.10867	7.29506	0.148048	-4.80178	-0.0161658	l
27.8704	2.16646	672.313	0.349959	0.107189	7.07319	0.149041	6.20336	0.0207066	l
32.9724	2.18533	667.769	0.332184	0.105718	6.86668	0.150055	17.3049	0.0572767	l
38.0745	2.20418	663.188	0.315689	0.104258	6.67418	0.151091	28.5026	0.0935541	l
43.1765	2.223	658.568	0.300358	0.10281	6.49447	0.152151	39.7965	0.129548	l
48.2786	2.2418	653.907	0.286088	0.101376	6.32648	0.153236	51.1863	0.165267	l
53.3806	2.26057	649.203	0.272787	0.0999569	6.1692	0.154346	62.672	0.200719	l
58.4827	2.27931	644.453	0.260372	0.0985547	6.02172	0.155484	74.2533	0.235912	l
63.5847	2.29803	639.655	0.248768	0.0971702	5.88324	0.15665	85.9302	0.270854	l
68.6867	2.31672	634.806	0.237908	0.0958048	5.75299	0.157847	97.7025	0.305552	l
73.7888	2.33538	629.904	0.227729	0.0944596	5.63029	0.159075	109.57	0.340012	l
78.8908	2.35401	624.945	0.218178	0.0931355	5.51449	0.160337	121.533	0.374241	l
83.9929	2.37262	619.926	0.209203	0.0918335	5.405	0.161635	133.591	0.408246	l
89.0949	2.39121	614.842	0.200757	0.0905545	5.30123	0.162972	145.743	0.442033	l
94.1969	1.9682	3.32416	0.00745072	0.0183697	0.798302	30.1435	456.004	1.29627	g
99.299	1.99165	3.27863	0.00756454	0.0188841	0.79781	30.5622	466.186	1.3238	g
104.401	2.01497	3.23432	0.00767721	0.0194047	0.797195	30.9808	476.485	1.35126	g
109.503	2.03817	3.1912	0.00778878	0.0199317	0.796466	31.3995	486.901	1.37866	g
114.605	2.06125	3.14921	0.00789929	0.0204648	0.79563	31.8182	497.431	1.406	g
119.707	2.0842	3.10831	0.00800878	0.0210042	0.794694	32.2368	508.077	1.43328	g
124.809	2.10701	3.06846	0.00811729	0.0215497	0.793665	32.6555	518.837	1.46049	g
129.911	2.12969	3.02962	0.00822485	0.0221013	0.792549	33.0741	529.711	1.48764	g
135.013	2.15223	2.99175	0.00833149	0.0226591	0.79135	33.4928	540.699	1.51473	g
140.115	2.17463	2.95481	0.00843726	0.023223	0.790075	33.9115	551.799	1.54175	g
145.217	2.19688	2.91878	0.00854218	0.023793	0.788728	34.3301	563.011	1.56872	g
150.319	2.21899	2.88361	0.00864627	0.024369	0.787314	34.7488	574.335	1.59562	g
155.421	2.24095	2.84928	0.00874958	0.024951	0.785837	35.1674	585.769	1.62246	g
160.523	2.26276	2.81576	0.00885212	0.025539	0.784301	35.5861	597.313	1.64924	g
165.626	2.28442	2.78302	0.00895393	0.026133	0.78271	36.0048	608.967	1.67595	g
170.728	2.30593	2.75103	0.00905502	0.026733	0.781067	36.4234	620.729	1.7026	g
175.83	2.32728	2.71977	0.00915542	0.0273388	0.779377	36.8421	632.599	1.72919	g
180.932	2.34848	2.68921	0.00925515	0.0279506	0.777642	37.2607	644.576	1.75572	g
186.034	2.36952	2.65933	0.00935424	0.0285682	0.775865	37.6794	656.66	1.78218	g
191.136	2.39041	2.63011	0.0094527	0.0291917	0.774051	38.0981	668.849	1.80858	g
196.238	2.41114	2.60152	0.00955056	0.0298209	0.772201	38.5167	681.143	1.83492	g
201.34	2.43171	2.57354	0.00964783	0.0304559	0.770318	38.9354	693.542	1.86119	g
206.442	2.45213	2.54617	0.00974453	0.0310966	0.768406	39.354	706.044	1.88739	g
211.544	2.47238	2.51936	0.00984069	0.031743	0.766466	39.7727	718.648	1.91354	g
216.646	2.49248	2.49312	0.00993631	0.0323951	0.764501	40.1914	731.355	1.93961	g
221.748	2.51242	2.46742	0.0100314	0.0330527	0.762513	40.61	744.162	1.96563	g
226.85	2.53221	2.44224	0.010126	0.033716	0.760505	41.0287	757.07	1.99158	g

Property Profiles for 2-methylhexane

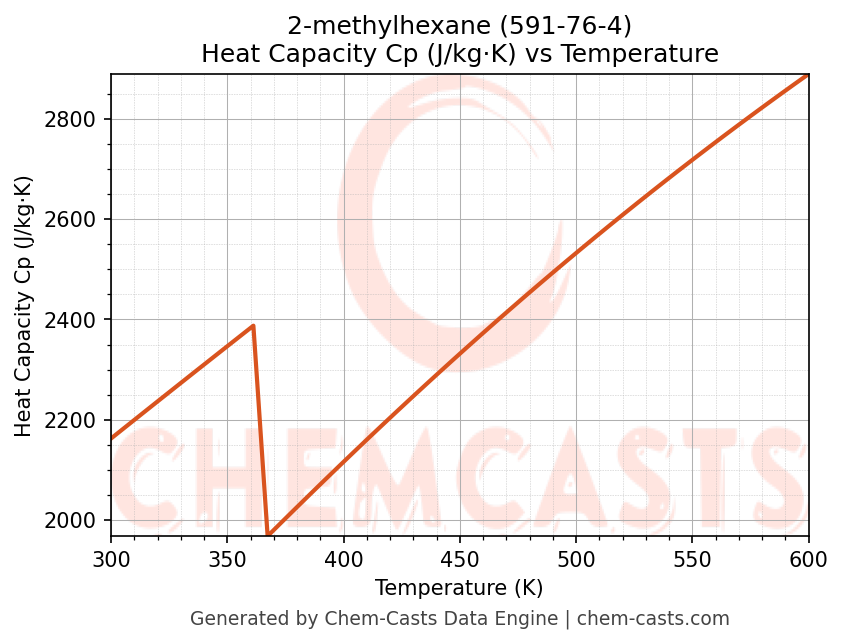

Heat Capacity (Cp) vs Temperature

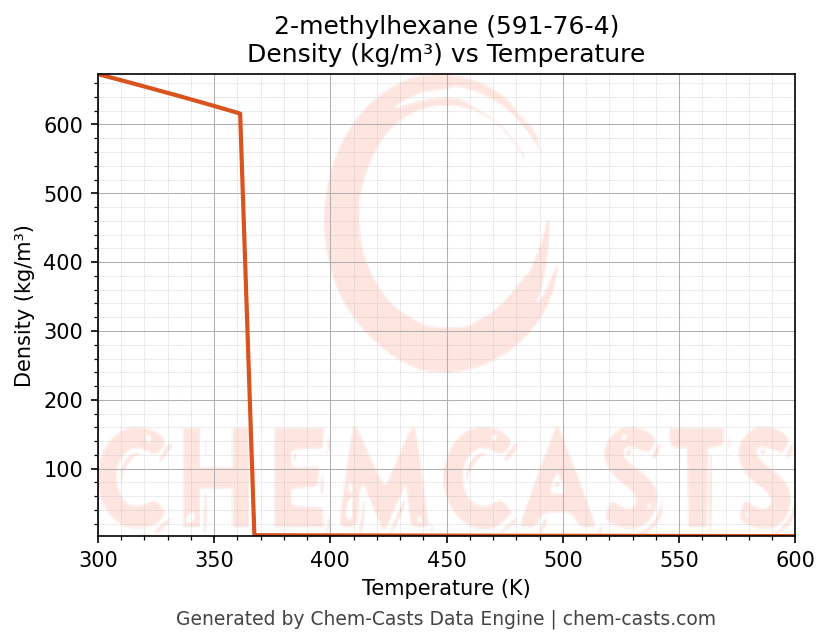

Density vs Temperature

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2-methylhexane (CAS 591-76-4) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2-methylhexane and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2-methylhexane at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
