bis(2-ethylhexyl) terephthalate Thermodynamic Properties vs Temperature (CAS 6422-86-2)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for bis(2-ethylhexyl) terephthalate

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for bis(2-ethylhexyl) terephthalate

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of bis(2-ethylhexyl) terephthalate at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.61014	1005.9	0.984494	0.14746	10.7498	0.388265	-82.6742	-0.301884	l
-18.048	1.63343	1004.92	0.972947	0.146462	10.8509	0.388644	-74.3997	-0.26912	l
-12.9459	1.65648	1003.92	0.961982	0.145463	10.9547	0.389029	-66.007	-0.236546	l
-7.84388	1.67928	1002.92	0.951557	0.144464	11.0611	0.38942	-57.4973	-0.204159	l
-2.74184	1.70185	1001.9	0.941635	0.143466	11.1701	0.389817	-48.8718	-0.171957	l
2.3602	1.72417	1000.86	0.932176	0.142467	11.2814	0.390219	-40.1319	-0.139938	l
7.46224	1.74625	999.817	0.922924	0.141468	11.3923	0.390628	-31.2787	-0.108099	l
12.5643	1.76808	998.757	0.913719	0.140469	11.5009	0.391042	-22.3135	-0.0764374	l
17.6663	1.78967	997.683	0.90456	0.13947	11.6072	0.391463	-13.2374	-0.0449522	l
22.7684	1.81103	996.596	0.895447	0.138472	11.7113	0.39189	-4.05189	-0.0136412	l
27.8704	1.83213	995.496	0.886381	0.137473	11.813	0.392323	5.24199	0.0174975	l
32.9724	1.853	994.381	0.877361	0.136474	11.9125	0.392763	14.6429	0.0484656	l
38.0745	1.87362	993.253	0.868388	0.135475	12.0098	0.393209	24.1497	0.0792647	l
43.1765	1.894	992.111	0.85946	0.134476	12.1049	0.393662	33.7611	0.109896	l
48.2786	1.91414	990.955	0.850578	0.133477	12.1978	0.394121	43.4759	0.140362	l
53.3806	1.93404	989.785	0.841743	0.132478	12.2885	0.394587	53.2928	0.170663	l
58.4827	1.95369	988.6	0.832953	0.131479	12.3771	0.39506	63.2106	0.200801	l
63.5847	1.9731	987.401	0.824209	0.13048	12.4636	0.395539	73.228	0.230777	l
68.6867	1.99227	986.188	0.815511	0.129481	12.5479	0.396026	83.3438	0.260593	l
73.7888	2.0112	984.959	0.806859	0.128482	12.6302	0.39652	93.5569	0.290248	l
78.8908	2.02988	983.716	0.798252	0.127483	12.7104	0.397021	103.866	0.319746	l
83.9929	2.04832	982.459	0.789691	0.126484	12.7885	0.397529	114.27	0.349086	l
89.0949	2.06652	981.186	0.781176	0.125485	12.8646	0.398045	124.767	0.37827	l
94.1969	2.08448	979.898	0.772706	0.124486	12.9387	0.398568	135.356	0.407298	l
99.299	2.10219	978.595	0.764282	0.123487	13.0108	0.399099	146.036	0.436172	l
104.401	2.11966	977.276	0.755904	0.122488	13.081	0.399638	156.807	0.464893	l
109.503	2.13689	975.942	0.747572	0.121488	13.1492	0.400184	167.665	0.49346	l
114.605	2.15388	974.592	0.739285	0.120489	13.2155	0.400738	178.611	0.521877	l
119.707	2.17062	973.226	0.731044	0.11949	13.2799	0.4013	189.643	0.550142	l
124.809	2.18712	971.844	0.722848	0.118491	13.3425	0.401871	200.76	0.578257	l
129.911	2.20338	970.447	0.714698	0.117491	13.4031	0.40245	211.96	0.606222	l
135.013	2.2194	969.033	0.706594	0.116492	13.462	0.403037	223.243	0.634039	l
140.115	2.23517	967.602	0.698536	0.115493	13.519	0.403633	234.607	0.661707	l
145.217	2.2507	966.156	0.690523	0.114494	13.5742	0.404237	246.05	0.689228	l
150.319	2.26599	964.692	0.682557	0.113494	13.6277	0.404851	257.573	0.716602	l
155.421	2.28104	963.212	0.674636	0.112495	13.6795	0.405473	269.172	0.743831	l
160.523	2.29584	961.714	0.66676	0.111495	13.7295	0.406104	280.848	0.770913	l
165.626	2.3104	960.2	0.658931	0.110496	13.7778	0.406745	292.599	0.797851	l
170.728	2.32472	958.668	0.651147	0.109497	13.8245	0.407395	304.423	0.824644	l
175.83	2.3388	957.118	0.643409	0.108497	13.8695	0.408054	316.32	0.851293	l
180.932	2.35263	955.551	0.635717	0.107498	13.913	0.408723	328.288	0.877798	l
186.034	2.36623	953.967	0.628071	0.106498	13.9548	0.409402	340.326	0.904161	l
191.136	2.37958	952.364	0.620471	0.105499	13.995	0.410091	352.433	0.930381	l
196.238	2.39268	950.743	0.612916	0.104499	14.0338	0.41079	364.607	0.95646	l
201.34	2.40555	949.104	0.605408	0.1035	14.071	0.4115	376.848	0.982396	l
206.442	2.41817	947.446	0.597945	0.1025	14.1067	0.41222	389.153	1.00819	l
211.544	2.43055	945.77	0.590529	0.1015	14.1409	0.41295	401.522	1.03385	l
216.646	2.44269	944.075	0.583158	0.100501	14.1738	0.413692	413.954	1.05936	l
221.748	2.45458	942.361	0.575833	0.0995009	14.2052	0.414444	426.447	1.08474	l
226.85	2.46623	940.627	0.568554	0.0985012	14.2352	0.415208	439.001	1.10997	l

Property Profiles for bis(2-ethylhexyl) terephthalate

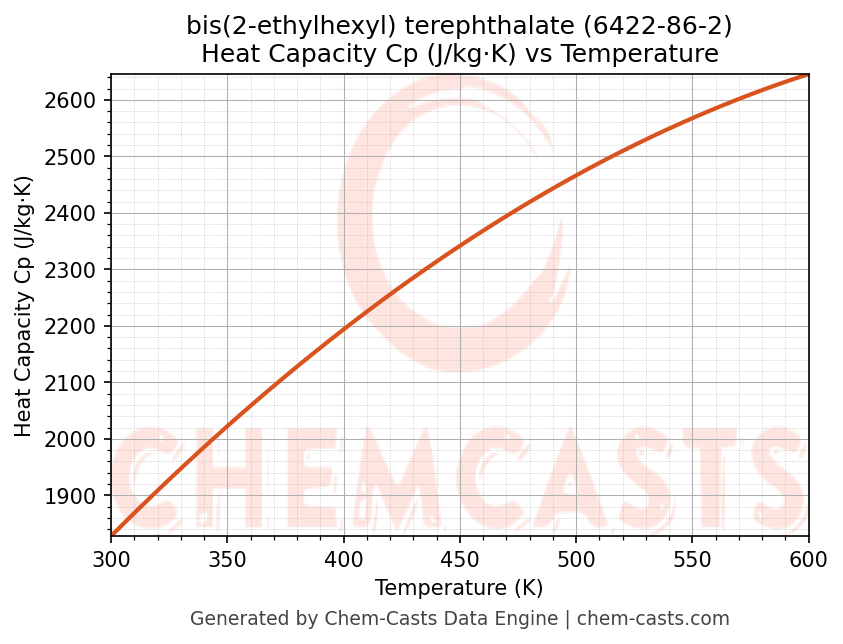

Heat Capacity (Cp) vs Temperature

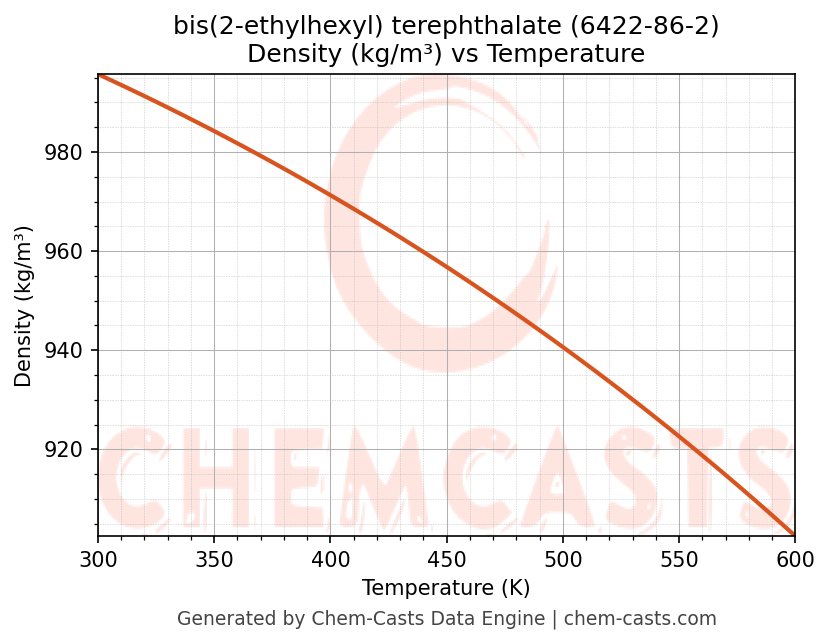

Density vs Temperature

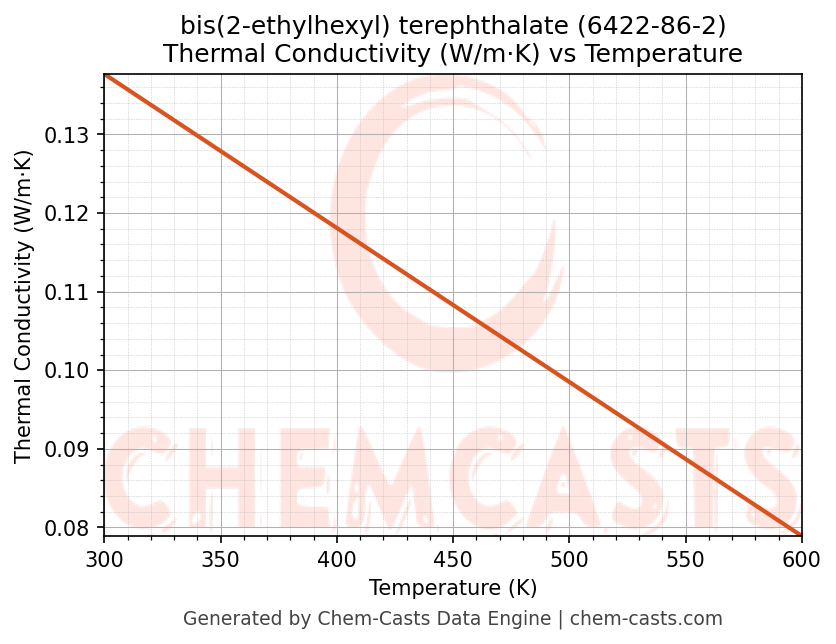

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of bis(2-ethylhexyl) terephthalate (CAS 6422-86-2) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of bis(2-ethylhexyl) terephthalate and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of bis(2-ethylhexyl) terephthalate at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
