3-methyl-1-pentene Thermodynamic Properties vs Temperature (CAS 760-20-3)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 3-methyl-1-pentene

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 3-methyl-1-pentene

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 3-methyl-1-pentene at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.89222	715.431	0.319041	0.123365	4.89359	0.117635	-95.7882	-0.349901	l
-18.048	1.91307	711.174	0.310544	0.122365	4.85505	0.118339	-86.0808	-0.311463	l
-12.9459	1.93382	706.854	0.302161	0.121366	4.81455	0.119062	-76.2673	-0.273374	l
-7.84388	1.95447	702.468	0.293893	0.120367	4.77211	0.119805	-66.3482	-0.235623	l
-2.74184	1.97502	698.016	0.28574	0.119368	4.72776	0.12057	-56.3239	-0.198199	l
2.3602	1.99548	693.495	0.277701	0.118369	4.68152	0.121355	-46.1951	-0.161091	l
7.46224	2.01584	688.906	0.269775	0.117369	4.63343	0.122164	-35.9621	-0.124289	l
12.5643	2.0361	684.246	0.261963	0.11637	4.5835	0.122996	-25.6254	-0.0877846	l
17.6663	2.05626	679.514	0.254264	0.115371	4.53176	0.123852	-15.1857	-0.0515685	l
22.7684	2.07633	674.708	0.246677	0.114372	4.47823	0.124735	-4.64336	-0.0156324	l
27.8704	2.09629	669.826	0.239203	0.113372	4.42294	0.125644	6.00112	0.0200315	l
32.9724	2.11616	664.866	0.23184	0.112373	4.36591	0.126581	16.7472	0.0554308	l
38.0745	2.13593	659.826	0.224588	0.111374	4.30717	0.127548	27.5944	0.0905726	l
43.1765	2.15561	654.702	0.217446	0.110374	4.24672	0.128546	38.5423	0.125464	l
48.2786	2.17518	649.493	0.210414	0.109375	4.18459	0.129577	49.5903	0.16011	l
53.3806	2.19466	644.195	0.203488	0.108375	4.12075	0.130643	60.7379	0.194519	l
58.4827	1.89631	3.09263	0.00751483	0.0182614	0.780361	27.2129	391.116	1.20421	g
63.5847	1.92138	3.04577	0.0076457	0.0188202	0.78056	27.6316	400.934	1.23359	g
68.6867	1.9461	3.00031	0.007775	0.0193839	0.780591	28.0502	410.876	1.26289	g
73.7888	1.9705	2.95619	0.00790281	0.0199528	0.780467	28.4689	420.94	1.29212	g
78.8908	1.99461	2.91335	0.00802918	0.0205269	0.780199	28.8875	431.126	1.32126	g
83.9929	2.01844	2.87173	0.00815418	0.0211064	0.779798	29.3062	441.431	1.35033	g
89.0949	2.04201	2.83128	0.00827785	0.0216914	0.779273	29.7249	451.855	1.37931	g
94.1969	2.06535	2.79196	0.00840027	0.022282	0.778632	30.1435	462.397	1.4082	g
99.299	2.08846	2.75371	0.00852146	0.0228783	0.777884	30.5622	473.054	1.43702	g
104.401	2.11135	2.7165	0.00864149	0.0234805	0.777036	30.9808	483.828	1.46574	g
109.503	2.13405	2.68028	0.0087604	0.0240887	0.776095	31.3995	494.715	1.49439	g
114.605	2.15655	2.64501	0.00887823	0.0247029	0.775066	31.8182	505.716	1.52295	g
119.707	2.17888	2.61066	0.00899502	0.0253232	0.773957	32.2368	516.83	1.55142	g
124.809	2.20103	2.57719	0.00911081	0.0259497	0.772772	32.6555	528.055	1.57981	g
129.911	2.22303	2.54457	0.00922564	0.0265825	0.771517	33.0741	539.392	1.60812	g
135.013	2.24486	2.51276	0.00933955	0.0272217	0.770196	33.4928	550.839	1.63634	g
140.115	2.26655	2.48174	0.00945256	0.0278672	0.768814	33.9115	562.395	1.66448	g
145.217	2.28809	2.45148	0.00956472	0.0285192	0.767375	34.3301	574.06	1.69253	g
150.319	2.30949	2.42194	0.00967604	0.0291777	0.765883	34.7488	585.834	1.7205	g
155.421	2.33075	2.39311	0.00978657	0.0298427	0.764343	35.1674	597.715	1.74839	g
160.523	2.35188	2.36495	0.00989632	0.0305142	0.762758	35.5861	609.703	1.7762	g
165.626	2.37287	2.33745	0.0100053	0.0311922	0.761131	36.0048	621.797	1.80392	g
170.728	2.39373	2.31059	0.0101136	0.0318767	0.759466	36.4234	633.997	1.83156	g
175.83	2.41447	2.28433	0.0102212	0.0325677	0.757766	36.8421	646.302	1.85913	g
180.932	2.43507	2.25866	0.0103281	0.0332653	0.756034	37.2607	658.712	1.88661	g
186.034	2.45555	2.23357	0.0104344	0.0339693	0.754273	37.6794	671.225	1.91401	g
191.136	2.4759	2.20902	0.01054	0.0346798	0.752485	38.0981	683.841	1.94134	g
196.238	2.49613	2.18501	0.010645	0.0353966	0.750674	38.5167	696.56	1.96858	g
201.34	2.51622	2.16152	0.0107495	0.0361199	0.748841	38.9354	709.381	1.99575	g
206.442	2.53619	2.13852	0.0108533	0.0368494	0.74699	39.354	722.304	2.02284	g
211.544	2.55604	2.11601	0.0109566	0.0375852	0.745122	39.7727	735.327	2.04985	g
216.646	2.57575	2.09397	0.0110594	0.0383271	0.74324	40.1914	748.45	2.07678	g
221.748	2.59534	2.07238	0.0111616	0.0390752	0.741346	40.61	761.672	2.10364	g
226.85	2.6148	2.05124	0.0112634	0.0398293	0.739441	41.0287	774.994	2.13042	g

Property Profiles for 3-methyl-1-pentene

Heat Capacity (Cp) vs Temperature

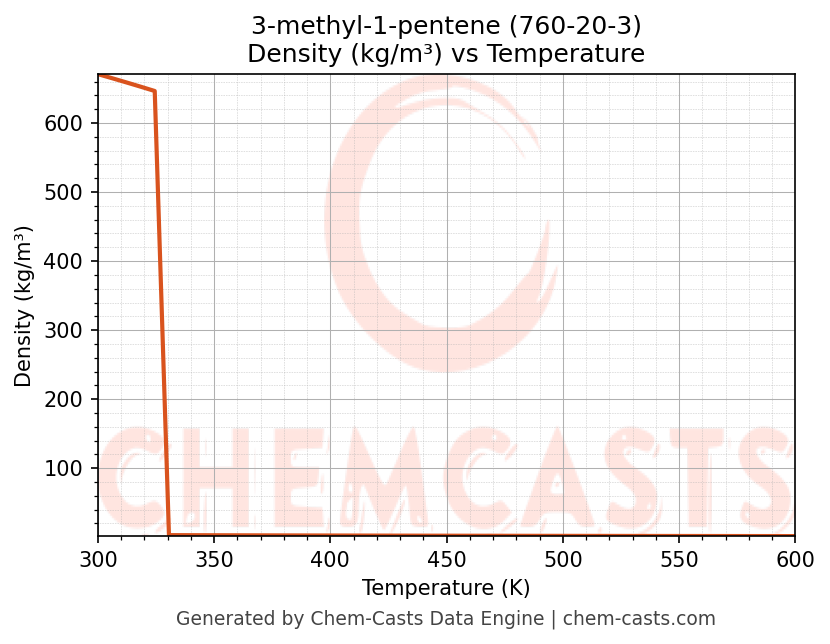

Density vs Temperature

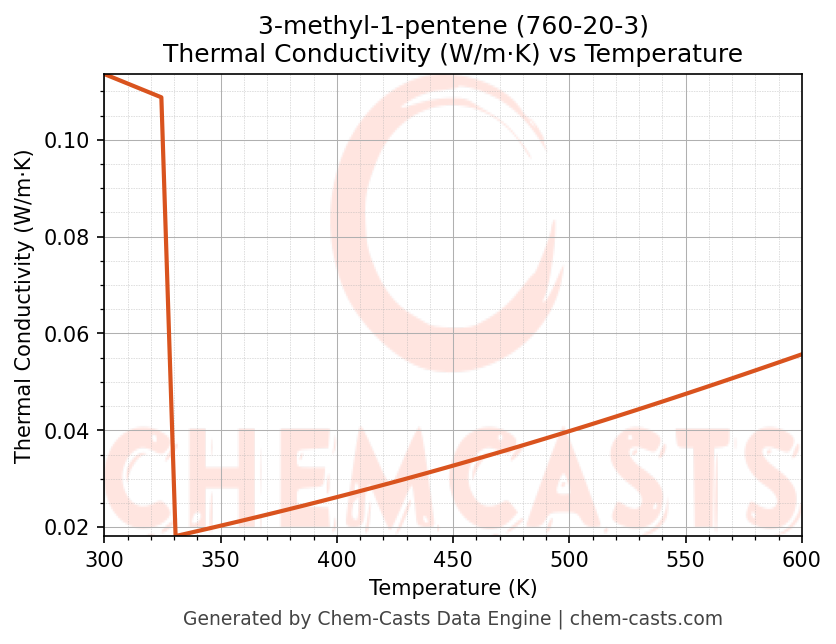

Thermal Conductivity vs Temperature

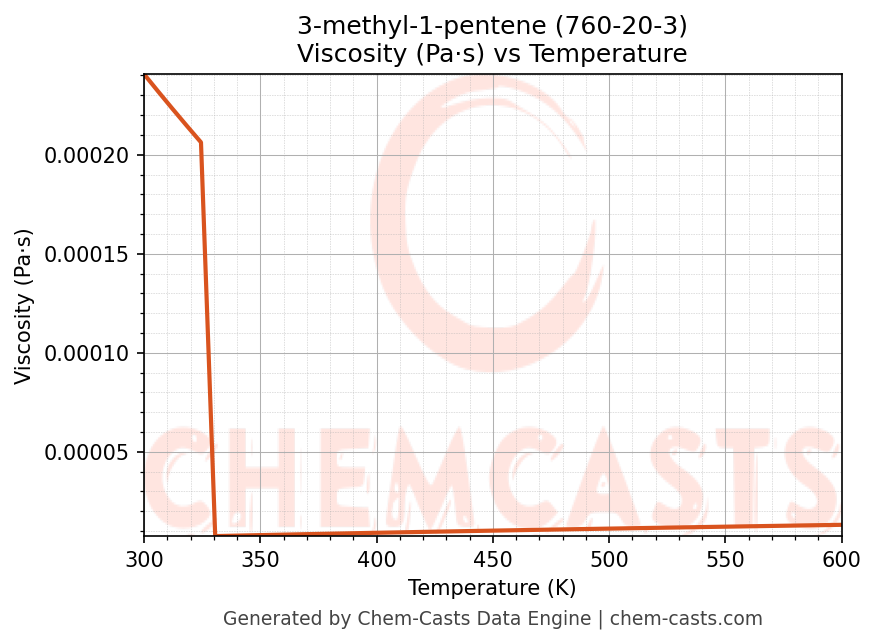

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 3-methyl-1-pentene (CAS 760-20-3) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 3-methyl-1-pentene and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 3-methyl-1-pentene at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
