chlorine Thermodynamic Properties vs Temperature (CAS 7782-50-5)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for chlorine

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for chlorine

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of chlorine at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.464973	3.45641	0.0112708	0.00816348	0.641961	20.5143	-23.0247	-0.0841967	g
-18.048	0.466592	3.38728	0.0115169	0.00836176	0.642651	20.933	-20.6112	-0.0746402	g
-12.9459	0.468169	3.32087	0.0117614	0.00855968	0.643284	21.3517	-18.1913	-0.0652476	g
-7.84388	0.469704	3.257	0.0120031	0.00875721	0.643803	21.7703	-15.7649	-0.0560129	g
-2.74184	0.471198	3.19555	0.0122427	0.00895429	0.644242	22.189	-13.3322	-0.0469307	g
2.3602	0.47265	3.13637	0.0124812	0.00915093	0.644659	22.6076	-10.8934	-0.0379956	g
7.46224	0.474063	3.07935	0.0127193	0.00934713	0.645088	23.0263	-8.44845	-0.0292027	g
12.5643	0.475435	3.02436	0.0129568	0.0095429	0.64552	23.445	-5.99763	-0.0205473	g
17.6663	0.476769	2.9713	0.0131933	0.00973827	0.64592	23.8636	-3.54101	-0.012025	g
22.7684	0.478065	2.92007	0.013428	0.00993327	0.64626	24.2823	-1.07874	-0.00363172	g
27.8704	0.479324	2.87058	0.0136611	0.0101279	0.646535	24.7009	1.38905	0.00463662	g
32.9724	0.480546	2.82274	0.0138927	0.0103223	0.646764	25.1196	3.86224	0.0127837	g
38.0745	0.481734	2.77646	0.0141235	0.0105164	0.646966	25.5383	6.34068	0.0208132	g
43.1765	0.482887	2.73168	0.0143536	0.0107103	0.647147	25.9569	8.82425	0.0287285	g
48.2786	0.484007	2.68832	0.0145828	0.0109041	0.647296	26.3756	11.3128	0.0365328	g
53.3806	0.485095	2.64631	0.0148106	0.0110976	0.647393	26.7942	13.8063	0.0442292	g
58.4827	0.486151	2.6056	0.0150368	0.0112911	0.647427	27.2129	16.3045	0.0518208	g
63.5847	0.487177	2.56612	0.0152615	0.0114845	0.647402	27.6316	18.8073	0.0593103	g
68.6867	0.488174	2.52782	0.0154851	0.0116778	0.647334	28.0502	21.3146	0.0667004	g
73.7888	0.489142	2.49065	0.0157079	0.0118711	0.647236	28.4689	23.8263	0.0739938	g
78.8908	0.490083	2.45455	0.0159299	0.0120644	0.647108	28.8875	26.3423	0.081193	g
83.9929	0.490996	2.41949	0.0161507	0.0122577	0.646935	29.3062	28.8625	0.0883003	g
89.0949	0.491885	2.38541	0.01637	0.012451	0.646705	29.7249	31.3867	0.0953181	g
94.1969	0.492748	2.35228	0.0165878	0.0126444	0.646419	30.1435	33.9149	0.102249	g
99.299	0.493587	2.32006	0.0168044	0.0128378	0.646091	30.5622	36.4469	0.109094	g
104.401	0.494403	2.2887	0.0170202	0.0130313	0.645738	30.9808	38.9827	0.115856	g
109.503	0.495196	2.25819	0.0172353	0.0132249	0.645361	31.3995	41.5221	0.122537	g
114.605	0.495968	2.22848	0.0174491	0.0134186	0.644943	31.8182	44.0651	0.129139	g
119.707	0.496719	2.19953	0.0176614	0.0136123	0.644472	32.2368	46.6115	0.135663	g
124.809	0.497449	2.17134	0.0178722	0.0138061	0.643957	32.6555	49.1614	0.142112	g
129.911	0.49816	2.14385	0.0180824	0.014	0.643424	33.0741	51.7145	0.148487	g
135.013	0.498852	2.11705	0.018292	0.0141939	0.64288	33.4928	54.2709	0.154789	g
140.115	0.499526	2.09092	0.0185003	0.014388	0.642298	33.9115	56.8303	0.161021	g
145.217	0.500182	2.06542	0.0187067	0.014582	0.641662	34.3301	59.3929	0.167184	g
150.319	0.500821	2.04053	0.0189124	0.0147762	0.641016	34.7488	61.9584	0.173279	g
155.421	0.501443	2.01624	0.0191181	0.0149703	0.640377	35.1674	64.5268	0.179308	g
160.523	0.50205	1.99252	0.0193209	0.0151645	0.639657	35.5861	67.0981	0.185272	g
165.626	0.502641	1.96935	0.0195255	0.0153587	0.639008	36.0048	69.6721	0.191173	g
170.728	0.503222	1.94671	N/A	0.015553	N/A	36.4234	72.2488	0.197011	g
175.83	0.503802	1.92459	N/A	0.0157477	N/A	36.8421	74.8282	0.202789	g
180.932	0.504382	1.90297	N/A	0.0159428	N/A	37.2607	77.4103	0.208508	g
186.034	0.504962	1.88182	N/A	0.0161382	N/A	37.6794	79.9952	0.214169	g
191.136	0.505543	1.86114	N/A	0.0163339	N/A	38.0981	82.5827	0.219773	g
196.238	0.506123	1.84091	N/A	0.01653	N/A	38.5167	85.173	0.225321	g
201.34	0.506703	1.82112	N/A	0.0167264	N/A	38.9354	87.766	0.230816	g
206.442	0.507283	1.80175	N/A	0.016923	N/A	39.354	90.3618	0.236257	g
211.544	0.507863	1.78278	N/A	0.0171199	N/A	39.7727	92.9603	0.241647	g
216.646	0.508444	1.76421	N/A	0.0173171	N/A	40.1914	95.5615	0.246985	g
221.748	0.509024	1.74602	N/A	0.0175145	N/A	40.61	98.1656	0.252274	g
226.85	0.509604	1.72821	N/A	0.0177121	N/A	41.0287	100.772	0.257515	g

Property Profiles for chlorine

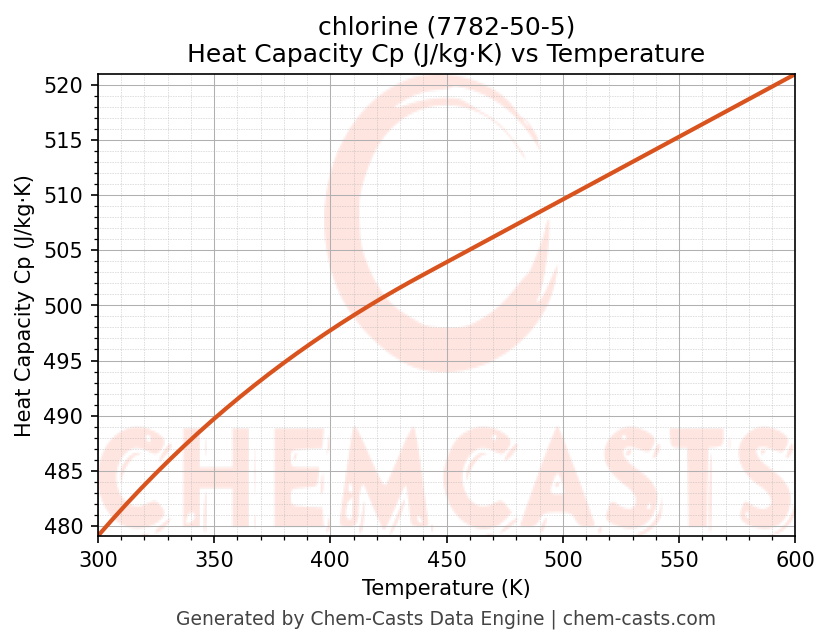

Heat Capacity (Cp) vs Temperature

Density vs Temperature

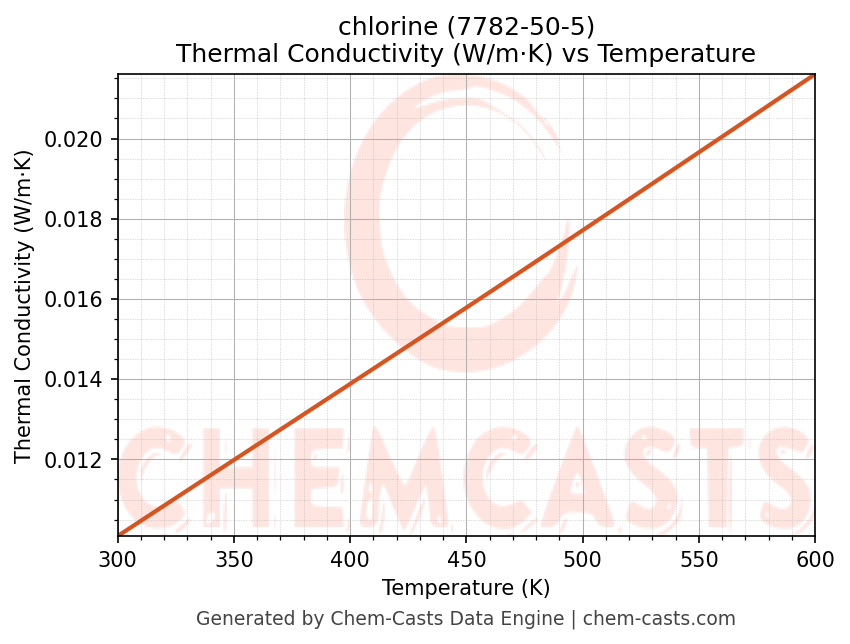

Thermal Conductivity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of chlorine (CAS 7782-50-5) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of chlorine and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of chlorine at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
