phosphorus trifluoride Thermodynamic Properties vs Temperature (CAS 7783-55-3)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for phosphorus trifluoride

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for phosphorus trifluoride

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of phosphorus trifluoride at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.616318	4.28817	0.0146509	0.012316	0.733161	20.5143	-31.0875	-0.113593	g
-18.048	0.621688	4.20241	0.0149087	0.0127031	0.729629	20.933	-27.9051	-0.100992	g
-12.9459	0.627059	4.12001	0.0151614	0.0130958	0.725963	21.3517	-24.6963	-0.0885379	g
-7.84388	0.632429	4.04077	0.0154092	0.0134941	0.722186	21.7703	-21.4612	-0.0762253	g
-2.74184	0.637799	3.96453	0.0156525	0.0138979	0.718318	22.189	-18.1996	-0.0640486	g
2.3602	0.64317	3.89112	0.0158914	0.0143073	0.714378	22.6076	-14.9115	-0.0520024	g
7.46224	0.64854	3.82037	0.0161262	0.0147222	0.710385	23.0263	-11.5969	-0.0400816	g
12.5643	0.65391	3.75215	0.0163571	0.0151426	0.706353	23.445	-8.25567	-0.0282818	g
17.6663	0.659281	3.68632	0.0165842	0.0155685	0.702295	23.8636	-4.88778	-0.0165983	g
22.7684	0.664651	3.62276	0.0168079	0.0159997	0.698226	24.2823	-1.49319	-0.00502702	g
27.8704	0.669995	3.56136	0.0170283	0.0164357	0.694152	24.7009	1.9281	0.00643593	g
32.9724	0.675204	3.502	0.0172455	0.0168738	0.690075	25.1196	5.37571	0.0177929	g
38.0745	0.680272	3.4446	0.0174596	0.0173138	0.686003	25.5383	8.84893	0.0290451	g
43.1765	0.685206	3.38904	0.0176709	0.0177554	0.681945	25.9569	12.3471	0.0401939	g
48.2786	0.690012	3.33524	0.0178795	0.0181987	0.677908	26.3756	15.8696	0.0512406	g
53.3806	0.694695	3.28313	0.0180854	0.0186435	0.6739	26.7942	19.4158	0.0621864	g
58.4827	0.699261	3.23262	0.0182889	0.0190897	0.669927	27.2129	22.9851	0.0730327	g
63.5847	0.703715	3.18364	0.01849	0.0195372	0.665993	27.6316	26.5769	0.083781	g
68.6867	0.708061	3.13612	0.0186888	0.019986	0.662104	28.0502	30.1908	0.0944325	g
73.7888	0.712304	3.09	0.0188854	0.0204358	0.658263	28.4689	33.8261	0.104989	g
78.8908	0.716447	3.04522	0.0190799	0.0208866	0.654473	28.8875	37.4824	0.115451	g
83.9929	0.720493	3.00172	0.0192725	0.0213384	0.650739	29.3062	41.1593	0.12582	g
89.0949	0.724447	2.95944	0.0194631	0.0217909	0.647061	29.7249	44.8562	0.136098	g
94.1969	0.728312	2.91834	0.0196519	0.0222441	0.643441	30.1435	48.5727	0.146286	g
99.299	0.732091	2.87836	0.019839	0.0226978	0.639883	30.5622	52.3084	0.156385	g
104.401	0.735786	2.83946	0.0200244	0.0231521	0.636386	30.9808	56.0628	0.166397	g
109.503	0.7394	2.8016	0.0202081	0.0236067	0.632952	31.3995	59.8356	0.176323	g
114.605	0.742936	2.76474	0.0203903	0.0240616	0.629581	31.8182	63.6263	0.186164	g
119.707	0.746396	2.72884	0.020571	0.0245167	0.626273	32.2368	67.4346	0.195921	g
124.809	0.749783	2.69385	0.0207503	0.0249719	0.62303	32.6555	71.2601	0.205596	g
129.911	0.753098	2.65975	0.0209282	0.0254271	0.619851	33.0741	75.1024	0.21519	g
135.013	0.756344	2.6265	0.0211048	0.0258822	0.616735	33.4928	78.9612	0.224703	g
140.115	0.759523	2.59408	0.0212801	0.0263372	0.613683	33.9115	82.8362	0.234138	g
145.217	0.762636	2.56244	0.0214541	0.0267919	0.610694	34.3301	86.727	0.243495	g
150.319	0.765685	2.53157	0.021627	0.0272463	0.607768	34.7488	90.6333	0.252776	g
155.421	0.768672	2.50143	0.0217987	0.0277003	0.604903	35.1674	94.5548	0.261981	g
160.523	0.771598	2.472	0.0219693	0.0281539	0.602099	35.5861	98.4912	0.271111	g
165.626	0.774465	2.44326	0.0221388	0.0286069	0.599356	36.0048	102.442	0.280169	g
170.728	0.777275	2.41518	0.0223073	0.0290594	0.596672	36.4234	106.407	0.289154	g
175.83	0.780028	2.38773	0.0224748	0.0295112	0.594046	36.8421	110.387	0.298067	g
180.932	0.782726	2.3609	0.0226414	0.0299623	0.591477	37.2607	114.38	0.306911	g
186.034	0.78537	2.33467	0.022807	0.0304126	0.588965	37.6794	118.386	0.315685	g
191.136	0.787962	2.30901	0.0229717	0.0308621	0.586508	38.0981	122.406	0.32439	g
196.238	0.790503	2.28392	0.0231356	0.0313107	0.584105	38.5167	126.439	0.333029	g
201.34	0.792994	2.25936	0.0232986	0.0317585	0.581754	38.9354	130.484	0.3416	g
206.442	0.795435	2.23532	0.0234608	0.0322053	0.579456	39.354	134.542	0.350106	g
211.544	0.797829	2.21179	0.0236222	0.0326511	0.577208	39.7727	138.611	0.358548	g
216.646	0.800175	2.18875	0.0237828	0.0330958	0.57501	40.1914	142.693	0.366925	g
221.748	0.802476	2.16619	0.0239427	0.0335395	0.57286	40.61	146.787	0.37524	g
226.85	0.804731	2.14408	0.0241019	0.0339822	0.570756	41.0287	150.892	0.383492	g

Property Profiles for phosphorus trifluoride

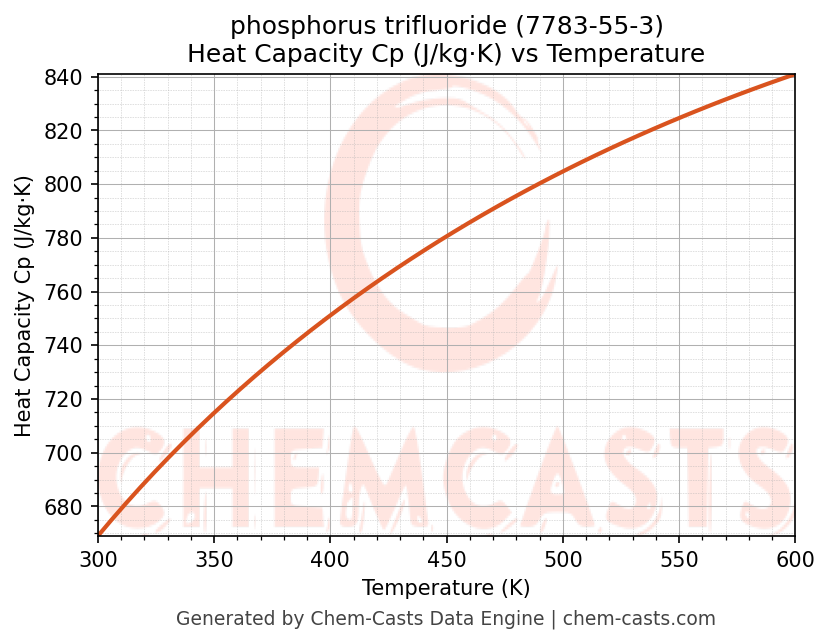

Heat Capacity (Cp) vs Temperature

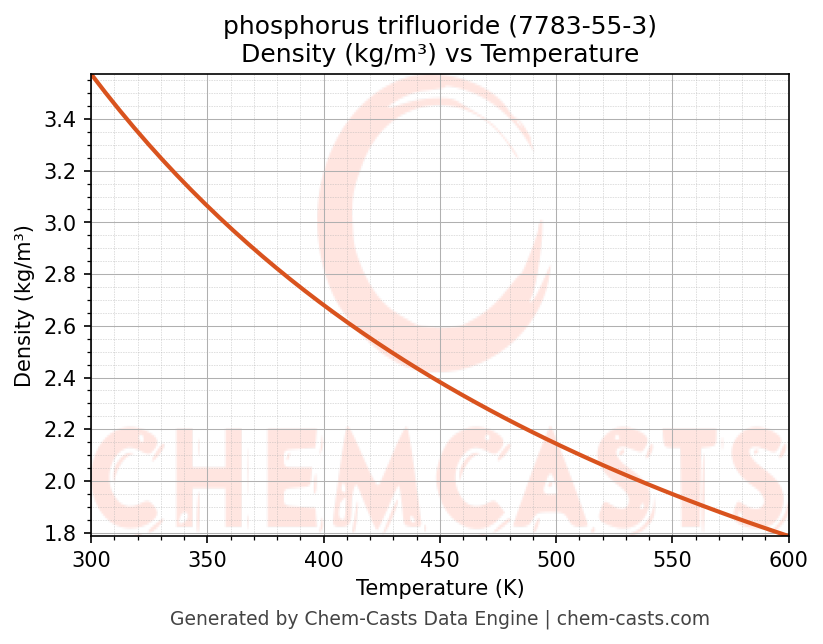

Density vs Temperature

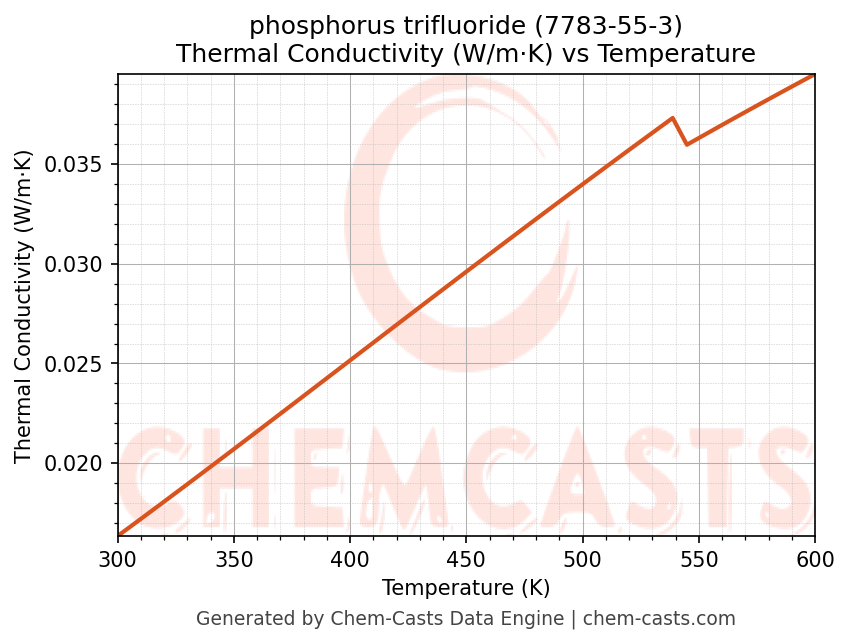

Thermal Conductivity vs Temperature

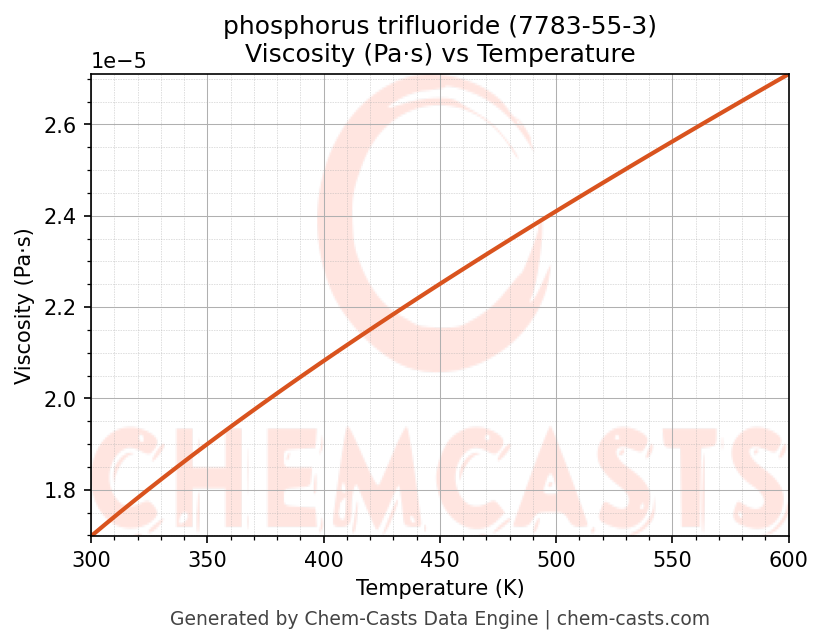

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of phosphorus trifluoride (CAS 7783-55-3) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of phosphorus trifluoride and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of phosphorus trifluoride at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
