arsine Thermodynamic Properties vs Temperature (CAS 7784-42-1)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for arsine

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for arsine

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of arsine at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.769078	3.79956	0.0126093	0.0170263	0.569561	20.5143	-40.1288	-0.146487	g
-18.048	0.781467	3.72357	0.0129144	0.0175645	0.574578	20.933	-36.1453	-0.130714	g
-12.9459	0.793997	3.65056	0.0132128	0.0181113	0.579249	21.3517	-32.0995	-0.115011	g
-7.84388	0.806644	3.58035	0.013505	0.0186665	0.583598	21.7703	-27.9906	-0.0993735	g
-2.74184	0.819383	3.5128	0.0137912	0.0192299	0.587642	22.189	-23.818	-0.0837957	g
2.3602	0.832191	3.44775	0.0140718	0.0198012	0.591399	22.6076	-19.5813	-0.068274	g
7.46224	0.845045	3.38506	0.0143471	0.0203803	0.594884	23.0263	-15.28	-0.052805	g
12.5643	0.857927	3.32461	0.0146173	0.020967	0.598112	23.445	-10.9139	-0.0373859	g
17.6663	0.870817	3.26629	0.0148828	0.0215609	0.601097	23.8636	-6.48289	-0.0220146	g
22.7684	0.883697	3.20997	0.0151438	0.0221619	0.60385	24.2823	-1.98694	-0.00668926	g
27.8704	0.896552	3.15556	0.0154004	0.0227698	0.606385	24.7009	2.57392	0.00859162	g
32.9724	0.909367	3.10297	0.0156529	0.0233843	0.608711	25.1196	7.19956	0.0238291	g
38.0745	0.922129	3.0521	0.0159016	0.0240051	0.610841	25.5383	11.8898	0.0390239	g
43.1765	0.934825	3.00288	0.0161465	0.0246322	0.612783	25.9569	16.6443	0.0541767	g
48.2786	0.947445	2.95521	0.0163879	0.0252651	0.614549	26.3756	21.4629	0.0692876	g
53.3806	0.959979	2.90904	0.016626	0.0259038	0.616148	26.7942	26.345	0.0843569	g
58.4827	0.972417	2.86428	0.0168608	0.0265479	0.617589	27.2129	31.2903	0.0993845	g
63.5847	0.984753	2.82088	0.0170925	0.0271973	0.618881	27.6316	36.2982	0.11437	g
68.6867	0.996978	2.77878	0.0173213	0.0278517	0.620033	28.0502	41.3684	0.129314	g
73.7888	1.00909	2.73792	0.0175473	0.028511	0.621052	28.4689	46.5001	0.144215	g
78.8908	1.02108	2.69824	0.0177706	0.0291748	0.621947	28.8875	51.6929	0.159073	g
83.9929	1.03294	2.65969	0.0179914	0.0298429	0.622725	29.3062	56.9461	0.173888	g
89.0949	1.04467	2.62223	0.0182096	0.0305152	0.623394	29.7249	62.2591	0.188659	g
94.1969	1.05627	2.58581	0.0184255	0.0311915	0.62396	30.1435	67.6312	0.203385	g
99.299	1.06773	2.55039	0.0186392	0.0318715	0.62443	30.5622	73.0617	0.218067	g
104.401	1.07905	2.51592	0.0188506	0.0325551	0.624811	30.9808	78.55	0.232702	g
109.503	1.09023	2.48238	0.01906	0.0332419	0.625108	31.3995	84.0954	0.247291	g
114.605	1.10127	2.44971	0.0192673	0.033932	0.625328	31.8182	89.6972	0.261834	g
119.707	1.11217	2.4179	0.0194728	0.0346249	0.625475	32.2368	95.3546	0.276329	g
124.809	1.12293	2.3869	0.0196763	0.0353207	0.625556	32.6555	101.067	0.290775	g
129.911	1.13354	2.35669	0.0198781	0.036019	0.625575	33.0741	106.833	0.305173	g
135.013	1.144	2.32723	0.0200782	0.0367197	0.625536	33.4928	112.654	0.319522	g
140.115	1.15433	2.2985	0.0202766	0.0374227	0.625445	33.9115	118.526	0.333821	g
145.217	1.16451	2.27047	0.0204734	0.0381277	0.625306	34.3301	124.451	0.34807	g
150.319	1.17455	2.24311	0.0206686	0.0388346	0.625122	34.7488	130.427	0.362268	g
155.421	1.18445	2.21641	0.0208624	0.0395432	0.624897	35.1674	136.454	0.376415	g
160.523	1.19421	2.19033	0.0210548	0.0402534	0.624636	35.5861	142.531	0.39051	g
165.626	1.20382	2.16486	0.0212458	0.0409651	0.62434	36.0048	148.657	0.404554	g
170.728	1.21331	2.13998	0.0214354	0.041678	0.624015	36.4234	154.831	0.418544	g
175.83	1.22265	2.11566	0.0216237	0.042392	0.623661	36.8421	161.054	0.432482	g
180.932	1.23186	2.09189	0.0218108	0.043107	0.623283	37.2607	167.323	0.446367	g
186.034	1.24094	2.06865	0.0219967	0.0438229	0.622883	37.6794	173.639	0.460199	g
191.136	1.24988	2.04592	0.0221814	0.0445395	0.622464	38.0981	180.001	0.473977	g
196.238	1.2587	2.02368	0.022365	0.0452567	0.622027	38.5167	186.408	0.487701	g
201.34	1.26739	2.00192	0.0225476	0.0459743	0.621575	38.9354	192.859	0.50137	g
206.442	1.27595	1.98062	0.022729	0.0466923	0.62111	39.354	199.354	0.514986	g
211.544	1.28439	1.95977	0.0229094	0.0474105	0.620634	39.7727	205.892	0.528547	g
216.646	1.2927	1.93936	0.0230889	0.0481288	0.620149	40.1914	212.473	0.542053	g
221.748	1.30089	1.91936	0.0232674	0.0488471	0.619656	40.61	219.096	0.555505	g
226.85	1.30897	1.89978	0.0234449	0.0495653	0.619156	41.0287	225.76	0.568902	g

Property Profiles for arsine

Heat Capacity (Cp) vs Temperature

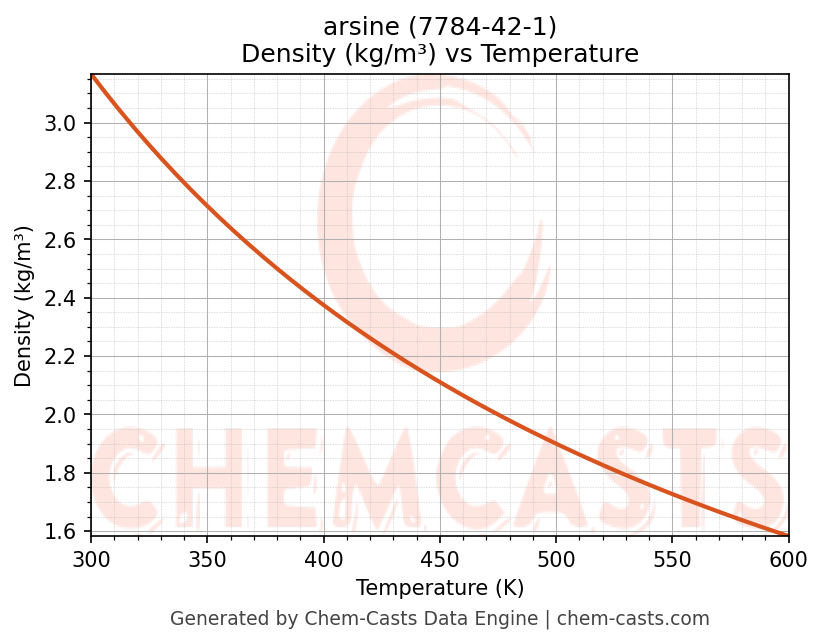

Density vs Temperature

Thermal Conductivity vs Temperature

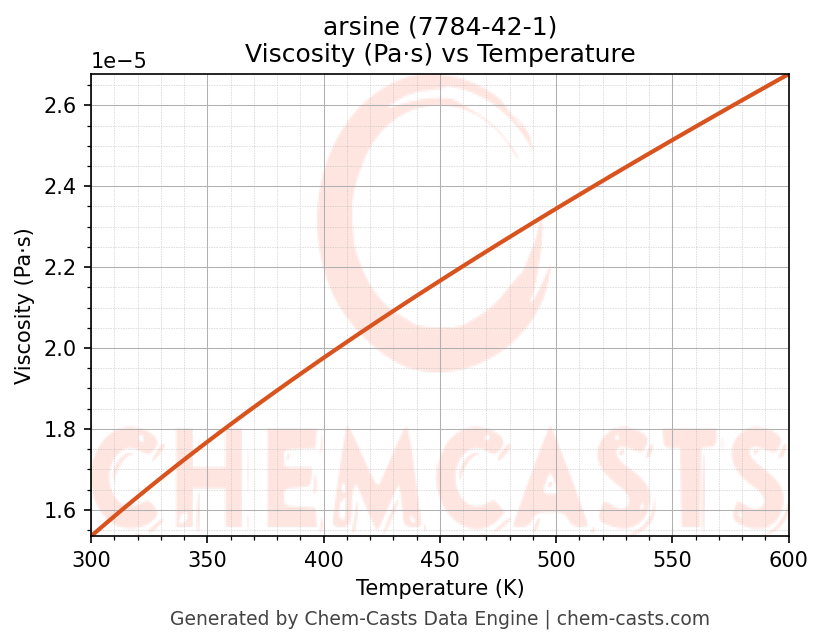

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of arsine (CAS 7784-42-1) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of arsine and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of arsine at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
