nitrosyl fluoride Thermodynamic Properties vs Temperature (CAS 7789-25-5)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for nitrosyl fluoride

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for nitrosyl fluoride

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of nitrosyl fluoride at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.808739	2.38879	0.0176047	0.0153359	0.928381	20.5143	-40.0812	-0.146535	g
-18.048	0.812454	2.34102	0.017995	0.0158634	0.921626	20.933	-35.9079	-0.130011	g
-12.9459	0.81617	2.29511	0.0183781	0.0163969	0.914784	21.3517	-31.7174	-0.113746	g
-7.84388	0.819885	2.25098	0.0187543	0.0169366	0.907878	21.7703	-27.5096	-0.0977313	g
-2.74184	0.823601	2.20851	0.0191241	0.0174827	0.900928	22.189	-23.2843	-0.0819564	g
2.3602	0.827316	2.16761	0.0194878	0.0180352	0.89395	22.6076	-19.0414	-0.0664119	g
7.46224	0.831031	2.1282	0.0198457	0.0185943	0.886958	23.0263	-14.7808	-0.0510893	g
12.5643	0.834747	2.09019	0.0201981	0.0191602	0.879967	23.445	-10.5025	-0.0359801	g
17.6663	0.838462	2.05352	0.0205454	0.0197329	0.872986	23.8636	-6.20647	-0.0210766	g
22.7684	0.842178	2.01812	0.0208877	0.0203125	0.866026	24.2823	-1.89254	-0.00637148	g
27.8704	0.845886	1.98391	0.0212254	0.0208991	0.859094	24.7009	2.4393	0.0081423	g
32.9724	0.849555	1.95085	0.0215587	0.0214919	0.852193	25.1196	6.78899	0.0224709	g
38.0745	0.853182	1.91887	0.0218877	0.022091	0.845329	25.5383	11.1564	0.03662	g
43.1765	0.856765	1.88792	0.0222128	0.0226963	0.838509	25.9569	15.5412	0.0505949	g
48.2786	0.860303	1.85795	0.022534	0.0233079	0.831738	26.3756	19.9435	0.0644005	g
53.3806	0.863798	1.82892	0.0228516	0.0239256	0.825021	26.7942	24.3629	0.0780416	g
58.4827	0.867249	1.80078	0.0231657	0.0245495	0.818361	27.2129	28.7992	0.0915228	g
63.5847	0.870655	1.7735	0.0234765	0.0251796	0.811764	27.6316	33.2523	0.104848	g
68.6867	0.874016	1.74703	0.0237841	0.0258158	0.805232	28.0502	37.722	0.118022	g
73.7888	0.877334	1.72134	0.0240887	0.026458	0.798769	28.4689	42.2081	0.131049	g
78.8908	0.880607	1.69639	0.0243904	0.0271062	0.792378	28.8875	46.7104	0.143932	g
83.9929	0.883837	1.67215	0.0246893	0.0277604	0.786061	29.3062	51.2287	0.156674	g
89.0949	0.887024	1.6486	0.0249856	0.0284204	0.779821	29.7249	55.7629	0.16928	g
94.1969	0.890167	1.62571	0.0252793	0.0290862	0.77366	30.1435	60.3126	0.181752	g
99.299	0.893269	1.60344	0.0255706	0.0297578	0.767579	30.5622	64.8777	0.194094	g
104.401	0.896328	1.58177	0.0258596	0.0304349	0.76158	30.9808	69.4581	0.206308	g
109.503	0.899347	1.56068	0.0261463	0.0311177	0.755665	31.3995	74.0535	0.218398	g
114.605	0.902324	1.54014	0.0264308	0.0318059	0.749835	31.8182	78.6638	0.230367	g
119.707	0.905262	1.52014	0.0267133	0.0324994	0.74409	32.2368	83.2887	0.242216	g
124.809	0.90816	1.50065	0.0269937	0.0331983	0.738432	32.6555	87.9281	0.25395	g
129.911	0.91102	1.48166	0.0272723	0.0339023	0.73286	33.0741	92.5818	0.265569	g
135.013	0.913842	1.46314	0.027549	0.0346113	0.727375	33.4928	97.2496	0.277077	g
140.115	0.916626	1.44507	0.0278239	0.0353254	0.721978	33.9115	101.931	0.288476	g
145.217	0.919374	1.42745	0.0280971	0.0360443	0.716668	34.3301	106.627	0.299769	g
150.319	0.922086	1.41025	0.0283687	0.0367679	0.711446	34.7488	111.336	0.310957	g
155.421	0.924763	1.39346	0.0286386	0.0374962	0.70631	35.1674	116.059	0.322042	g
160.523	0.927405	1.37707	0.0289071	0.038229	0.701261	35.5861	120.794	0.333027	g
165.626	0.930013	1.36106	0.029174	0.0389663	0.696299	36.0048	125.543	0.343913	g
170.728	0.932588	1.34541	0.0294395	0.0397079	0.691422	36.4234	130.305	0.354703	g
175.83	0.935131	1.33012	0.0297036	0.0404537	0.686631	36.8421	135.08	0.365398	g
180.932	0.937642	1.31518	0.0299664	0.0412037	0.681923	37.2607	139.867	0.376001	g
186.034	0.940121	1.30056	0.0302279	0.0419576	0.6773	37.6794	144.667	0.386512	g
191.136	0.942569	1.28627	0.0304881	0.0427155	0.672758	38.0981	149.479	0.396934	g
196.238	0.944988	1.27229	0.0307472	0.0434771	0.668299	38.5167	154.303	0.407268	g
201.34	0.947377	1.25861	0.031005	0.0442425	0.66392	38.9354	159.139	0.417515	g
206.442	0.949737	1.24522	0.0312618	0.0450114	0.659621	39.354	163.987	0.427678	g
211.544	0.952069	1.23211	0.0315174	0.0457838	0.6554	39.7727	168.847	0.437758	g
216.646	0.954372	1.21928	0.031772	0.0465597	0.651256	40.1914	173.719	0.447756	g
221.748	0.956649	1.20671	0.0320255	0.0473388	0.647189	40.61	178.602	0.457674	g
226.85	0.958898	1.1944	0.032278	0.0481212	0.643196	41.0287	183.496	0.467513	g

Property Profiles for nitrosyl fluoride

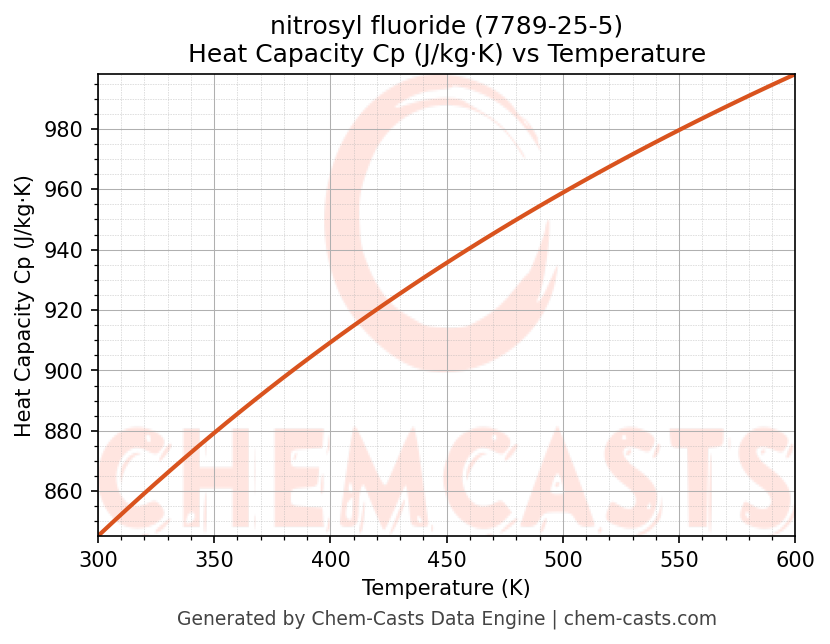

Heat Capacity (Cp) vs Temperature

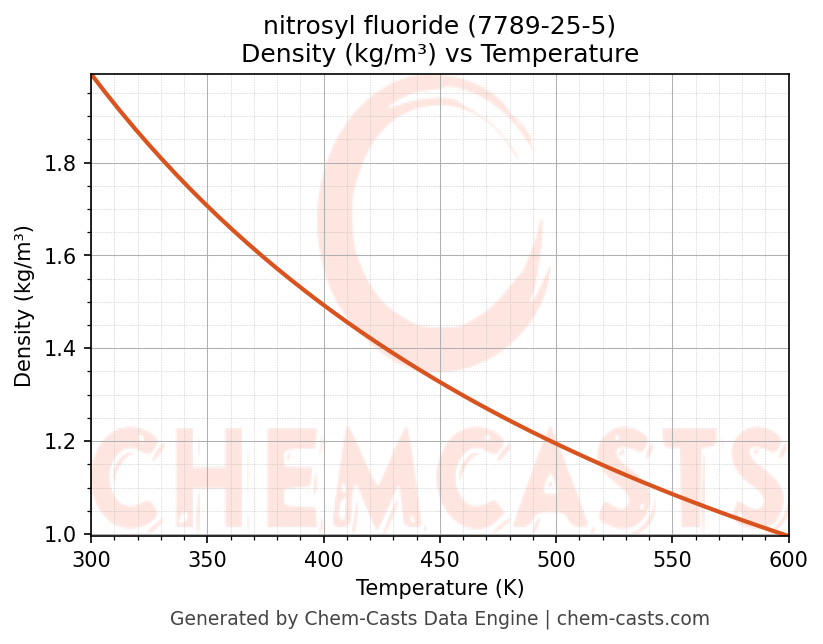

Density vs Temperature

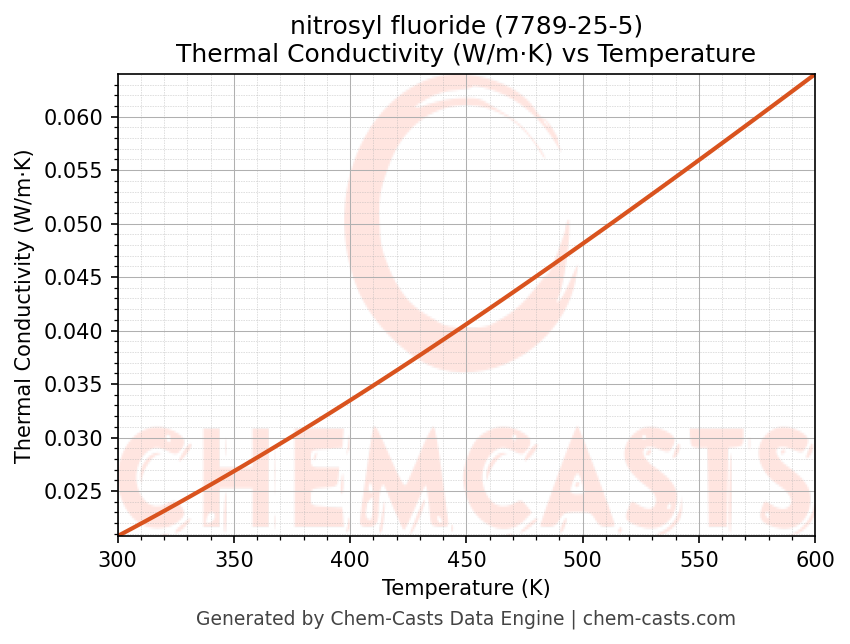

Thermal Conductivity vs Temperature

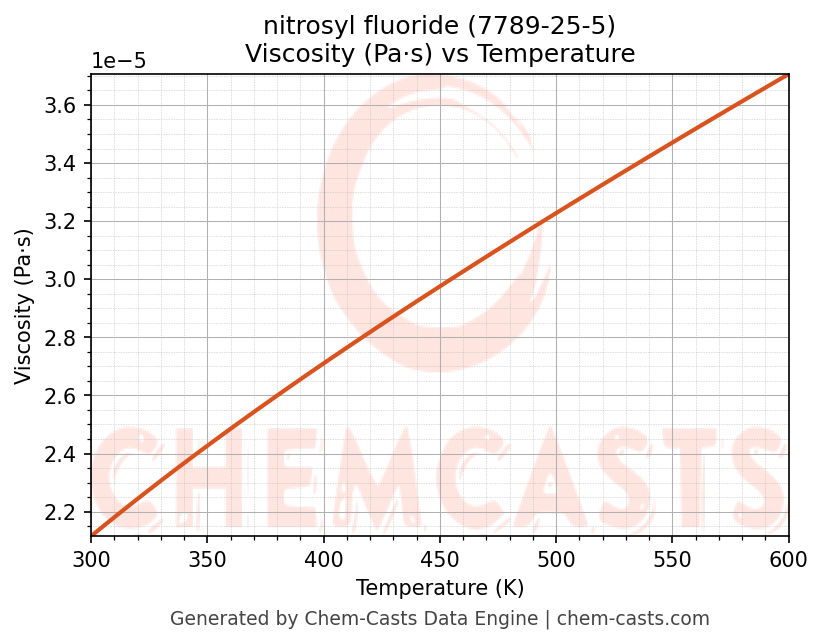

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of nitrosyl fluoride (CAS 7789-25-5) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of nitrosyl fluoride and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of nitrosyl fluoride at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
