2-butanol Thermodynamic Properties vs Temperature (CAS 78-92-2)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2-butanol

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2-butanol

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2-butanol at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.94354	847.219	23.3898	0.142962	317.979	0.0874882	-110.703	-0.403121	l
-18.048	2.0189	842.629	18.1919	0.141781	259.044	0.0879647	-100.595	-0.363098	l
-12.9459	2.09426	838.003	14.2893	0.1406	212.841	0.0884503	-90.1021	-0.322375	l
-7.84388	2.16961	833.34	11.3286	0.139418	176.294	0.0889452	-79.2248	-0.280979	l
-2.74184	2.24497	828.639	9.0604	0.138237	147.141	0.0894498	-67.9631	-0.238936	l
2.3602	2.32033	823.898	7.30656	0.137056	123.699	0.0899645	-56.317	-0.196271	l
7.46224	2.39568	819.116	5.93849	0.135874	104.705	0.0904897	-44.2863	-0.153006	l
12.5643	2.47104	814.292	4.86245	0.134693	89.2054	0.0910258	-31.8712	-0.109162	l
17.6663	2.5464	809.425	4.00941	0.133511	76.4697	0.0915732	-19.0716	-0.0647608	l
22.7684	2.62175	804.512	3.32809	0.13233	65.9371	0.0921323	-5.88757	-0.0198211	l
27.8704	2.69711	799.553	2.78004	0.131148	57.1725	0.0927038	7.68097	0.0256385	l
32.9724	2.77247	794.546	2.33621	0.129967	49.8363	0.093288	21.634	0.0716007	l
38.0745	2.84783	789.488	1.97446	0.128785	43.6611	0.0938856	35.9715	0.118049	l
43.1765	2.92318	784.378	1.6778	0.127604	38.4354	0.0944973	50.6934	0.164967	l
48.2786	2.99854	779.214	1.43309	0.126422	33.9907	0.0951235	65.7999	0.21234	l
53.3806	3.0739	773.994	1.23012	0.125241	30.1918	0.0957651	81.2908	0.260154	l
58.4827	3.14925	768.715	1.06085	0.124059	26.9298	0.0964227	97.1662	0.308395	l
63.5847	3.22461	763.375	0.918981	0.122878	24.1163	0.0970972	113.426	0.35705	l
68.6867	3.29997	757.971	0.799491	0.121696	21.6793	0.0977894	130.07	0.406106	l
73.7888	3.37532	752.501	0.69838	0.120515	19.5599	0.0985004	147.099	0.455552	l
78.8908	3.45068	746.96	0.612438	0.119333	17.7095	0.099231	164.512	0.505377	l
83.9929	3.52604	741.346	0.539074	0.118151	16.0878	0.0999825	182.31	0.555569	l
89.0949	3.6014	735.655	0.47619	0.11697	14.6615	0.100756	200.492	0.606117	l
94.1969	3.67675	729.883	0.422073	0.115788	13.4026	0.101553	219.059	0.657013	l
99.299	3.75211	724.025	0.375318	0.114606	12.2876	0.102374	238.01	0.708246	l
104.401	1.8188	2.3925	0.00936525	0.0184031	0.925576	30.9808	799.8	2.21604	g
109.503	1.83712	2.3606	0.00948744	0.0189239	0.921038	31.3995	809.211	2.2408	g
114.605	1.85535	2.32954	0.00960931	0.0194517	0.91656	31.8182	818.712	2.26547	g
119.707	1.87348	2.29928	0.00973086	0.0199866	0.912139	32.2368	828.304	2.29004	g
124.809	1.89152	2.26981	0.00985209	0.0205287	0.907771	32.6555	837.985	2.31452	g
129.911	1.90945	2.24107	0.00997301	0.021078	0.903452	33.0741	847.755	2.33892	g
135.013	1.92727	2.21306	0.0100936	0.0216344	0.899178	33.4928	857.615	2.36323	g
140.115	1.945	2.18574	0.0102139	0.0221981	0.894947	33.9115	867.563	2.38745	g
145.217	1.96261	2.15908	0.0103339	0.0227689	0.890755	34.3301	877.599	2.41158	g
150.319	1.98012	2.13307	0.0104536	0.0233471	0.886599	34.7488	887.723	2.43564	g
155.421	1.99752	2.10768	0.010573	0.0239325	0.882479	35.1674	897.933	2.4596	g
160.523	2.01481	2.08288	0.0106922	0.0245252	0.878391	35.5861	908.231	2.48349	g
165.626	2.03199	2.05866	0.010811	0.0251253	0.874334	36.0048	918.614	2.50729	g
170.728	2.04906	2.035	0.0109295	0.0257326	0.870306	36.4234	929.084	2.53101	g
175.83	2.06602	2.01187	0.0110478	0.0263474	0.866305	36.8421	939.638	2.55466	g
180.932	2.08286	1.98927	0.0111657	0.0269696	0.862332	37.2607	950.277	2.57822	g
186.034	2.09959	1.96716	0.0112834	0.0275991	0.858384	37.6794	961	2.6017	g
191.136	2.11621	1.94555	0.0114009	0.0282361	0.85446	38.0981	971.807	2.62511	g
196.238	2.13271	1.9244	0.011518	0.0288804	0.85056	38.5167	982.697	2.64843	g
201.34	2.1491	1.90371	0.0116349	0.0295322	0.846684	38.9354	993.67	2.67168	g
206.442	2.16537	1.88346	0.0117515	0.0301915	0.84283	39.354	1004.72	2.69486	g
211.544	2.18153	1.86363	0.0118678	0.0308582	0.838999	39.7727	1015.86	2.71796	g
216.646	2.19758	1.84422	0.0119839	0.0315324	0.83519	40.1914	1027.08	2.74098	g
221.748	2.21351	1.8252	0.0120997	0.032214	0.831403	40.61	1038.38	2.76392	g
226.85	2.22932	1.80658	0.0122153	0.032903	0.827637	41.0287	1049.75	2.78679	g

Property Profiles for 2-butanol

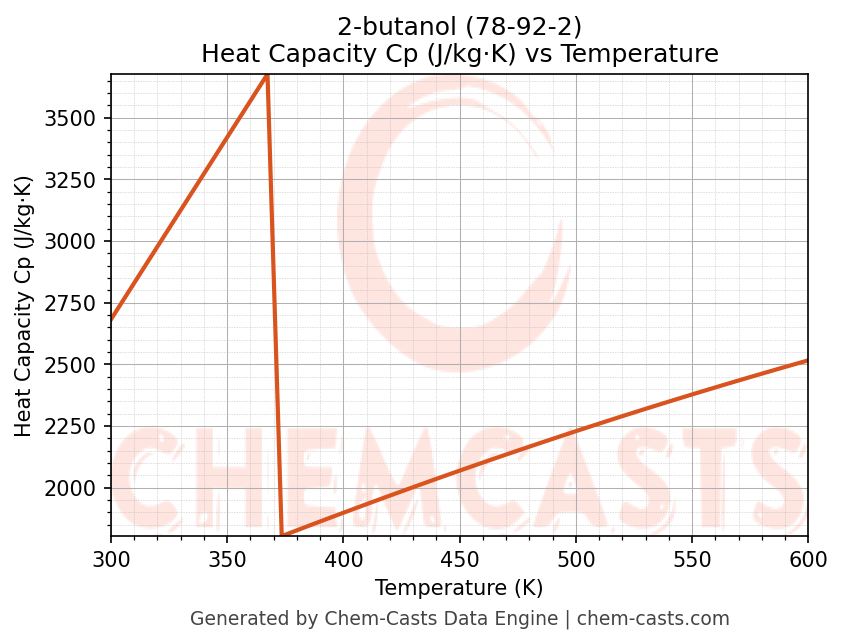

Heat Capacity (Cp) vs Temperature

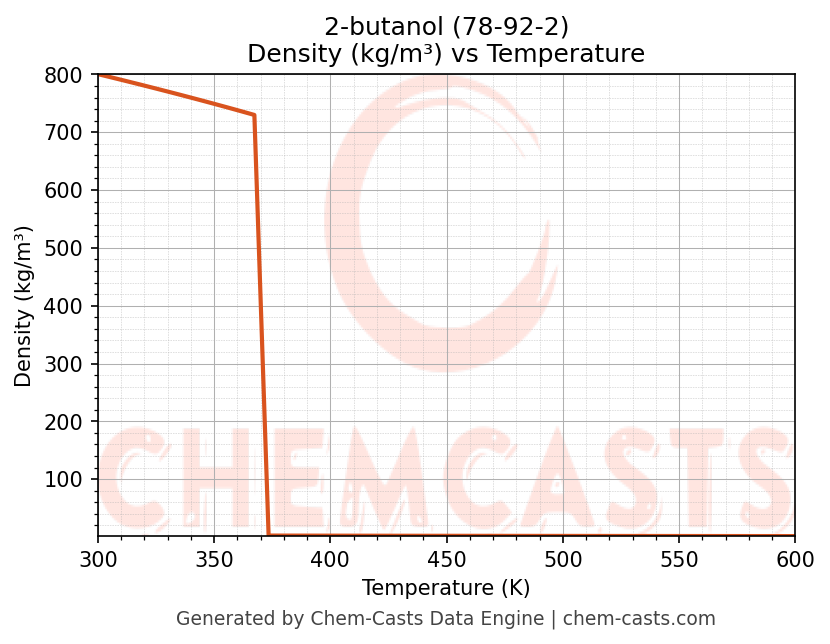

Density vs Temperature

Thermal Conductivity vs Temperature

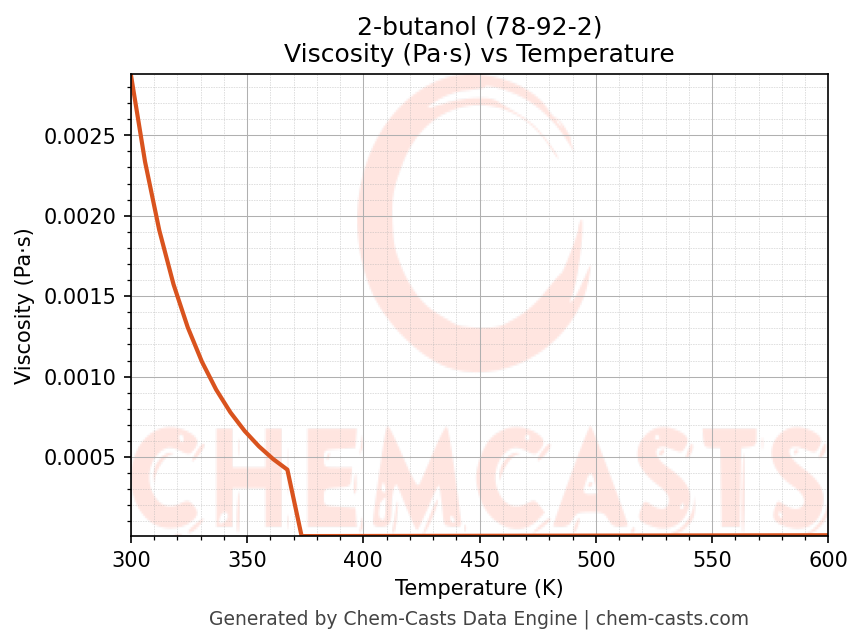

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2-butanol (CAS 78-92-2) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2-butanol and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2-butanol at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
