2,3-dimethylbutane Thermodynamic Properties vs Temperature (CAS 79-29-8)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2,3-dimethylbutane

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2,3-dimethylbutane

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2,3-dimethylbutane at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.99111	698.823	0.583144	0.112198	10.3487	0.123315	-100.649	-0.367651	l
-18.048	2.0108	694.532	0.542698	0.110719	9.85609	0.124077	-90.4407	-0.327228	l
-12.9459	2.03102	690.218	0.506356	0.109236	9.41465	0.124852	-80.1301	-0.28721	l
-7.84388	2.05174	685.878	0.473618	0.10775	9.01847	0.125642	-69.7152	-0.247572	l
-2.74184	2.07297	681.509	0.444085	0.106264	8.66305	0.126448	-59.1932	-0.208289	l
2.3602	2.09469	677.109	0.417387	0.104781	8.34409	0.12727	-48.5616	-0.169339	l
7.46224	2.1169	672.674	0.393157	0.1033	8.05685	0.128109	-37.8179	-0.130701	l
12.5643	2.13957	668.203	0.371031	0.101824	7.79624	0.128966	-26.9597	-0.0923547	l
17.6663	2.1627	663.693	0.350685	0.100355	7.55743	0.129842	-15.9847	-0.0542817	l
22.7684	2.18627	659.141	0.331861	0.098894	7.33654	0.130739	-4.8906	-0.0164648	l
27.8704	2.21028	654.541	0.314379	0.0974423	7.13105	0.131658	6.32491	0.0211123	l
32.9724	2.23472	649.89	0.298125	0.0960013	6.93975	0.1326	17.664	0.0584649	l
38.0745	2.25957	645.184	0.283029	0.0945727	6.76225	0.133567	29.1289	0.0956075	l
43.1765	2.28485	640.417	0.269024	0.093158	6.59824	0.134561	40.7216	0.132554	l
48.2786	2.31053	635.589	0.256028	0.091759	6.44688	0.135583	52.4443	0.169316	l
53.3806	2.3366	630.696	0.243933	0.0903778	6.30658	0.136635	64.2991	0.205908	l
58.4827	1.79322	3.16671	0.00775514	0.0169628	0.819834	27.2129	395.704	1.20683	g
63.5847	1.81688	3.11873	0.0078811	0.0174783	0.819247	27.6316	404.995	1.23463	g
68.6867	1.8406	3.07218	0.00800862	0.0180017	0.818845	28.0502	414.403	1.26236	g
73.7888	1.86434	3.027	0.00813727	0.018533	0.818574	28.4689	423.929	1.29002	g
78.8908	1.88811	2.98313	0.0082665	0.0190721	0.81837	28.8875	433.574	1.31762	g
83.9929	1.91188	2.94052	0.00839576	0.0196188	0.818175	29.3062	443.338	1.34515	g
89.0949	1.93563	2.8991	0.00852462	0.0201732	0.817943	29.7249	453.22	1.37263	g
94.1969	1.95936	2.85884	0.00865278	0.020735	0.817645	30.1435	463.221	1.40004	g
99.299	1.98304	2.81967	0.00878014	0.0213042	0.817274	30.5622	473.341	1.4274	g
104.401	2.00667	2.78157	0.00890678	0.0218808	0.816835	30.9808	483.58	1.45471	g
109.503	2.03024	2.74448	0.00903286	0.0224646	0.816346	31.3995	493.937	1.48195	g
114.605	2.05373	2.70837	0.00915861	0.0230556	0.815827	31.8182	504.412	1.50915	g
119.707	2.07714	2.6732	0.00928421	0.0236536	0.815293	32.2368	515.006	1.53629	g
124.809	2.10045	2.63892	0.00940976	0.0242586	0.814751	32.6555	525.716	1.56338	g
129.911	2.12365	2.60552	0.00953522	0.0248705	0.814197	33.0741	536.544	1.59041	g
135.013	2.14674	2.57295	0.00966049	0.0254892	0.813622	33.4928	547.488	1.61739	g
140.115	2.16971	2.54119	0.0097854	0.0261146	0.81301	33.9115	558.549	1.64432	g
145.217	2.19255	2.5102	0.0099098	0.0267467	0.812351	34.3301	569.724	1.6712	g
150.319	2.21526	2.47995	0.0100336	0.0273854	0.811638	34.7488	581.015	1.69802	g
155.421	2.23783	2.45043	0.0101568	0.0280306	0.810874	35.1674	592.42	1.72479	g
160.523	2.26026	2.4216	0.0102796	0.0286822	0.810068	35.5861	603.938	1.75151	g
165.626	2.28254	2.39344	0.010402	0.0293401	0.809233	36.0048	615.569	1.77817	g
170.728	2.30467	2.36593	0.0105243	0.0300043	0.80838	36.4234	627.312	1.80478	g
175.83	2.32664	2.33905	0.0106464	0.0306747	0.807513	36.8421	639.167	1.83134	g
180.932	2.34846	2.31277	0.0107683	0.0313513	0.806629	37.2607	651.133	1.85784	g
186.034	2.37011	2.28707	0.0108899	0.0320338	0.805719	37.6794	663.208	1.88428	g
191.136	2.39161	2.26194	0.011011	0.0327223	0.804771	38.0981	675.392	1.91067	g
196.238	2.41294	2.23735	0.0111315	0.0334168	0.803779	38.5167	687.685	1.937	g
201.34	2.43411	2.21329	0.0112514	0.034117	0.802744	38.9354	700.085	1.96328	g
206.442	2.45511	2.18975	0.0113709	0.034823	0.801676	39.354	712.592	1.98949	g
211.544	2.47595	2.1667	0.01149	0.0355347	0.800591	39.7727	725.205	2.01565	g
216.646	2.49662	2.14413	0.0116091	0.0362519	0.799501	40.1914	737.922	2.04176	g
221.748	2.51712	2.12202	0.011728	0.0369747	0.798406	40.61	750.745	2.0678	g
226.85	2.53746	2.10037	0.0118466	0.037703	0.797295	41.0287	763.67	2.09378	g

Property Profiles for 2,3-dimethylbutane

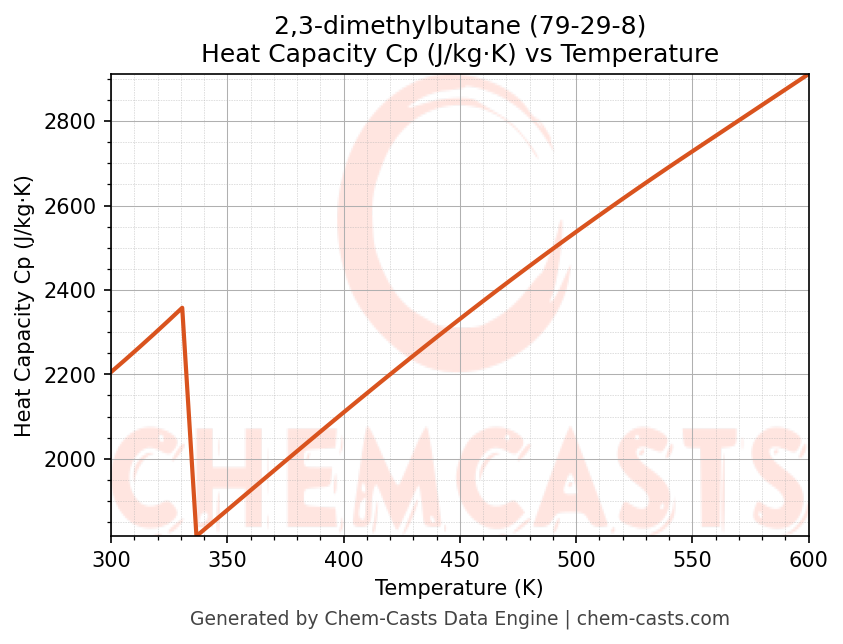

Heat Capacity (Cp) vs Temperature

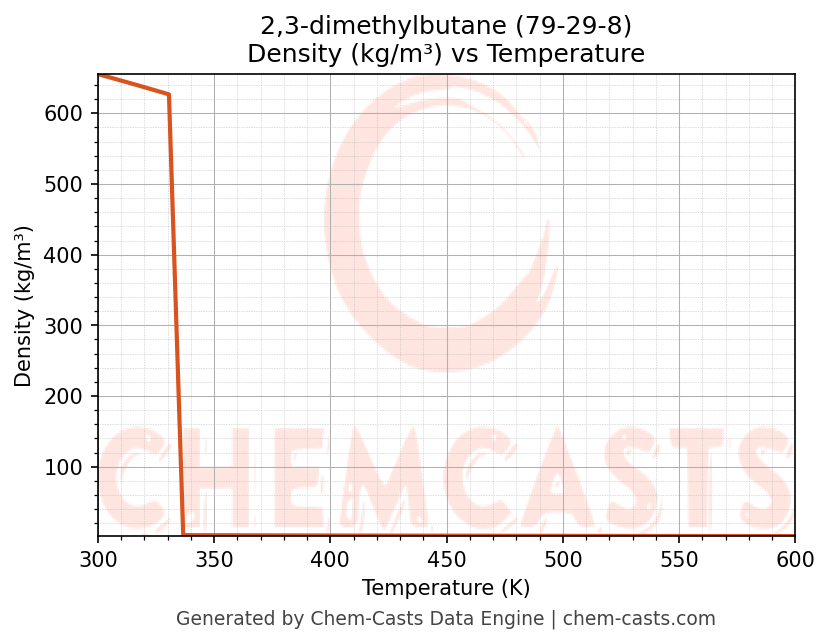

Density vs Temperature

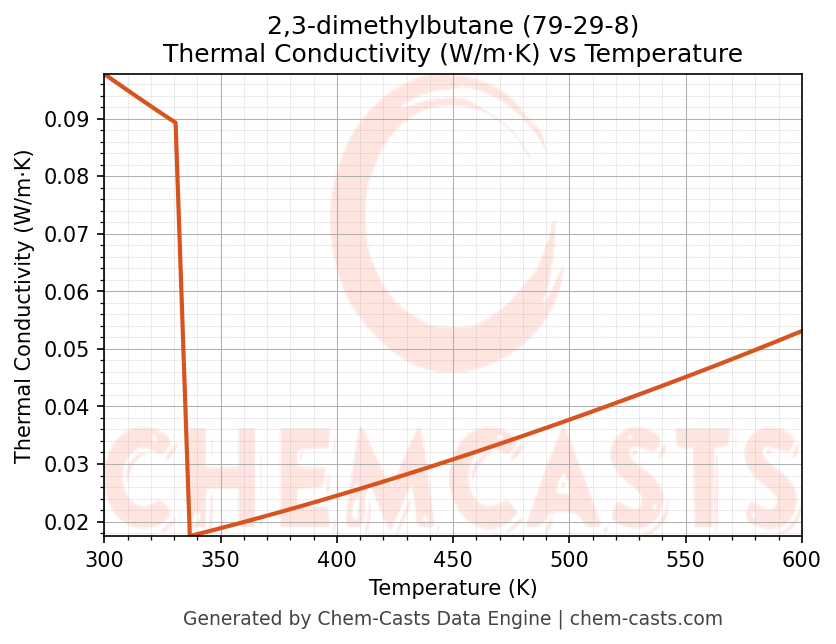

Thermal Conductivity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2,3-dimethylbutane (CAS 79-29-8) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2,3-dimethylbutane and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2,3-dimethylbutane at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
