3-methylpentane Thermodynamic Properties vs Temperature (CAS 96-14-0)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 3-methylpentane

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 3-methylpentane

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 3-methylpentane at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	2.02024	703.134	0.492366	0.119158	8.34774	0.122559	-101.866	-0.372122	l
-18.048	2.03906	698.625	0.462576	0.117561	8.02323	0.12335	-91.5112	-0.331119	l
-12.9459	2.05842	694.109	0.435558	0.11596	7.73161	0.124152	-81.0587	-0.29055	l
-7.84388	2.07832	689.583	0.41091	0.114357	7.46781	0.124967	-70.506	-0.250388	l
-2.74184	2.09874	685.044	0.388293	0.112755	7.22743	0.125795	-59.8505	-0.210606	l
2.3602	2.11967	680.491	0.367435	0.111154	7.0069	0.126637	-49.0894	-0.171182	l
7.46224	2.14111	675.92	0.34813	0.109557	6.80361	0.127493	-38.2203	-0.132093	l
12.5643	2.16304	671.33	0.330223	0.107967	6.61574	0.128365	-27.2405	-0.0933169	l
17.6663	2.18543	666.719	0.3136	0.106386	6.44212	0.129253	-16.1477	-0.0548351	l
22.7684	2.20829	662.081	0.298162	0.104816	6.28179	0.130158	-4.9394	-0.0166291	l
27.8704	2.2316	657.413	0.283813	0.103257	6.13378	0.131083	6.38668	0.0213185	l
32.9724	2.25535	652.711	0.27045	0.101713	5.9969	0.132027	17.8328	0.0590237	l
38.0745	2.27953	647.97	0.257966	0.100183	5.8697	0.132993	29.4012	0.0965018	l
43.1765	2.30414	643.185	0.246255	0.0986691	5.7506	0.133982	41.0941	0.133767	l
48.2786	2.32916	638.355	0.235222	0.0971731	5.63808	0.134996	52.9136	0.170833	l
53.3806	2.35459	633.474	0.224793	0.0956965	5.53098	0.136036	64.8617	0.207713	l
58.4827	2.38042	628.541	0.214917	0.0942414	5.42853	0.137104	76.9407	0.244418	l
63.5847	1.80614	3.11873	0.00781761	0.0170448	0.828387	27.6316	415.277	1.25048	g
68.6867	1.83065	3.07218	0.00794198	0.0175683	0.827569	28.0502	424.636	1.27806	g
73.7888	1.8551	3.027	0.00806762	0.0180991	0.826909	28.4689	434.117	1.30559	g
78.8908	1.87948	2.98313	0.0081942	0.018637	0.826361	28.8875	443.72	1.33307	g
83.9929	1.90378	2.94052	0.00832129	0.019182	0.825875	29.3062	453.444	1.36049	g
89.0949	1.92799	2.8991	0.00844845	0.019734	0.825405	29.7249	463.289	1.38786	g
94.1969	1.95209	2.85884	0.00857532	0.0202928	0.824912	30.1435	473.256	1.41518	g
99.299	1.97607	2.81967	0.00870166	0.0208584	0.824371	30.5622	483.342	1.44245	g
104.401	1.99992	2.78157	0.00882736	0.0214307	0.823772	30.9808	493.549	1.46967	g
109.503	2.02364	2.74448	0.00895243	0.0220097	0.823117	31.3995	503.874	1.49683	g
114.605	2.04723	2.70837	0.00907699	0.0225952	0.822417	31.8182	514.319	1.52395	g
119.707	2.07066	2.6732	0.00920119	0.0231871	0.821685	32.2368	524.881	1.55101	g
124.809	2.09394	2.63892	0.00932517	0.0237855	0.820934	32.6555	535.561	1.57802	g
129.911	2.11706	2.60552	0.00944903	0.0243902	0.82017	33.0741	546.358	1.60498	g
135.013	2.14001	2.57295	0.00957276	0.0250012	0.819394	33.4928	557.27	1.63188	g
140.115	2.1628	2.54119	0.00969632	0.0256184	0.818599	33.9115	568.298	1.65873	g
145.217	2.18542	2.5102	0.00981958	0.0262418	0.817777	34.3301	579.44	1.68553	g
150.319	2.20787	2.47995	0.00994245	0.0268713	0.816917	34.7488	590.696	1.71227	g
155.421	2.23014	2.45043	0.0100649	0.0275069	0.816016	35.1674	602.064	1.73895	g
160.523	2.25224	2.4216	0.0101868	0.0281485	0.815073	35.5861	613.544	1.76558	g
165.626	2.27416	2.39344	0.0103083	0.028796	0.814092	36.0048	625.135	1.79215	g
170.728	2.2959	2.36593	0.0104294	0.0294494	0.813082	36.4234	636.836	1.81867	g
175.83	2.31746	2.33905	0.0105502	0.0301087	0.81205	36.8421	648.647	1.84512	g
180.932	2.33884	2.31277	0.0106709	0.0307738	0.810999	37.2607	660.566	1.87152	g
186.034	2.36005	2.28707	0.0107913	0.0314447	0.80993	37.6794	672.593	1.89786	g
191.136	2.38108	2.26194	0.0109114	0.0321213	0.808838	38.0981	684.726	1.92414	g
196.238	2.40193	2.23735	0.0110312	0.0328036	0.807717	38.5167	696.966	1.95035	g
201.34	2.4226	2.21329	0.0111504	0.0334915	0.806563	38.9354	709.31	1.97651	g
206.442	2.4431	2.18975	0.0112692	0.034185	0.805376	39.354	721.758	2.0026	g
211.544	2.46342	2.1667	0.0113876	0.0348841	0.804163	39.7727	734.31	2.02864	g
216.646	2.48358	2.14413	0.0115056	0.0355886	0.80293	40.1914	746.964	2.05461	g
221.748	2.50356	2.12202	0.0116234	0.0362985	0.801685	40.61	759.719	2.08052	g
226.85	2.52338	2.10037	0.011741	0.0370139	0.800428	41.0287	772.575	2.10636	g

Property Profiles for 3-methylpentane

Heat Capacity (Cp) vs Temperature

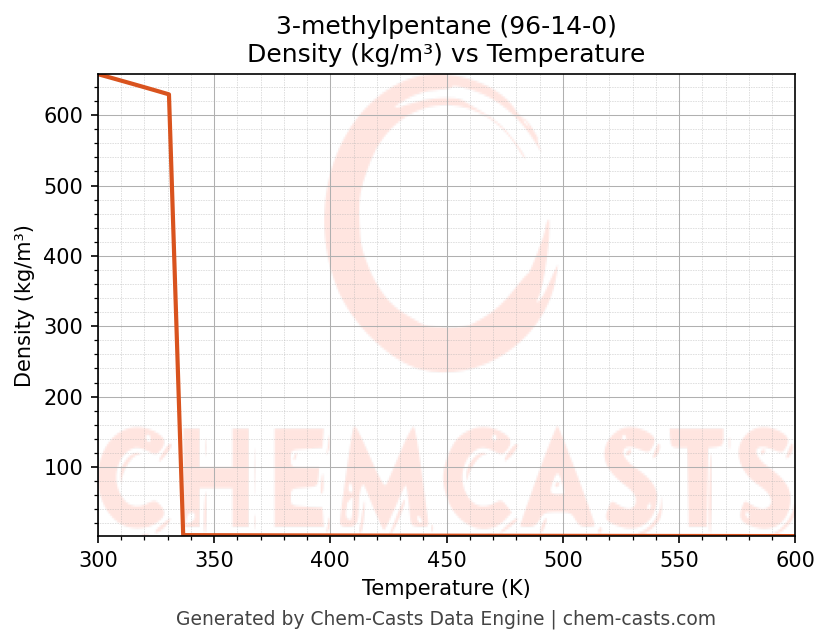

Density vs Temperature

Thermal Conductivity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 3-methylpentane (CAS 96-14-0) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 3-methylpentane and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 3-methylpentane at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
