hydrobromic acid-d Thermodynamic Properties vs Temperature (CAS 13536-59-9)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for hydrobromic acid-d

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for hydrobromic acid-d

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of hydrobromic acid-d at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.355907	3.99321	0.0186239	0.00688143	0.963226	20.5143	-17.3336	-0.0634093	g
-18.048	0.35596	3.91335	0.0190621	0.00705323	0.96202	20.933	-15.4949	-0.0561285	g
-12.9459	0.356019	3.83661	0.0194902	0.00722543	0.960341	21.3517	-13.6569	-0.0489947	g
-7.84388	0.356085	3.76283	0.0199087	0.00739812	0.958245	21.7703	-11.8196	-0.0420017	g
-2.74184	0.35616	3.69184	0.0203182	0.00757136	0.955778	22.189	-9.98272	-0.035144	g
2.3602	0.356244	3.62347	0.0207191	0.00774523	0.952983	22.6076	-8.14629	-0.0284159	g
7.46224	0.356337	3.55759	0.021112	0.0079198	0.949896	23.0263	-6.3102	-0.0218125	g
12.5643	0.35644	3.49406	0.0214972	0.00809513	0.946552	23.445	-4.47433	-0.0153289	g
17.6663	0.356553	3.43276	0.0218751	0.00827128	0.942979	23.8636	-2.63861	-0.0089606	g
22.7684	0.356677	3.37358	0.0222461	0.00844831	0.939204	24.2823	-0.802933	-0.00270318	g
27.8704	0.356812	3.3164	0.0226106	0.00862628	0.935251	24.7009	1.03279	0.00344741	g
32.9724	0.356958	3.26112	0.0229689	0.00880524	0.931142	25.1196	2.86864	0.00949507	g
38.0745	0.357115	3.20766	0.0233213	0.00898522	0.926897	25.5383	4.70471	0.0154435	g
43.1765	0.357285	3.15593	0.023668	0.00916628	0.922534	25.9569	6.5411	0.0212961	g
48.2786	0.357466	3.10583	0.0240093	0.00934844	0.918069	26.3756	8.37788	0.0270564	g
53.3806	0.35766	3.0573	0.0243455	0.00953173	0.913518	26.7942	10.2151	0.0327275	g
58.4827	0.357865	3.01027	0.0246769	0.00971619	0.908895	27.2129	12.053	0.0383123	g
63.5847	0.358083	2.96466	0.0250035	0.00990183	0.904211	27.6316	13.8915	0.0438139	g
68.6867	0.358314	2.92041	0.0253257	0.0100887	0.89948	28.0502	15.7307	0.0492349	g
73.7888	0.358556	2.87746	0.0256437	0.0102767	0.894711	28.4689	17.5708	0.0545779	g
78.8908	0.358811	2.83576	0.0259576	0.010466	0.889914	28.8875	19.4117	0.0598456	g
83.9929	0.359078	2.79525	0.0262675	0.0106565	0.885099	29.3062	21.2537	0.0650402	g
89.0949	0.359357	2.75588	0.0265737	0.0108483	0.880274	29.7249	23.0966	0.0701641	g
94.1969	0.359648	2.7176	0.0268764	0.0110413	0.875446	30.1435	24.9408	0.0752194	g
99.299	0.359951	2.68037	0.0271756	0.0112355	0.870622	30.5622	26.7861	0.0802082	g
104.401	0.360266	2.64415	0.0274714	0.0114309	0.865809	30.9808	28.6327	0.0851326	g
109.503	0.360591	2.6089	0.0277642	0.0116276	0.861013	31.3995	30.4807	0.0899944	g
114.605	0.360929	2.57457	0.0280538	0.0118255	0.856239	31.8182	32.3301	0.0947956	g
119.707	0.361277	2.54113	0.0283406	0.0120245	0.851491	32.2368	34.181	0.0995378	g
124.809	0.361635	2.50856	0.0286245	0.0122248	0.846775	32.6555	36.0334	0.104223	g
129.911	0.362005	2.4768	0.0289057	0.0124262	0.842093	33.0741	37.8875	0.108852	g
135.013	0.362384	2.44584	0.0291843	0.0126287	0.837451	33.4928	39.7432	0.113427	g
140.115	0.362774	2.41565	0.0294604	0.0128324	0.83285	33.9115	41.6007	0.11795	g
145.217	0.363173	2.38619	0.0297341	0.0130372	0.828294	34.3301	43.46	0.122421	g
150.319	0.363581	2.35744	0.0300055	0.013243	0.823785	34.7488	45.3211	0.126843	g
155.421	0.363998	2.32937	0.0302746	0.0134499	0.819326	35.1674	47.1842	0.131216	g
160.523	0.364424	2.30197	0.0305415	0.0136579	0.814919	35.5861	49.0492	0.135542	g
165.626	0.364859	2.2752	0.0308063	0.0138668	0.810565	36.0048	50.9163	0.139822	g
170.728	0.365301	2.24905	0.0310691	0.0140767	0.806265	36.4234	52.7854	0.144058	g
175.83	0.365751	2.22349	0.03133	0.0142876	0.802022	36.8421	54.6566	0.148249	g
180.932	0.366209	2.19851	0.0315889	0.0144994	0.797836	37.2607	56.53	0.152398	g
186.034	0.366674	2.17408	0.0318461	0.0147121	0.793709	37.6794	58.4055	0.156506	g
191.136	0.367145	2.15019	0.0321014	0.0149256	0.78964	38.0981	60.2833	0.160572	g
196.238	0.367623	2.12682	0.0323551	0.01514	0.78563	38.5167	62.1634	0.1646	g
201.34	0.368107	2.10395	0.0326071	0.0153552	0.781681	38.9354	64.0458	0.168588	g
206.442	0.368597	2.08157	0.0328575	0.0155712	0.777792	39.354	65.9306	0.172539	g
211.544	0.369092	2.05966	0.0331064	0.015788	0.773963	39.7727	67.8177	0.176453	g
216.646	0.369593	2.0382	0.0333537	0.0160054	0.770195	40.1914	69.7073	0.180332	g
221.748	0.370098	2.01719	0.0335996	0.0162236	0.766487	40.61	71.5993	0.184174	g
226.85	0.370608	1.99661	0.0338441	0.0164424	0.76284	41.0287	73.4937	0.187983	g

Property Profiles for hydrobromic acid-d

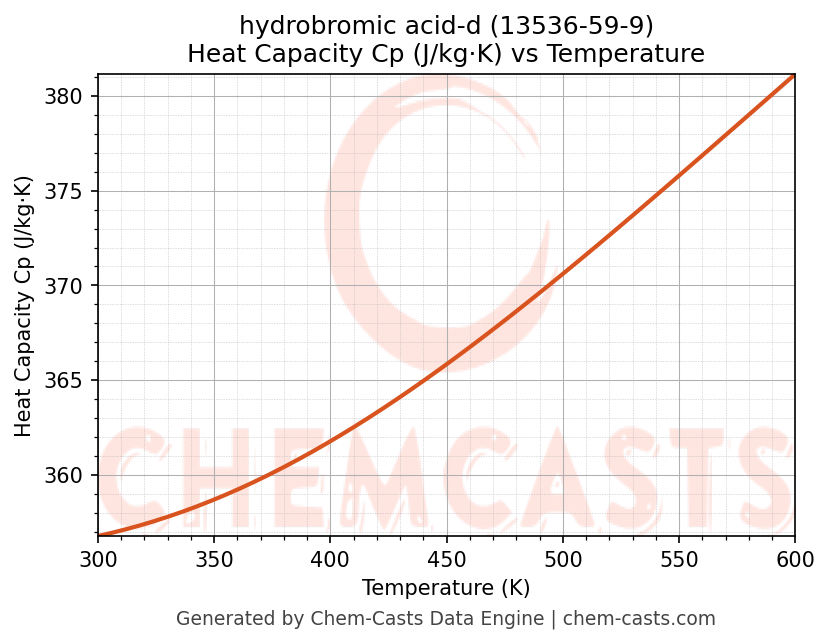

Heat Capacity (Cp) vs Temperature

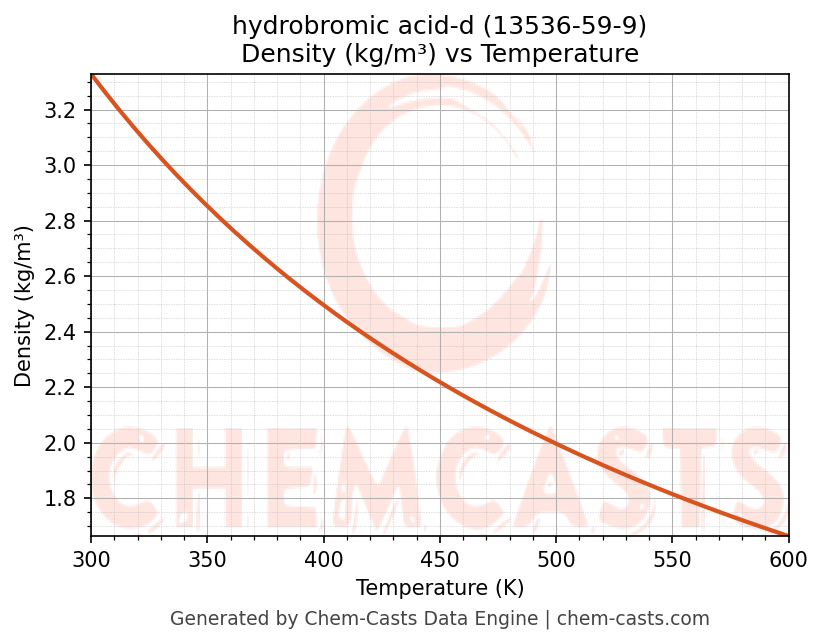

Density vs Temperature

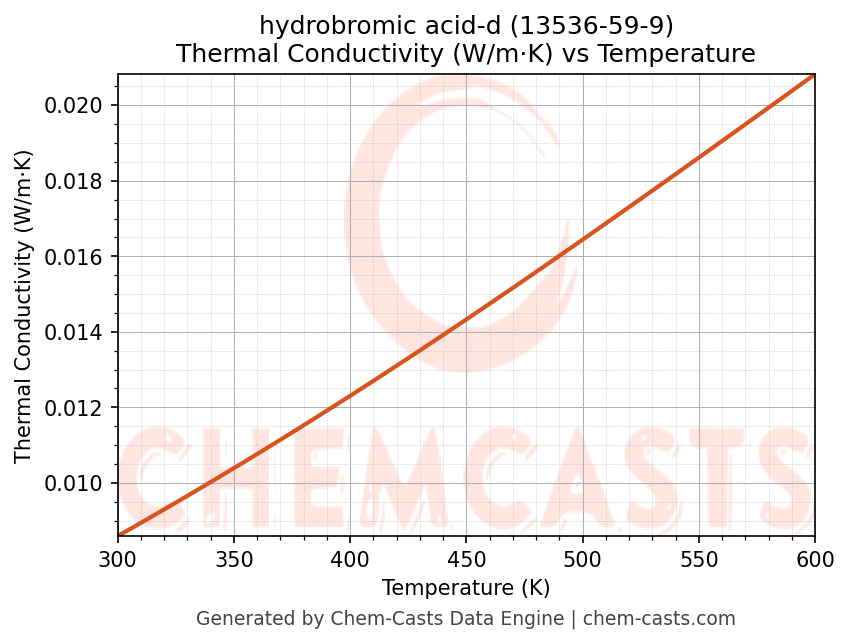

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of hydrobromic acid-d (CAS 13536-59-9) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of hydrobromic acid-d and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of hydrobromic acid-d at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
