deuterium chloride Thermodynamic Properties vs Temperature (CAS 7698-05-7)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for deuterium chloride

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for deuterium chloride

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of deuterium chloride at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.777675	1.82639	0.013107	0.0142204	0.716787	20.5143	-37.7936	-0.138256	g
-18.048	0.77773	1.78986	0.0133744	0.0145454	0.715119	20.933	-33.784	-0.122379	g
-12.9459	0.777792	1.75476	0.013638	0.014871	0.713301	21.3517	-29.7759	-0.106823	g
-7.84388	0.777861	1.72102	0.0138978	0.0151972	0.711352	21.7703	-25.7692	-0.0915734	g
-2.74184	0.777938	1.68855	0.014154	0.015524	0.709285	22.189	-21.7638	-0.0766192	g
2.3602	0.778024	1.65728	0.014407	0.0158517	0.707116	22.6076	-17.7594	-0.0619485	g
7.46224	0.77812	1.62714	0.0146568	0.0161802	0.704858	23.0263	-13.7559	-0.0475504	g
12.5643	0.778226	1.59809	0.0149037	0.0165097	0.702521	23.445	-9.75334	-0.0334147	g
17.6663	0.778345	1.57005	0.0151477	0.0168402	0.700118	23.8636	-5.75142	-0.0195316	g
22.7684	0.778476	1.54298	0.015389	0.0171717	0.697658	24.2823	-1.75005	-0.00589179	g
27.8704	0.77862	1.51683	0.0156279	0.0175043	0.695151	24.7009	2.25088	0.00751339	g
32.9724	0.778778	1.49155	0.0158643	0.0178381	0.692604	25.1196	6.25153	0.0206923	g
38.0745	0.778951	1.4671	0.0160984	0.018173	0.690027	25.5383	10.252	0.0336528	g
43.1765	0.779139	1.44343	0.0163303	0.018509	0.687426	25.9569	14.2524	0.0464025	g
48.2786	0.779343	1.42052	0.0165602	0.0188462	0.684809	26.3756	18.253	0.0589484	g
53.3806	0.779564	1.39833	0.0167881	0.0191846	0.682181	26.7942	22.2537	0.0712974	g
58.4827	0.779802	1.37681	0.0170141	0.0195241	0.679549	27.2129	26.2548	0.083456	g
63.5847	0.780057	1.35595	0.0172382	0.0198648	0.676918	27.6316	30.2564	0.0954305	g
68.6867	0.780331	1.33571	0.0174607	0.0202066	0.674292	28.0502	34.2586	0.107227	g
73.7888	0.780623	1.31607	0.0176815	0.0205495	0.671676	28.4689	38.2615	0.11885	g
78.8908	0.780935	1.297	0.0179008	0.0208935	0.669075	28.8875	42.2653	0.130306	g
83.9929	0.781265	1.27847	0.0181185	0.0212386	0.666492	29.3062	46.2701	0.141601	g
89.0949	0.781615	1.26046	0.0183348	0.0215847	0.66393	29.7249	50.276	0.152738	g
94.1969	0.781984	1.24296	0.0185497	0.0219319	0.661393	30.1435	54.2831	0.163723	g
99.299	0.782374	1.22593	0.0187633	0.02228	0.658883	30.5622	58.2917	0.17456	g
104.401	0.782783	1.20936	0.0189756	0.022629	0.656403	30.9808	62.3017	0.185253	g
109.503	0.783212	1.19324	0.0191867	0.022979	0.653955	31.3995	66.3133	0.195807	g
114.605	0.783662	1.17754	0.0193966	0.0233299	0.651541	31.8182	70.3267	0.206226	g
119.707	0.784132	1.16225	0.0196054	0.0236816	0.649162	32.2368	74.342	0.216514	g
124.809	0.784621	1.14734	0.0198131	0.0240341	0.646821	32.6555	78.3592	0.226674	g
129.911	0.785131	1.13282	0.0200197	0.0243873	0.644519	33.0741	82.3786	0.23671	g
135.013	0.78566	1.11866	0.0202253	0.0247413	0.642256	33.4928	86.4002	0.246625	g
140.115	0.78621	1.10485	0.02043	0.025096	0.640034	33.9115	90.4242	0.256422	g
145.217	0.786778	1.09138	0.0206338	0.0254513	0.637853	34.3301	94.4506	0.266106	g
150.319	0.787366	1.07823	0.0208366	0.0258073	0.635715	34.7488	98.4796	0.275678	g
155.421	0.787974	1.06539	0.0210386	0.0261638	0.633619	35.1674	102.511	0.285141	g
160.523	0.7886	1.05286	0.0212397	0.0265208	0.631566	35.5861	106.546	0.2945	g
165.626	0.789244	1.04062	0.0214401	0.0268784	0.629557	36.0048	110.583	0.303755	g
170.728	0.789907	1.02865	0.0216396	0.0272364	0.627591	36.4234	114.624	0.31291	g
175.83	0.790588	1.01696	0.0218384	0.0275948	0.625668	36.8421	118.667	0.321968	g
180.932	0.791286	1.00554	0.0220365	0.0279537	0.62379	37.2607	122.714	0.33093	g
186.034	0.792002	0.994366	0.0222339	0.0283128	0.621954	37.6794	126.764	0.3398	g
191.136	0.792734	0.983439	0.0224306	0.0286723	0.620162	38.0981	130.818	0.348579	g
196.238	0.793483	0.972749	0.0226266	0.0290321	0.618413	38.5167	134.875	0.35727	g
201.34	0.794248	0.962289	0.022822	0.0293922	0.616707	38.9354	138.935	0.365874	g
206.442	0.795028	0.952052	0.0230168	0.0297524	0.615043	39.354	143	0.374394	g
211.544	0.795824	0.942031	0.023211	0.0301129	0.613421	39.7727	147.068	0.382831	g
216.646	0.796634	0.932218	0.0234046	0.0304735	0.611841	40.1914	151.14	0.391189	g
221.748	0.797459	0.922607	0.0235977	0.0308342	0.610302	40.61	155.216	0.399467	g
226.85	0.798298	0.913193	0.0237902	0.0311951	0.608803	41.0287	159.295	0.407669	g

Property Profiles for deuterium chloride

Heat Capacity (Cp) vs Temperature

Density vs Temperature

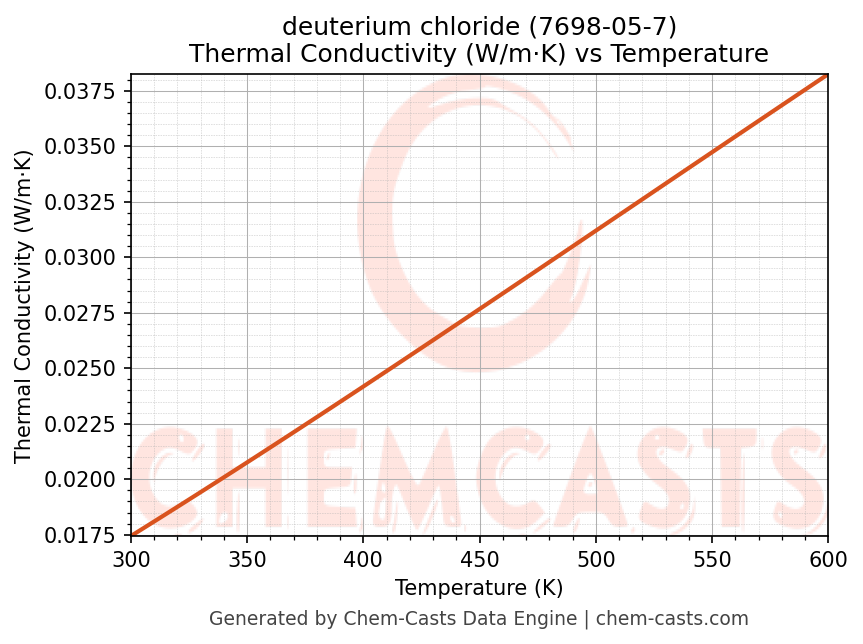

Thermal Conductivity vs Temperature

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of deuterium chloride (CAS 7698-05-7) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of deuterium chloride and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of deuterium chloride at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
