nitrogen fluoride (N2F2), [N(E)]- (9CI) Thermodynamic Properties vs Temperature (CAS 13776-62-0)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for nitrogen fluoride (N2F2), [N(E)]- (9CI)

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for nitrogen fluoride (N2F2), [N(E)]- (9CI)

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of nitrogen fluoride (N2F2), [N(E)]- (9CI) at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.741027	3.21776	0.0164146	0.0166802	0.729229	20.5143	-37.4659	-0.136885	g
-18.048	0.748071	3.1534	0.0166924	0.0172284	0.724798	20.933	-33.6438	-0.121751	g
-12.9459	0.755115	3.09157	0.0169652	0.0177848	0.720317	21.3517	-29.7868	-0.106781	g
-7.84388	0.762159	3.03212	0.0172335	0.0183496	0.715802	21.7703	-25.8948	-0.0919681	g
-2.74184	0.769203	2.97491	0.0174974	0.0189225	0.71127	22.189	-21.9678	-0.0773071	g
2.3602	0.776248	2.91982	0.0177571	0.0195037	0.706734	22.6076	-18.0057	-0.0627916	g
7.46224	0.783292	2.86673	0.0180129	0.0200929	0.702207	23.0263	-14.0085	-0.0484161	g
12.5643	0.790336	2.81554	0.0182651	0.0206902	0.697699	23.445	-9.97614	-0.0341754	g
17.6663	0.79738	2.76614	0.0185137	0.0212954	0.693221	23.8636	-5.90854	-0.0200646	g
22.7684	0.804424	2.71845	0.018759	0.0219085	0.688781	24.2823	-1.80568	-0.00607906	g
27.8704	0.811429	2.67238	0.0190011	0.0225284	0.684383	24.7009	2.33243	0.00778556	g
32.9724	0.818236	2.62784	0.0192402	0.0231511	0.680015	25.1196	6.5052	0.0215313	g
38.0745	0.824838	2.58476	0.0194765	0.0237759	0.675683	25.5383	10.7116	0.0351588	g
43.1765	0.831248	2.54307	0.0197101	0.0244029	0.671395	25.9569	14.9506	0.0486687	g
48.2786	0.837476	2.5027	0.0199411	0.0250318	0.667156	26.3756	19.2214	0.062062	g
53.3806	0.843531	2.4636	0.0201696	0.0256627	0.662972	26.7942	23.523	0.0753395	g
58.4827	0.849425	2.4257	0.0203957	0.0262954	0.658847	27.2129	27.8546	0.0885023	g
63.5847	0.855164	2.38894	0.0206196	0.0269297	0.654784	27.6316	32.2154	0.101552	g
68.6867	0.860756	2.35329	0.0208414	0.0275656	0.650787	28.0502	36.6047	0.114489	g
73.7888	0.86621	2.31868	0.021061	0.028203	0.646857	28.4689	41.0218	0.127315	g
78.8908	0.871532	2.28508	0.0212788	0.0288417	0.642998	28.8875	45.466	0.140031	g
83.9929	0.876729	2.25243	0.0214946	0.0294816	0.63921	29.3062	49.9367	0.152639	g
89.0949	0.881805	2.22071	0.0217087	0.0301227	0.635495	29.7249	54.4332	0.16514	g
94.1969	0.886767	2.18986	0.021921	0.0307647	0.631854	30.1435	58.955	0.177536	g
99.299	0.89162	2.15987	0.0221317	0.0314077	0.628287	30.5622	63.5015	0.189827	g
104.401	0.896369	2.13068	0.0223407	0.0320515	0.624793	30.9808	68.0721	0.202016	g
109.503	0.901018	2.10227	0.0225483	0.0326959	0.621374	31.3995	72.6665	0.214103	g
114.605	0.905571	2.07461	0.0227544	0.033341	0.618029	31.8182	77.2841	0.22609	g
119.707	0.910033	2.04766	0.022959	0.0339865	0.614758	32.2368	81.9244	0.237979	g
124.809	0.914406	2.02141	0.0231624	0.0346325	0.611559	32.6555	86.5869	0.249771	g
129.911	0.918695	1.99583	0.0233644	0.0352787	0.608433	33.0741	91.2714	0.261468	g
135.013	0.922903	1.97088	0.0235651	0.0359253	0.605377	33.4928	95.9772	0.27307	g
140.115	0.927032	1.94655	0.0237647	0.0365719	0.602392	33.9115	100.704	0.284579	g
145.217	0.931086	1.92281	0.0239631	0.0372187	0.599476	34.3301	105.452	0.295996	g
150.319	0.935068	1.89964	0.0241604	0.0378654	0.596629	34.7488	110.22	0.307323	g
155.421	0.938979	1.87703	0.0243566	0.0385121	0.593847	35.1674	115.007	0.318562	g
160.523	0.942822	1.85494	0.0245517	0.0391586	0.591132	35.5861	119.815	0.329713	g
165.626	0.946601	1.83337	0.0247458	0.039805	0.58848	36.0048	124.641	0.340777	g
170.728	0.950315	1.8123	0.024939	0.0404511	0.585892	36.4234	129.487	0.351757	g
175.83	0.953969	1.79171	0.0251312	0.0410968	0.583364	36.8421	134.351	0.362653	g
180.932	0.957563	1.77158	0.0253226	0.0417423	0.580897	37.2607	139.234	0.373466	g
186.034	0.9611	1.75189	0.025513	0.0423873	0.578488	37.6794	144.134	0.384198	g
191.136	0.964582	1.73264	0.0257026	0.0430319	0.576136	38.0981	149.052	0.39485	g
196.238	0.968009	1.71381	0.0258914	0.0436761	0.57384	38.5167	153.988	0.405423	g
201.34	0.971383	1.69538	0.0260794	0.0443197	0.571598	38.9354	158.941	0.415918	g
206.442	0.974707	1.67734	0.0262666	0.0449628	0.569409	39.354	163.911	0.426336	g
211.544	0.97798	1.65969	0.0264531	0.0456053	0.567272	39.7727	168.898	0.436679	g
216.646	0.981206	1.6424	0.0266388	0.0462472	0.565184	40.1914	173.901	0.446947	g
221.748	0.984384	1.62547	0.0268239	0.0468885	0.563144	40.61	178.92	0.457141	g
226.85	0.987517	1.60888	0.0270083	0.0475292	0.561152	41.0287	183.955	0.467264	g

Property Profiles for nitrogen fluoride (N2F2), [N(E)]- (9CI)

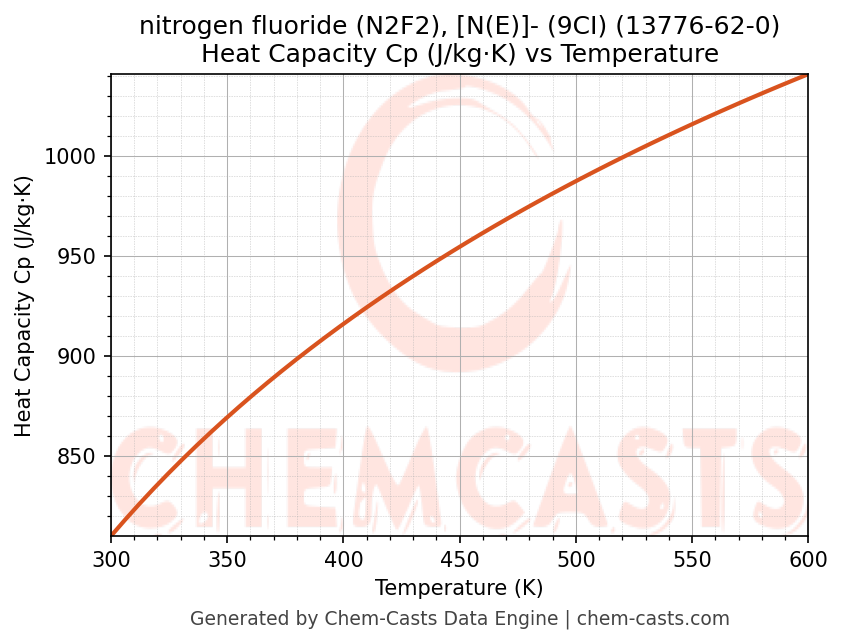

Heat Capacity (Cp) vs Temperature

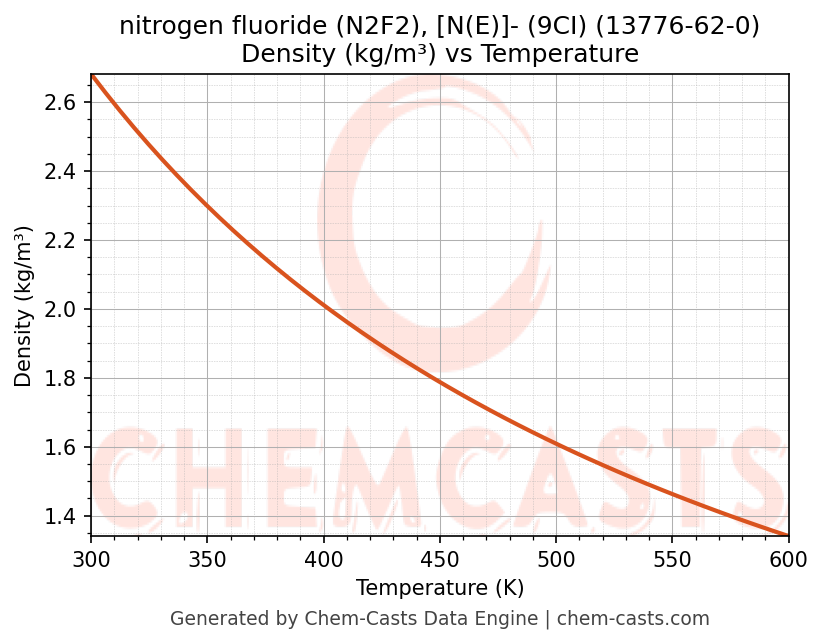

Density vs Temperature

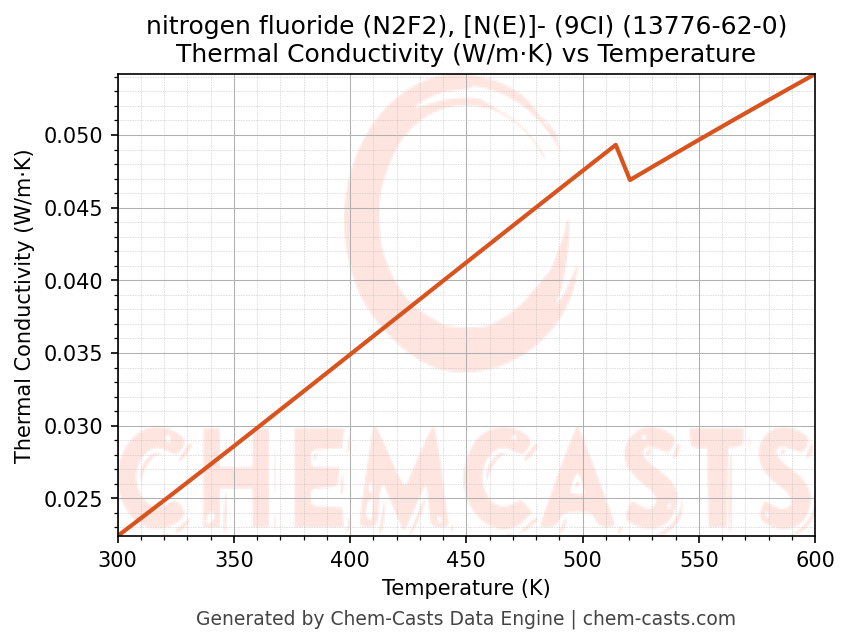

Thermal Conductivity vs Temperature

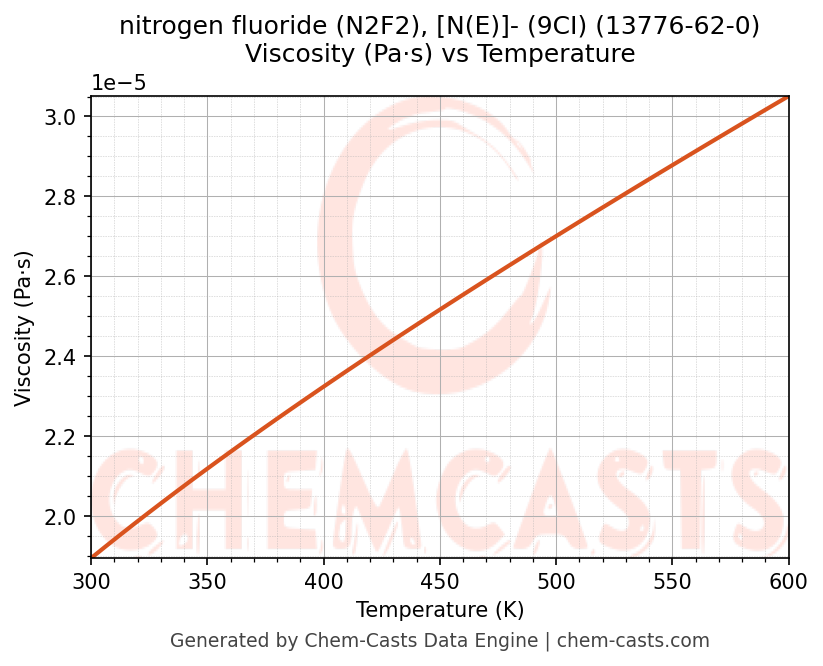

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of nitrogen fluoride (N2F2), [N(E)]- (9CI) (CAS 13776-62-0) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of nitrogen fluoride (N2F2), [N(E)]- (9CI) and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of nitrogen fluoride (N2F2), [N(E)]- (9CI) at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
