phosphorus Thermodynamic Properties vs Temperature (CAS 7723-14-0)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for phosphorus

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for phosphorus

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of phosphorus at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.849946	333.695	0.369667	0.559902	0.561164	0.0928206	-40.9249	-0.149706	l
-18.048	0.849946	332.972	0.366342	0.558903	0.55711	0.0930222	-36.5884	-0.132535	l
-12.9459	0.849946	332.244	0.363032	0.557904	0.553065	0.0932259	-32.252	-0.115704	l
-7.84388	0.849946	331.512	0.359736	0.556905	0.549028	0.0934318	-27.9155	-0.0991992	l
-2.74184	0.849946	330.776	0.356456	0.555906	0.545	0.0936397	-23.5791	-0.0830093	l
2.3602	0.849946	330.036	0.353191	0.554907	0.54098	0.0938498	-19.2426	-0.067122	l
7.46224	0.849946	329.291	0.349941	0.553908	0.536969	0.094062	-14.9061	-0.0515262	l
12.5643	0.849946	328.542	0.346706	0.552908	0.532966	0.0942764	-10.5697	-0.0362114	l
17.6663	0.849946	327.789	0.343486	0.551909	0.528973	0.0944931	-6.23323	-0.0211678	l
22.7684	0.849946	327.031	0.340282	0.55091	0.524988	0.0947119	-1.89677	-0.00638572	l
27.8704	0.849946	326.27	0.337092	0.549911	0.521012	0.094933	2.43969	0.00814363	l
32.9724	0.849946	325.504	0.333918	0.548912	0.517045	0.0951564	6.77615	0.0224288	l
38.0745	0.849946	324.734	0.330758	0.547913	0.513086	0.095382	11.1126	0.0364778	l
43.1765	0.849946	323.96	0.327614	0.546913	0.509137	0.09561	15.4491	0.0502983	l
48.2786	0.849946	323.181	0.324484	0.545914	0.505197	0.0958403	19.7855	0.0638978	l
53.3806	0.849946	322.398	0.32137	0.544915	0.501266	0.096073	24.122	0.077283	l
58.4827	0.849946	321.611	0.318271	0.543916	0.497344	0.0963081	28.4584	0.0904607	l
63.5847	0.849946	320.82	0.315187	0.542917	0.493431	0.0965456	32.7949	0.103437	l
68.6867	0.849946	320.025	0.312118	0.541918	0.489527	0.0967855	37.1314	0.116219	l
73.7888	0.849946	319.225	0.309064	0.540919	0.485633	0.0970279	41.4678	0.128811	l
78.8908	0.849946	318.421	0.306025	0.539919	0.481747	0.0972729	45.8043	0.141219	l
83.9929	0.849946	317.613	0.303001	0.53892	0.477872	0.0975204	50.1407	0.153449	l
89.0949	0.849946	316.801	0.299993	0.537921	0.474005	0.0977704	54.4772	0.165505	l
94.1969	0.849946	315.984	0.296999	0.536922	0.470149	0.0980231	58.8137	0.177392	l
99.299	0.849946	315.164	0.29402	0.535923	0.466301	0.0982783	63.1501	0.189116	l
104.401	0.849946	314.339	0.291057	0.534924	0.462463	0.0985363	67.4866	0.20068	l
109.503	0.849946	313.509	0.288108	0.533925	0.458635	0.0987969	71.823	0.212089	l
114.605	0.849946	312.676	0.285175	0.532925	0.454816	0.0990603	76.1595	0.223346	l
119.707	0.849946	311.838	0.282256	0.531926	0.451007	0.0993265	80.4959	0.234457	l
124.809	0.849946	310.996	0.279353	0.530927	0.447208	0.0995954	84.8324	0.245424	l
129.911	0.849946	310.149	0.276464	0.529928	0.443418	0.0998672	89.1689	0.256252	l
135.013	0.849946	309.299	0.273591	0.528929	0.439639	0.100142	93.5053	0.266943	l
140.115	0.849946	308.444	0.270733	0.52793	0.435869	0.10042	97.8418	0.277501	l
145.217	0.849946	307.584	0.267889	0.526931	0.432109	0.1007	102.178	0.28793	l
150.319	0.849946	306.72	0.265061	0.525931	0.428358	0.100984	106.515	0.298233	l
155.421	0.849946	305.852	0.262247	0.524932	0.424618	0.10127	110.851	0.308412	l
160.523	0.849946	304.98	0.259448	0.523933	0.420887	0.10156	115.188	0.318471	l
165.626	0.849946	304.103	0.256664	0.522934	0.417167	0.101853	119.524	0.328412	l
170.728	0.849946	303.221	0.253895	0.521935	0.413456	0.102149	123.861	0.338238	l
175.83	0.849946	302.336	0.251141	0.520936	0.409756	0.102448	128.197	0.347951	l
180.932	0.849946	301.445	0.248402	0.519937	0.406065	0.102751	132.533	0.357555	l
186.034	0.849946	300.55	0.245677	0.518937	0.402385	0.103057	136.87	0.367052	l
191.136	0.849946	299.651	0.242968	0.517938	0.398714	0.103366	141.206	0.376444	l
196.238	0.849946	298.747	0.240273	0.516939	0.395054	0.103679	145.543	0.385733	l
201.34	0.849946	297.839	0.237592	0.51594	0.391403	0.103995	149.879	0.394922	l
206.442	0.849946	296.926	0.234927	0.514941	0.387763	0.104315	154.216	0.404012	l
211.544	0.849946	296.008	0.232276	0.513942	0.384132	0.104638	158.552	0.413006	l
216.646	0.849946	295.085	0.229639	0.512942	0.380512	0.104965	162.889	0.421906	l
221.748	0.849946	294.158	0.227017	0.511943	0.376901	0.105296	167.225	0.430714	l
226.85	0.849946	293.226	0.224409	0.510944	0.373301	0.105631	171.562	0.439432	l

Property Profiles for phosphorus

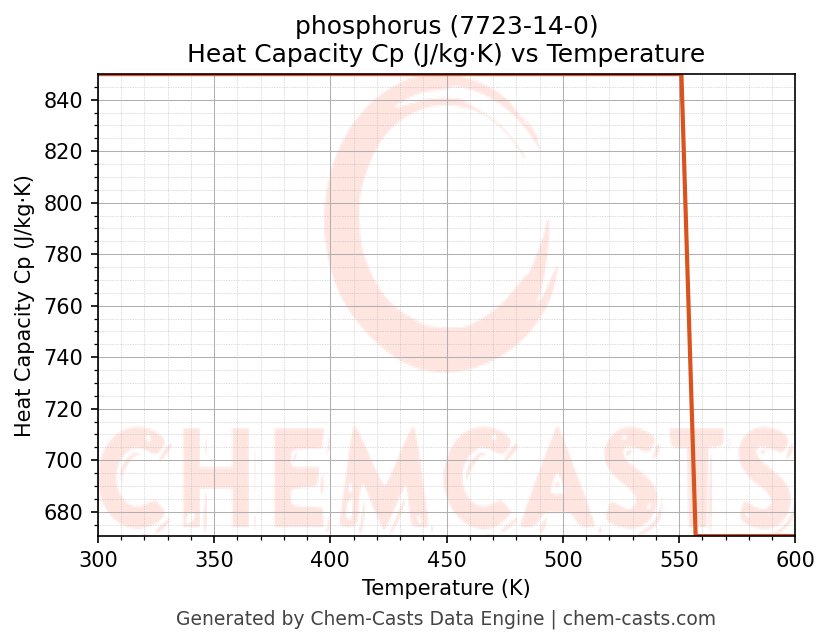

Heat Capacity (Cp) vs Temperature

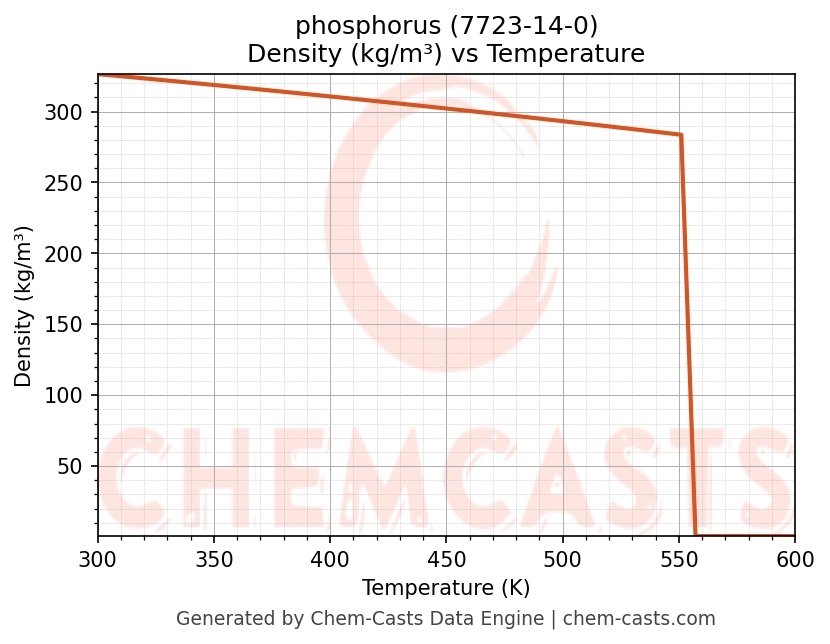

Density vs Temperature

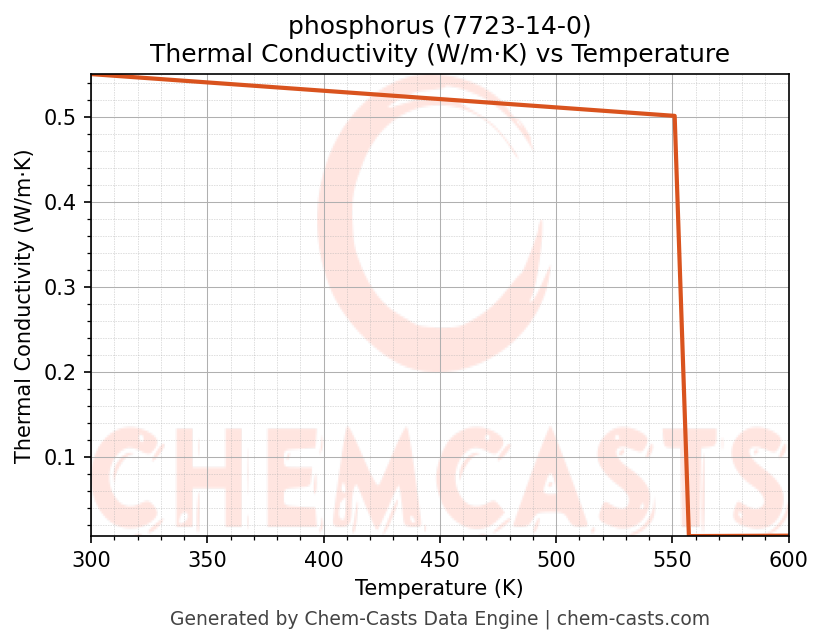

Thermal Conductivity vs Temperature

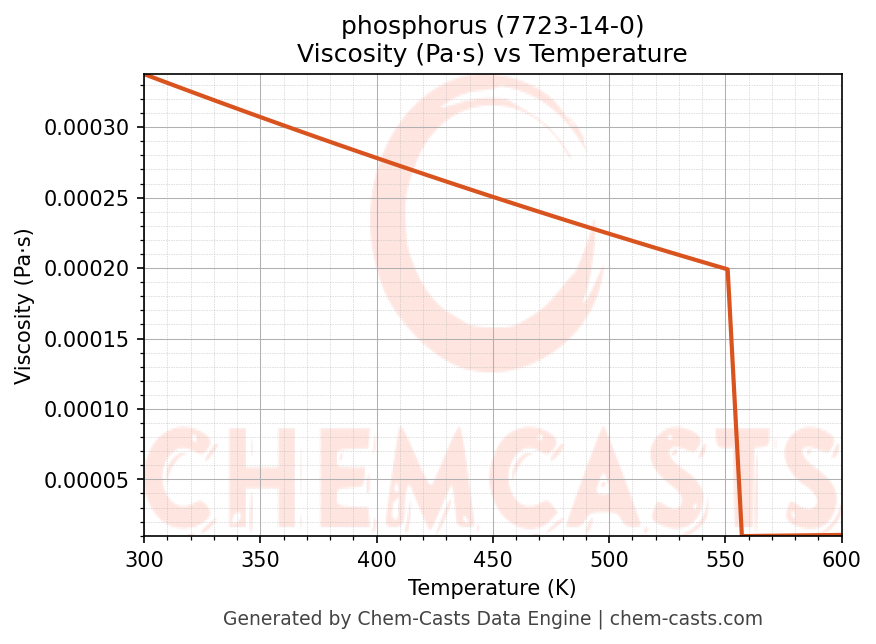

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of phosphorus (CAS 7723-14-0) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of phosphorus and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of phosphorus at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
