3-methyl-1-butene Thermodynamic Properties vs Temperature (CAS 563-45-1)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 3-methyl-1-butene

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 3-methyl-1-butene

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 3-methyl-1-butene at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.89222	673.718	0.260463	0.122137	4.03524	0.104098	-436.721	-1.62101	l
-18.048	1.91307	668.627	0.252516	0.121138	3.98784	0.104891	-427.013	-1.57027	l
-12.9459	1.93382	663.487	0.244691	0.120139	3.93866	0.105704	-417.2	-1.51979	l
-7.84388	1.95447	658.294	0.236986	0.11914	3.8877	0.106537	-407.281	-1.46956	l
-2.74184	1.97502	653.047	0.229401	0.118141	3.83501	0.107393	-397.256	-1.41952	l
2.3602	1.99548	647.74	0.221935	0.117142	3.78061	0.108273	-387.127	-1.36965	l
7.46224	2.01584	642.37	0.214588	0.116142	3.72452	0.109178	-376.894	-1.31991	l
12.5643	2.0361	636.934	0.207358	0.115143	3.66676	0.11011	-366.558	-1.27027	l
17.6663	2.05626	631.427	0.200245	0.114144	3.60734	0.11107	-356.118	-1.22069	l
22.7684	1.62329	2.88823	0.00714743	0.0150068	0.773142	24.2823	-3.67172	-0.0123613	g
27.8704	1.64389	2.83928	0.00728991	0.0154871	0.773793	24.7009	4.75122	0.0158593	g
32.9724	1.66453	2.79196	0.00743044	0.0159749	0.77423	25.1196	13.2757	0.0439404	g
38.0745	1.68521	2.74619	0.00756909	0.0164699	0.774471	25.5383	21.9023	0.0718877	g
43.1765	1.7059	2.7019	0.00770597	0.0169723	0.774533	25.9569	30.6312	0.0997068	g
48.2786	1.72659	2.65901	0.00784115	0.0174819	0.774429	26.3756	39.4627	0.127402	g
53.3806	1.74728	2.61746	0.00797472	0.0179987	0.774173	26.7942	48.3969	0.154979	g
58.4827	1.76795	2.57719	0.00810673	0.0185225	0.773775	27.2129	57.4339	0.182441	g
63.5847	1.78858	2.53814	0.00823728	0.0190535	0.773248	27.6316	66.5738	0.209791	g
68.6867	1.80918	2.50026	0.00836641	0.0195915	0.772599	28.0502	75.8165	0.237032	g
73.7888	1.82972	2.46349	0.00849418	0.0201364	0.771837	28.4689	85.1618	0.264169	g
78.8908	1.85021	2.42779	0.00862067	0.0206883	0.770971	28.8875	94.6097	0.291202	g
83.9929	1.87063	2.39311	0.00874592	0.021247	0.770008	29.3062	104.16	0.318135	g
89.0949	1.89097	2.3594	0.00886998	0.0218126	0.768955	29.7249	113.812	0.34497	g
94.1969	1.91123	2.32663	0.0089929	0.0223849	0.767817	30.1435	123.566	0.371708	g
99.299	1.93141	2.29476	0.00911473	0.022964	0.766602	30.5622	133.422	0.398352	g
104.401	1.95149	2.26375	0.00923551	0.0235498	0.765315	30.9808	143.378	0.424902	g
109.503	1.97147	2.23357	0.00935528	0.0241421	0.76396	31.3995	153.435	0.451361	g
114.605	1.99135	2.20418	0.00947408	0.0247411	0.762544	31.8182	163.592	0.47773	g
119.707	2.01112	2.17555	0.00959195	0.0253466	0.761071	32.2368	173.849	0.504009	g
124.809	2.03078	2.14766	0.00970893	0.0259585	0.759545	32.6555	184.205	0.5302	g
129.911	2.05032	2.12048	0.00982504	0.0265769	0.75797	33.0741	194.66	0.556303	g
135.013	2.06974	2.09397	0.00994033	0.0272015	0.756352	33.4928	205.213	0.582321	g
140.115	2.08905	2.06812	0.0100548	0.0278325	0.754693	33.9115	215.863	0.608252	g
145.217	2.10823	2.0429	0.0101685	0.0284696	0.752997	34.3301	226.611	0.634099	g
150.319	2.12728	2.01828	0.0102815	0.0291129	0.751268	34.7488	237.454	0.659861	g
155.421	2.1462	1.99426	0.0103937	0.0297623	0.749509	35.1674	248.394	0.68554	g
160.523	2.165	1.97079	0.0105053	0.0304176	0.747724	35.5861	259.429	0.711136	g
165.626	2.18366	1.94788	0.0106162	0.0310789	0.745915	36.0048	270.558	0.736649	g
170.728	2.20219	1.92549	0.0107264	0.031746	0.744085	36.4234	281.782	0.76208	g
175.83	2.22059	1.90361	0.0108361	0.0324188	0.742237	36.8421	293.098	0.787429	g
180.932	2.23886	1.88222	0.0109451	0.0330974	0.740375	37.2607	304.508	0.812697	g
186.034	2.25699	1.86131	0.0110535	0.0337816	0.738499	37.6794	316.009	0.837884	g
191.136	2.27498	1.84085	0.0111614	0.0344713	0.736613	38.0981	327.601	0.862991	g
196.238	2.29284	1.82084	0.0112687	0.0351664	0.734718	38.5167	339.285	0.888018	g
201.34	2.31056	1.80126	0.0113755	0.0358669	0.732818	38.9354	351.058	0.912964	g
206.442	2.32815	1.7821	0.0114818	0.0365726	0.730913	39.354	362.921	0.937832	g
211.544	2.34561	1.76334	0.0115876	0.0372836	0.729007	39.7727	374.872	0.96262	g
216.646	2.36292	1.74497	0.0116929	0.0379996	0.7271	40.1914	386.911	0.987329	g
221.748	2.38011	1.72698	0.0117978	0.0387206	0.725194	40.61	399.038	1.01196	g
226.85	2.39716	1.70936	0.0119022	0.0394466	0.723292	41.0287	411.251	1.03651	g

Property Profiles for 3-methyl-1-butene

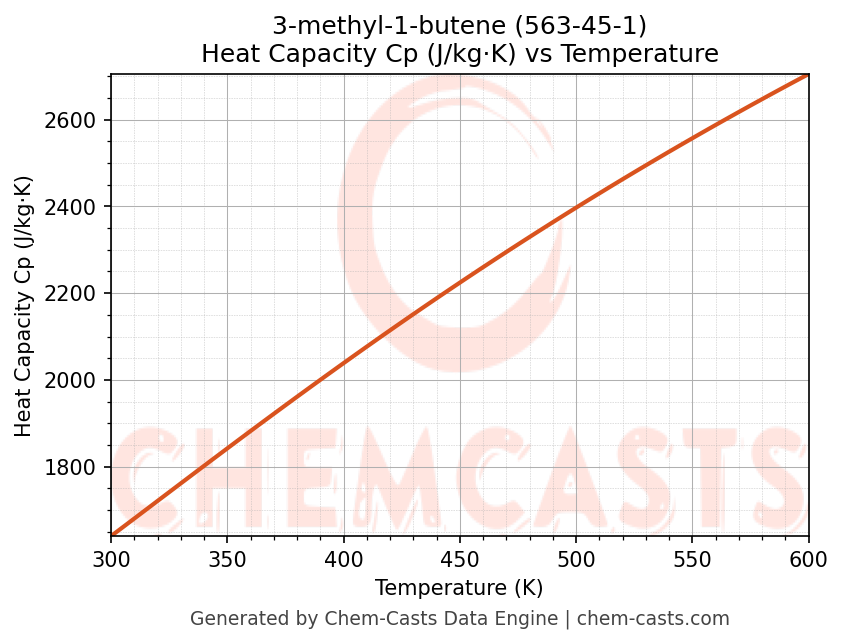

Heat Capacity (Cp) vs Temperature

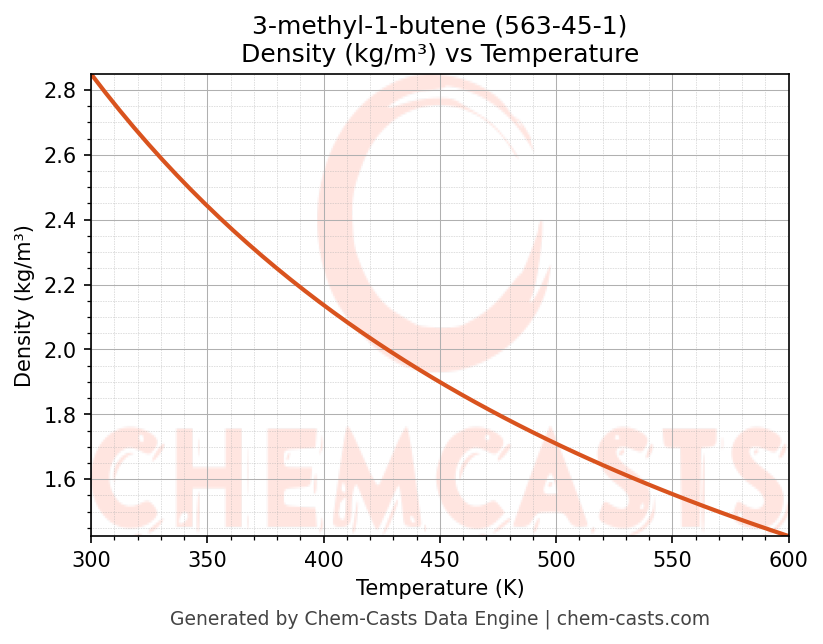

Density vs Temperature

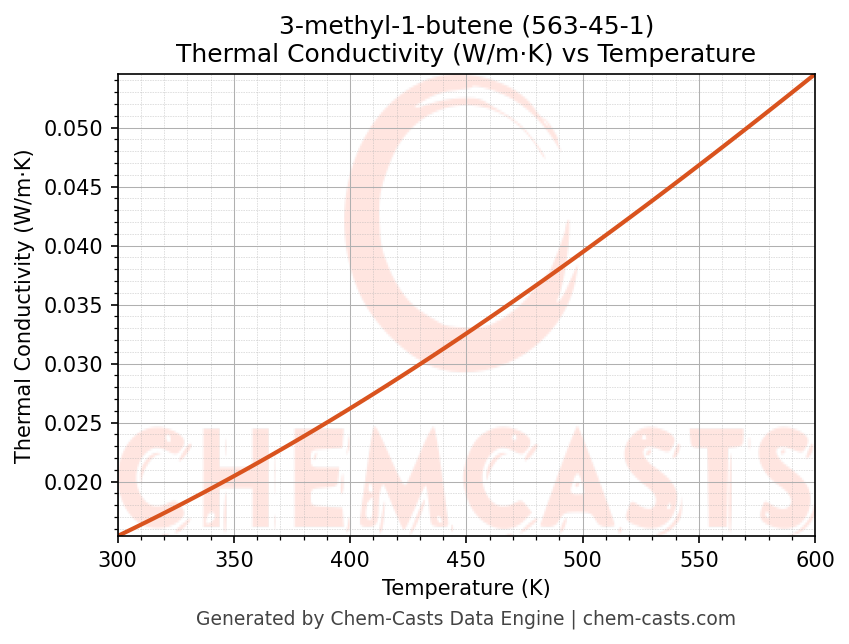

Thermal Conductivity vs Temperature

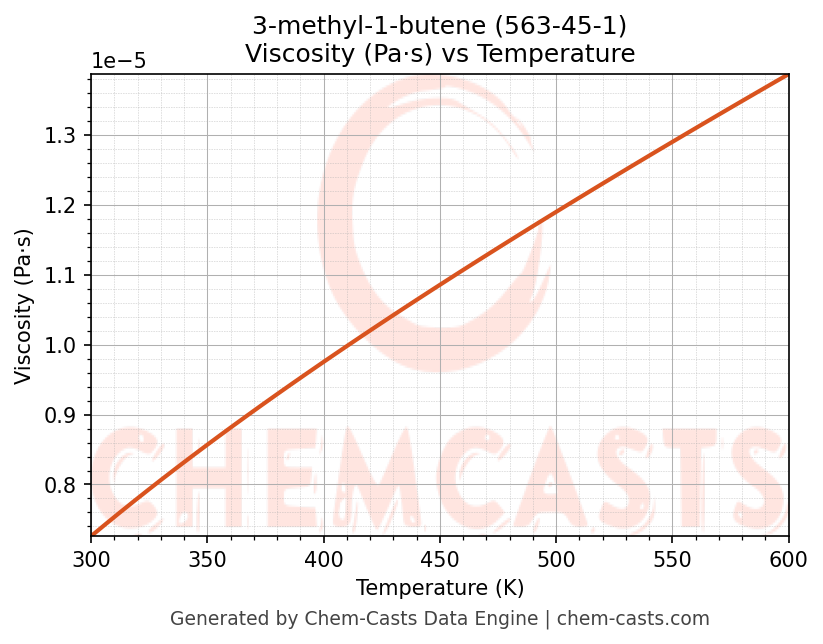

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 3-methyl-1-butene (CAS 563-45-1) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 3-methyl-1-butene and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 3-methyl-1-butene at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
