2-methyl-1-butene Thermodynamic Properties vs Temperature (CAS 563-46-2)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2-methyl-1-butene

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2-methyl-1-butene

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2-methyl-1-butene at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.89222	694.129	0.337842	0.119554	5.34714	0.101037	-95.7882	-0.349901	l
-18.048	1.91307	689.183	0.319223	0.118104	5.17083	0.101762	-86.0808	-0.311463	l
-12.9459	1.93382	684.184	0.302297	0.116654	5.01129	0.102506	-76.2673	-0.273374	l
-7.84388	1.95447	679.131	0.286862	0.115204	4.8667	0.103269	-66.3482	-0.235623	l
-2.74184	1.97502	674.022	0.272748	0.113754	4.73551	0.104051	-56.3239	-0.198199	l
2.3602	1.99548	668.852	0.259806	0.112304	4.61637	0.104856	-46.1951	-0.161091	l
7.46224	2.01584	663.621	0.247907	0.110854	4.50809	0.105682	-35.9621	-0.124289	l
12.5643	2.0361	658.323	0.23694	0.109404	4.40964	0.106533	-25.6254	-0.0877846	l
17.6663	2.05626	652.956	0.226807	0.107954	4.32012	0.107408	-15.1857	-0.0515685	l
22.7684	2.07633	647.515	0.217423	0.106504	4.23872	0.108311	-4.64336	-0.0156324	l
27.8704	2.09629	641.997	0.208711	0.105054	4.16471	0.109242	6.00112	0.0200315	l
32.9724	1.60048	2.79196	0.00723799	0.0149812	0.773257	25.1196	380.781	1.25194	g
38.0745	1.62124	2.74619	0.007352	0.0154526	0.771346	25.5383	389.09	1.27885	g
43.1765	1.64204	2.7019	0.00746544	0.0159313	0.769461	25.9569	397.5	1.30566	g
48.2786	1.66289	2.65901	0.0075783	0.0164173	0.767598	26.3756	406.014	1.33236	g
53.3806	1.68375	2.61746	0.00769061	0.0169103	0.765752	26.7942	414.631	1.35896	g
58.4827	1.70464	2.57719	0.00780235	0.0174104	0.763919	27.2129	423.352	1.38545	g
63.5847	1.72552	2.53814	0.00791353	0.0179176	0.762097	27.6316	432.176	1.41186	g
68.6867	1.74638	2.50026	0.00802416	0.0184317	0.760282	28.0502	441.104	1.43818	g
73.7888	1.76723	2.46349	0.00813425	0.0189527	0.758471	28.4689	450.136	1.4644	g
78.8908	1.78804	2.42779	0.0082438	0.0194806	0.756662	28.8875	459.272	1.49054	g
83.9929	1.80881	2.39311	0.00835281	0.0200154	0.754852	29.3062	468.512	1.5166	g
89.0949	1.82953	2.3594	0.0084613	0.0205569	0.75304	29.7249	477.855	1.54258	g
94.1969	1.85019	2.32663	0.00856926	0.0211052	0.751224	30.1435	487.302	1.56847	g
99.299	1.87077	2.29476	0.0086767	0.0216601	0.749403	30.5622	496.852	1.59429	g
104.401	1.89129	2.26375	0.00878362	0.0222217	0.747575	30.9808	506.506	1.62003	g
109.503	1.91172	2.23357	0.00889004	0.0227898	0.74574	31.3995	516.262	1.6457	g
114.605	1.93206	2.20418	0.00899595	0.0233644	0.743896	31.8182	526.12	1.67129	g
119.707	1.95231	2.17555	0.00910136	0.0239456	0.742045	32.2368	536.08	1.69681	g
124.809	1.97246	2.14766	0.00920628	0.0245331	0.740185	32.6555	546.142	1.72226	g
129.911	1.9925	2.12048	0.00931071	0.0251269	0.738316	33.0741	556.304	1.74763	g
135.013	2.01244	2.09397	0.00941466	0.0257271	0.736439	33.4928	566.568	1.77294	g
140.115	2.03226	2.06812	0.00951813	0.0263335	0.734553	33.9115	576.931	1.79817	g
145.217	2.05197	2.0429	0.00962112	0.026946	0.73266	34.3301	587.394	1.82333	g
150.319	2.07156	2.01828	0.00972365	0.0275647	0.730759	34.7488	597.956	1.84842	g
155.421	2.09103	1.99426	0.00982571	0.0281894	0.728851	35.1674	608.617	1.87345	g
160.523	2.11037	1.97079	0.00992732	0.02882	0.726936	35.5861	619.375	1.8984	g
165.626	2.12958	1.94788	0.0100285	0.0294565	0.725016	36.0048	630.231	1.92329	g
170.728	2.14867	1.92549	0.0101292	0.0300989	0.723091	36.4234	641.183	1.9481	g
175.83	2.16762	1.90361	0.0102294	0.0307469	0.721162	36.8421	652.231	1.97285	g
180.932	2.18644	1.88222	0.0103292	0.0314007	0.719229	37.2607	663.375	1.99753	g
186.034	2.20513	1.86131	0.0104286	0.03206	0.717294	37.6794	674.613	2.02214	g
191.136	2.22369	1.84085	0.0105276	0.0327249	0.715358	38.0981	685.946	2.04669	g
196.238	2.2421	1.82084	0.0106261	0.0333952	0.71342	38.5167	697.372	2.07116	g
201.34	2.26038	1.80126	0.0107242	0.0340708	0.711483	38.9354	708.89	2.09557	g
206.442	2.27853	1.7821	0.0108219	0.0347517	0.709546	39.354	720.501	2.11991	g
211.544	2.29654	1.76334	0.0109191	0.0354378	0.707611	39.7727	732.203	2.14418	g
216.646	2.31441	1.74497	0.011016	0.036129	0.705679	40.1914	743.997	2.16838	g
221.748	2.33214	1.72698	0.0111125	0.0368252	0.703751	40.61	755.88	2.19252	g
226.85	2.34973	1.70936	0.0112085	0.0375264	0.701826	41.0287	767.852	2.21659	g

Property Profiles for 2-methyl-1-butene

Heat Capacity (Cp) vs Temperature

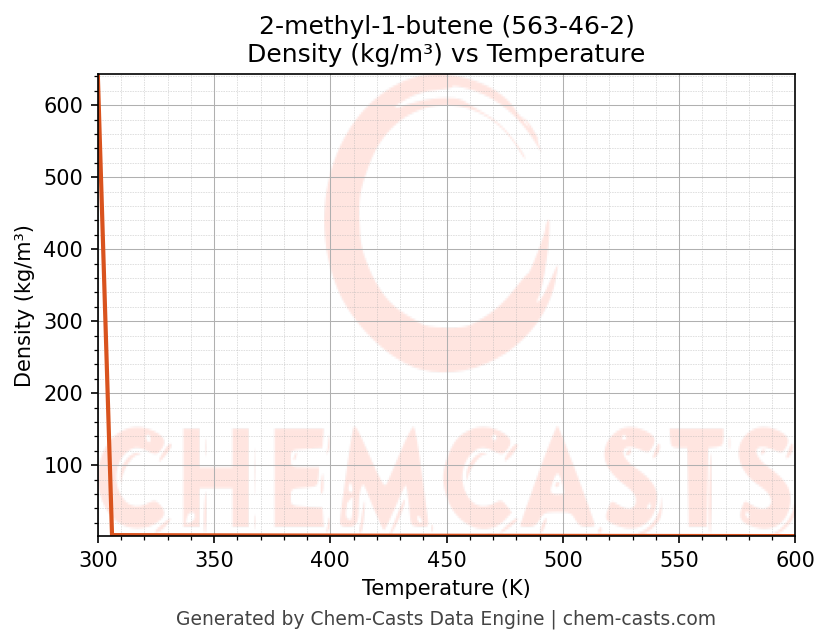

Density vs Temperature

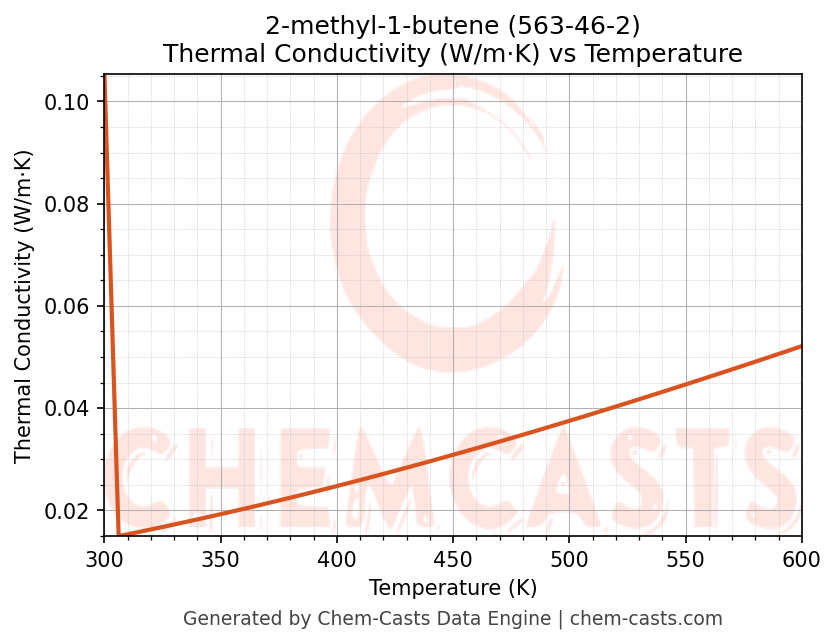

Thermal Conductivity vs Temperature

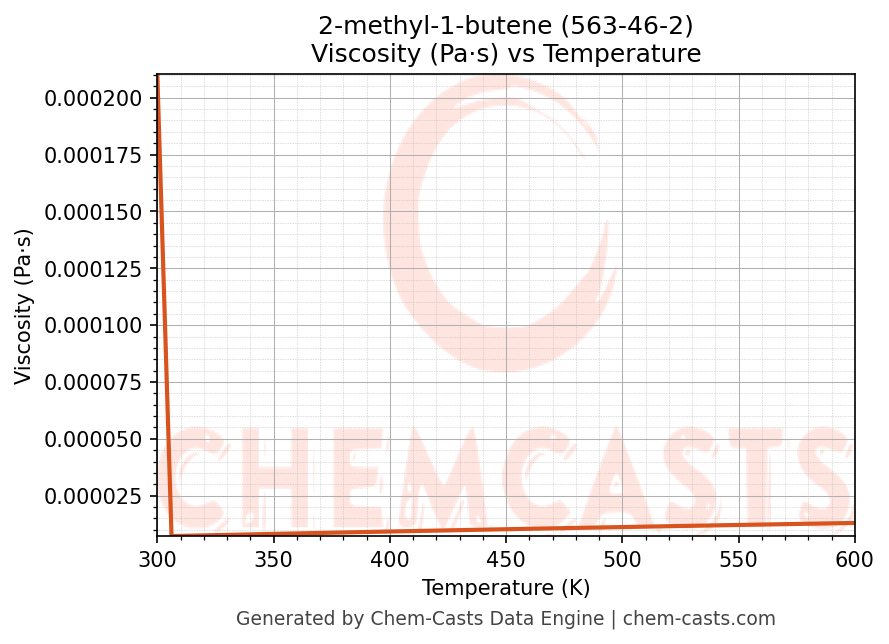

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2-methyl-1-butene (CAS 563-46-2) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2-methyl-1-butene and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2-methyl-1-butene at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
