2,3-dimethylpentane Thermodynamic Properties vs Temperature (CAS 565-59-3)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for 2,3-dimethylpentane

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for 2,3-dimethylpentane

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of 2,3-dimethylpentane at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	1.97622	727.704	0.827986	0.11732	13.9472	0.137696	-99.4886	-0.363472	l
-18.048	1.99537	723.993	0.758987	0.115786	13.0798	0.138402	-89.357	-0.323354	l
-12.9459	2.01448	720.252	0.698142	0.114257	12.309	0.139121	-79.1278	-0.283652	l
-7.84388	2.03357	716.48	0.644265	0.112749	11.6201	0.139853	-68.8011	-0.244349	l
-2.74184	2.05264	712.676	0.596371	0.111262	11.0022	0.1406	-58.3771	-0.205432	l
2.3602	2.07167	708.84	0.553637	0.109796	10.4462	0.141361	-47.8559	-0.166887	l
7.46224	2.09068	704.969	0.515372	0.108351	9.94435	0.142137	-37.2376	-0.1287	l
12.5643	2.10967	701.063	0.480994	0.106927	9.49001	0.142929	-26.5224	-0.090858	l
17.6663	2.12862	697.121	0.450009	0.105524	9.07759	0.143737	-15.7104	-0.0533504	l
22.7684	2.14755	693.142	0.421999	0.104142	8.70224	0.144562	-4.80178	-0.0161658	l
27.8704	2.16646	689.123	0.396603	0.10278	8.35979	0.145405	6.20336	0.0207066	l
32.9724	2.18533	685.064	0.373514	0.10144	8.04663	0.146267	17.3049	0.0572767	l
38.0745	2.20418	680.963	0.352467	0.100121	7.75963	0.147147	28.5026	0.0935541	l
43.1765	2.223	676.818	0.333233	0.0988227	7.49604	0.148049	39.7965	0.129548	l
48.2786	2.2418	672.627	0.315613	0.0975454	7.25346	0.148971	51.1863	0.165267	l
53.3806	2.26057	668.388	0.299434	0.0962891	7.02978	0.149916	62.672	0.200719	l
58.4827	2.27931	664.1	0.284545	0.0950538	6.82315	0.150884	74.2533	0.235912	l
63.5847	2.29803	659.76	0.270813	0.0938395	6.63192	0.151876	85.9302	0.270854	l
68.6867	2.31672	655.365	0.258122	0.0926462	6.45462	0.152895	97.7025	0.305552	l
73.7888	2.33538	650.913	0.246369	0.0914738	6.28994	0.153941	109.57	0.340012	l
78.8908	2.35401	646.401	0.235463	0.0903224	6.13672	0.155015	121.533	0.374241	l
83.9929	2.37262	641.826	0.225324	0.089192	5.9939	0.15612	133.591	0.408246	l
89.0949	2.39121	637.184	0.215877	0.0880826	5.86048	0.157258	145.743	0.442033	l
94.1969	1.95379	3.32416	0.00776061	0.0189688	0.799346	30.1435	460.277	1.3085	g
99.299	1.97818	3.27863	0.00786031	0.0195055	0.797167	30.5622	470.383	1.33582	g
104.401	2.00239	3.23432	0.00795955	0.020048	0.794998	30.9808	480.611	1.36309	g
109.503	2.02641	3.1912	0.00805834	0.0205963	0.792837	31.3995	490.959	1.39032	g
114.605	2.05026	3.14921	0.00815669	0.0211506	0.790682	31.8182	501.426	1.41749	g
119.707	2.07393	3.10831	0.0082546	0.0217106	0.788531	32.2368	512.013	1.44462	g
124.809	2.09742	3.06846	0.00835208	0.0222764	0.786384	32.6555	522.718	1.47169	g
129.911	2.12073	3.02962	0.00844912	0.022848	0.784238	33.0741	533.54	1.49871	g
135.013	2.14387	2.99175	0.00854573	0.0234255	0.782093	33.4928	544.479	1.52568	g
140.115	2.16682	2.95481	0.00864192	0.0240087	0.779948	33.9115	555.534	1.5526	g
145.217	2.18961	2.91878	0.00873769	0.0245977	0.777802	34.3301	566.704	1.57946	g
150.319	2.21222	2.88361	0.00883305	0.0251924	0.775654	34.7488	577.987	1.60626	g
155.421	2.23465	2.84928	0.00892799	0.0257929	0.773504	35.1674	589.385	1.63302	g
160.523	2.25692	2.81576	0.00902252	0.0263992	0.771351	35.5861	600.894	1.65971	g
165.626	2.27901	2.78302	0.00911664	0.0270112	0.769195	36.0048	612.516	1.68636	g
170.728	2.30093	2.75103	0.00921037	0.027629	0.767035	36.4234	624.248	1.71294	g
175.83	2.32268	2.71977	0.00930369	0.0282524	0.764872	36.8421	636.09	1.73947	g
180.932	2.34426	2.68921	0.00939662	0.0288816	0.762705	37.2607	648.042	1.76593	g
186.034	2.36567	2.65933	0.00948916	0.0295164	0.760534	37.6794	660.101	1.79235	g
191.136	2.38692	2.63011	0.00958132	0.0301569	0.758361	38.0981	672.269	1.8187	g
196.238	2.40799	2.60152	0.00967309	0.030803	0.756184	38.5167	684.544	1.84499	g
201.34	2.42891	2.57354	0.00976448	0.0314548	0.754004	38.9354	696.924	1.87122	g
206.442	2.44966	2.54617	0.00985549	0.0321121	0.751821	39.354	709.41	1.8974	g
211.544	2.47024	2.51936	0.00994614	0.032775	0.749637	39.7727	722	1.92351	g
216.646	2.49067	2.49312	0.0100364	0.0334435	0.74745	40.1914	734.694	1.94956	g
221.748	2.51093	2.46742	0.0101263	0.0341174	0.745263	40.61	747.49	1.97555	g
226.85	2.53103	2.44224	0.0102159	0.0347969	0.743074	41.0287	760.389	2.00148	g

Property Profiles for 2,3-dimethylpentane

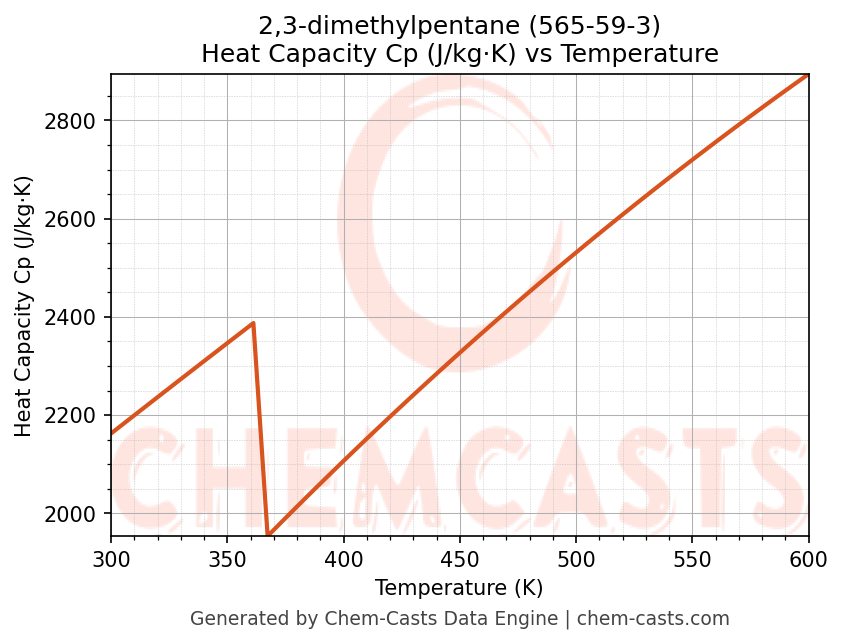

Heat Capacity (Cp) vs Temperature

Density vs Temperature

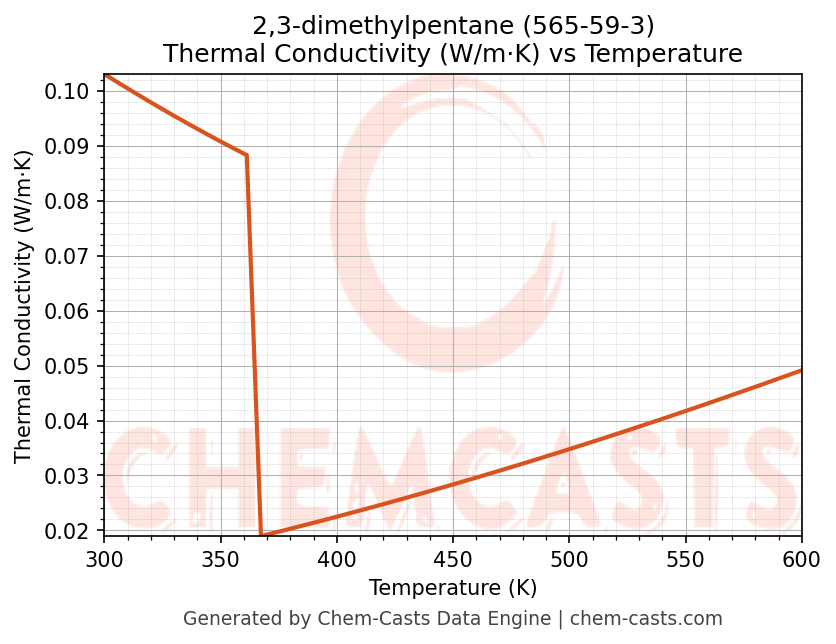

Thermal Conductivity vs Temperature

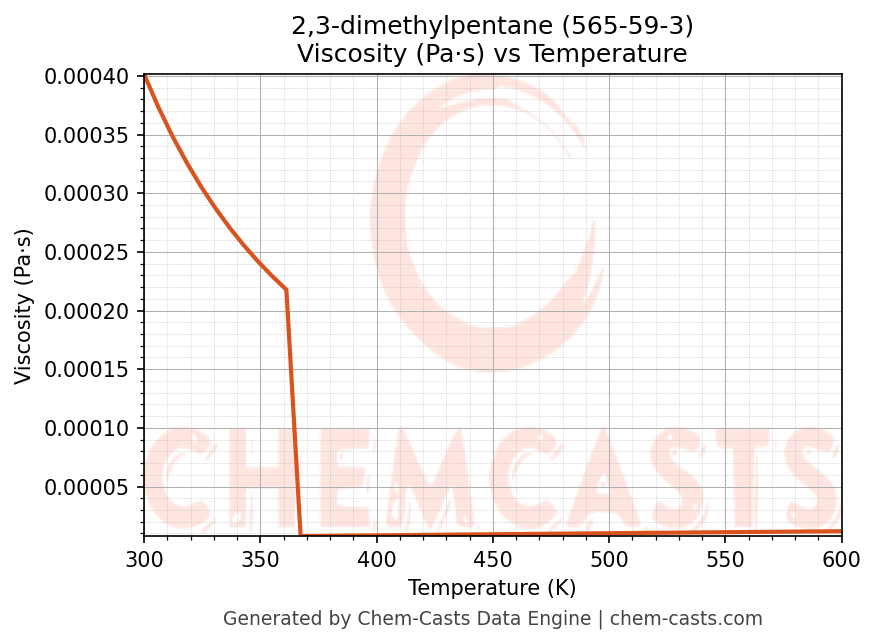

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of 2,3-dimethylpentane (CAS 565-59-3) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of 2,3-dimethylpentane and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of 2,3-dimethylpentane at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
