hydrochloric acid Thermodynamic Properties vs Temperature (CAS 7647-01-0)

Analyze how thermophysical properties change over a temperature range at a constant pressure of 1 atm.

Related Calculators for hydrochloric acid

Pure Component Properties

Get properties at a single T and P.

Properties vs. Pressure

Analyze properties at constant temperature.

Input Conditions

Define the chemical and range for the property profile.

Property Profile for hydrochloric acid

Calculated properties vs. Temperature

Profile Data

Equilibrium Thermodynamic and Transport Properties of hydrochloric acid at 1.01325 bar over -23.15–226.85 °C
Temperature (°C)	Specific heat capacity (kJ/kg·K)	Density (kg/m³)	Dynamic viscosity (cP)	Thermal conductivity (W/m·K)	Prandtl number ()	Molar volume (m³/kmol)	Specific enthalpy (kJ)	Specific entropy (kJ/kg·K)	Phase
-23.15	0.798812	1.77734	0.0124903	0.0150458	0.663135	20.5143	-38.7906	-0.141905	g
-18.048	0.798817	1.74179	0.0127513	0.0153843	0.662103	20.933	-34.6739	-0.125604	g
-12.9459	0.798823	1.70764	0.0130116	0.015723	0.661069	21.3517	-30.559	-0.109633	g
-7.84388	0.798829	1.6748	0.0132711	0.016062	0.660025	21.7703	-26.4457	-0.093978	g
-2.74184	0.798835	1.6432	0.0135298	0.0164016	0.658966	22.189	-22.334	-0.0786271	g
2.3602	0.798842	1.61277	0.0137876	0.0167416	0.657889	22.6076	-18.2237	-0.0635685	g
7.46224	0.798851	1.58345	0.0140445	0.0170822	0.656791	23.0263	-14.1148	-0.048791	g
12.5643	0.79886	1.55517	0.0143005	0.0174235	0.655672	23.445	-10.0072	-0.0342843	g
17.6663	0.79887	1.52789	0.0145556	0.0177654	0.65453	23.8636	-5.90069	-0.0200385	g
22.7684	0.798882	1.50155	0.0148097	0.0181081	0.653366	24.2823	-1.79535	-0.00604427	g
27.8704	0.798895	1.4761	0.0150628	0.0184515	0.652178	24.7009	2.30896	0.00770724	g
32.9724	0.79891	1.45149	0.015315	0.0187956	0.650965	25.1196	6.41228	0.0212244	g
38.0745	0.798927	1.4277	0.0155661	0.0191405	0.649729	25.5383	10.5147	0.0345152	g
43.1765	0.798947	1.40467	0.0158161	0.0194862	0.64847	25.9569	14.6163	0.0475872	g
48.2786	0.798968	1.38237	0.016065	0.0198326	0.647189	26.3756	18.7171	0.0604475	g
53.3806	0.798993	1.36078	0.0163128	0.0201797	0.645886	26.7942	22.8171	0.073103	g
58.4827	0.799021	1.33984	0.0165594	0.0205276	0.644565	27.2129	26.9165	0.0855603	g
63.5847	0.799052	1.31954	0.016805	0.0208761	0.643226	27.6316	31.0152	0.0978255	g
68.6867	0.799086	1.29984	0.0170493	0.0212252	0.641872	28.0502	35.1134	0.109905	g
73.7888	0.799124	1.28073	0.0172925	0.021575	0.640506	28.4689	39.2111	0.121803	g
78.8908	0.799167	1.26217	0.0175346	0.0219253	0.639129	28.8875	43.3084	0.133527	g
83.9929	0.799214	1.24414	0.0177755	0.0222761	0.637743	29.3062	47.4052	0.145081	g
89.0949	0.799266	1.22661	0.0180153	0.0226275	0.636351	29.7249	51.5016	0.15647	g
94.1969	0.799323	1.20958	0.0182539	0.0229793	0.634953	30.1435	55.5978	0.167699	g
99.299	0.799385	1.19301	0.0184913	0.0233315	0.633552	30.5622	59.6937	0.178772	g
104.401	0.799453	1.17689	0.0187276	0.023684	0.63215	30.9808	63.7895	0.189694	g
109.503	0.799527	1.16119	0.0189627	0.0240369	0.630747	31.3995	67.885	0.200469	g
114.605	0.799607	1.14592	0.0191966	0.02439	0.629346	31.8182	71.9805	0.211101	g
119.707	0.799693	1.13103	0.0194294	0.0247434	0.627948	32.2368	76.076	0.221594	g
124.809	0.799787	1.11653	0.019661	0.025097	0.626554	32.6555	80.1714	0.231952	g
129.911	0.799888	1.1024	0.0198915	0.0254507	0.625167	33.0741	84.2669	0.242178	g
135.013	0.799996	1.08862	0.0201208	0.0258045	0.623788	33.4928	88.3626	0.252275	g
140.115	0.800112	1.07518	0.0203489	0.0261584	0.622418	33.9115	92.4584	0.262248	g
145.217	0.800236	1.06207	0.020576	0.0265123	0.621058	34.3301	96.5545	0.272099	g
150.319	0.800368	1.04927	0.020802	0.0268661	0.61971	34.7488	100.651	0.281831	g
155.421	0.800508	1.03678	0.0210268	0.02722	0.618374	35.1674	104.747	0.291447	g
160.523	0.800657	1.02458	0.0212506	0.0275737	0.617052	35.5861	108.845	0.30095	g
165.626	0.800816	1.01267	0.0214732	0.0279274	0.615744	36.0048	112.942	0.310344	g
170.728	0.800983	1.00103	0.0216948	0.0282808	0.614451	36.4234	117.04	0.31963	g
175.83	0.801159	0.989655	0.0219154	0.0286341	0.613173	36.8421	121.139	0.328811	g
180.932	0.801346	0.978535	0.0221348	0.0289872	0.611912	37.2607	125.238	0.337889	g
186.034	0.801542	0.967662	0.0223532	0.0293401	0.610667	37.6794	129.338	0.346868	g
191.136	0.801747	0.957029	0.0225706	0.0296927	0.60944	38.0981	133.439	0.355749	g
196.238	0.801963	0.946626	0.0227869	0.030045	0.608231	38.5167	137.54	0.364535	g
201.34	0.802189	0.936447	0.0230023	0.030397	0.607039	38.9354	141.643	0.373228	g
206.442	0.802426	0.926485	0.0232166	0.0307487	0.605867	39.354	145.746	0.38183	g
211.544	0.802672	0.916733	0.02343	0.0311	0.604714	39.7727	149.85	0.390343	g
216.646	0.80293	0.907183	0.0236424	0.0314509	0.60358	40.1914	153.956	0.398768	g
221.748	0.803198	0.897831	0.0238538	0.0318015	0.602465	40.61	158.062	0.407109	g
226.85	0.803476	0.88867	0.0240643	0.0321517	0.60137	41.0287	162.17	0.415367	g

Property Profiles for hydrochloric acid

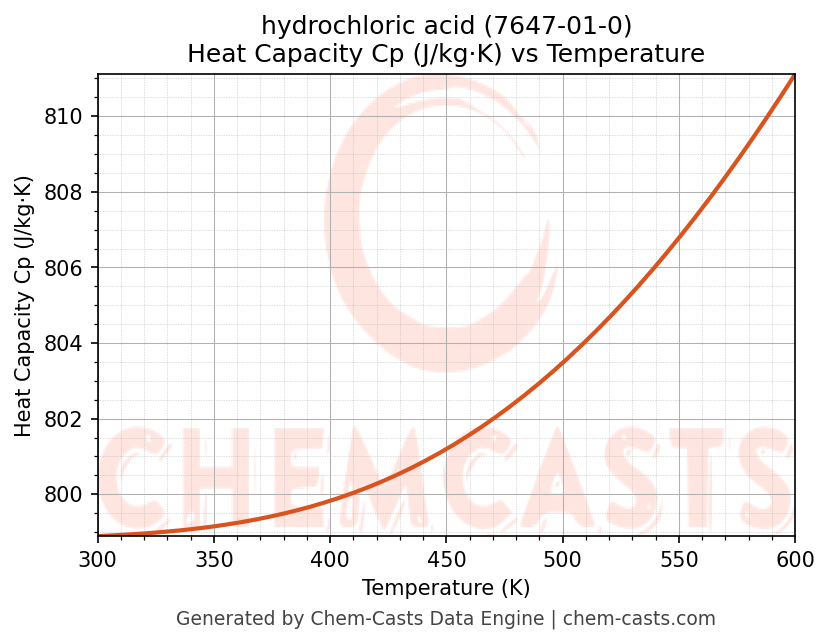

Heat Capacity (Cp) vs Temperature

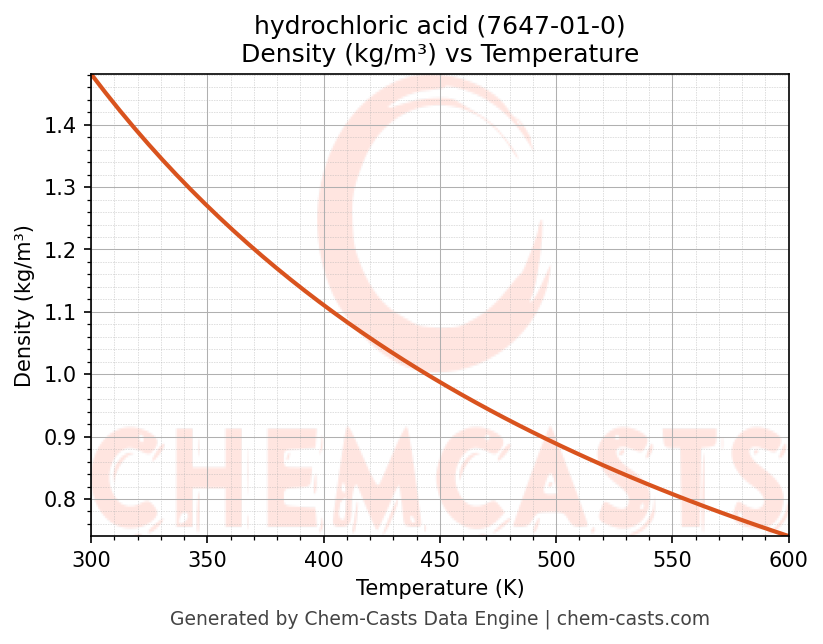

Density vs Temperature

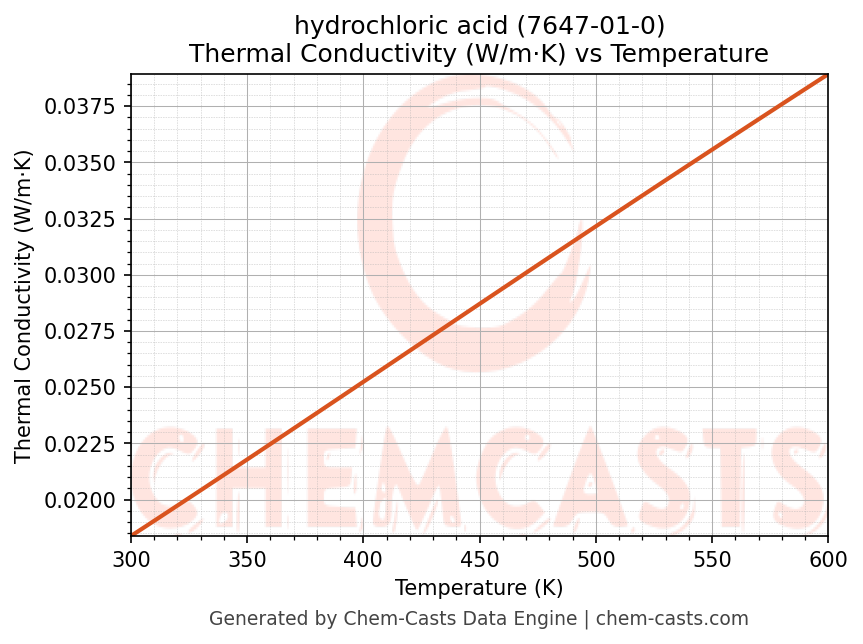

Thermal Conductivity vs Temperature

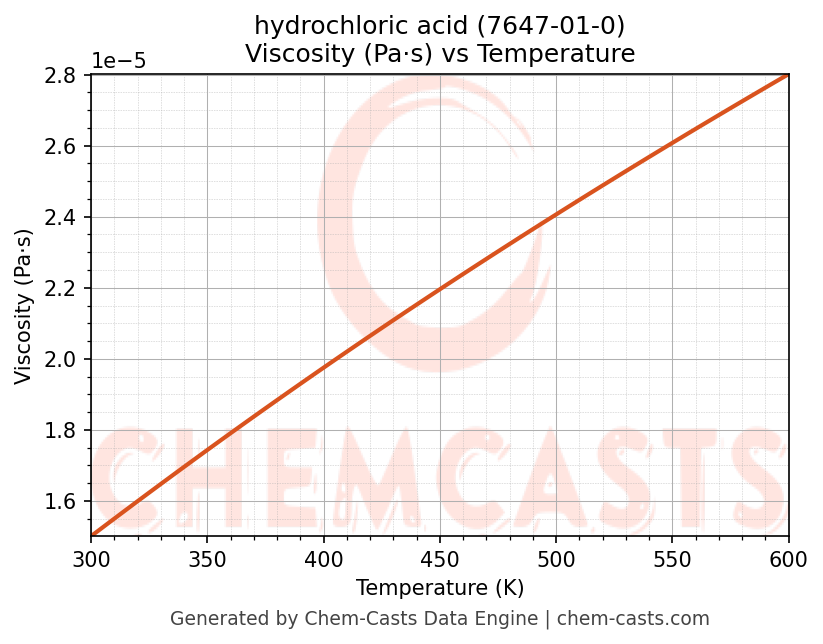

Viscosity vs Temperature

Thermodynamic Property Profile at Constant Pressure

This page presents the temperature-dependent thermodynamic and transport properties of hydrochloric acid (CAS 7647-01-0) calculated at a constant pressure of 1 atm (101325 Pa) over the temperature range 250-500 K.

The properties shown - specific heat capacity (Cp), density (ρ), dynamic viscosity (μ), thermal conductivity (k), Prandtl number (Pr), molar volume (Vm), specific enthalpy (H), and specific entropy (S) - are among the most commonly used parameters in chemical engineering calculations, process simulation, and thermal system design.

All values are generated programmatically using validated thermodynamic correlations and equations of state and represent equilibrium properties at the specified pressure.

Understanding the Property Trends

Specific heat capacity (Cp) indicates the amount of energy required to raise the temperature of hydrochloric acid and is critical for energy balance and heat-exchanger design.
Density (ρ) and molar volume (Vm) describe volumetric behavior and are required for flow calculations, equipment sizing, and storage design.
Dynamic viscosity (μ) governs fluid flow resistance, influencing Reynolds number and pressure drop.
Thermal conductivity (k) and Prandtl number (Pr) are essential inputs for convective heat-transfer correlations.
Specific enthalpy (H) and specific entropy (S) are fundamental thermodynamic properties used in process modeling, compression, and expansion analysis.

Property trends with temperature may vary depending on molecular structure, intermolecular interactions, and phase stability.

Engineering Applications

The temperature-dependent properties of hydrochloric acid at atmospheric pressure are commonly required in:

Heat exchanger and reactor design
Process simulation and thermodynamic modeling
Fluid flow and pressure-drop calculations
Energy balance and equipment sizing
Chemical engineering education and research

These profiles are particularly useful when evaluating system performance over a wide operating temperature range under near-ambient pressure conditions.

Frequently Asked Questions

At what pressure are these properties calculated?
All properties on this page are calculated at a constant pressure of 1 atm (101325 Pa).

Can these values be used in process simulation software?
Yes. The data is suitable for preliminary design, validation, and educational use. For licensed simulators, vendor-specific property packages should be referenced.

Can I change the pressure or temperature range?
Yes. Use the interactive controls above to generate custom property profiles at different pressures or temperature ranges.
